As a clean energy source, solar energy is gradually used in production and life in various industries. Among them, power generation is the most important function of solar energy applications. Building solar power systems in wide open areas can maximize the use of this clean energy. Building a solar roof in an outdoor parking lot can not only provide shade and heat insulation, but also use the electricity stored during the day to generate electricity at night for use in the parking lot. Moreover, with the popularity of new energy vehicles, solar power can be used to charge cars and facilitate car travel. Steel structures metal buildings are the best choice for building solar parking lots due to their strong, load-bearing, earthquake resistance, safety, and quick installation advantages.
WhatsApp：+86-18923185601
Email：Jenny11liyou@gmail.com
| Quantity: | |
|---|---|
LiYou Steel designs innovative metal parking lots with solar canopy systems that combine vehicle protection with renewable energy production. Our steel-framed solar carports deliver exceptional durability and energy efficiency while providing cost-effective shade solutions for commercial and public parking areas.
✅ Superior Structural Design
Q355B high-strength steel framework
15-30° optimal tilt angles for maximum solar efficiency
Wind resistance up to 150km/h (site-specific engineering)
Snow load capacity up to 1.2kN/m²
✅ Solar Integration Advantages
✔ Pre-engineered PV mounting system
✔ Cable management integration
✔ EV charging ready infrastructure
✔ Dual revenue potential (parking fees + energy sales)
✅ Construction & Economic Benefits
50% faster installation vs concrete structures
Modular prefabricated components
Low maintenance aluminum-zinc coated steel
5-8 year ROI through energy generation
| Component | Specification |
|---|---|
| Structural Frame | Galvanized steel columns/beams |
| Solar Support | Adjustable aluminum rails |
| PV Coverage | 60-90% roof area utilization |
| Clearance Height | 2.5-4.5m (vehicle-specific) |
| Fire Rating | Class A fire-resistant materials |

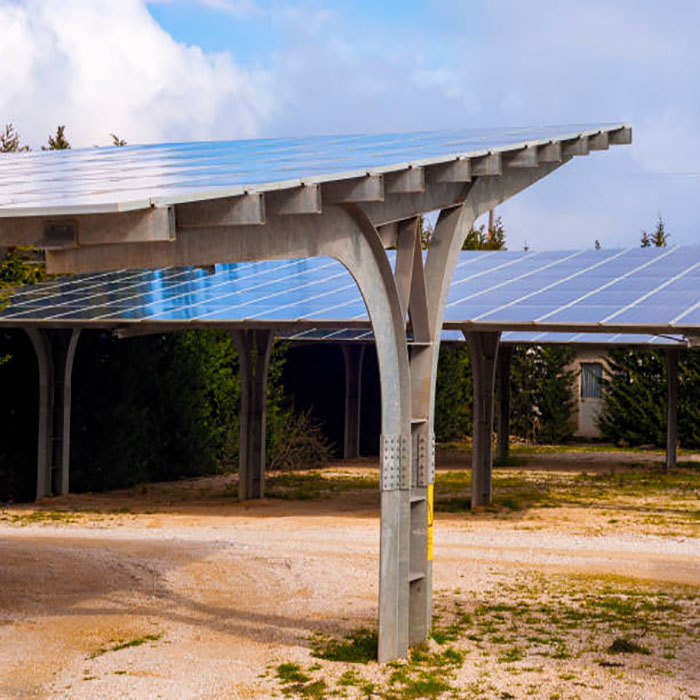

Single Cantilever Design
One-sided column support
5-8m canopy spans
Ideal for perimeter parking rows
Double Cantilever System
Central column alignment
10-16m coverage width
Maximum space efficiency

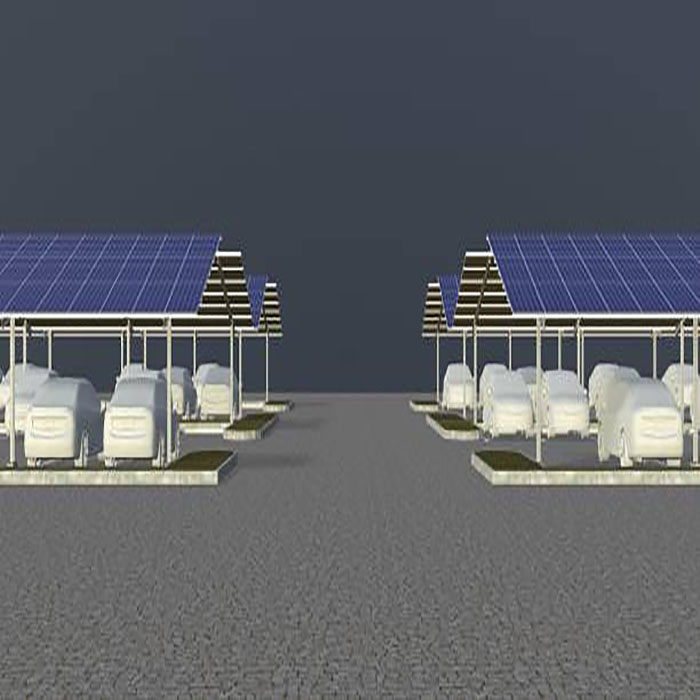

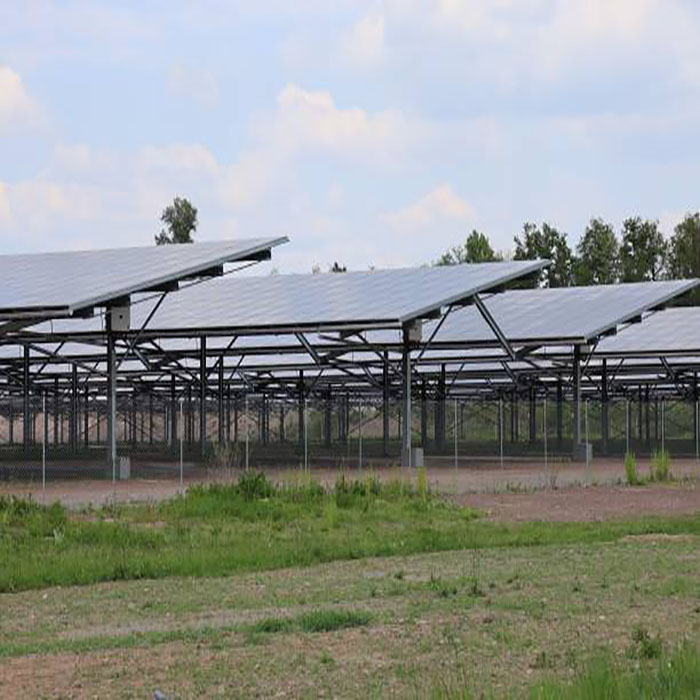

Solar Array Parking Lots
Multiple connected units
100-500+ parking capacity
Utility-scale power generation
Premium EV Stations
Integrated power distribution
Smart monitoring systems
Architectural finishes
Location: Guangdong Industrial Park
Structure: 120m×60m double cantilever
Features:
1.8MW solar array (4,500 panels)
24 EV charging stations
Smart lighting system
Benefits:
Generates 2.1M kWh annually
30% temperature reduction under canopy
18% internal rate of return
✔ Turnkey EPC services (structure-to-solar)
✔ TUV/UL certified components
✔ Custom engineering for local conditions
✔ BIM coordination with electrical systems
✔ 20-year performance warranty
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Steel Frame House |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc. | |
Standard: | Type: |
GB | Steel Structure Frame |
Size: | Color: |
Up to Customer's Requirement | Graywhite, Blue, Red, etc.. |
Roof & Wall Material: | Insulation: |
Sandwich Panel | EPS, Rockwool, Glass wool, PU etc.. |
Door & Windows: | Technology: |
Steel Door, Aluminum Sliding Window, PVC Window | Welded steel, Hot Rolled Steel |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Big Metal Building Homes |
Components | Specification |
Anchor Bolt | M30 |
High Strength Bolt | M20，10.9S |
Common Bolt | M16 |
Galvanized Bolt | M12 |
Shear Nail | M16 |
Steel Column(Q345B) | HN600X200X10X15 |
Steel Column(Q345B) | HN300X150X6.5X9 |
Roof Column(Q345B) | HN350X175X6X9 |
Floor Main Beam(Q345B) | HN500X200X9X14 |
Floor Second Beam(Q345B) | HN350X175X6X9 |
Stair | ∅16-bar+2.5mm Chequered Plate |
Tie Rod | ∅89*3.0 |
Horizontal Support | ∅16 |
Roof Purlin（Galvanized) | C180*60*20*2.0 |
Wall Purlin（Galvanized) | C180*60*20*2.0 |
Connecting Plate | 6mm～20mm Steel Sheet |
Paint | 2 Times Spray Paint |
Roof Tile- EPS Sandwich panel | 50mm Color Steel Thickness: 0.426 |
FRP Skylight Panel | Fiber Glass Reinforced Polyester |
Outside Wall Panel -- EPS Sandwich panel | 50mm Color Steel Thickness: 0.426 |
Floor Decking | 1.5mm Galvanized Steel Sheet |
Stair Handrail | 口80*40+口40+口30+口20 |
Gutter | 2.0mm Galvanized Gutter |
Down Pipe | ∅110PVC |
Trimming | 1.0mm Galvanized Steel Sheet |
Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
