PPGI Sandwich Panel For Storage Warehouse

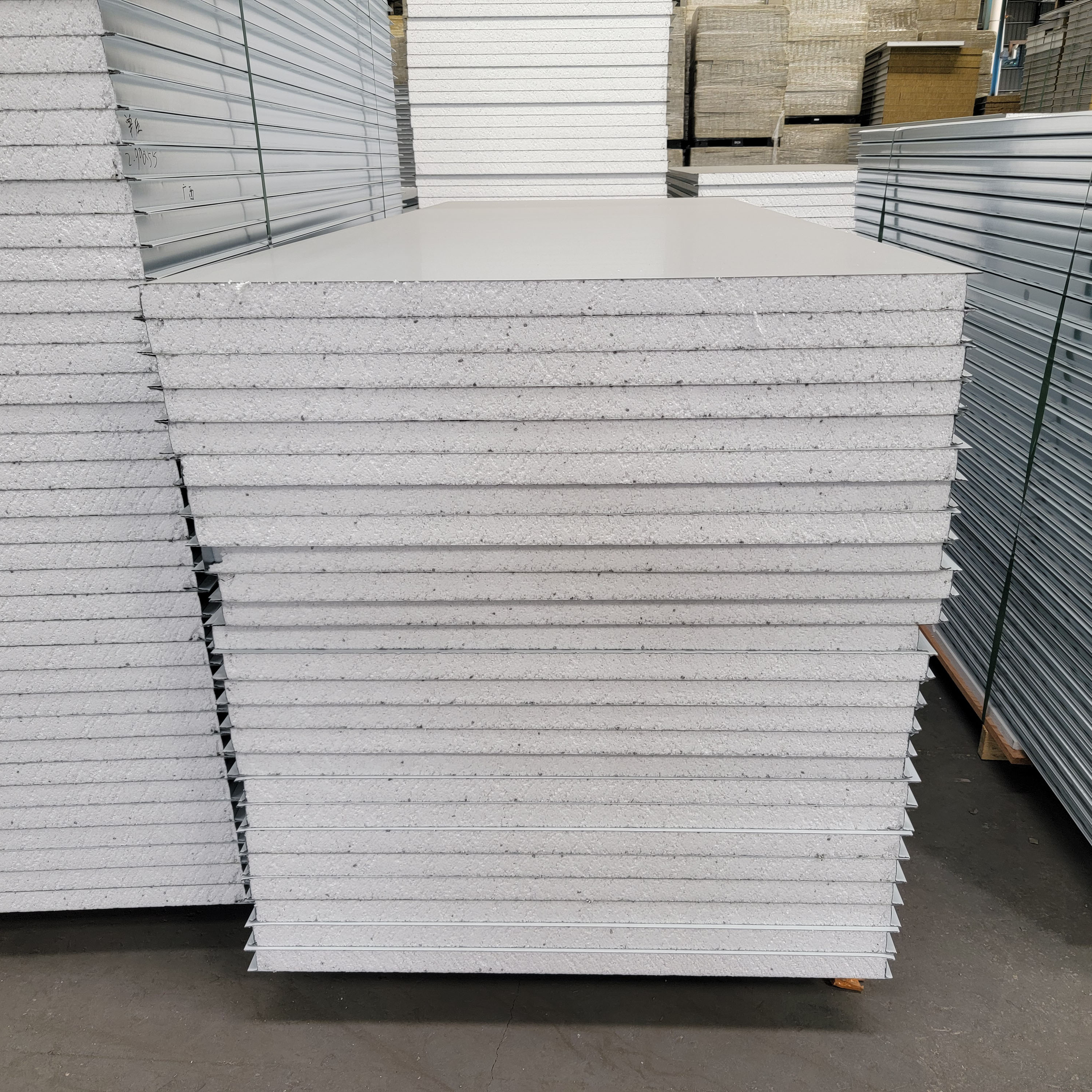

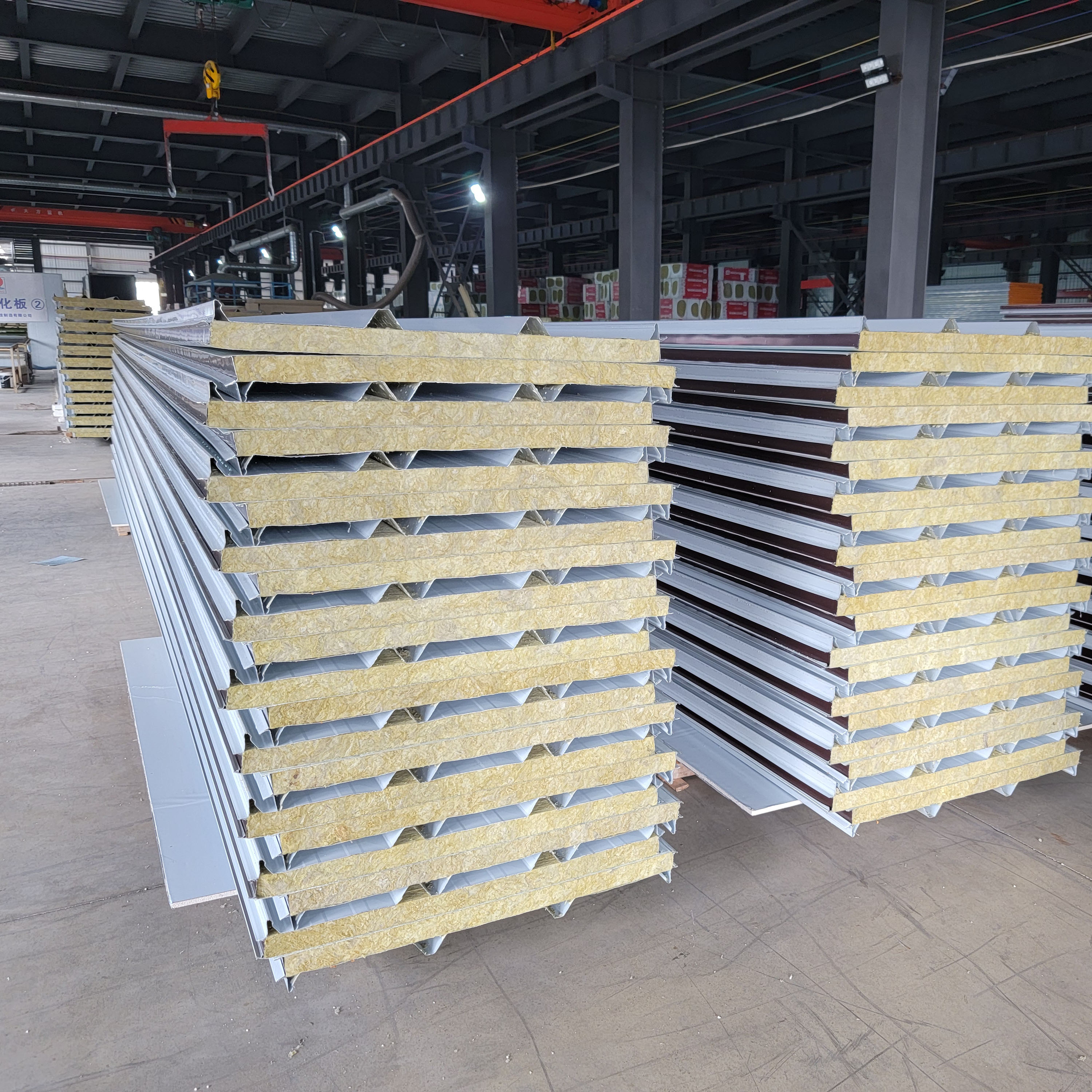

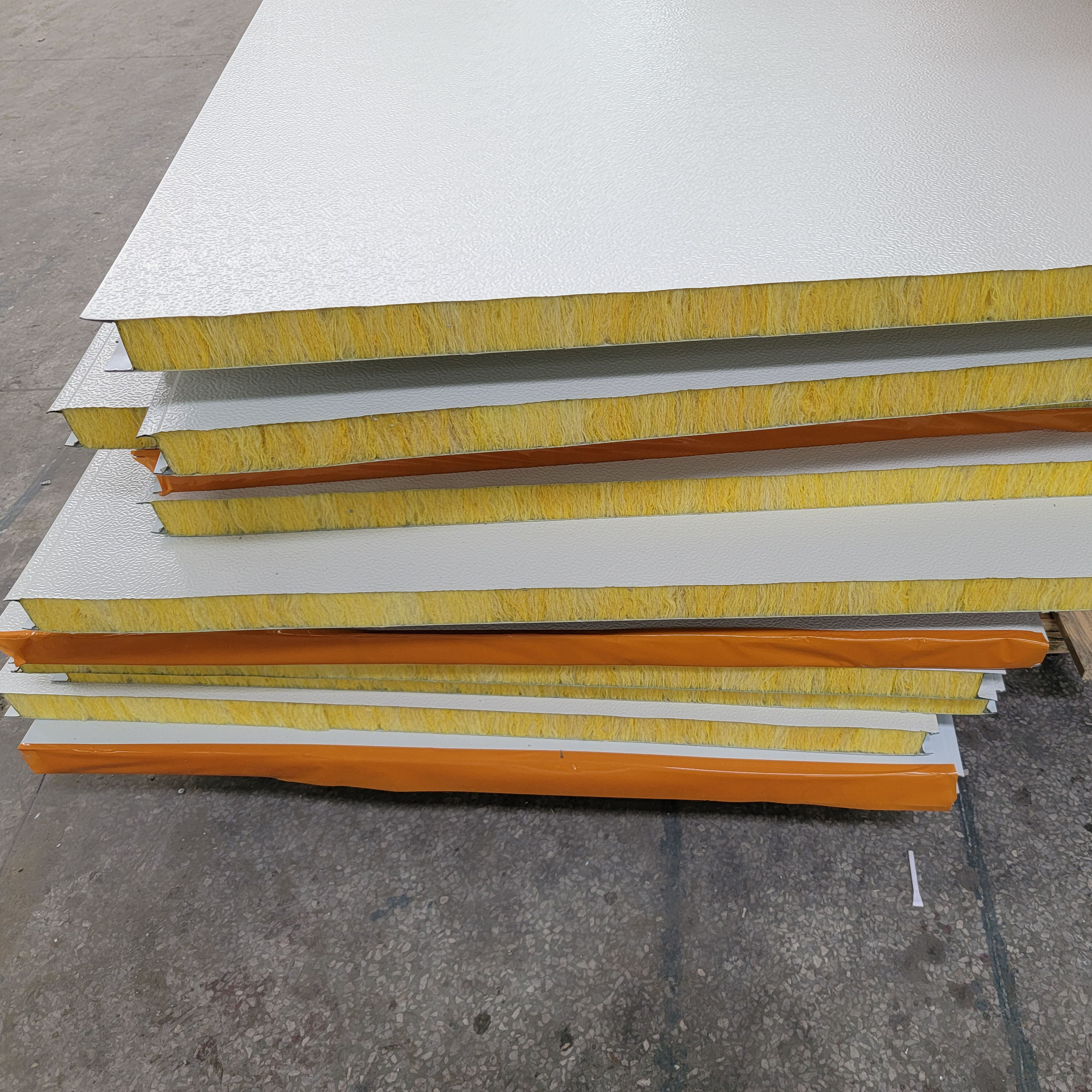

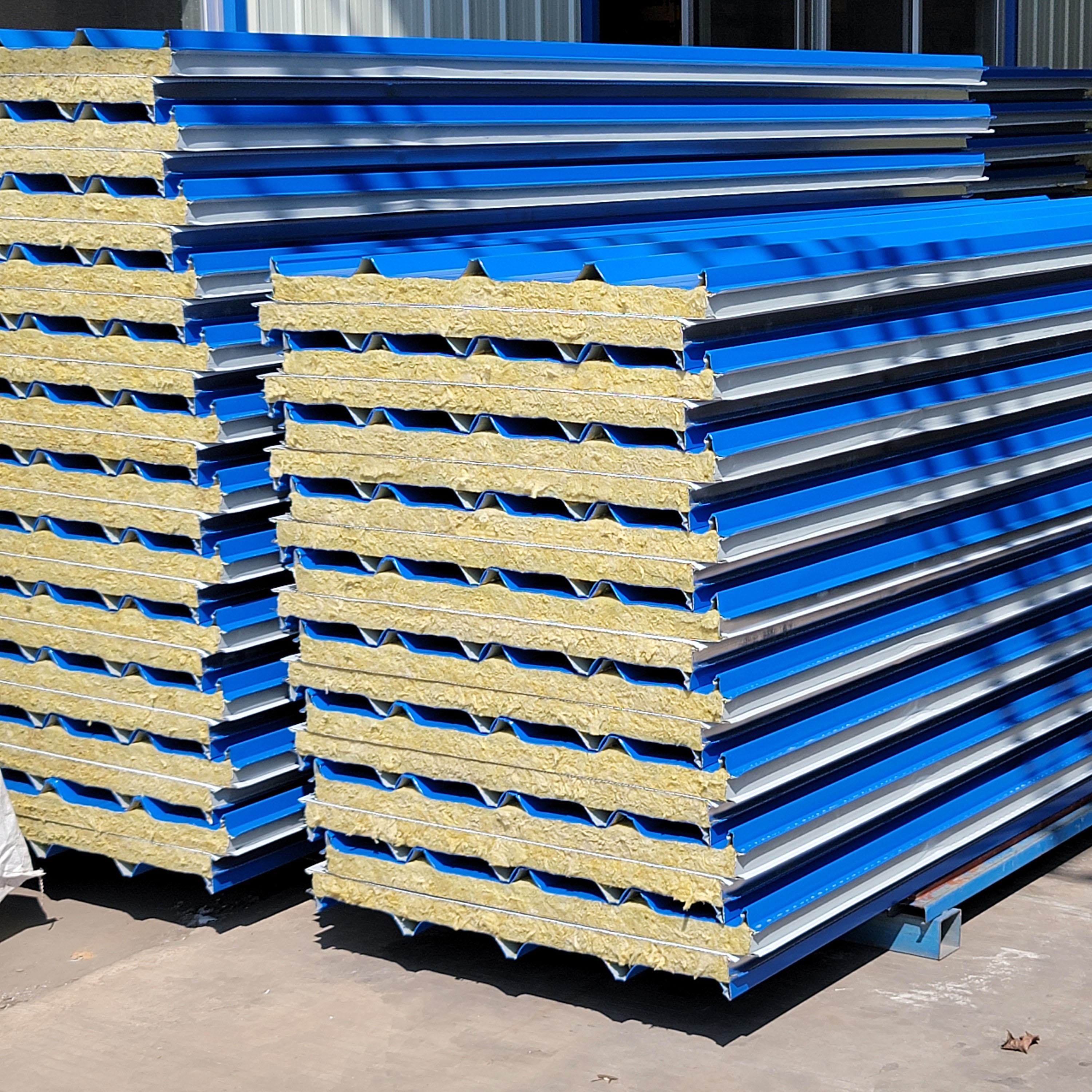

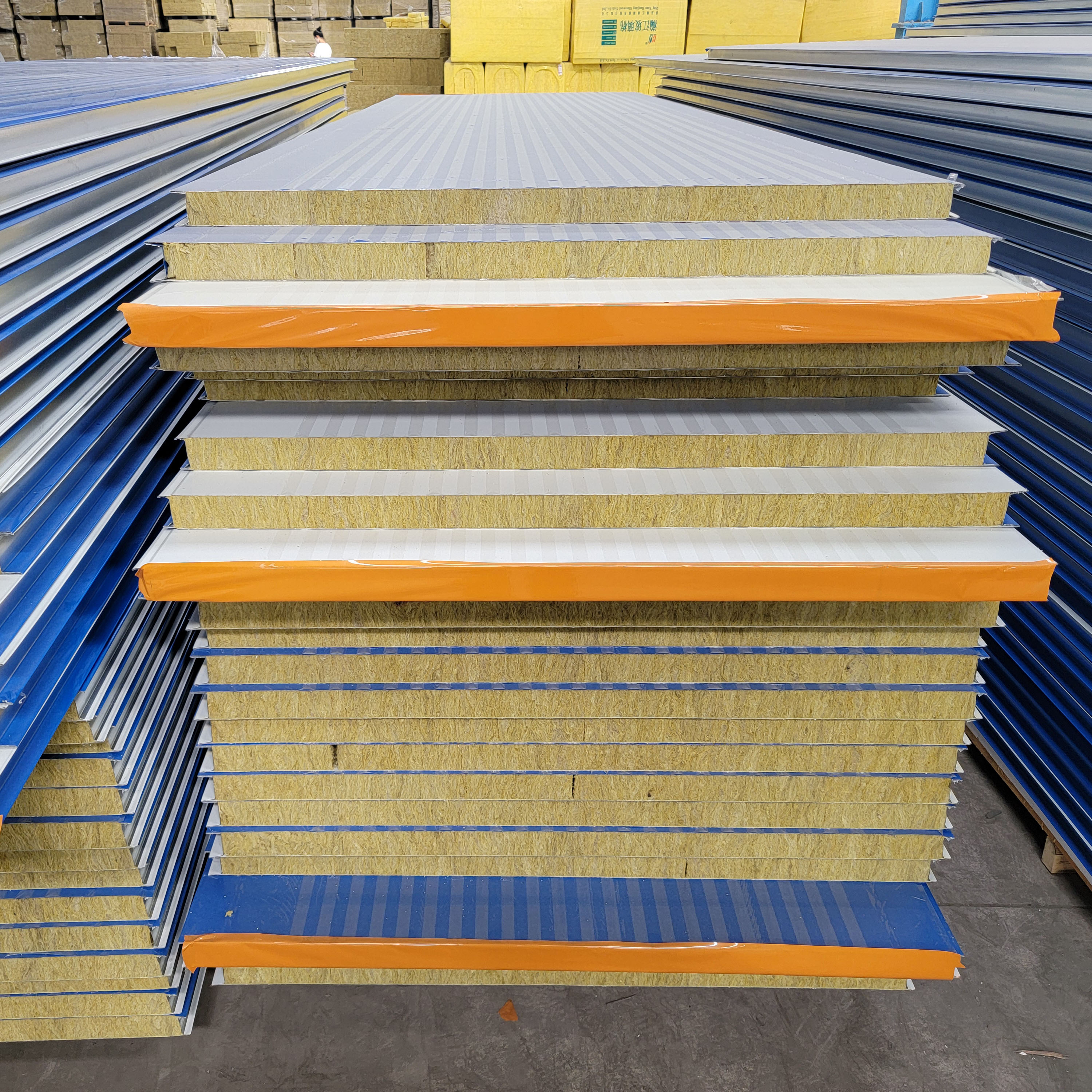

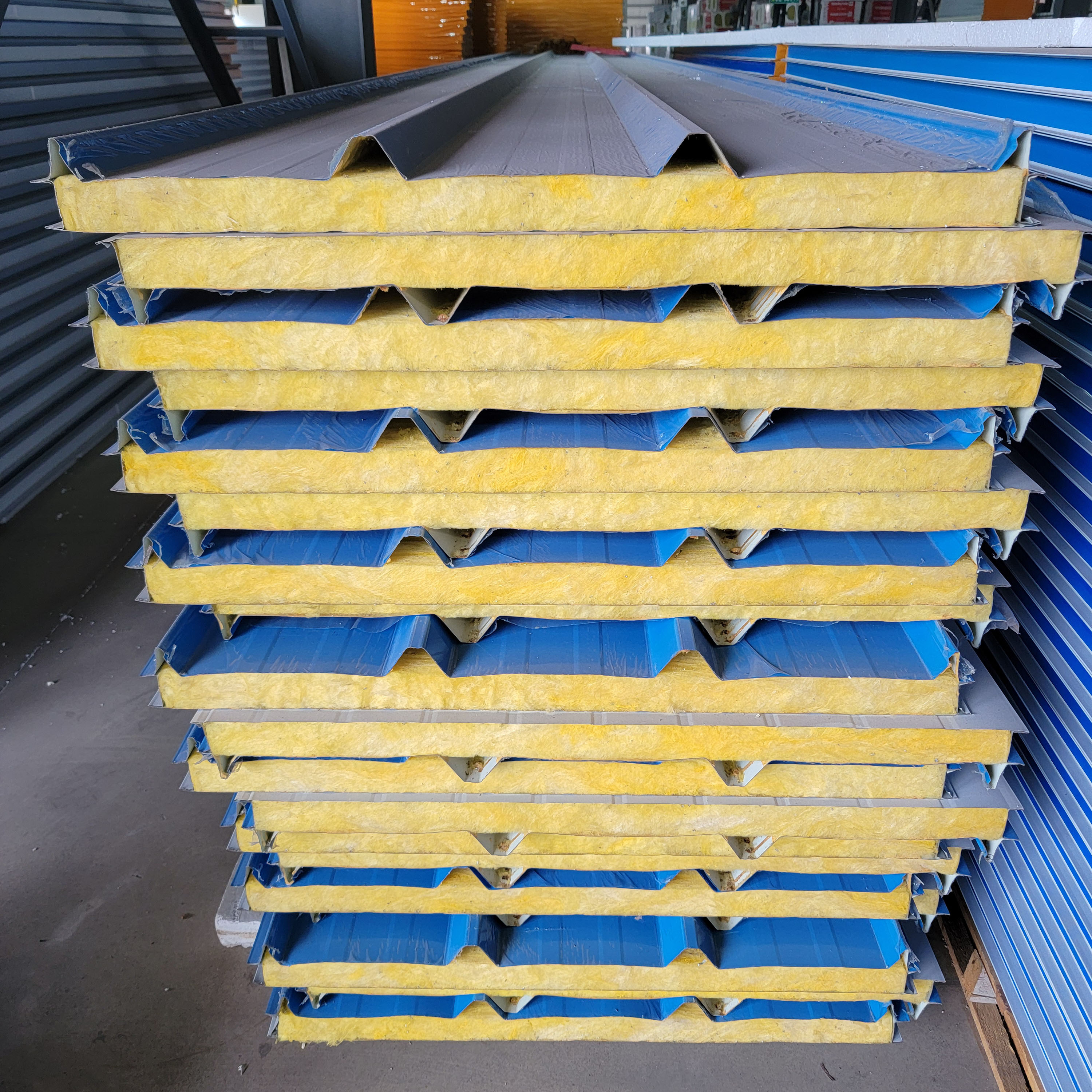

Color steel tile sandwich panel, that is, the outer layer of the panel is color steel tile, and the inner layer is sandwich tile. You can choose various sound insulation layers you want, and the thickness can also be freely selected. The commonly used materials for the inner sandwich tile are EPS, rock wool, glass wool and polyurethane. Customers can choose according to their needs and budget. If you want to know more details, you can contact us at any time!

WhatsApp:(+86)18923185601
Telephone:(+86)18923185601
Email: Jenny11liyou@gmail.com


Availability:
Quantity:

第一套详情模板_01


第一套详情模板_03

第一套详情模板_04

Product Overview


Place of Origin:

Product Name:

Foshan, China (Mainland)

Steel Frame House

Material:

Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc.

Standard:

Type:

GB

Steel Structure Frame

Size:

Color:

Up to Customer's Requirement

Graywhite, Blue, Red, etc..

Roof & Wall Material:

Insulation:

Sandwich Panel

EPS, Rockwool, Glass wool, PU etc..

Door & Windows:

Technology:

Steel Door, Aluminum Sliding Window, PVC Window

Welded steel, Hot Rolled Steel

Drawing Design:

Keywords:

AutoCAD, Tekla Structure, Vertex BD, SketchUp etc.

Big Metal Building Homes



Steel Frame House Material List



Components

Specification

Anchor Bolt

M30

High Strength Bolt

M20,10.9S

Common Bolt

M16

Galvanized Bolt

M12

Shear Nail

M16

Steel Column(Q345B)

HN600X200X10X15

Steel Column(Q345B)

HN300X150X6.5X9

Roof Column(Q345B)

HN350X175X6X9

Floor Main Beam(Q345B)

HN500X200X9X14

Floor Second Beam(Q345B)

HN350X175X6X9

Stair

∅16-bar+2.5mm Chequered Plate

Tie Rod

∅89*3.0

Horizontal Support

∅16

Roof Purlin(Galvanized)

C180*60*20*2.0

Wall Purlin(Galvanized)

C180*60*20*2.0

Connecting Plate

6mm~20mm Steel Sheet

Paint

2 Times Spray Paint

Roof Tile- EPS Sandwich panel

50mm Color Steel Thickness: 0.426

FRP Skylight Panel

Fiber Glass Reinforced Polyester

Outside Wall Panel -- EPS Sandwich panel

50mm Color Steel Thickness: 0.426

Floor Decking

1.5mm Galvanized Steel Sheet

Stair Handrail

口80*40+口40+口30+口20

Gutter

2.0mm Galvanized Gutter

Down Pipe

∅110PVC

Trimming

1.0mm Galvanized Steel Sheet

剖面图

第一套详情模板_05

第一套详情模板_06

第一套详情模板_07 (1)

第一套详情模板_07 (2)

Steel Structure Building Applications

Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall


Steel Frame House

Steel Frame House



Why Choose Us


01 Customized Design

Offer professional building planning & drawing, and suitable steel components according to your requirements.

02 Quality Assurance

● Strict quality control

● Safe packing

● Quality inspection before shipment


03 After-sales service

Installation instruction on site

Installation technical team backup

Timely communication by Email & Phone



Certification



第一套详情模板_07 (4)



Loading


第一套详情模板_07 (5)

Philippines and Thailand projects

第一套详情模板_07 (6)
