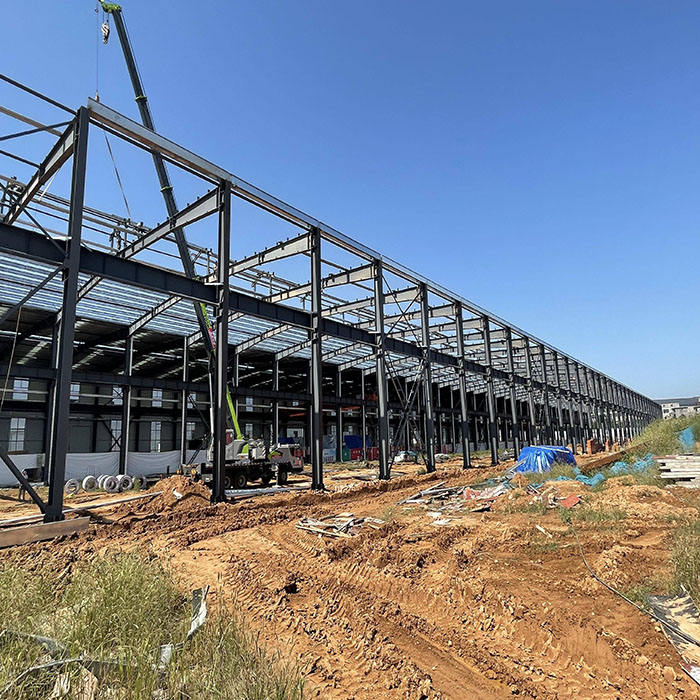

Liyou offers robust I beam building systems engineered for strength, adaptability, and longevity. Leveraging our advanced fabrication capabilities and international construction standards, we deliver pre-engineered steel structures ideal for demanding industrial and commercial environments.
Reinforced Strength: I-beam frames are known for their high load-bearing capacity and structural integrity.
Customizable Design: Tailored spans, heights, and layouts to suit a variety of project needs.
Quick Assembly: Pre-cut, pre-drilled, and efficiently shipped for reduced on-site installation time.
Surface Protection: Optional hot-dip galvanizing or anti-rust coating ensures resistance to harsh conditions.
Global Supply: Proven export capability to over 15 countries with multilingual engineering support.

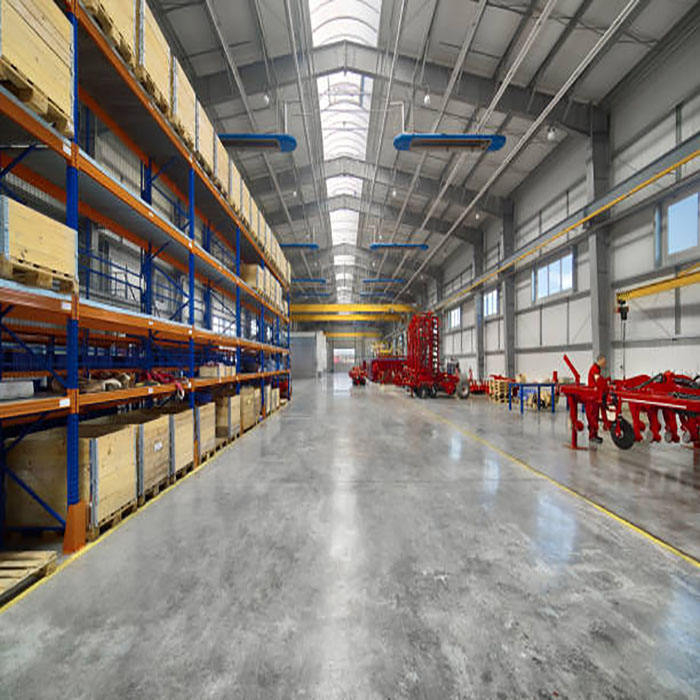

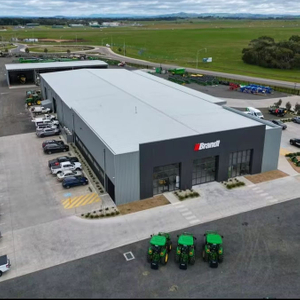

Heavy-duty industrial workshops and production halls.
Commercial showrooms, depots, and logistics hubs.
Agricultural equipment storage and barns.

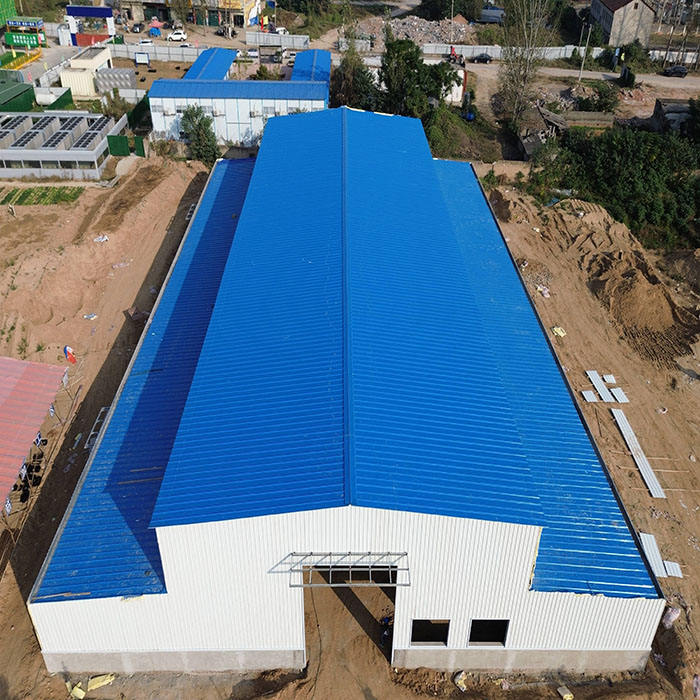

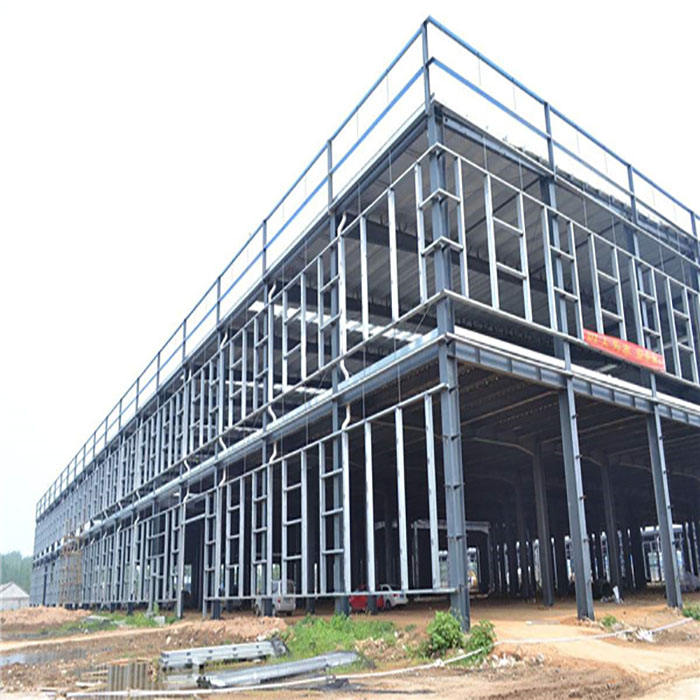

Multi-span warehouse structures.
Airport hangars and terminal infrastructure.
| Quantity: | |
|---|---|
Steel
Online technical support
Factory
Guangdong, China
Factory
3 years
total solution for projects
LYB-001
Factory
Industrial
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
Single item
1X1X1 cm
1.000 kg
PRODUCT SPECIFICATIONS
| No | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
