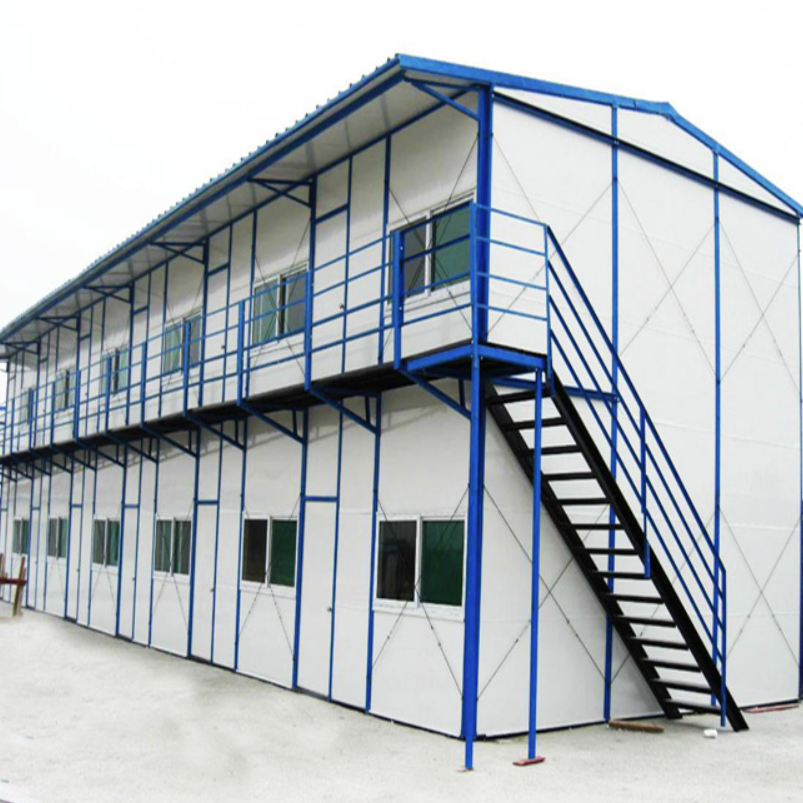

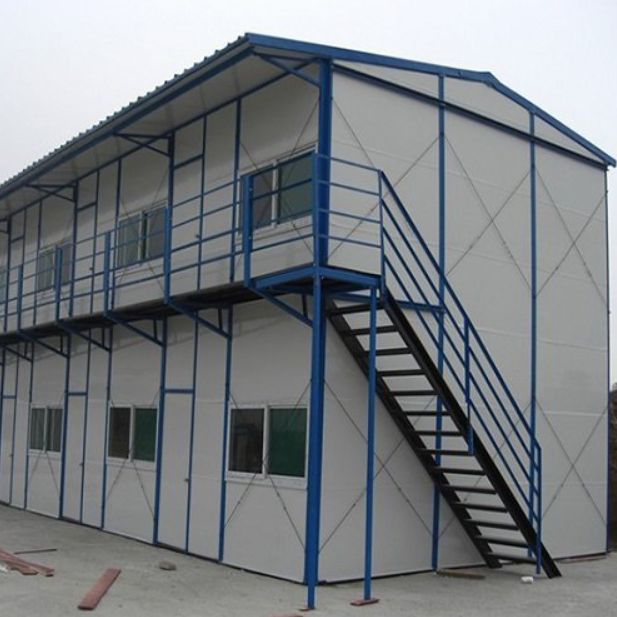

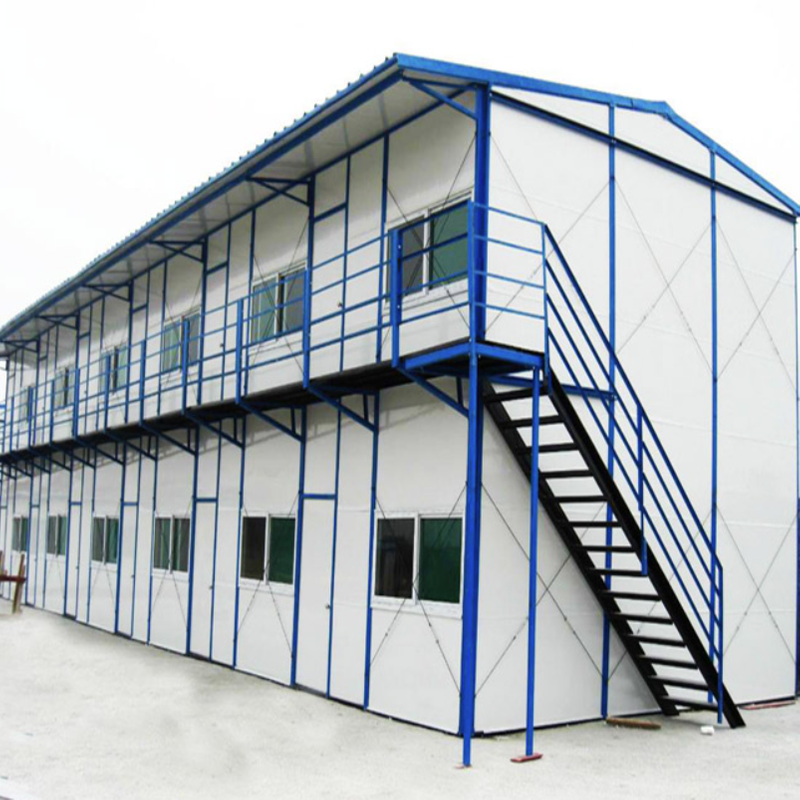

Place of Origin: | Product Name: |
Foshan, China (Mainland) | Prefab House |
Material: | Insulation: |
Q235 Square Tube, C / Double C Section Steel, etc. | EPS,PU,Glass Wool,Rock Wool |
Standard: | Type: |
GB | Light Steel Structure Frame |
Use: | |
Temporary House, Dormitory, Security Room, Restaurant, Dormitory, Office, Guard House | |
Size: | Roof & Wall Material: |
Customized | 50/75/100/125/150mm Sandwich Panel |
Window: | Door: |
Aluminum Alloy Window/PVC Windows | Sandwich Panel Door/Steel Door |
Roof & Wall Material: | |
Roof Tile-Asphalt Shingles/Resin Tile, Wall Cladding-Metal Wall Cladding/PVC Wall Cladding, etc | |

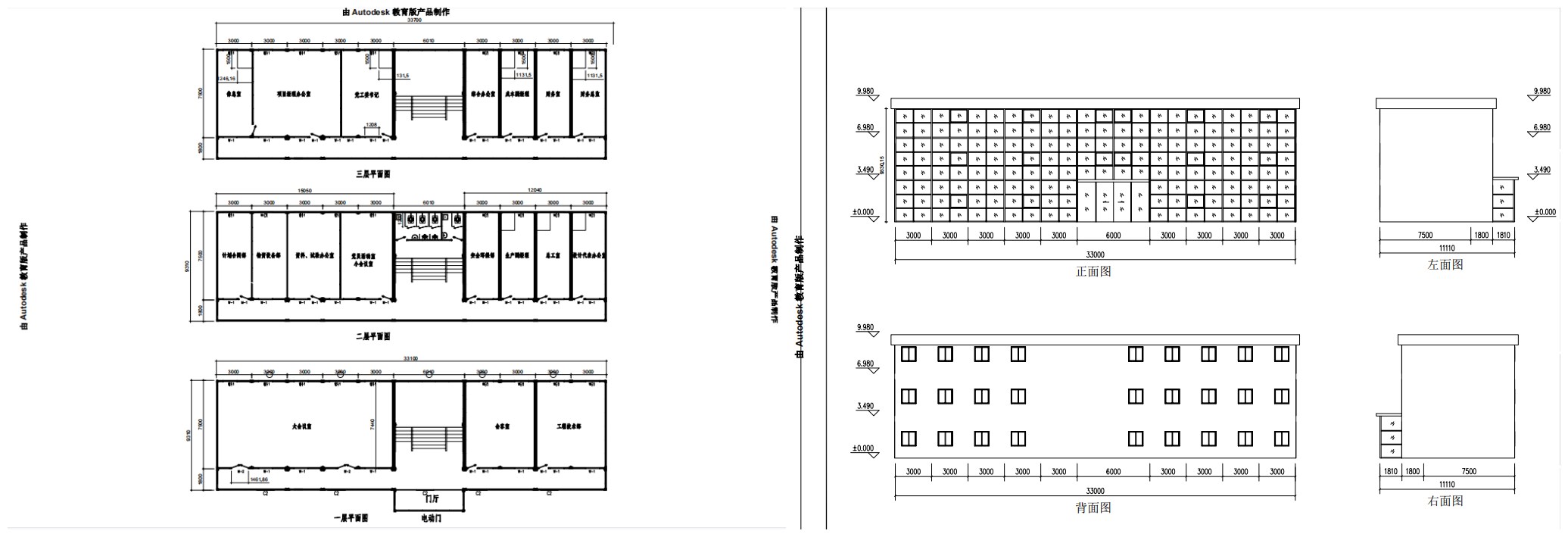

Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Prefabricated House |

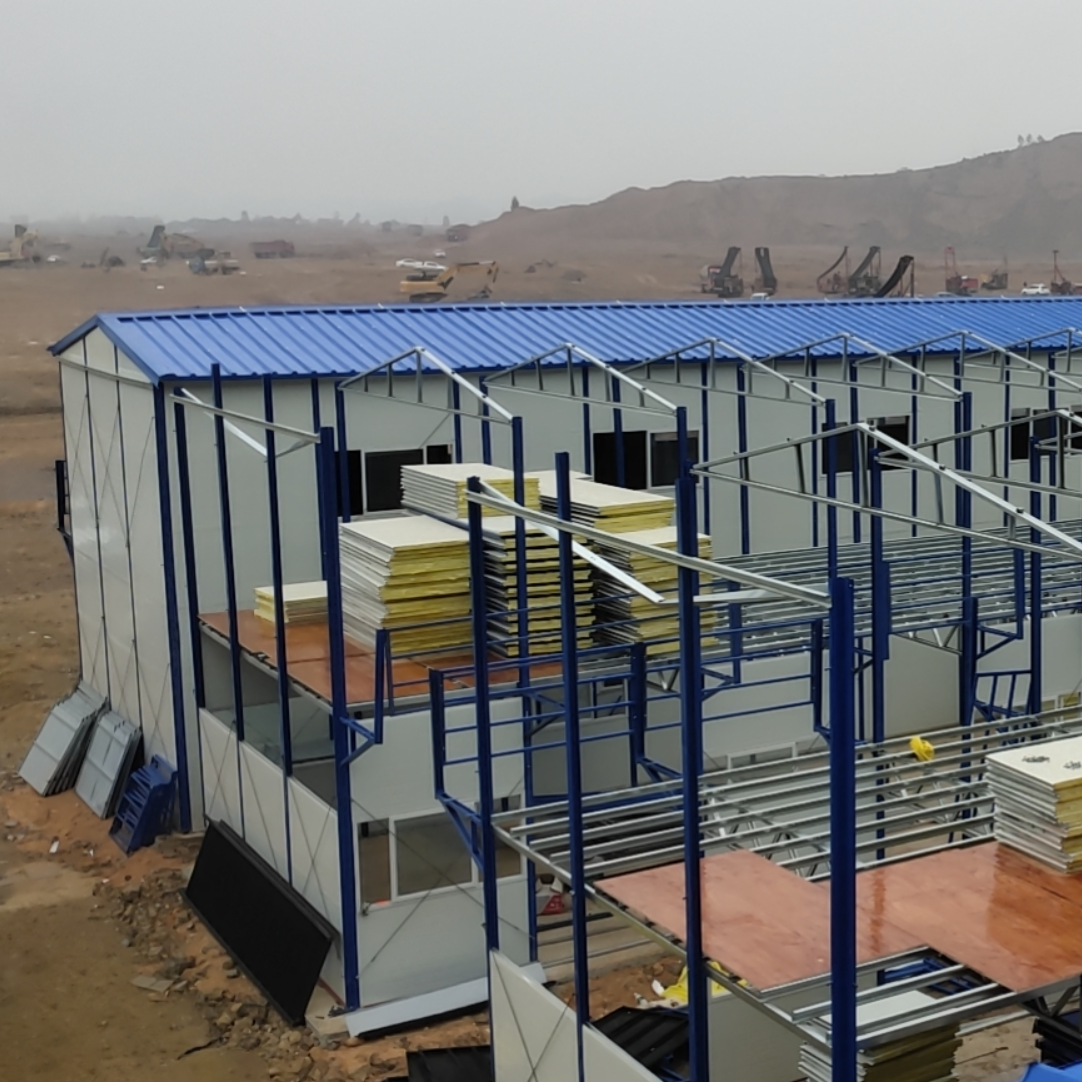

Components | Specifications |
Expantion Bolt | M12 |
Expansion Bolt | M8 |
Galvanized Bolt | M12 |
Selftapping Nail | M5 |
Steel Column(Q235B) | 口80*80*2.0 |
Roof Truss Beam(Q235B) | 口80*40+口50*30 |
Ring Beam(Q235B) | 口80*80*1.8 |
Horizontal Bracing | C50*30*10*1.5 |
Roof Purlin(Galvanized) | C100*40*20*2.0 |
Connecting Plate | 3mm-6mm |
Roof Panel-50mm EPS Sandwich Panel | Color Steel Sheet: 0.326 mm |
Wall Panel-50mm EPS Sandwich Panel | Color Steel Sheet: 0.326 mm |
Partition Wall Panel-50mm EPS Sandwich Panel | Color Steel Sheet: 0.326 mm |
Sandwich Panel Door | W800*H2000 |
Sandwich Panel Door | W700*H2000 |
PVC Sliding Window | W1130*H1000 |
PVC Sliding Window | W800*H600 |
Trimming | Steel Sheet, Alumnum Channel |
● Wall and roof are made from high-quality material including EPS, PU, Rock wool, glass wool.
● The steel frame is galvanized or power-coated to resist corruption.
● The structure is strong, firm, waterproof, moisture and heat resistance, and can resist different hard weather.
● Compared with the civil building, our prefab houses are easy construction, low cost, time-saving, labor saving and convenient to transport.
● The steel structures make the house resist heavy wind of 110km/h and 7-grade earthquakes.
● The prefab houses can have beautiful appearance and different colors for the wall, roof and steel structure.

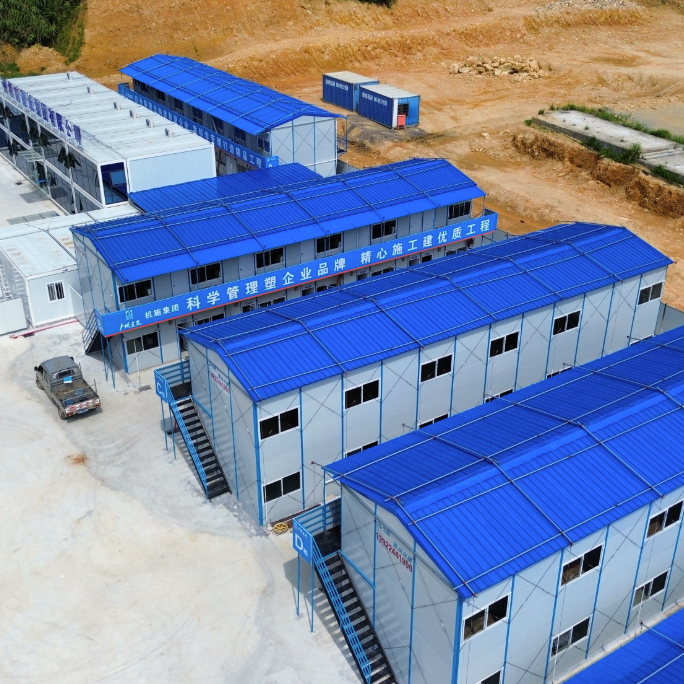

The prefab house is widely used in the construction of buildings such as Prefab house, Prefabricated modural homes, Portable house for builders, Workers dormitory, Engineering headquarters, Labor accommodation, Temporary isolation room, Portable schools, Temporary shop, etc.
Foshan Teamwork Steel Structure Co.,Ltd was found in 2008. We are specialized in designing, manufacturing, marketing and construction of the Low Cost Prefabricated Houses, steel structure warehouse, steel structure workshop, prefabricated house and light steel villa.
Teamwork Steel Structure have two production workshops covering an area of 20000 square meters. One plant is in LiShui Town, Foshan, which mainly produces prefab house, fence, aluminum door, and window. The other one is located in Gaoming district, Foshan which mainly produces prefab steel structure building. With the modern advanced facility, we have the capability to manufacture 30000~50000 sqm per month.
01 Customized Design
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
