Turnkey metal building installed solutions by LiYou Steel simplify your construction timeline. Our metal building installed packages include design, fabrication, and global installation for factories, hangars, and storage facilities. The Philippine Steel Structure Logistics Plant (3,790㎡) and Madagascar Workshop (17,330㎡) showcase our metal building installed expertise, with projects completed 30% faster than traditional methods.
We use pre-engineered metal building installed systems with bolt-tight connections for earthquake resistance. Each component is labeled for hassle-free assembly, and our teams provide on-site supervision. With ISO and SGS certifications, LiYou guarantees metal building installed structures that last decades.
Why LiYou?
End-to-end metal building installed services.
50+ successful international projects.
Fireproof and weather-resistant coatings.
10-year quality warranty.
| Quantity: | |
|---|---|
Workshop
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
Modern
Guangdong, China
Lifetime
engineer guidance
Liyou
LY001
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
Single item
1X1X1 cm
1.000 kg
Site Preparation: Level the ground and ensure a stable foundation.

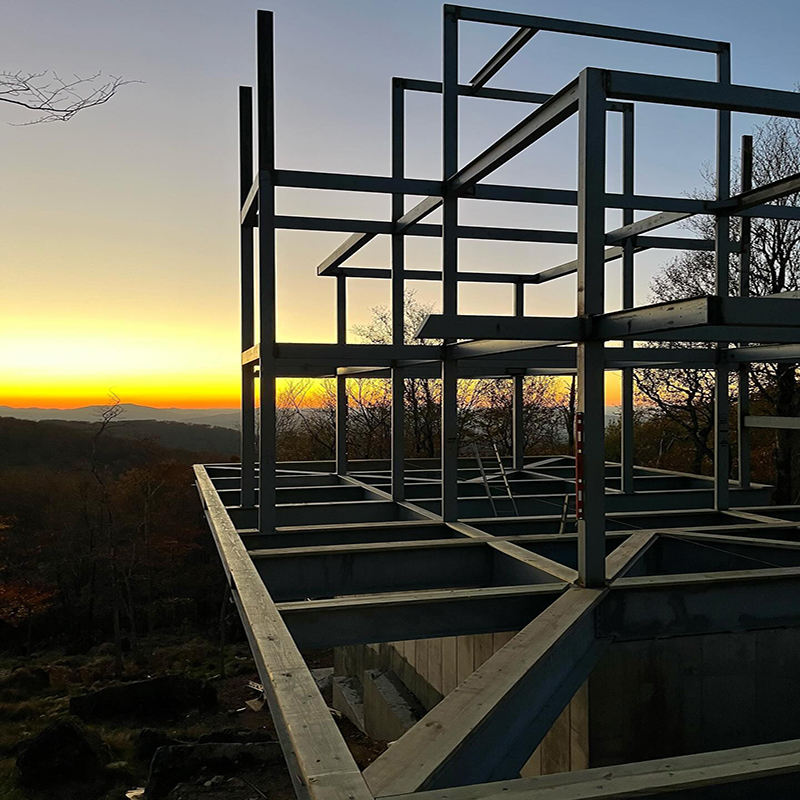

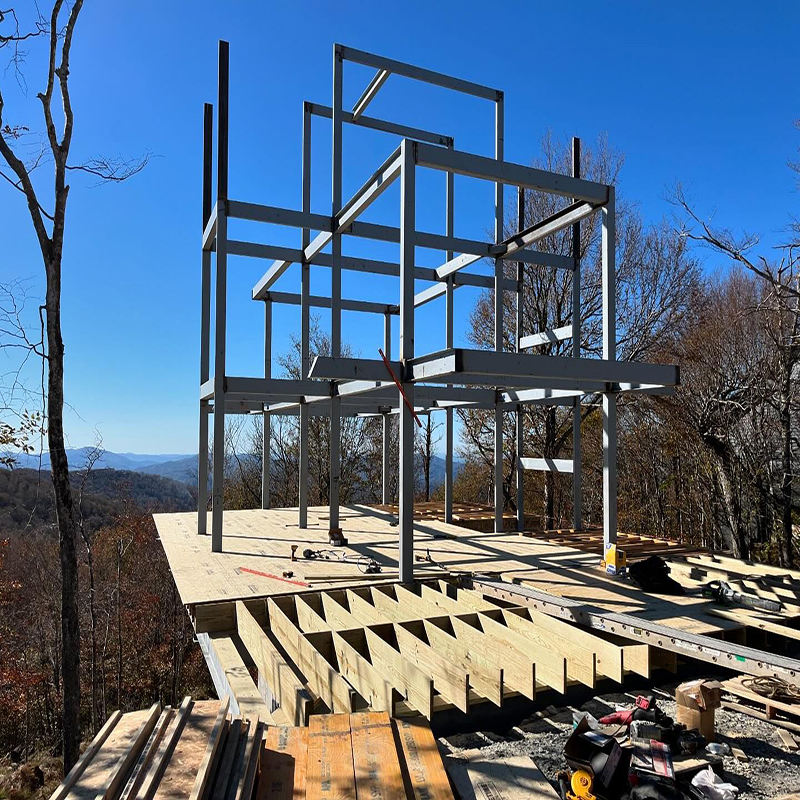

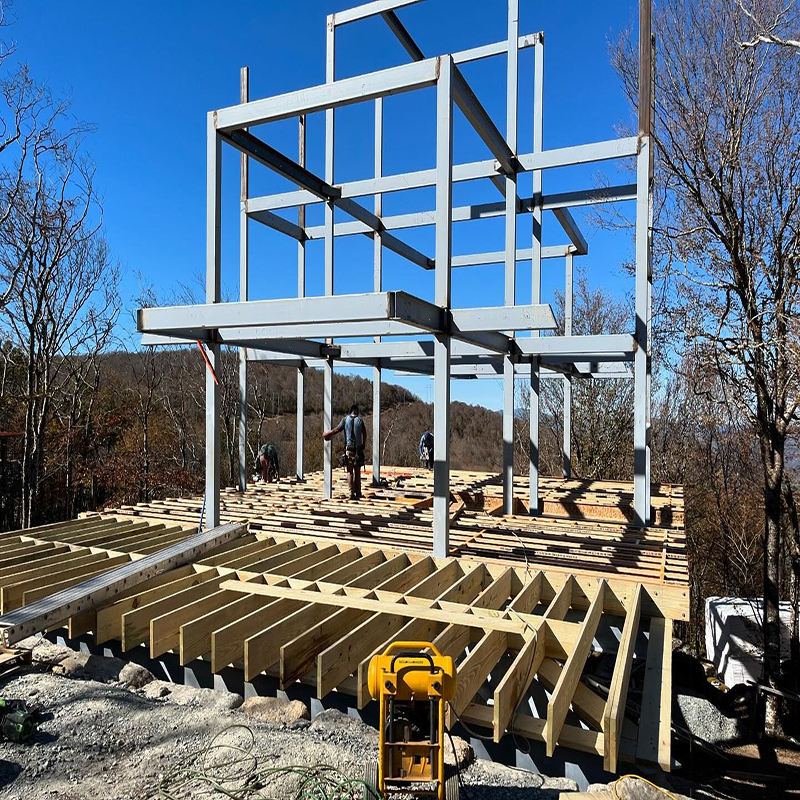

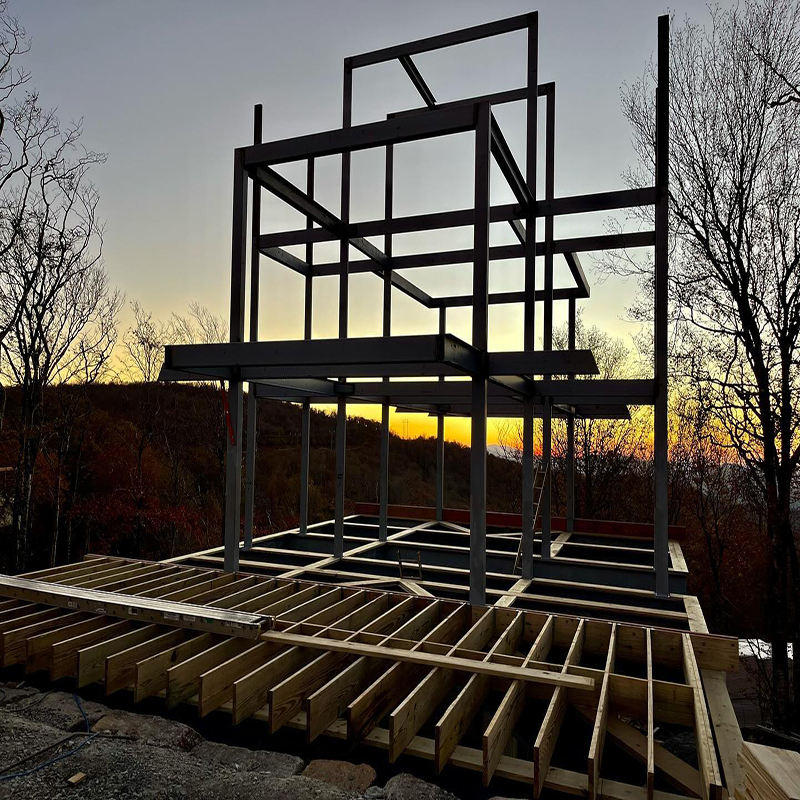

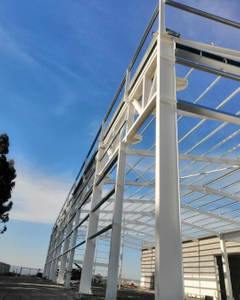

Frame Assembly: Install prefabricated steel components precisely and securely.
Roof & Wall Panels: Attach panels, doors, and windows as required.
Inspection & Quality Assurance: Check structural integrity, alignment, and safety compliance.
Completion & Handover: Provide guidance on maintenance and warranty.
| Specification | Details |
|---|---|
| Material | High-strength steel, optional galvanized or coated finish |
| Building Type | Prefabricated metal building |
| Width | 10–50 m (customizable) |
| Length | 10–100 m (customizable) |
| Height | 3–12 m (customizable) |
| Roof Type | Gable, arched, or curved options |
| Load Capacity | Engineered to support roofs, equipment, and storage loads |
Custom Installation Plans: Tailored to your project size and design.
Large Projects: Competitive pricing available for multi-building or large-scale installations.
Quotation Support: Contact us for a personalized installation estimate.
| No | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
Site Preparation: Level the ground and ensure a stable foundation.
Frame Assembly: Install prefabricated steel components precisely and securely.
Roof & Wall Panels: Attach panels, doors, and windows as required.
Inspection & Quality Assurance: Check structural integrity, alignment, and safety compliance.
Completion & Handover: Provide guidance on maintenance and warranty.
| Specification | Details |
|---|---|
| Material | High-strength steel, optional galvanized or coated finish |
| Building Type | Prefabricated metal building |
| Width | 10–50 m (customizable) |
| Length | 10–100 m (customizable) |
| Height | 3–12 m (customizable) |
| Roof Type | Gable, arched, or curved options |
| Load Capacity | Engineered to support roofs, equipment, and storage loads |
Custom Installation Plans: Tailored to your project size and design.
Large Projects: Competitive pricing available for multi-building or large-scale installations.
Quotation Support: Contact us for a personalized installation estimate.
