9406900090
Metal homes are a relatively new innovation on the real estate and home-building market, but they promise to be a huge step forward in the construction industry. The following are some of the reasons why are metal homes a good investment.
*Metal homes are insulated
*Low maintenance
*Energy efficiency
*Durability and longevity of materials
*Metal homes are versatile
*Metal houses are environmentally friendly
About Guangdong Liyou Steel Structure
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
Product Information:
Customized design steel house for workshop
Small steel house is made of the main steel framework comprised of H steel and sub-structure structures like beams, C purlin, steel bar, pipe, angle steel components, etc. The roof and walls utilize a variety of panels.
All the prefabricated buildings can be designed to meet the customized load and seismic requirements for different countries and specific areas. A steel building system means all the steel structure frame components are cut, welded, and drilled at our factory. All of them are well prepared and ready for bolt-together assembly at the construction site.

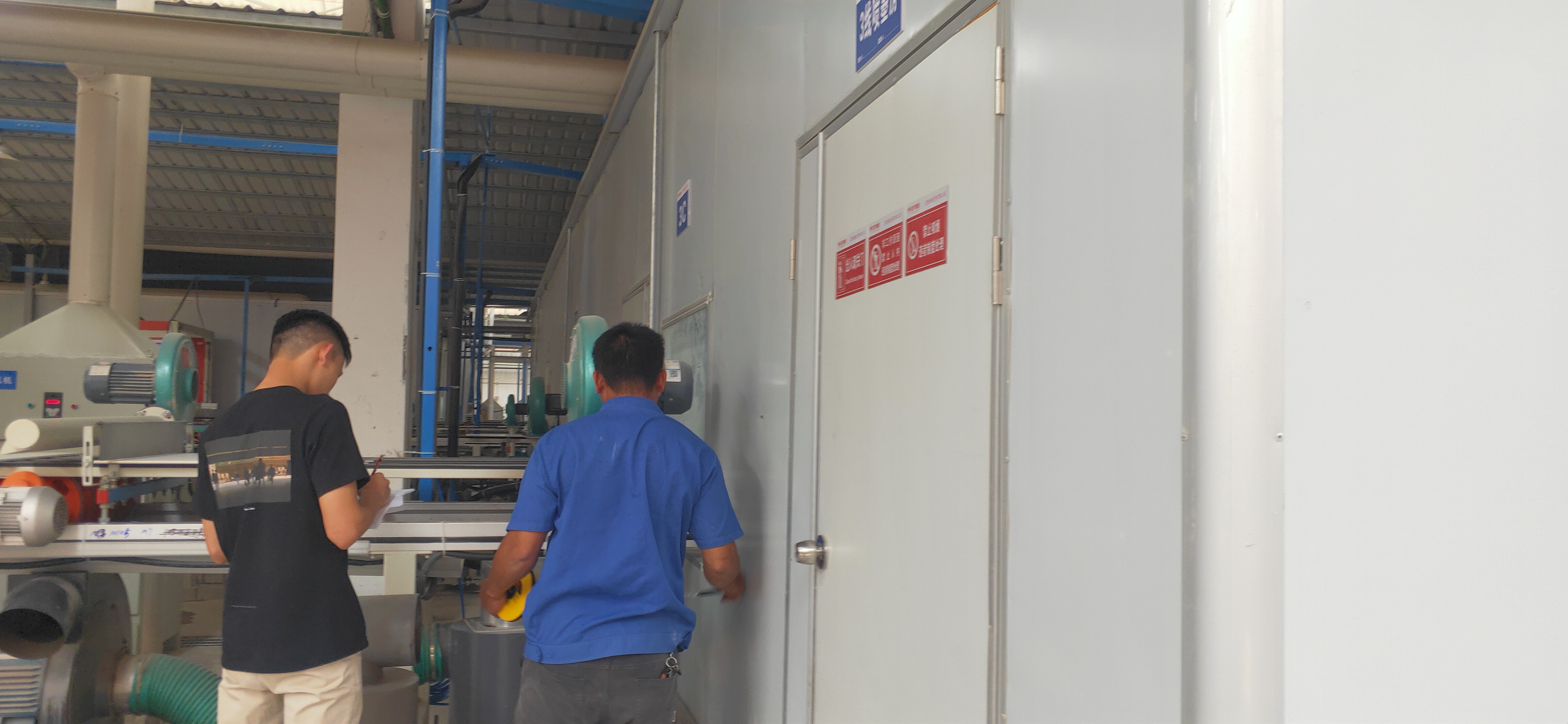

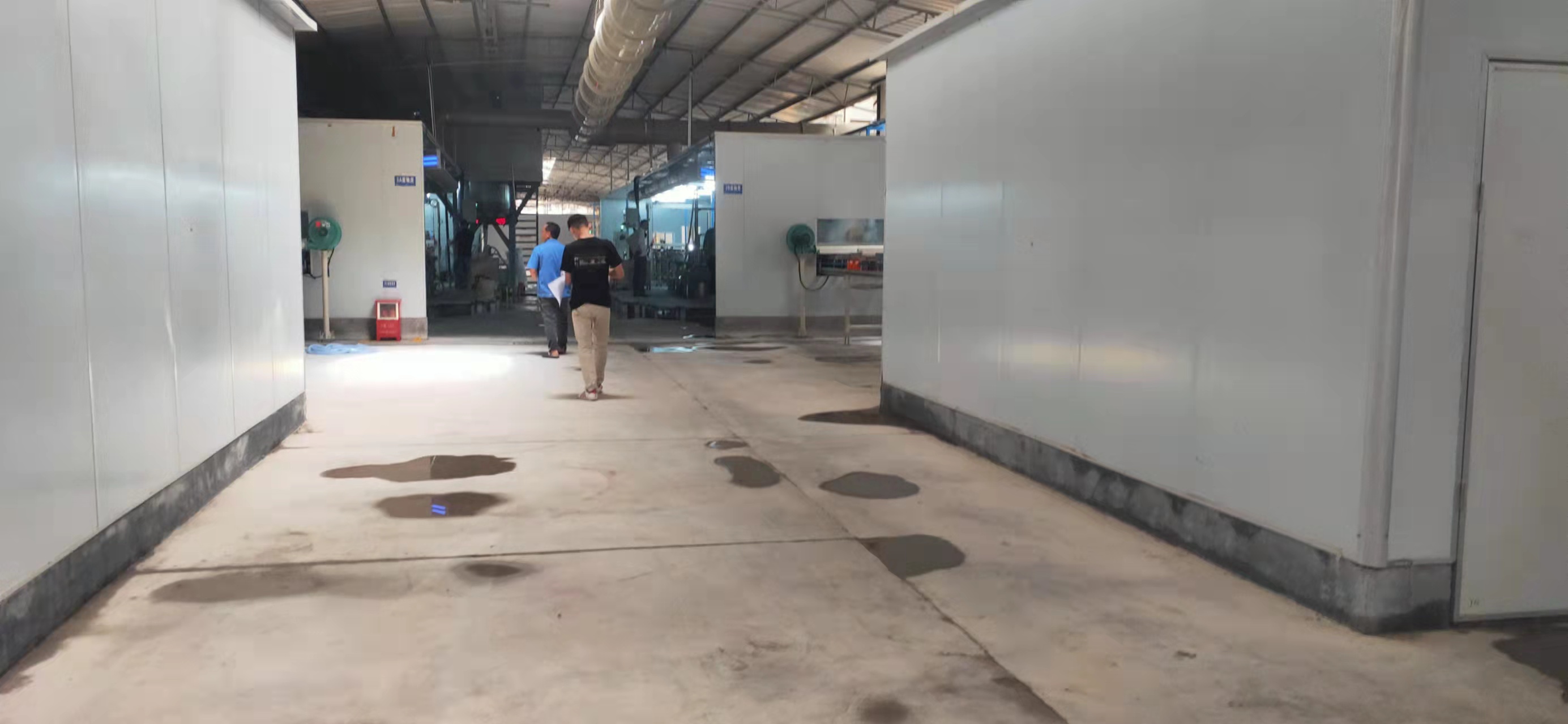

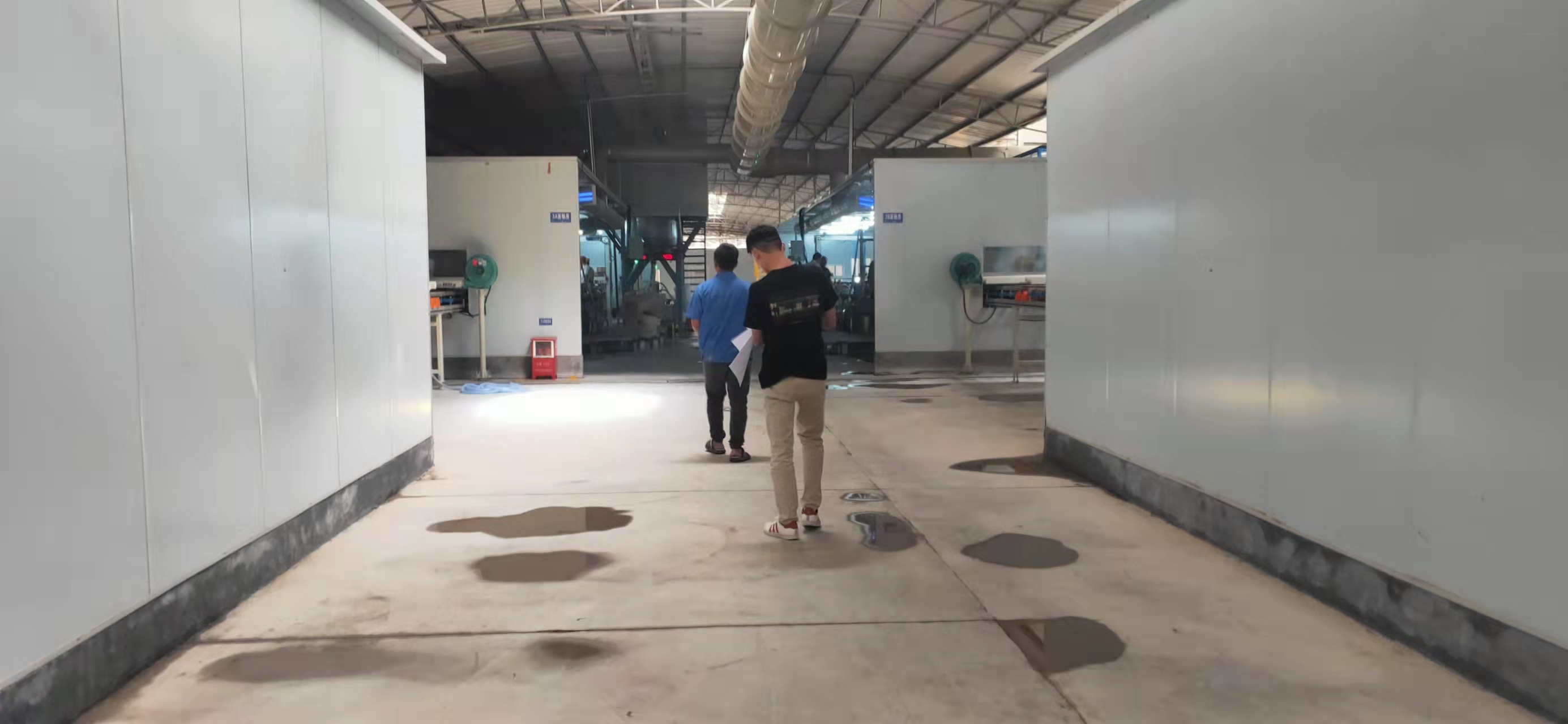

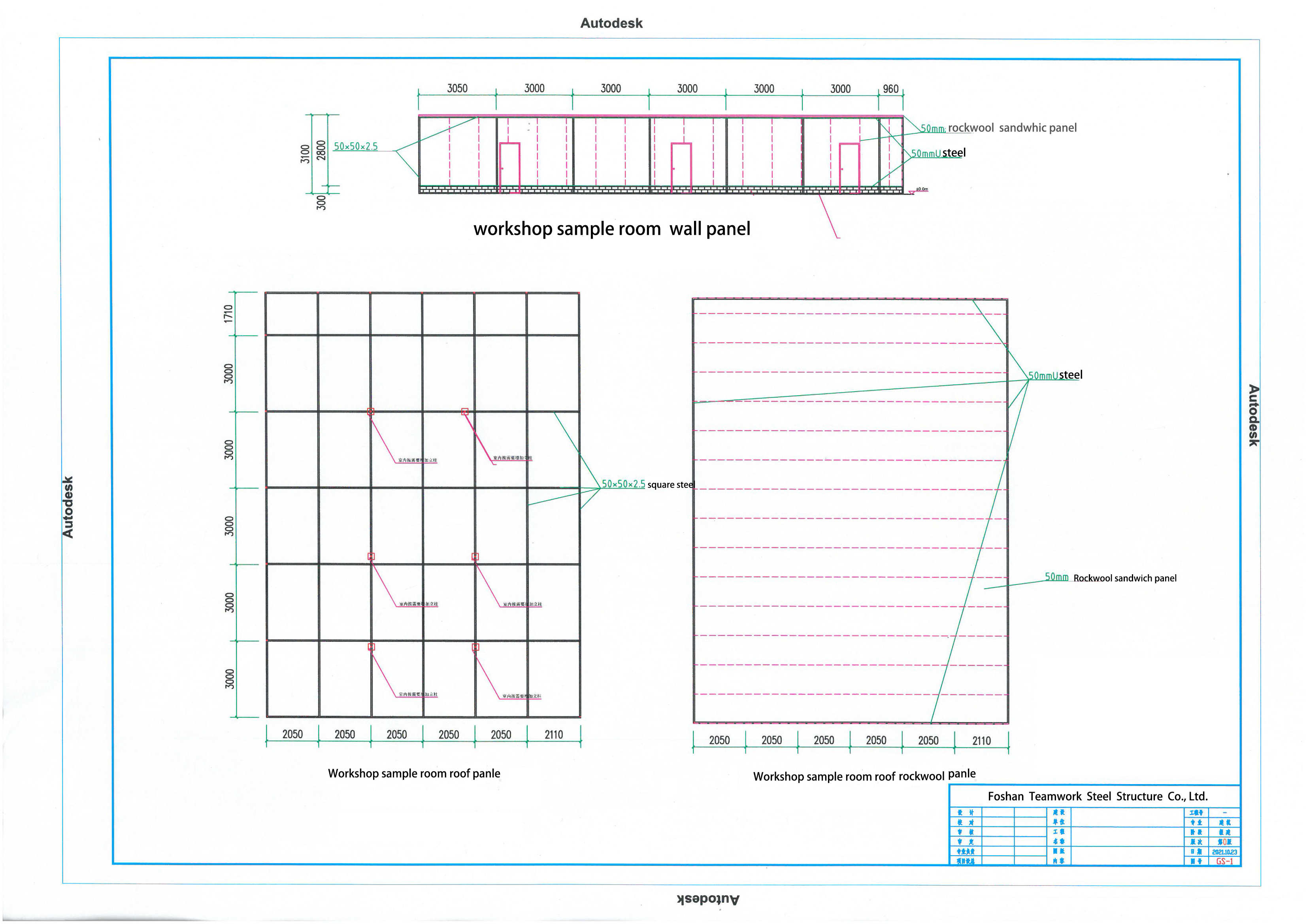

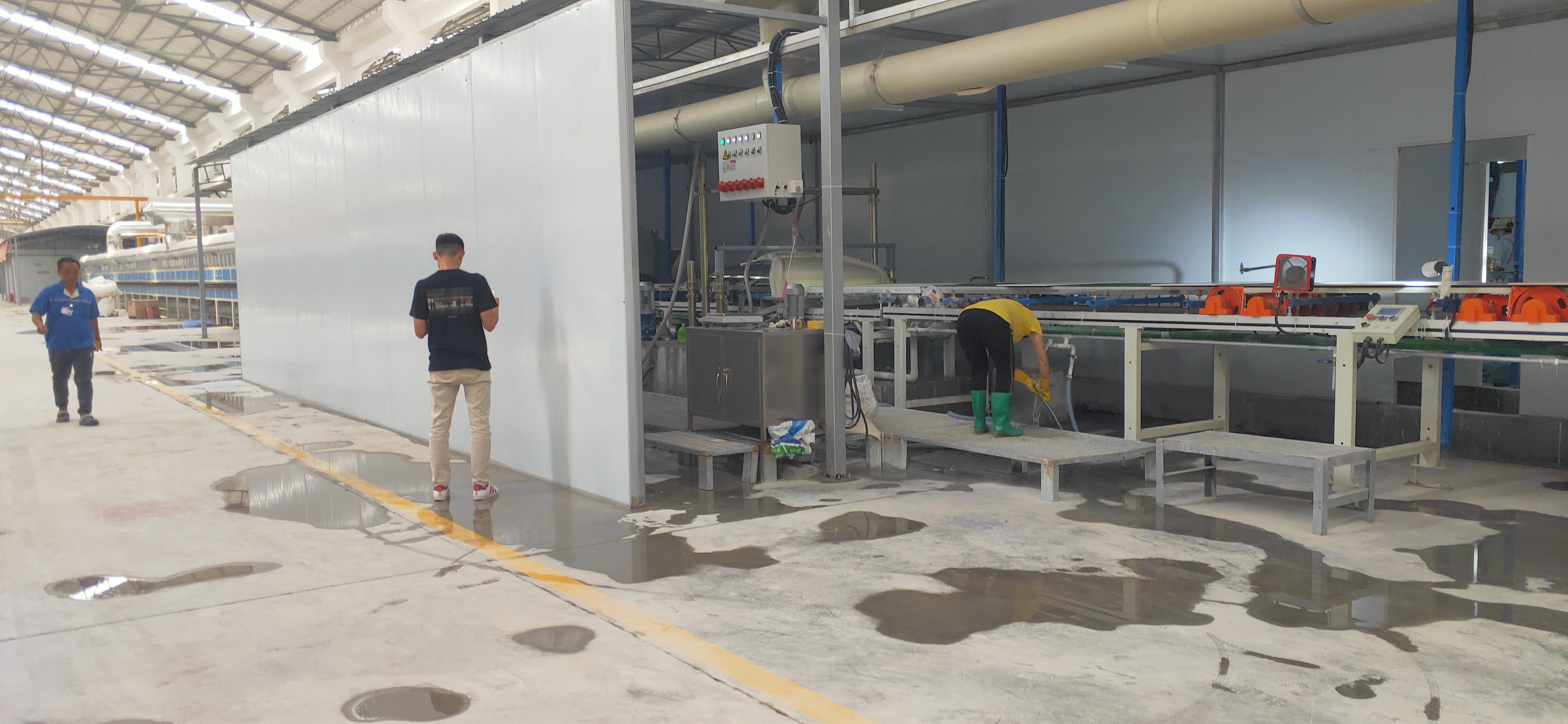

Drawing and Inspection Show:
Product Basic Info.
Place of Origin: | Type: |
Foshan, China (Mainland) | High-Strength Steel |
Application: | |
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing etc. | |
Standard: | Carbon Structural Steel: |
GB | Q235B |
Roof & Wall Material: | Color: |
EPS Sandwich Panel: 50mm, 0.376 Steel sheet | Graywhite |
Door: | Life Span: |
Aluminium-alloy door | Main Steel Structure 50 Years |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Steel metal House |
Steel Structure Poultry House Material List
| I | Main steel frame | ||
| 1 | Main Column | Q235B 50*50*2.5mm Hot Galvanized | |
| 2 | Beam | Q235B 50*50*2.5mm Hot Galvanized | |
| 3 | U steel | Aluminium-alloy U steel 50*1.0mm | |
| 4 | Round steel | Aluminium-alloy U steel 50*1.0mm | |
| 5 | U steel | Aluminium-alloy T steel 50*90*1.0mm | |
| 6 | Rockwool sandwich panel | 5.0mm thickness | |
| 7 | Organic glass | 5.2mm thickness | |
| 8 | Roof & Wall purlin(galvanized) | C80*40*20*2.0 | |
| 9 | Connecting plate | 3mm-10mm | |
| 10 | Structure steel fabrication+Sanding + Paint (Epoxy zinc-rich primer 40 um+Alkyd finish 40um) | Acetylene, oxygen, electrode, Sa2.5 | |
Main Meterials Show
Steel Chicken House Characteristics
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
Why Choose Teamwork Steel Structure
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q 1: What should be prepare for the site before start to built?
At the very least, you need concrete piers for the columns to sit upon. Most people pour a full foundation, but if you are using the building on a farm or ranch and plan to have dirt, gravel, or sawdust floors, a pier system may be preferable. In these situations, a popular option is to combine piers with concrete footing around the perimeter of steel building.
Q2. Do you have a recommended foundation and associated drawing?
Yes, we will provide foundation drawing and installation drawing for you after shipment. But the foundation drawing is just for reference because land and soil are diverse in different area.
Q3. Can add a brick wall to my steel building?
Yes, you can. For combined durability and beauty there is nothing like adding brick finishes to walls of your steel building. You receive the benefits of a hard wall, such as fire resistance, along with moisture resistance of a cavity wall.
Q4. Why does wind speed affect prices?
For most of the steel structure buildings, we design wind speed is about 110km/h. But for some strong wind countries,110km/h is not enough, like the Philippines and Mauritius 150~280km/h wind speed need to enlarge the beam and column, that will use more steel on it then increase the price a lot.
