Guangdong LiYou Steel Structure Engineering Co., Ltd. +8619147784007 liyousteelstructure@outlook.com
 |
| Quantity: | |
|---|---|
7308900000
Column, Beam, Purlin, Bracing etc

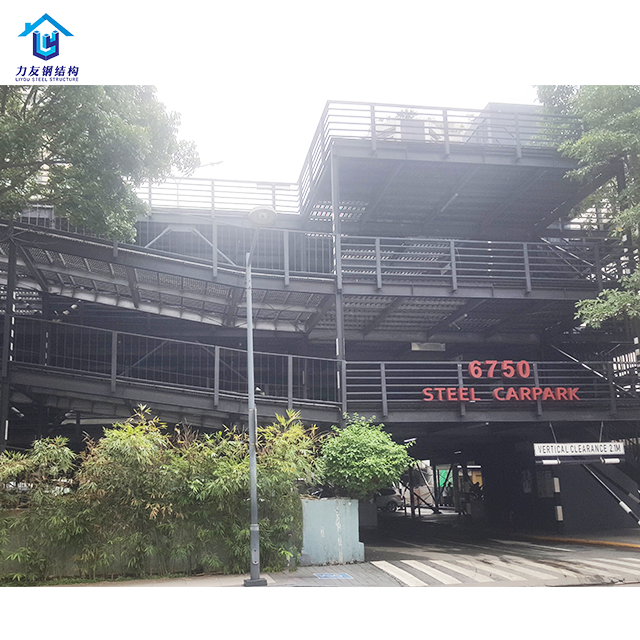

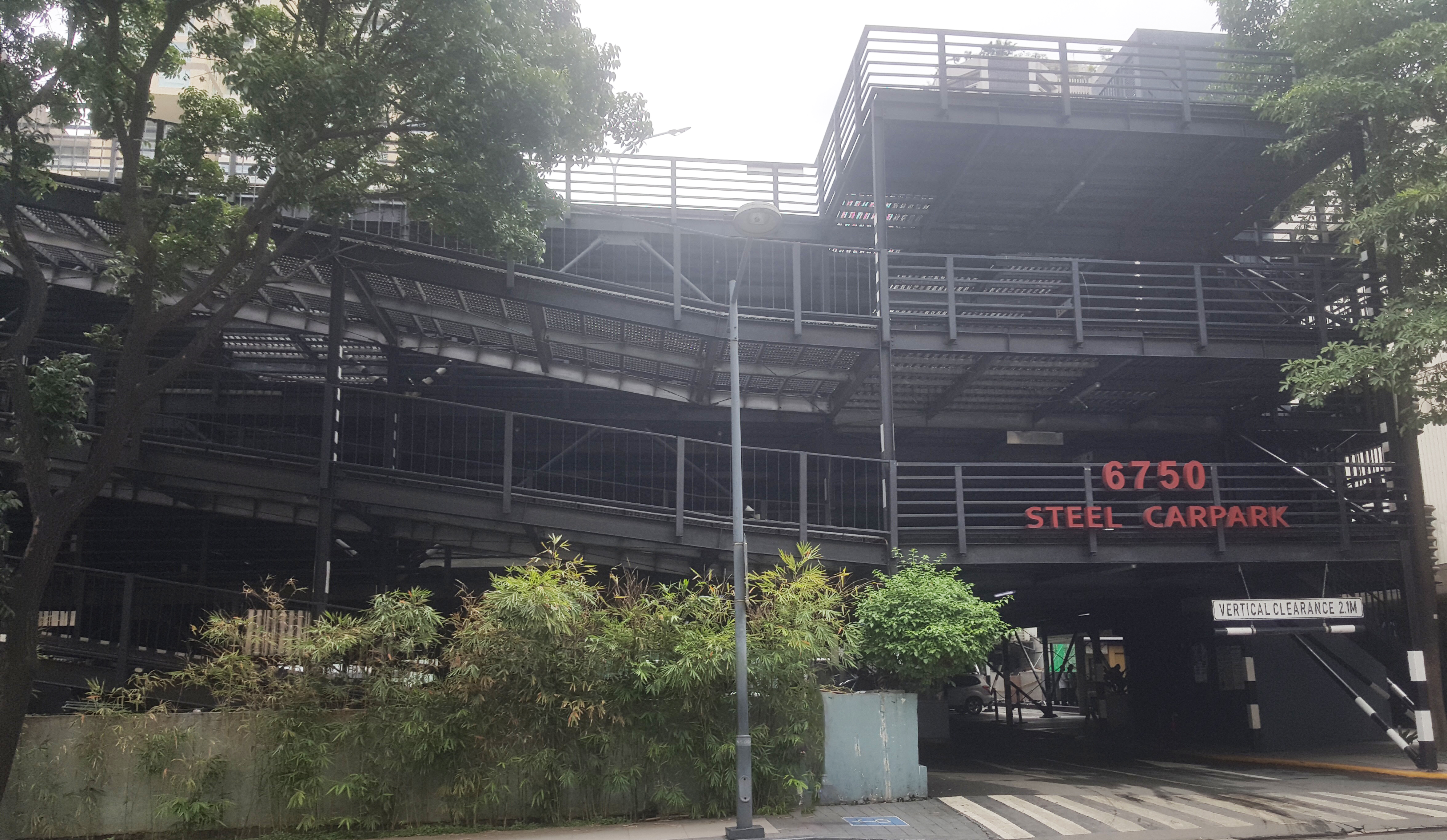

Steel parking garage is a type of parking garage that uses a steel framework to support the parking structure. It is also known as a light steel structure, or LSS. Steel parking garage can be used for schools, hospitals, and sporting events in some cases. The structural design is typically more flexible than concrete structures due to much more efficient use of natural resources such as steel and cement.
Steel parking garage is a quick and efficient way to improve the infrastructure of a location. There is no need to dig deep foundations or pour concrete, as the entire structure can be put together in one piece. The steel beams are pre-engineered, allowing for an easy installation. The process can take only three days depending on the dimensions of the structure and its location.
A steel parking garage can be an environmentally friendly solution to a variety of issues facing our world today. It requires less energy, water, and resources than a traditional concrete structure to create.
When the steel parking garage is no longer in use, it can be dismantled and sold as scrap metal. The steel beams are reusable, and the holes where bolts were once used to hold them together can be filled with concrete. This way seems to be much more efficient than demolishing a traditional concrete structure and dumping the debris in a landfill.
The beams of a steel parking garage are strong and yet lightweight, providing strength with minimal impact on the environment. A traditional concrete structure uses heavy steel beams, concrete footings, and rebar all in one. This can easily cause severe damage to the surrounding neighborhood if it is not done properly.
Steel parking garage is usually less expensive to construct than a traditional concrete parking structure. The structure is made of pre-engineered steel beams and concrete footings, making the final construction process much shorter than a traditional concrete structure constructed in the same area. In addition, steel structures are typically lighter and less expensive to move when necessary. For example, the main beam can be moved to a new location without completely disassembling it.
A steel parking garage is built to withstand extreme elements and conditions. In some cases, it can last for up to 50 years with consistent maintenance. This is definitely a great option for an area that experiences extreme weather or seasonal changes.
About Guangdong Liyou Steel Structure Engineering Co.,Ltd.
Guangdong Liyou Steel Structure Engineering Co.,Ltd was founded in 2014. We are specialized in designing, manufacturing, marketing, and construction of 30x40 Metal buildings, steel structure warehouses, steel structure workshops, prefabricated houses, and light steel villas.
Product Information:
All the prefabricated buildings can be designed to meet the customized wind load, snow load, and seismic requirements for different countries and specific areas. A steel building system means all the steel structure frame components are cut, welded, and drilled at our factory. All of them are well prepared and ready for bolt-together assembly at the construction site.
Product Basic Info.
Place of Origin: | Type: |
Foshan, China (Mainland) | High-Strength Steel |
Application: | |
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing etc. | |
Standard: | Carbon Structural Steel: |
GB | Q355, Q235B |
Features: | Wind Resistance: |
Waterproof, Fireproof, Earthquake Resistance | 100km/H |
Steel Structure Fabrication: | Life Span: |
Sanding(2.5)Painting | Main Steel Structure 50 Years |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Steel structure parking lot |

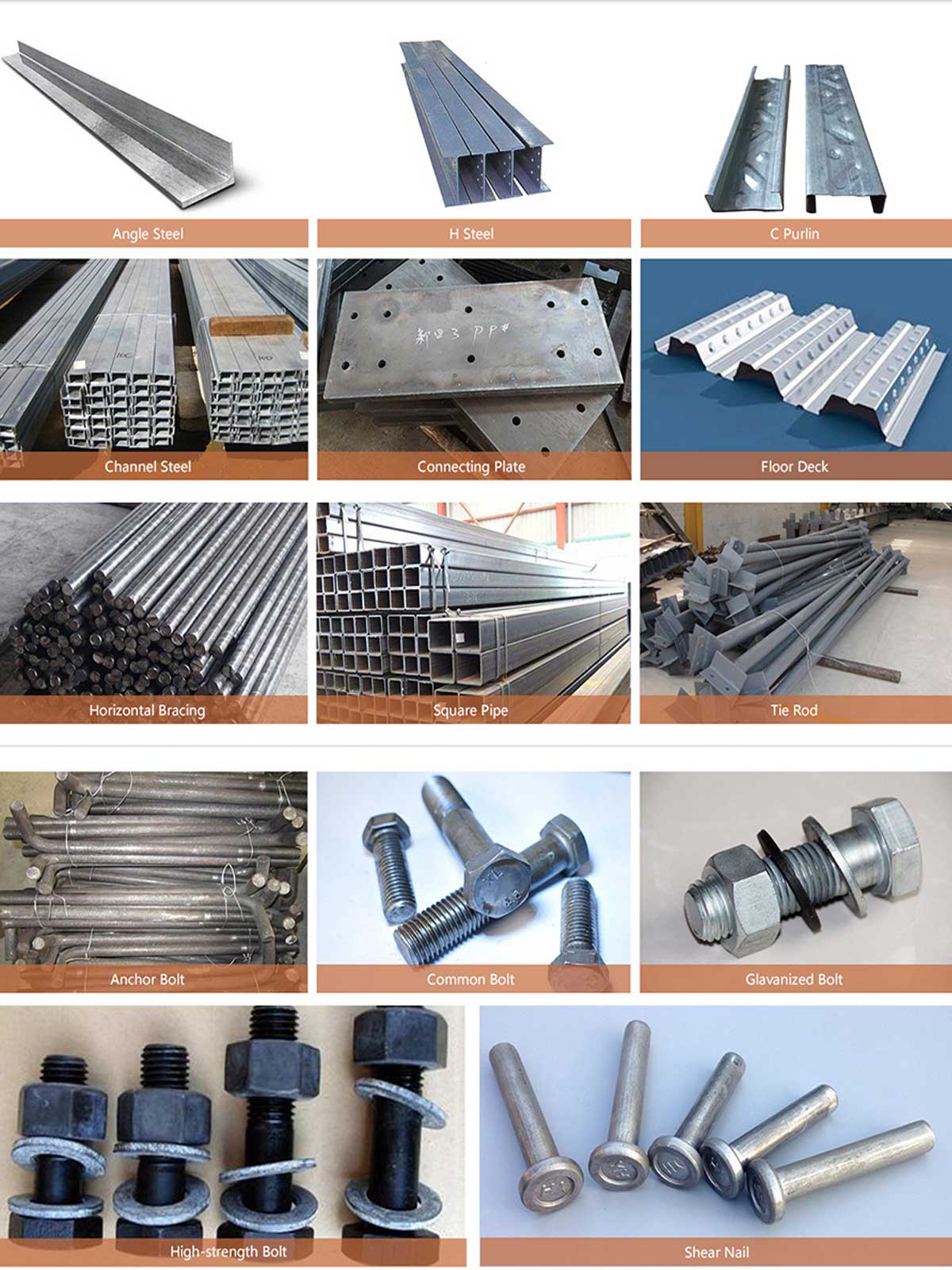

3 Storey Steel Structure Car Parking Building Material List
| Embedded parts | Anchor bolt | M24 |
| High strength bolt | M20，M16，10.9S | |
| Shear nail | M16*80 | |
| Common bolt | M20 | |
| Main steel frame | Steel Column（Q345B） | HW350X250X9X14、HM200*150*6*9 |
| Floor main beam（Q345B） | H450X200X8X12、H400X200X8X10、H400X200X8X14、H300X200X8X12 | |
| Floor secondary beam（Q235B） | HN198*99*4.5*7、HN248*124*5*8 | |
| Staircases（Q235B） | 160 Channel steel +3mm Checkered Plate | |
| Column bracing（Q235B） | L100X6.0、L75X5.0 | |
| Maintenance parts | Floor decking | 1.0mm 840 Type |
| Galvanized plate | 1.2mm | |
| Hand rail | 1.1m High zinc steel fence |
Steel Car Parking Characteristics
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
What We Do?
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Payment Terms:
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market:
Products have been exported to North America, the Middle East, Africa, Asia, and other countries and regions.
Q 1: What should be prepare for the site before start to built?
At the very least, you need concrete piers for the columns to sit upon. Most people pour a full foundation, but if you are using the building on a farm or ranch and plan to have dirt, gravel, or sawdust floors, a pier system may be preferable. In these situations, a popular option is to combine piers with concrete footing around the perimeter of steel building.
Q2. Do you have a recommended foundation and associated drawing?
Yes, we will provide foundation drawing and installation drawing for you after shipment. But the foundation drawing is just for reference because land and soil are diverse in different area.
Q3. Can add a brick wall to my steel building?
Yes, you can. For combined durability and beauty there is nothing like adding brick finishes to walls of your steel building. You receive the benefits of a hard wall, such as fire resistance, along with moisture resistance of a cavity wall.
Q4. Why does wind speed affect prices?
For most of the steel structure buildings, we design wind speed is about 110km/h. But for some strong wind countries,110km/h is not enough, like the Philippines and Mauritius 150~280km/h wind speed need to enlarge the beam and column, that will use more steel on it then increase the price a lot.
