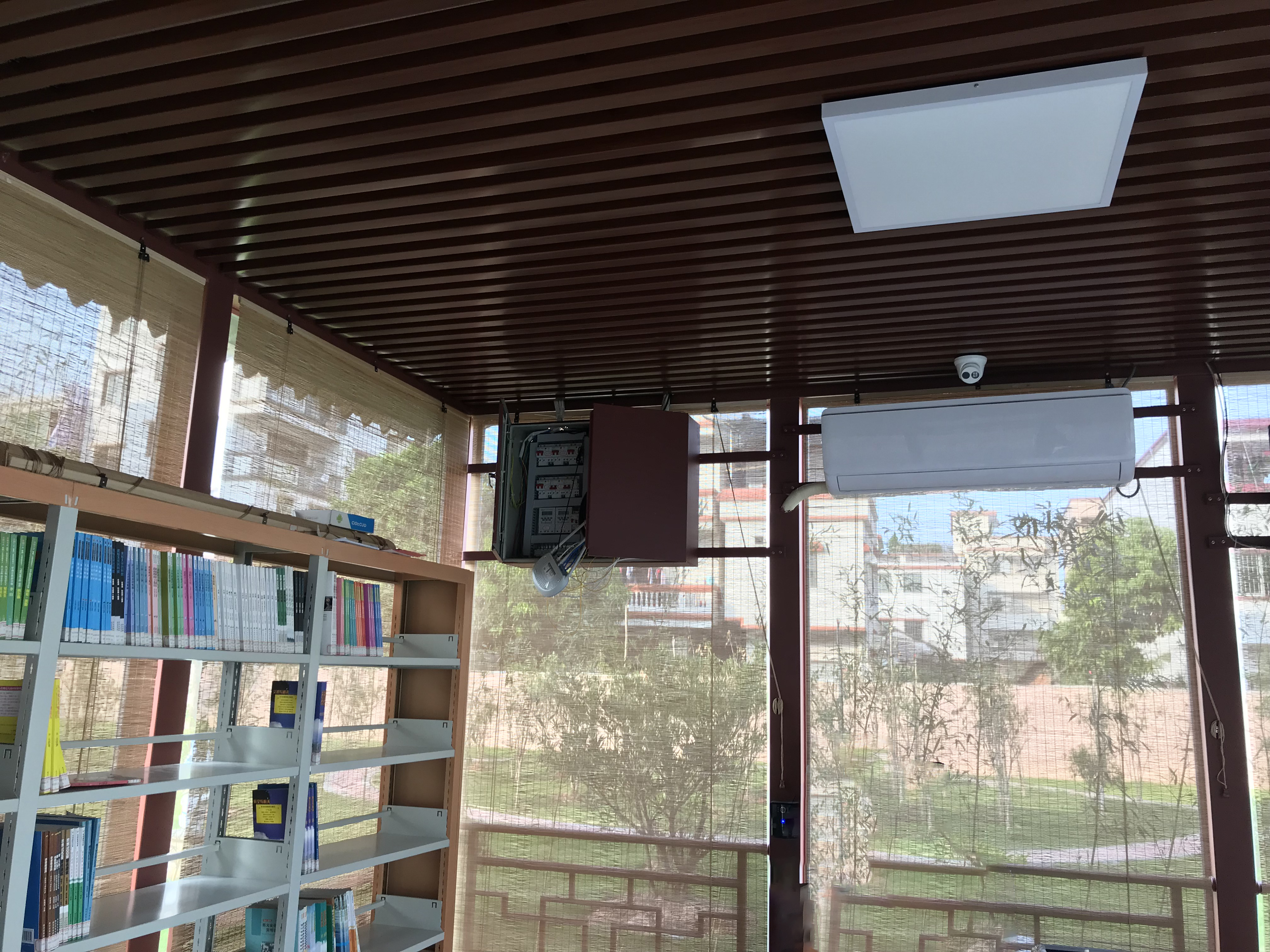

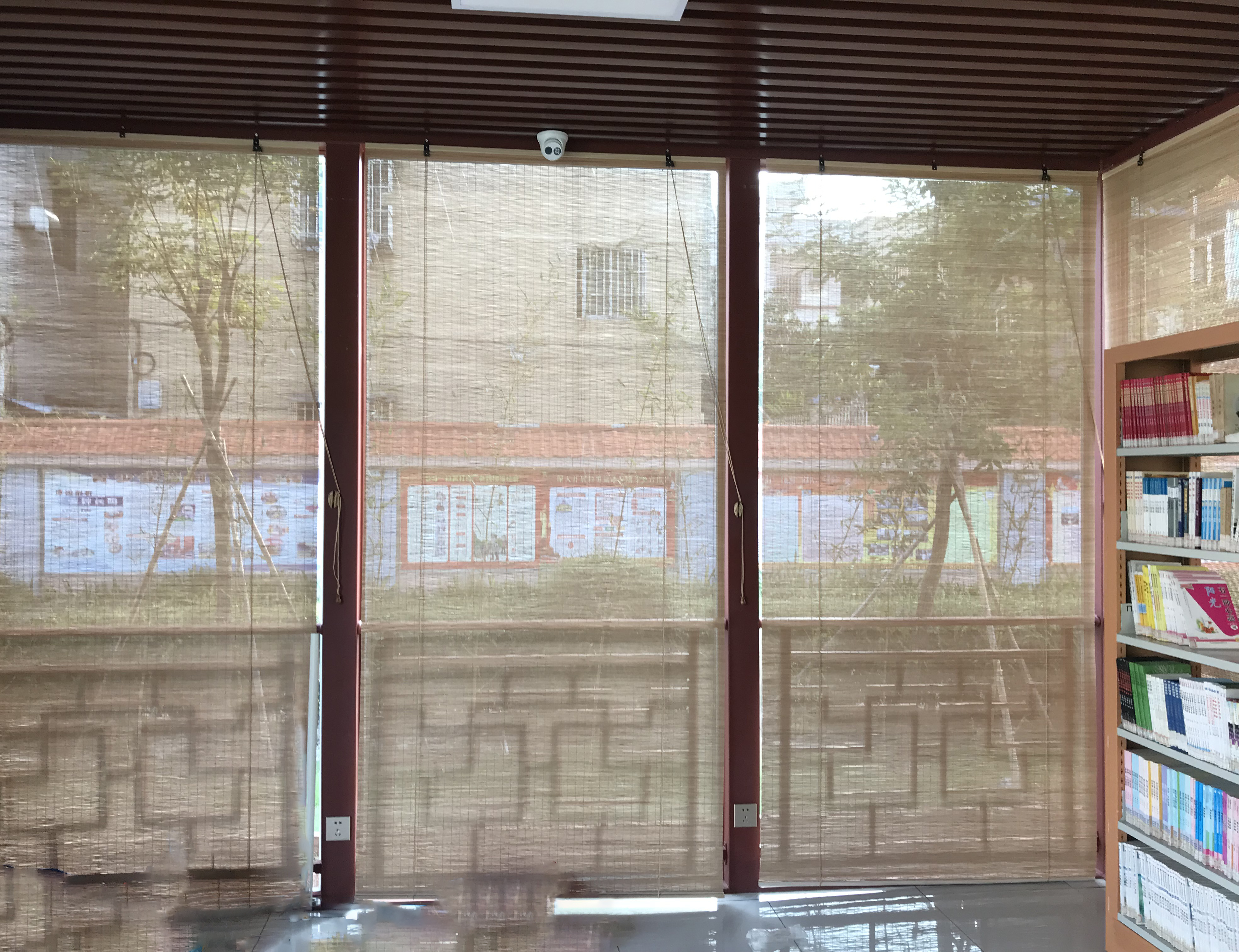

Steel Frame Building House Info.
Area: 50 square meters Height:10 m
Wind resistance: 120km/h. Anti-seismic: 8 grade
Roof dead load: 25kg/㎡ Roof live load: 40kg/㎡

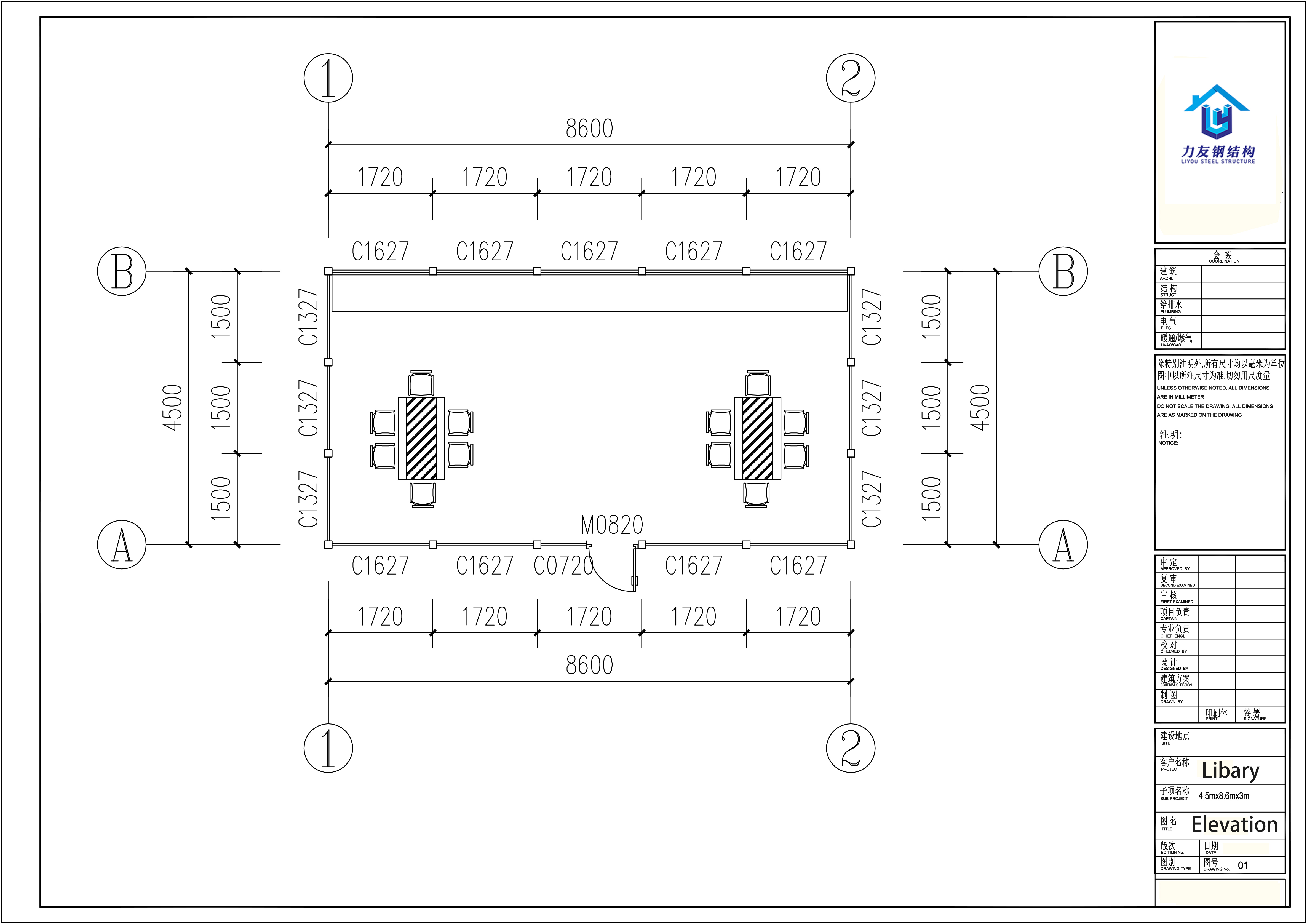

Steel Frame Building House Planing & Drawing
Steel framing, as opposed to wood framing used in conventional house construction, is regarded as non-standard construction. Steel frames are frequently concealed by cladding, outside brickwork, or rendering, making them difficult to see. More and more firms are producing steel frames for the housing construction industry utilizing "light steel construction" technology: Light steel is produced in factories using steel plates that are 1-3 mm thin and are then welded, bolted, or riveted together made into the desired shape via machining. Before adding other materials to the home structure, like brick or plaster, they are first laid on a concrete foundation on the building site.
· Termite Proof
Various homes have long been damaged by termites. A wooden home cannot be protected from termites. When you pick a steel home, you can relax knowing that it is completely termite-proof. Over the course of your home's lifespan, this can save you thousands of dollars in maintenance and chemical termite treatment. Additionally, it implies that dangerous pesticides and poisonous chemicals are not exposed to you and your family.
· Architecturally sound and a modern aesthetic
Your finished frame home will have contemporary, clean lines and sturdy finishes because of the precisely engineered, dimensionally exact Supaloc steel frame. How it is constructed and how it won't shrink, warp, or move.
· Affordable steel frame houses
With steel framing, you may create any type of home, whether you're building a spacious country home or a chic cottage in the city. Steel is a practical and cost-effective solution that provides flexibility for those who are cost-conscious but not price-constrained.
· Environmentally conscious
Your frame is more environmentally friendly because it is made from recycled BlueScope Steel. Additionally, designs that leave the site in a more natural state are possible due to lightweight True Core steel frames.
· Fire resistant
In Australia for example, regular home fires can occur anywhere at any time, and bushfires are a common occurrence. Steel is not flammable, making steel-framed homes more fire-resistant.
· Water Resistant
When you use steel, you won't ever have to be concerned about water damage degrading the interior of your beams and framework. Steel frames will withstand any storms that are thrown at them.
· Flexible interior dividers efficiently utilize available space.
· Resource-efficient procedures produce less waste and harm the environment less.
· Steel construction is sturdy, long-lasting, and solid.
· Prefab or modular building can be found everywhere on the construction site.
· Numerous patterns, an opulent appearance, excellent comfort, and energy conservation.
· The service life is lengthy and exceeds 30 years.
· Fast construction, simple installation, and easy transport are all advantages.
The construction of buildings such homes, vacation homes, family homes, government housing projects, real estate development projects, etc. makes extensive use of light steel villas.
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Metal a Frame House |
Material: | |
Q235 Square Tube, H Section Steel, C/Z Section Steel, Steel Keel etc. | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Use: | |
Residence, Tourist and Holiday House, Real Estate Development Project | |
Size: | Roof & Wall Material: |
Up to Customer's Requirement | Fiber Cement Board or Cement Board+Glass Wool |
Window: | Door: |
Aluminum Alloy Window/PVC Windows | Steel / Aluminum Glass Door |
Roof & Wall Material: | |
Roof tile-Asphalt shingles/Resin tile, Wall cladding-Cement wall cladding/ PVC wall cladding, etc | |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Light Steel Structure Villa |
Components | Specifications |
Embedded Parts/Bolt | M24 |
Expansion Bolt | M8 |
High Strength Bolt | M20 |
Galvanized Bolt | M12 |
Shear Nail | M16 |
Self-tapping Screw | M5 |
Steel Column(Q235B) | HN346*174*6*9 |
Roof Beam(Q235B) | 口80*40+口60*30 |
Floor Main Beam(Q235B) | HN346*174*6*9 |
Secondary Beam(Q235B) | HN198*99*4.5*7 |
Ring Beam(Q235B) | 口100*1.8 |
Roof Purlin(Q235B) | C120*50*20*2.0 |
Connecting Plate | 4mm-16mm |
Roof tile | Roof Waterproof Material +Resin Tile |
Roof Panel | 50mm EPS Sandwich Panel, Color Steel Sheet:0.326mm |
Outside Wall Panel | 75mm Fiber Cement Board |
Partition Wall Panel | 75mm Fiber Cement Board |
Floor Decking | 1.0mm |
Outside Wall Decoration | PVC Cladding |
Steel Door | W880*H2050 |
Aluminum Door | W700*H2050 |
Aluminum Sliding Door | W4000*H2050 |
Aluminum Sliding Window | W1200*H1500 , W900*H600, etc |
Trimming | Color Steel Sheet, Galvanized plate |
● The flexible interior partition can make good use of the space.
● Resource-efficient practices produce less waste and less impact on the environment.
● Steel structure construction is strong, durability and stability.
● The prefabricated or modular building can be on job sites anywhere.
● Varied designs, luxurious appearance, good comfort, and energy saving.
● The service life is long and more than 30 years.
● Fast construction, easy installation, and convenient to transport.
The light steel villa is widely used in the construction of buildings, such as residence, tourist and holiday house, family house, government residential project real estate development project, etc.
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
01 Customized Design
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
1. Project Dimension
Width__________meters, Length________meters, Height__________meters
2. Roof Slop Grade___________
3. Wall Panel: Fiber Cement Board, Thickness:___________
4. Wall Decoration: Cement Cladding, Metal Cladding, PVC Cladding etc.
5. Roof Panel: EPS / PU / Rockwool Sandwich Panel, Thickness:__________________
6. Roof Decoration: Asphalt Single / Resin Tile / Metal Tile
7. Door: 1)Aluminium Sliding Door 2) Steel Door 3) Roll Up Door(garage), Size :________
8. Window: 1)Aluminium Window 2)PVC Window, Size :______________
9. Draining: 1)Natural draining 2)Gutter+Downspout
