7308900000
Column, Beam, Purlin, Bracing etc

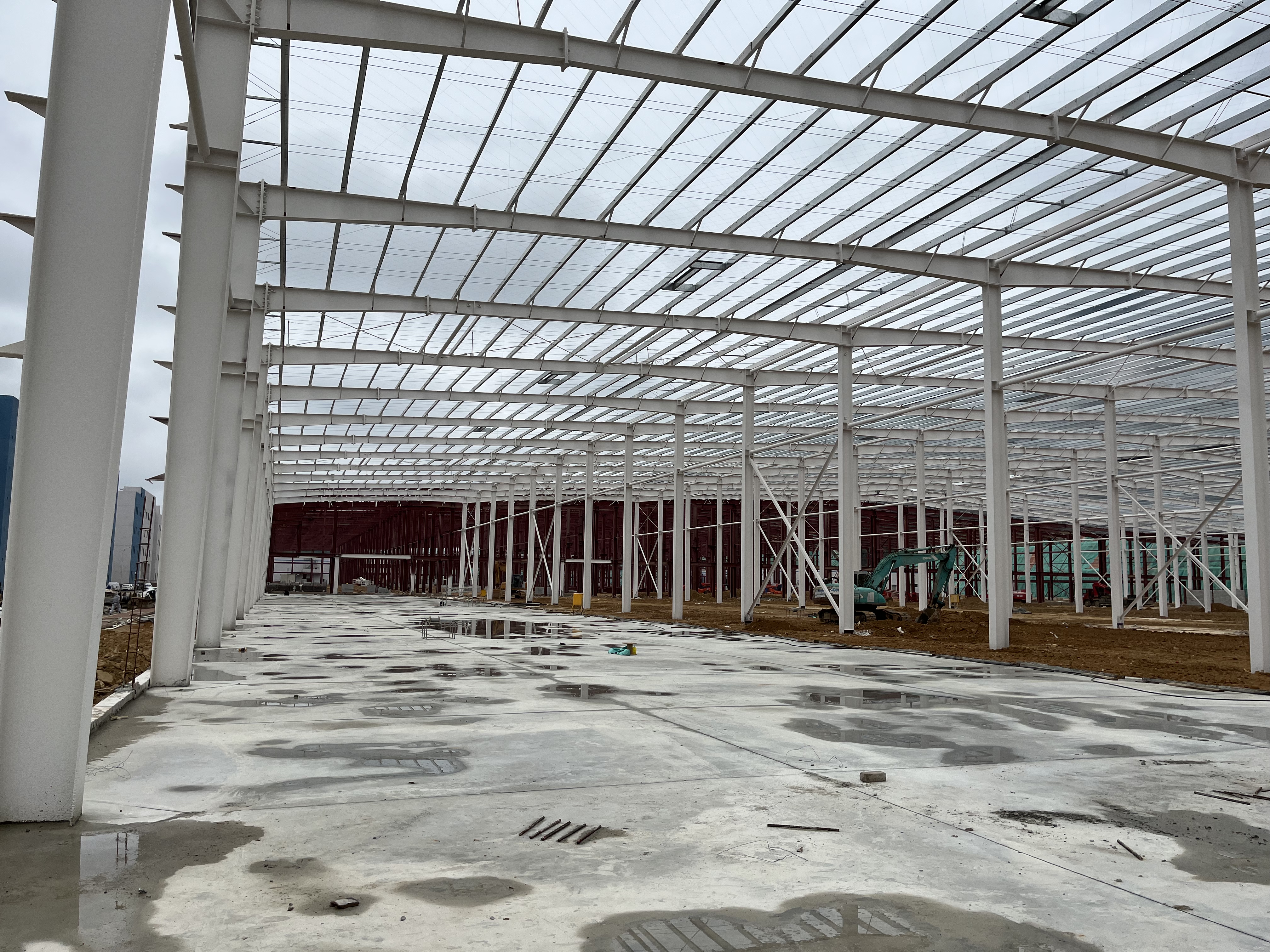

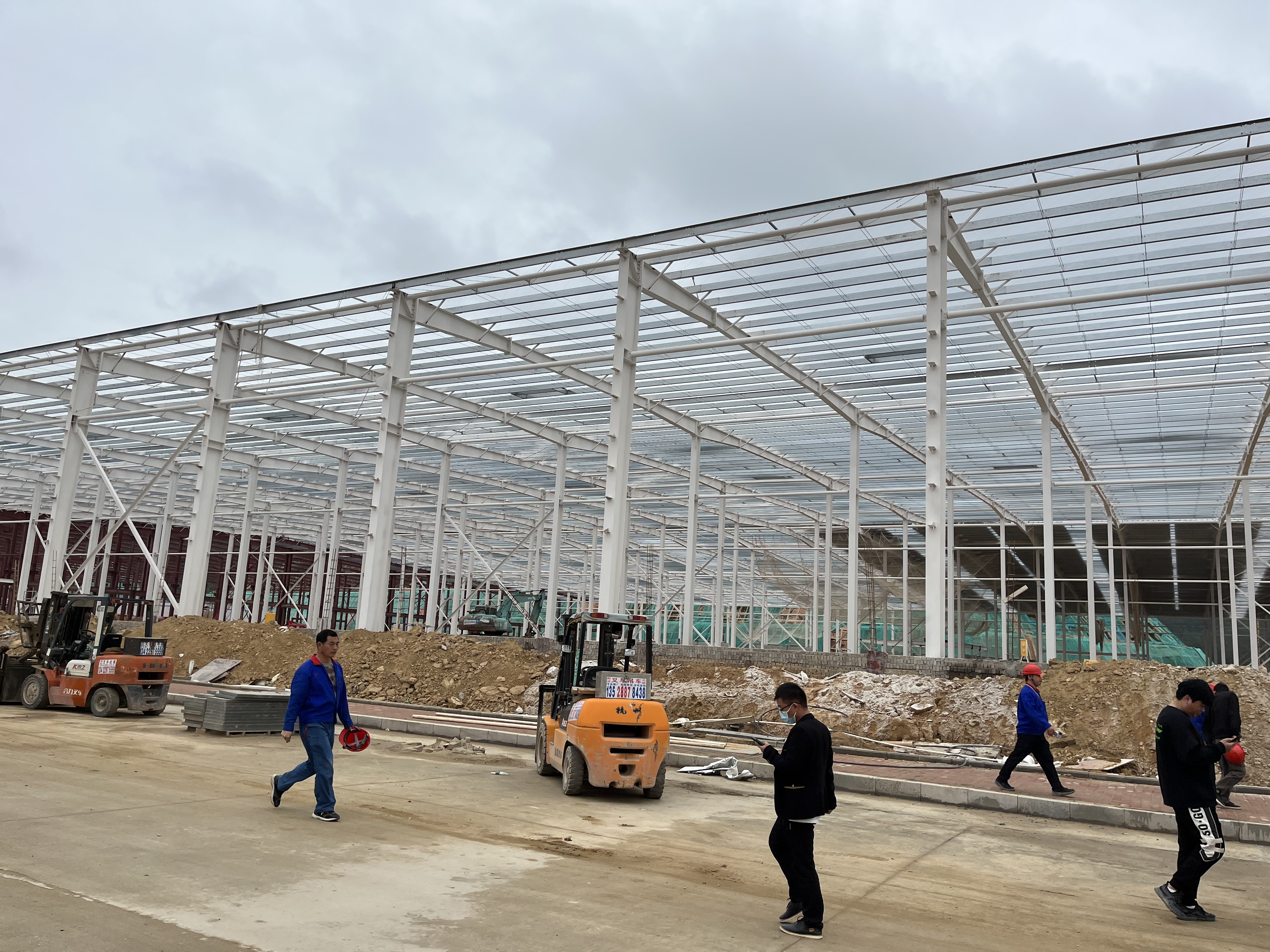

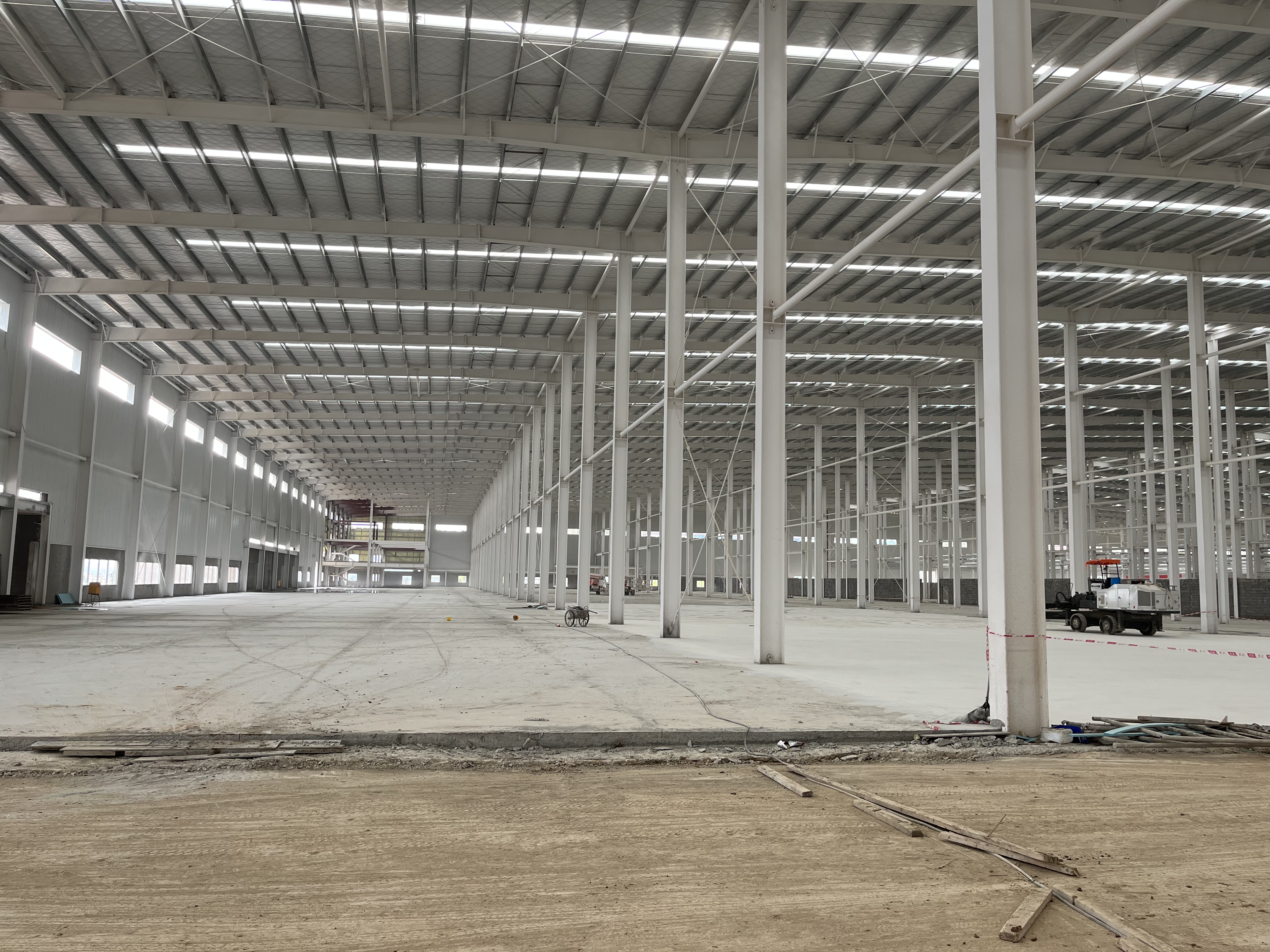

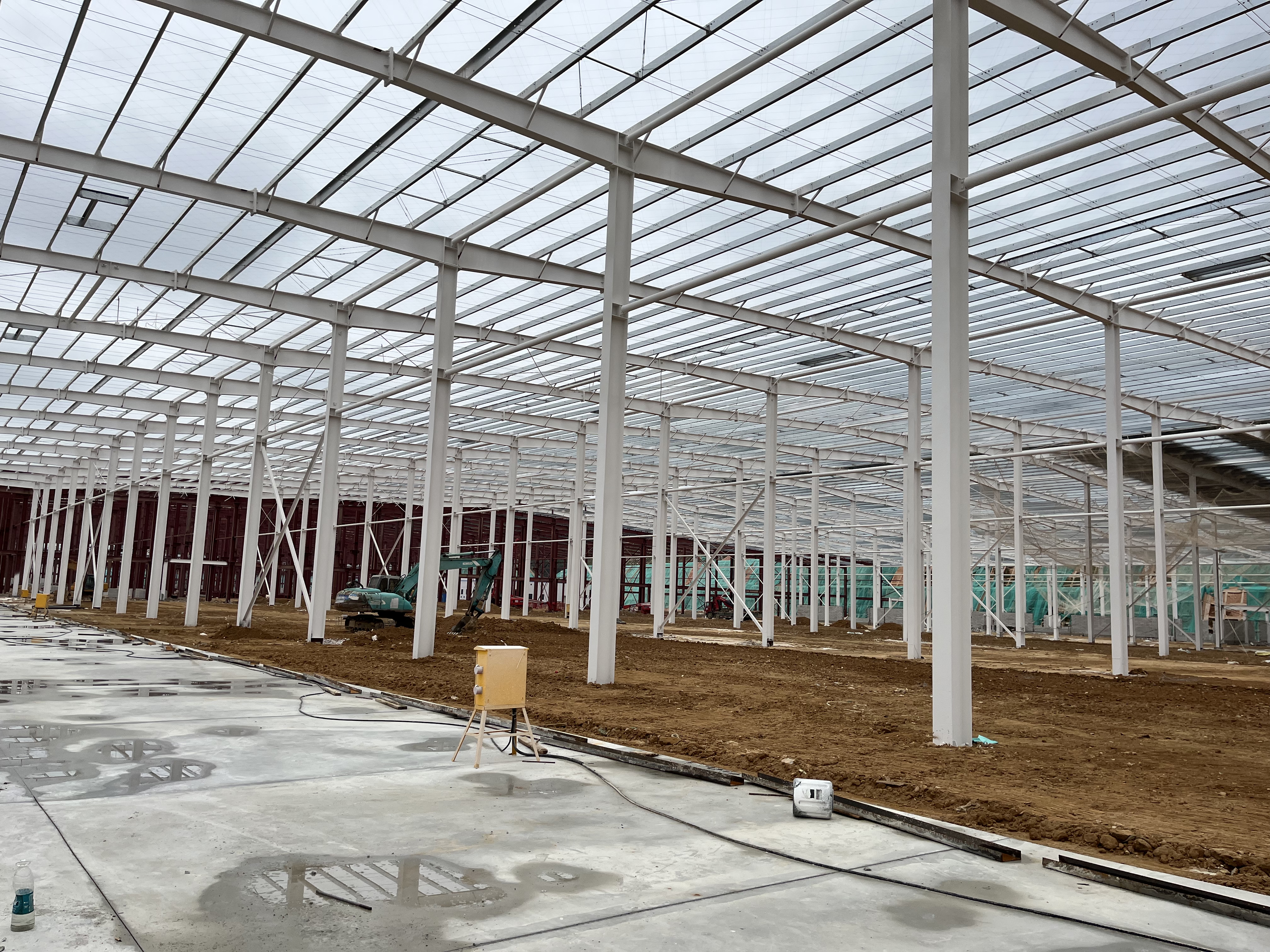

Steel structure Factory introduction :
If you work in the workshop of the factory or you often contact this kind of workshop, you will find that there will be a shadow of steel structure somewhere in these plants, such as industrial machinery production workshop will have the application of driving, the driving beam is likely to be steel structure, it is not difficult to see that the column supporting the driving beam is also a steel column. So now let's see if the workshop we're in is a steel structure.
Product Information:
Building area:20000 square meters Day of delivery :90 days
Wind resistance: 120km/h. Anti-seismic: 8 grade
Roof dead load: 25kg/㎡ Roof live load: 40kg/㎡
All the prefabricated buildings can be designed to meet the customized wind load, snow load, and seismic requirements for different countries and specific areas. A steel building system means all the steel structure frame components are cut, welded, and drilled at our factory. All of them are well prepared and ready for bolt-together assembly at the construction site.
Product Basic Info.
Place of Origin: | Type: |
Foshan, China (Mainland) | High-Strength Steel |
Application: | |
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing etc. | |
Standard: | Carbon Structural Steel: |
GB | Q355, Q235B |
Features: | Wind Resistance: |
Waterproof, Fireproof, Earthquake Resistance | 100km/H |
Steel Structure Fabrication: | Life Span: |
Sanding(2.5)Painting | Main Steel Structure 50 Years |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Steel structure parking lot |
3 Storey Steel Structure Car Parking Building Material List
| Embedded parts | Anchor bolt | M24 |
| High strength bolt | M20，M16，10.9S | |
| Shear nail | M16*80 | |
| Chemistry bolt | M12*220，8.8S | |
| Common bolt | M20 | |
| Main steel frame | Steel Column（Q345B） | HW350X250X9X14、HM200*150*6*9 |
| Floor main beam（Q345B） | H450X200X8X12、H400X200X8X10、H400X200X8X14、H300X200X8X12 | |
| Floor secondary beam（Q235B） | HN198*99*4.5*7、HN248*124*5*8 | |
| Staircases（Q235B） | 160 Channel steel +3mm Checkered Plate | |
| Column bracing（Q235B） | L100X6.0、L75X5.0 | |
| Maintenance parts | Aluminium push windom | 2400*1500*5 pcs |
| Gutter(Including parts) | 2.0 thickness steel panel | |
| Floor decking | 1.0mm 840 Type | |
| Galvanized plate | 1.2mm | |
| Hand rail | 1.1m High zinc steel fence |
Steel Car Parking Characteristics
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
What We Do?
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Payment Terms:
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market:
Products have been exported to North America, the Middle East, Africa, Asia, and other countries and regions.
Q 1: What should be prepare for the site before start to built?
At the very least, you need concrete piers for the columns to sit upon. Most people pour a full foundation, but if you are using the building on a farm or ranch and plan to have dirt, gravel, or sawdust floors, a pier system may be preferable. In these situations, a popular option is to combine piers with concrete footing around the perimeter of steel building.
Q2. Do you have a recommended foundation and associated drawing?
Yes, we will provide foundation drawing and installation drawing for you after shipment. But the foundation drawing is just for reference because land and soil are diverse in different area.
Q3. Can add a brick wall to my steel building?
Yes, you can. For combined durability and beauty there is nothing like adding brick finishes to walls of your steel building. You receive the benefits of a hard wall, such as fire resistance, along with moisture resistance of a cavity wall.
Q4. Why does wind speed affect prices?
For most of the steel structure buildings, we design wind speed is about 110km/h. But for some strong wind countries,110km/h is not enough, like the Philippines and Mauritius 150~280km/h wind speed need to enlarge the beam and column, that will use more steel on it then increase the price a lot.
