Guangdong LiYou Steel Structure Engineering Co., Ltd. +8619147784007 liyousteelstructure@outlook.com
 |
| Quantity: | |
|---|---|
Building a new manufacturing plant or warehouse is a major investment—but Liyou Steel makes it faster, more affordable, and hassle-free. Our pre-engineered steel buildings provide unmatched durability, customization, and cost efficiency, allowing you to focus on production rather than construction delays.
✔ Rapid Construction – Prefabricated components cut build time by 40-50% vs. traditional methods.
✔ Unmatched Strength – High-grade Q355B steel frames withstand heavy loads, extreme winds (up to 200 km/h), and seismic activity.
✔ Low Maintenance – Galvanized/painted steel resists corrosion, reducing long-term upkeep costs.
✔ Customizable Layouts – Clear spans up to 100m, mezzanine floors, crane systems, and insulated panels available.
✔ Cost-Effective – Lower foundation costs & energy-efficient designs maximize ROI.
Factories & Production Plants (automotive, machinery, food processing)
Warehouses & Logistics Centers (high-bay storage, distribution hubs)
Heavy Industrial Workshops (equipment assembly, fabrication shops)
Cold Storage & Specialized Facilities (pharmaceutical, chemical storage)
| Feature | Specification |
|---|---|
| Frame Material | Q355B Structural Steel (ASTM A572 Equivalent) |
| Column Spacing | 6m - 15m (adjustable) |
| Roof/Wall Panels | Corrugated steel, PIR/PUR insulated panels, or fiber cement boards |
| Fire Resistance | Up to 2 hours with fireproof coatings |
| Design Life | 25-50 years (depending on environment) |
3D Modeling & Engineering (AutoCAD, Tekla)
Precision Fabrication (CE/ISO-certified factory)
Fast On-Site Assembly (with installation support)
Post-Construction Warranty (10+ years on structure)
✔ Automotive Plant in Mexico – 25,000m², completed in 5 months
✔ E-Commerce Warehouse in Thailand – 18,000m² with automated storage systems
✔ Food Processing Facility in UAE – Cold storage-compatible insulated steel structure
Tell Us Your Needs: Size, location, special features (cranes, insulation, etc.)
Get a Custom Proposal: 3D design + transparent pricing
Fast Delivery: 10-16 weeks from order to completion
Contact Liyou Steel for a faster, stronger, smarter manufacturing facility!

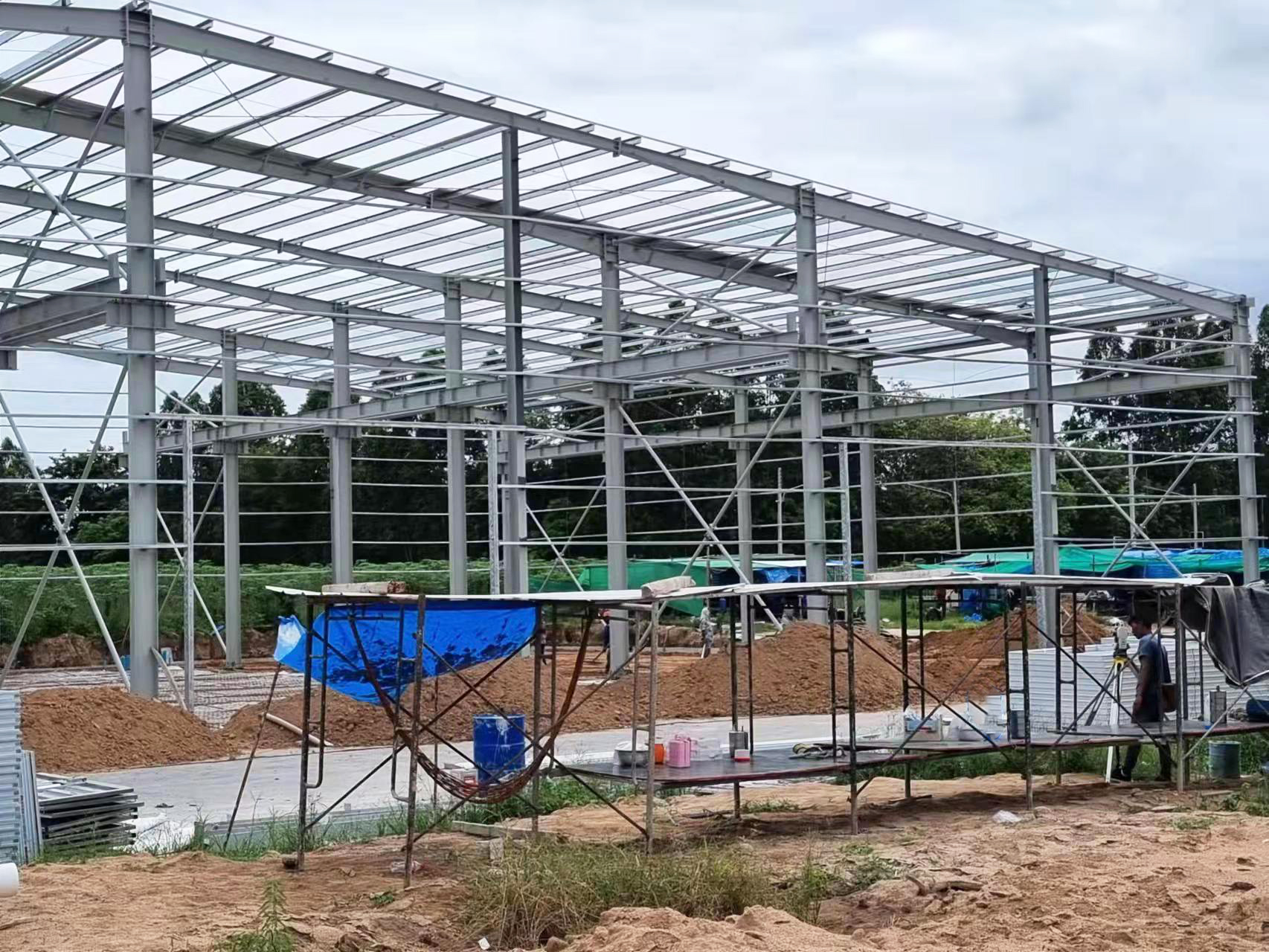

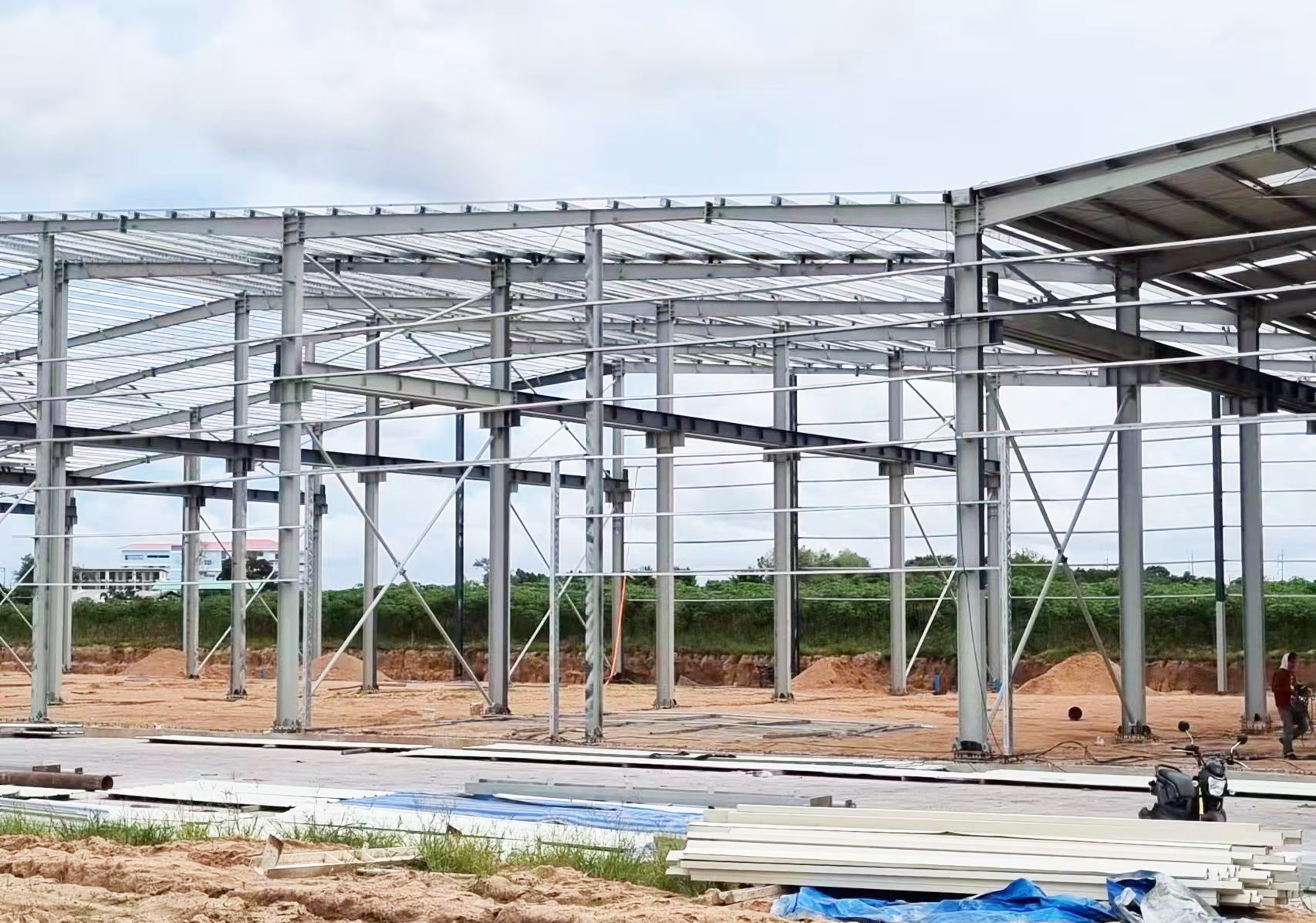

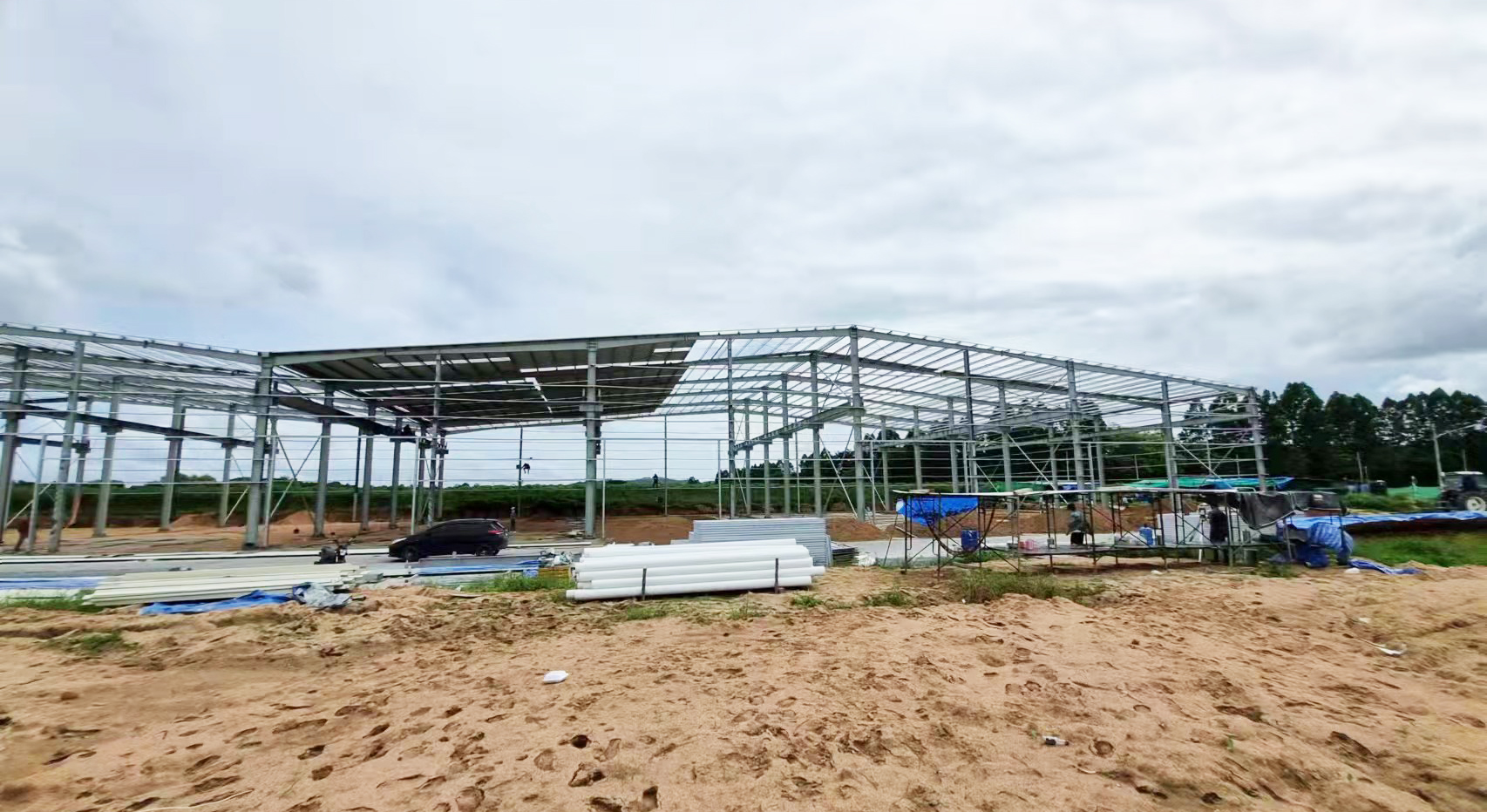

Steel Structure Metal Building Plant Info.
Project add: Thainland Bangkok Project size: 33.65mx165mx9(12)m
Area: 6675 square meters Weight: 210 tons
Wind resistance: 120km/h. Anti-seismic: 8 grade
Roof dead load: 25kg/㎡ Roof live load: 40kg/㎡
Steel strucuture building knowledge
Have you been looking to create a new factory facility, but you’ve been unsure about the best way to go about this? Well, why not take the hassles out of the planning process with our exceptionally high-quality, ultra-durable metal building workshop instead? Made to the highest level of precision by our Mainland China team, this exceptionally high-quality frame could be the perfect way to take your new workshop aspirations to ever greater heights.
Building a new workshop or factory undoubtedly comes with a big commitment. However, here at Teamwork Steel Buildings, we wanted to change the status quo for our customers, which is why we set out to create some of the finest metal buildings and frames on the market. Ideal for a low-maintenance, high-quality solution, this pre-made metal building workshop frame is the ideal way to complete your construction project in as little time as possible.
Whether you're creating a new factory, establishing a new livestock barn, or even making a new large-scale office building, our metal building workshop is up to the task! Ultra-durable steel helps ensure that the building is both lightweight and strong, preventing damage and making it easier to assemble. What's more, the size can be tailored to your requirements, as can the color of the steel frame, making it easy to apply to any construction project you might have.
Contact our experts to find out more about how our metal building workshop might be right for you – we're here to help!

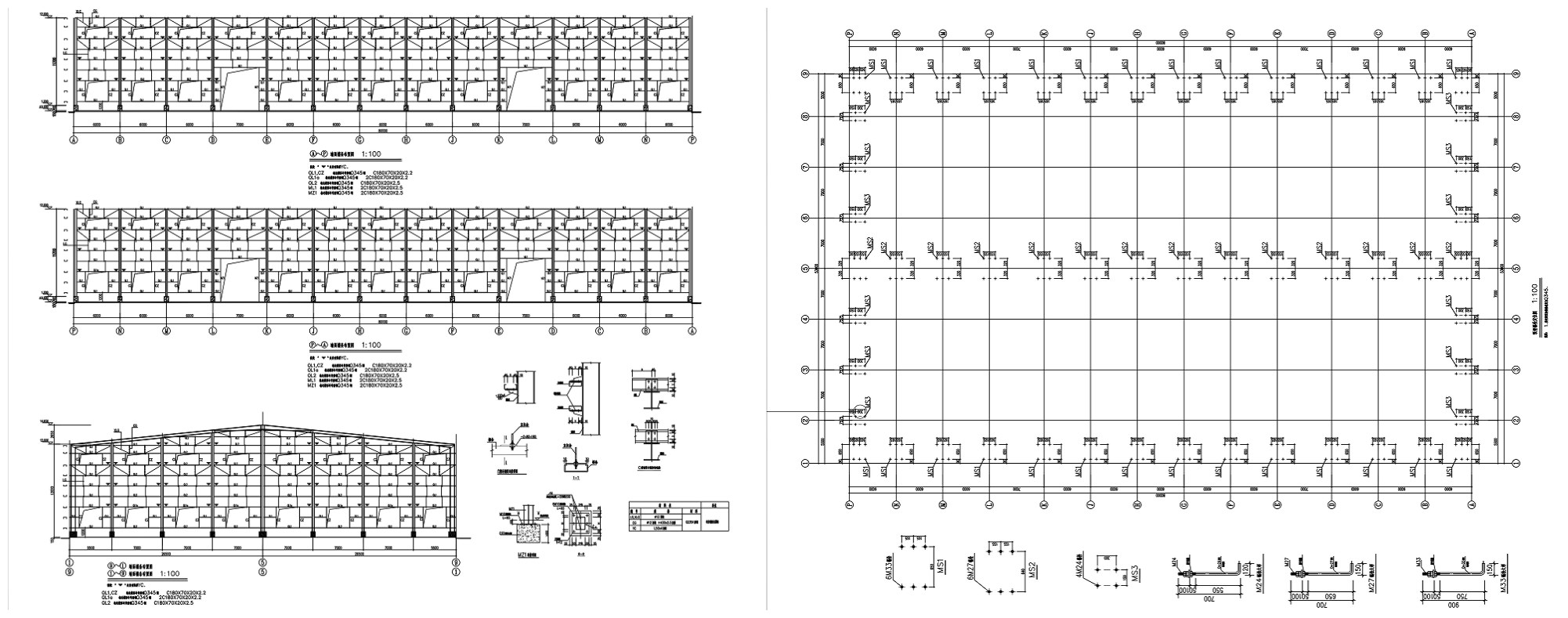

Steel Structure Metal Building Plant Planing & Drawing
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Metal Structure Building |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc. | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Size: | Color: |
Up to Customer's Requirement | Graywhite, Blue, Red, etc.. |
Roof & Wall Material: | Door: |
Steel Sheet or Sandwich Panel | Rolling / Sliding Door |
Window: | Technology: |
Aluminum Alloy Window | Welded steel, Hot Rolled Steel |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Metal structure |
| Components | Specification |
| High strength bolt | M20 |
| Common bolt | M20 |
| Galvanized bolt | M12 |
| Turnbuckle | M20 |
| Brace | M12 |
| Steel column(Q235B) | H400*200*6*8 |
| Wind column(Q235B) | H300*180*6*8 |
| Roof beam(Q235B) | H(450-200)*180*6*8 H(200-450)*180*6*8 |
| Crane beam | H350*180*6*8 |
| Tie rod | ∅89X3.0 |
| Rainshed | H300*150*6*8+∅89*3.0 |
| Horizontal bracing | ∅20 |
| Column bracing | ∅20 |
| Partition wall column | 口100*2.0 |
| Wall purlin(Galvanized) | C160*50*20*2.0 |
| Roof purlin(Galvanized) | C160*50*20*2.0 |
| Connecting plate | 4mm～20mm steel sheet |
| Ancillary material | Acetylene, oxygen, electrode |
| Resist rust | Sa2.5 |
| Painting | Alkyd paint |
| Roof tile | Rock wool sandwich panel: 50mm |
| Lighting tile | 1.2mm |
| Wall panel | Rock wool sandwich panel: 50mm |
| Partition wall panel | Rock wool sandwich panel: 50mm |
| Toilet partition | 10mm |
| Rolling door(automatic) | W4500*H5000 |
| Steel door | W1000*H2100 |
| Steel door | W850*H2100 |
| Sandwich panel door | W5000*H3500 |
| Aluminum window (thk:1.2mm) | W250*H2000 |
| Aluminum window security mesh(thk:1.2mm) | W500*H500 |
| Aluminum window (thk:1.2mm) | W1130*H1000 |
| Aluminum window (thk:1.2mm) | W2000*H1000 |
| Gutter | PVC |
| Down pipe | PVC110 |
| Trimming | 1.0mm galvanized /steel sheet |
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q: What should you provide before quotation?
A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.
Q: What accessories do we provide for customized steel buildings?
A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.
Q: Can the steel building be installed by yourself?
A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.
Q: What should be prepared for the site before installation?
A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.
Q: Do we have a recommended foundation and associated drawing?
A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
