Steel Structure Villa


Availability:
Quantity:


Product Overview



Place of Origin:

Product Name:

Foshan, China (Mainland)

Light Steel Villa

Material:

Q235 Square Tube, H Section Steel, C/Z Section Steel, Steel Keel etc.

Standard:

Type:

GB

Light Steel Structure Frame

Use:

Residence, Tourist and Holiday House, Real Estate Development Project

Size:

Roof & Wall Material:

Up to Customer's Requirement

Fiber Cement Board or Cement Board+Glass Wool

Window:

Door:

Aluminum Alloy Window/PVC Windows

Steel / Aluminum Door

Roof & Wall Material:

Roof tile-Asphalt shingles/Resin tile, Wall cladding-Cement wall cladding/ PVC wall cladding, etc

Drawing Design:

Keywords:

AutoCAD, Tekla Structure, Vertex BD, SketchUp etc.

Light Steel Structure Villa



Product Components



Components

Specifications

Embedded Parts/Bolt

M24

Expansion Bolt

M8

High Strength Bolt

M20

Galvanized Bolt

M12

Shear Nail

M16

Self-tapping Screw

M5

First Floor Steel Column(Q235B)

HN346*174*6*9

Second Floor Steel Column(Q236B)

口100*3.0

Roof Beam(Q235B)

口80*40+口60*30

Floor Main Beam(Q235B)

HN346*174*6*9

Secondary Beam(Q235B)

HN198*99*4.5*7

Ring Beam(Q235B)

口100*1.8

Stairs

[16 u-bar+ 2.5mm Chequered Plate

Roof Purlin(Q235B)

C120*50*20*2.0

Connecting Plate

4mm-16mm

Paint

2 Times Spray Paint

Roof tile

Roof Waterproof Material +Resin Tile

Roof Panel

50mm EPS Sandwich Panel, Color Steel Sheet:0.326mm

Outside Wall Panel

75mm Fiber Cement Board

Partition Wall Panel

75mm Fiber Cement Board

Floor Decking

1.0mm

Outside Wall Decoration

PVC Cladding

Electric Rolling Door

W6000*H2500

Steel Door

W880*H2050

Aluminum Door

W700*H2050

Aluminum Sliding Door

W4000*H2050

Aluminum Sliding Window

W1200*H1500 , W900*H600, etc

Handrail

口80*40+口40+口30+口20

Trimming

Color Steel Sheet, Galvanized plate

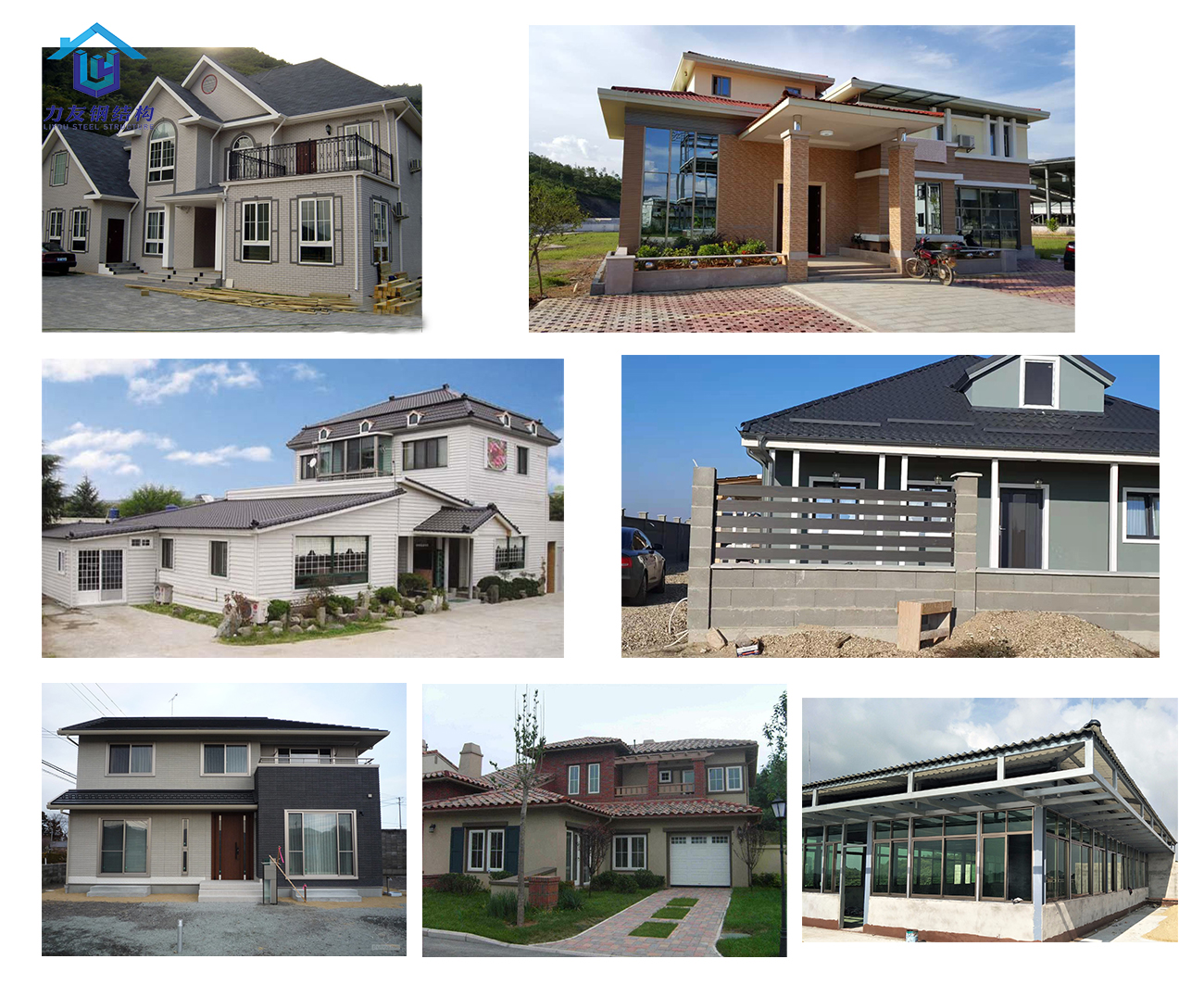

Components of Light Steel Villa House

别墅

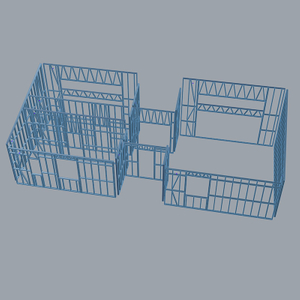

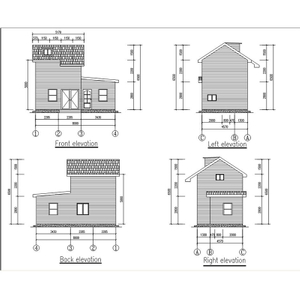

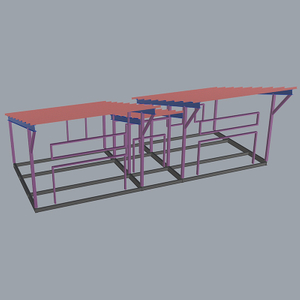

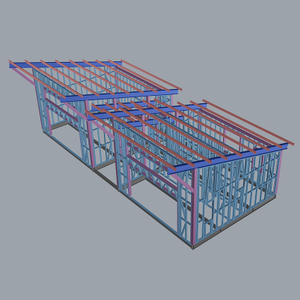

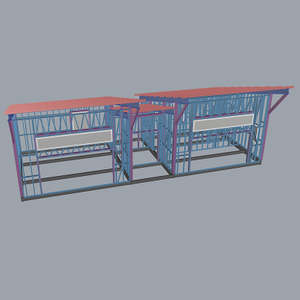

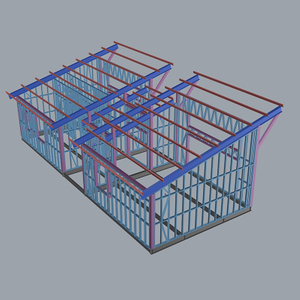

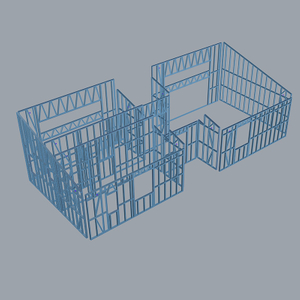

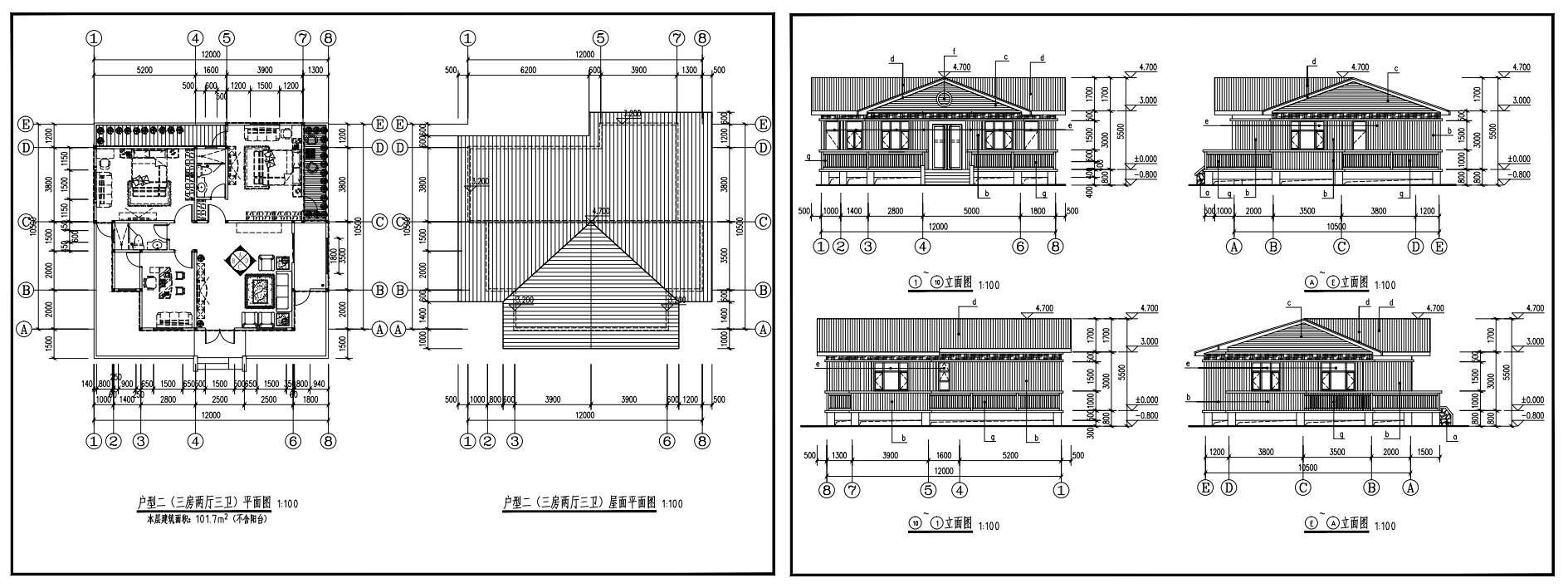

Light Steel Villa House Planing & Drawing



6-5

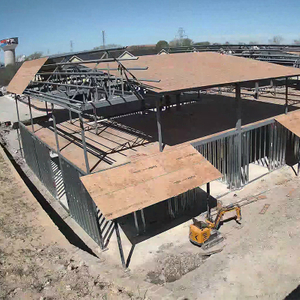

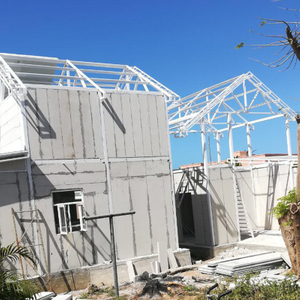

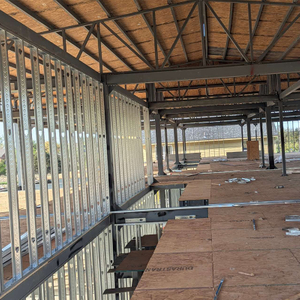

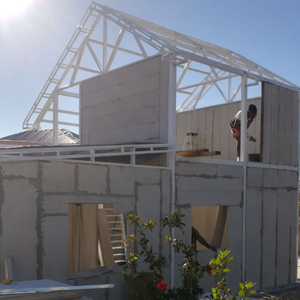

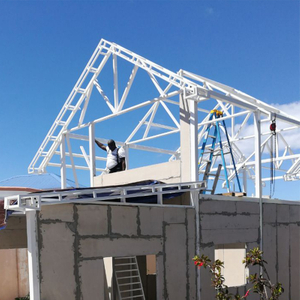

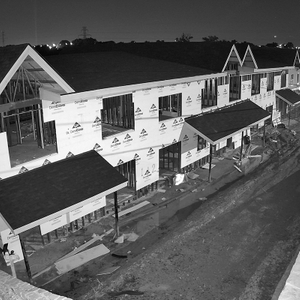

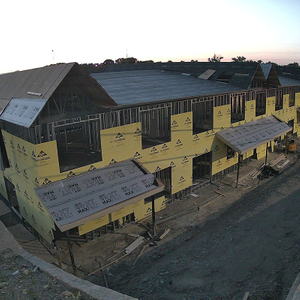

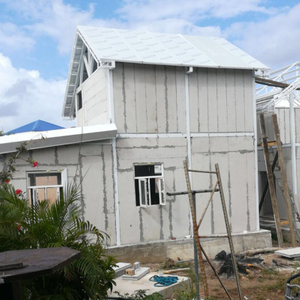

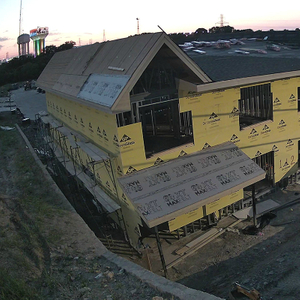

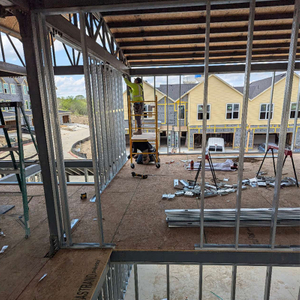

Light Steel Villa House Installation

6-2

Light Steel Villa House Features


● The flexible interior partition can make good use of the space.

 Resource-efficient practices produce less waste and less impact on the environment.

 Steel structure construction is strong, durability and stability.

 The prefabricated or modular building can be on job sites anywhere.

 Varied designs, luxurious appearance, good comfort, and energy saving.

 The service life is long and more than 30 years.

 Fast construction, easy installation, and convenient to transport.


Light Steel Villa House Applications


The light steel villa is widely used in the construction of buildings, such as residence, tourist and holiday house, family house, government residential project real estate development project, etc.




About Teamwork Steel Structure


Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.

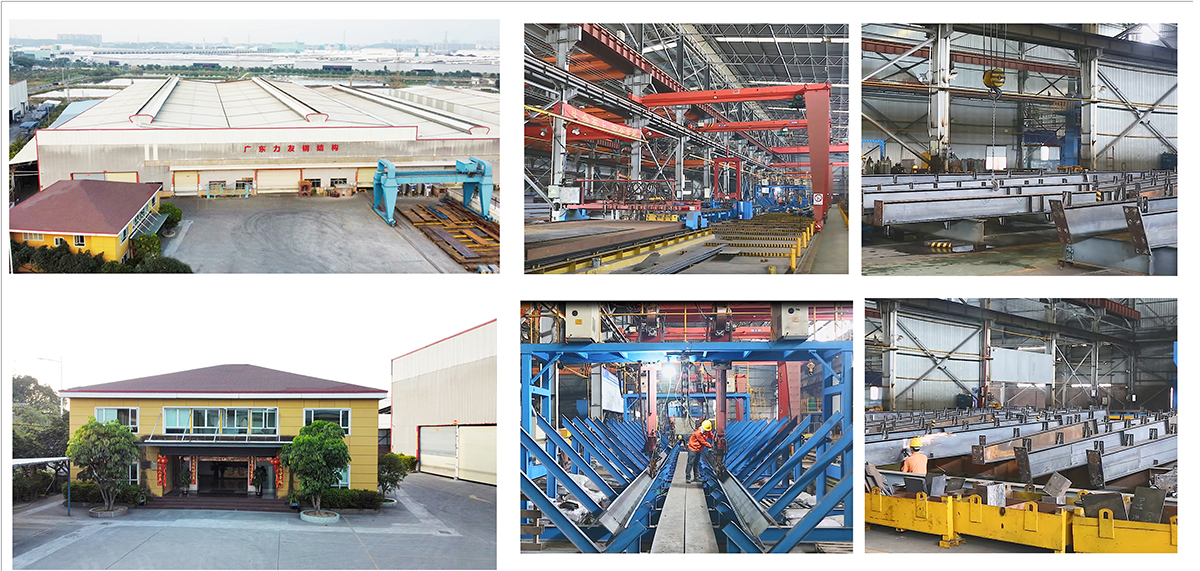

Liyou steel structure





Why Choose Us


01 Customized Design


02 Quality Assurance

● Strict quality control

● Safe packing

● Quality inspection before shipment


03 After-sales service

Installation instruction on site

Installation technical team backup

Timely communication by Email & Phone



Certification





Loading


Philippines and Thailand projects


Price Requirements


1. Project Dimension

Width__________meters, Length________meters, Height__________meters

2. Roof Slop Grade___________

3. Wall Panel: Fiber Cement Board, Thickness:___________

4. Wall Decoration: Cement Cladding, Metal Cladding, PVC Cladding etc.

5. Roof Panel: EPS / PU / Rockwool Sandwich Panel, Thickness:__________________

6. Roof Decoration: Asphalt Single / Resin Tile / Metal Tile

7. Door: 1)Aluminium Sliding Door 2) Steel Door 3) Roll Up Door(garage), Size :________

8. Window: 1)Aluminium Window 2)PVC Window, Size :______________

9. Draining: 1)Natural draining 2)Gutter+Downspout
