Premium Structural Steel Material for Durable Construction

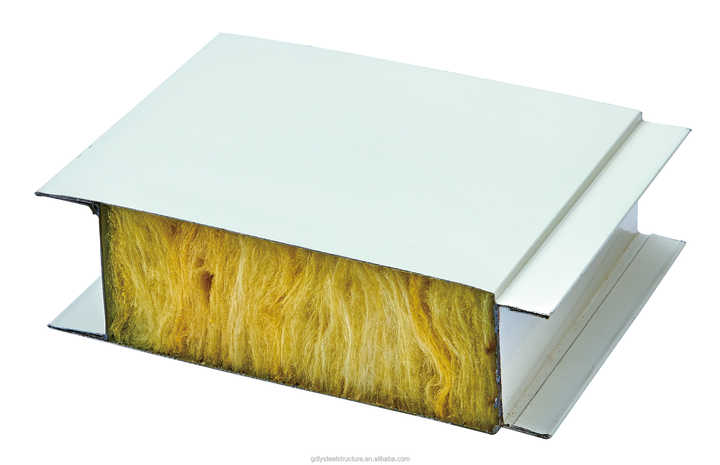

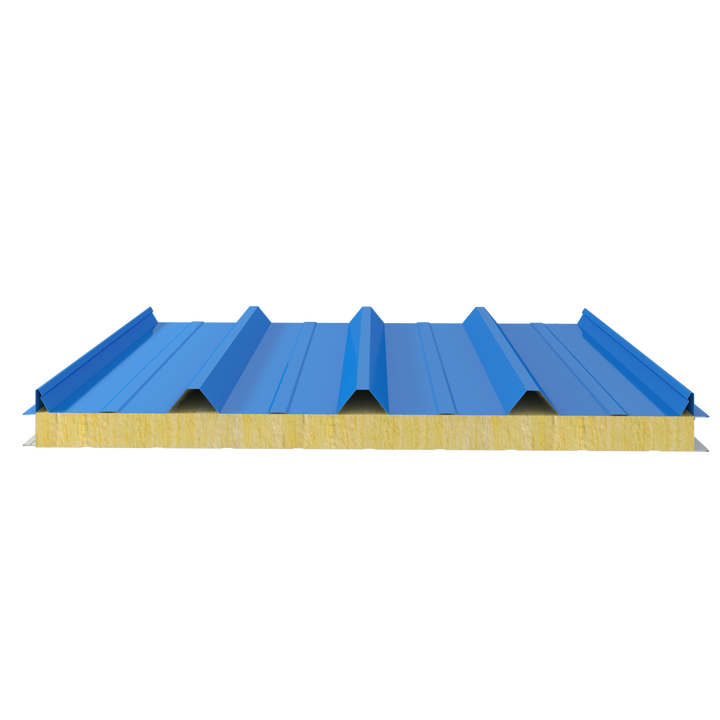

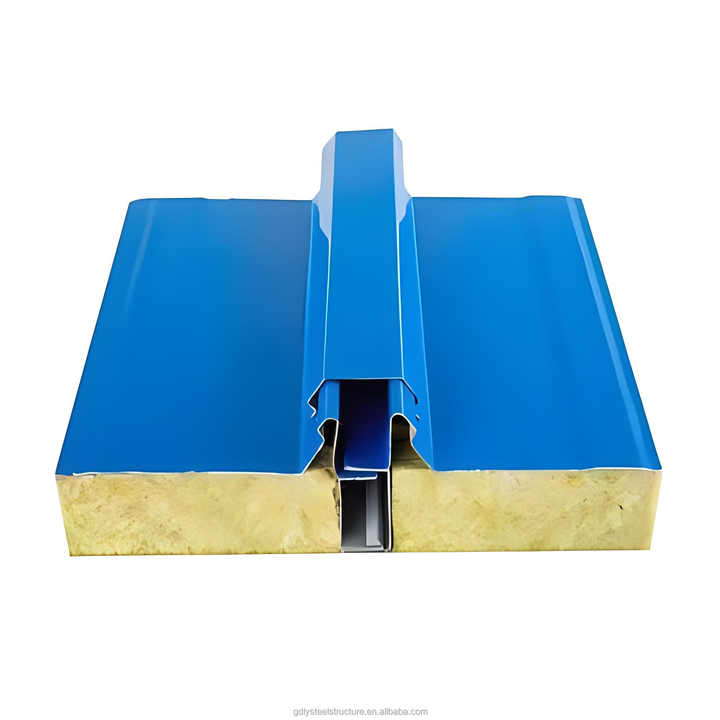

LiYou Steel Structure Engineering provides top-grade structural steel material specifically engineered for prefabricated buildings, warehouses, and industrial workshops. Our Rockwool sandwich roof panels combine structural integrity with superior insulation properties, making them ideal for:
✔ Steel structure warehouses
✔ Manufacturing workshops
✔ Agricultural buildings
✔ Logistics storage centers
| Quantity: | |
|---|---|
Steel
Online technical support
Workshop
Guangdong, China
Warehouse
3 years
total solution for projects
workshop
Modern
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
Single item
1X1X1 cm
1.000 kg
Product Description
Key Features of Our Structural Steel Material:
Exceptional Durability
Made from high-tensile steel (Q235B/Q355B grades)
0.4-0.8mm thickness options
Hot-dip galvanized or painted finishes available
Advanced Insulation
50-150mm Rockwool core (density: 80-120kg/m³)
Fire rating: A1 (non-combustible)
Excellent thermal conductivity (λ=0.038W/mK)
Structural Performance
Span capability: 1.5-6m
Load capacity: up to 1.5kN/m² snow load
Wind resistance: up to 60m/s
Easy Installation

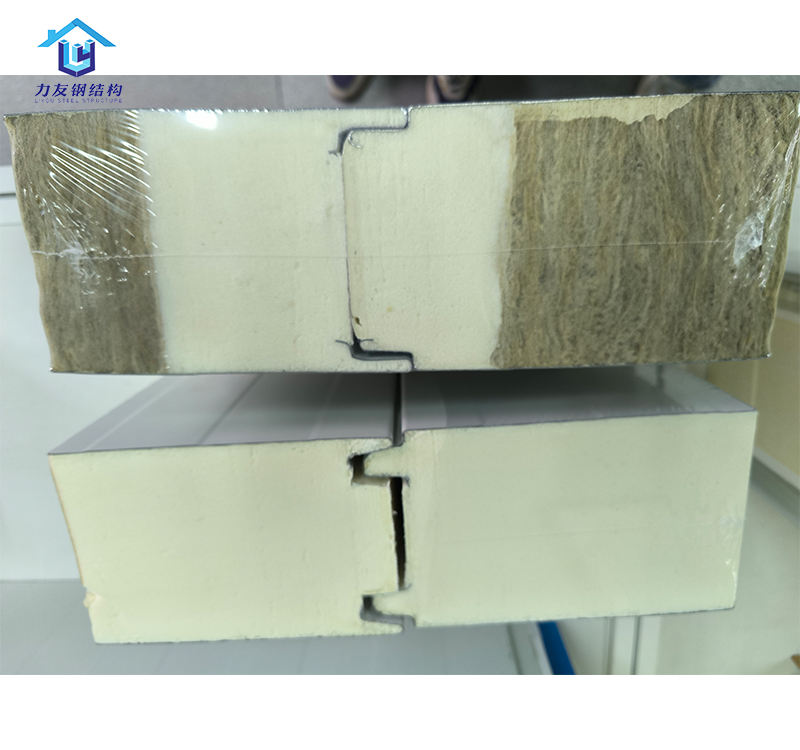

Tongue-and-groove connection system
Pre-drilled fastener points
Lightweight design (12-25kg/m²)
Technical Specifications:
Panel Width: 950-1150mm
Effective Coverage: 1000mm
Surface Options:
PPGI/PPGL (0.3-0.6mm)
PVDF coating (25μm)
Fire Resistance: 1-4 hours
Sound Insulation: 25-45dB
Applications:
Industrial warehouse roofing
Cold storage facilities
Workshop ceiling systems
Aircraft hangars
Agricultural buildings
Quality Assurance:
ISO 9001 certified production
CE marking compliant
Third-party testing reports available
10-15 year warranty options
Why Choose LiYou's Structural Steel Material?
10+ years manufacturing experience
Custom sizes and specifications
OEM/ODM services available
Global shipping experience
Technical support throughout your project
Order Information:
MOQ: 500m²
Lead Time: 10-15 working days
Packaging: Waterproof wrapping + wooden pallets
Payment Terms: T/T, L/C
Port: Guangzhou/Shenzhen
| item | value |
| Warranty | 3 years |
| After-sale Service | Online technical support |
| Project Solution Capability | total solution for projects |
| Application | Workshop |
| Place of Origin | China |
| Guangdong | |
| Material | Steel |
| Use | workshop |
| Product Type | Warehouse |
| Design Style | Modern |
| Certification | CE Certification |
| Application Fields | Industrial Commercial |
| Purlin | C.Z Shape Steel Channel |
| Door | Sliding Door |
| Color | Customized Color |
| Wall and Roof | Sandwich Panel Optional |
| Window | Aluminum Alloy Sliding Window |
| Drawing Design | SAP2000/AutoCAD /PKPM /3D3S/TEKLA |
| Surface treatment | Hot Dip Galvanized |
| Delivery time | 25-60 days |
