In modern steel structure construction, lightweight materials, high strength, and large spans are key design trends. However, these advantages also make structural stability a critical challenge.
Under external forces such as wind load, seismic load, or crane movement, steel frames may experience lateral displacement or deformation. This is where structural tie rods play a vital role — they act as tension members that maintain the geometry and stability of the entire framework.
Whether in industrial plants, logistics warehouses, or large-span roofing systems, structural tie rods are essential components that ensure strength, balance, and safety throughout the structure. This article explains what structural tie rods are, how they work, and why they are crucial for steel frame stability — from engineering principles to practical applications.

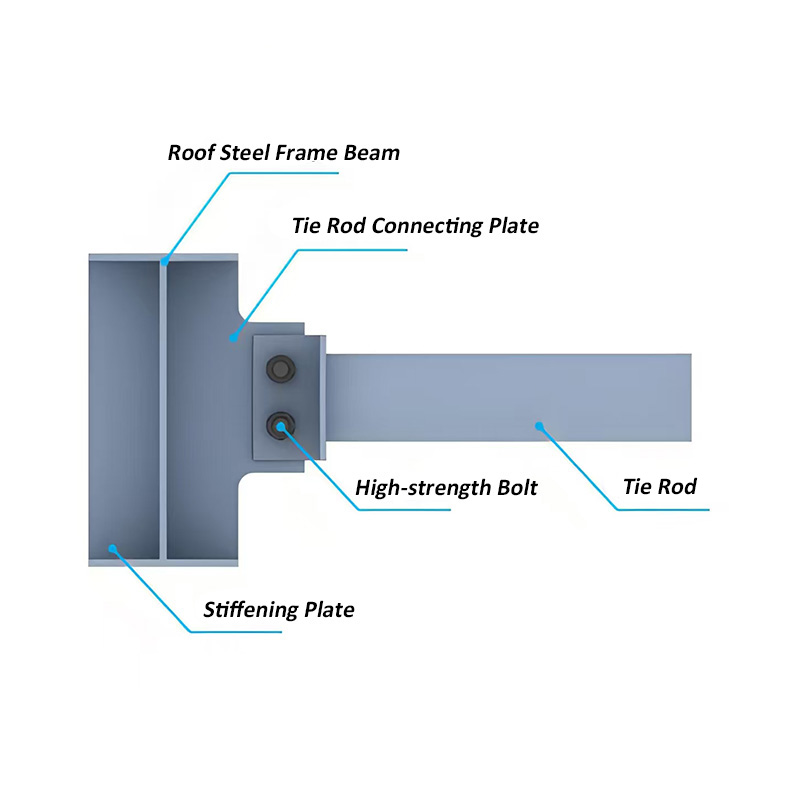

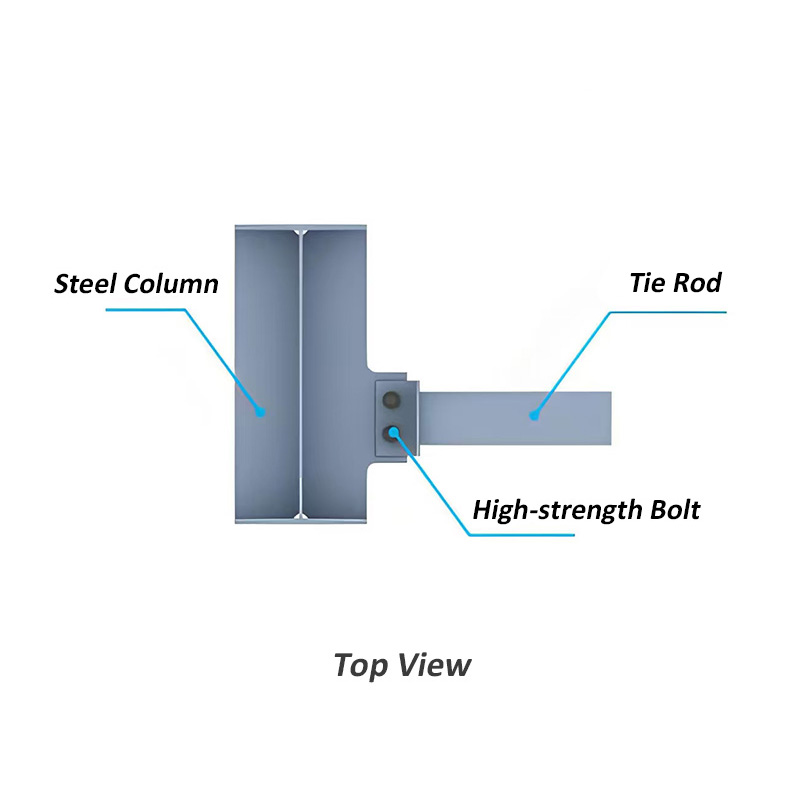

Structural tie rods are linear members designed primarily to resist tensile forces. They are installed to connect beams, columns, or truss nodes in a steel framework, providing additional lateral restraint and preventing deformation caused by external forces such as wind, earthquakes, or thermal expansion.
Material: Typically made of carbon steel (Q235, Q345) or stainless steel, ensuring both strength and ductility.
Shape: Usually round bars or threaded rods, equipped with nuts or end anchors for precise connection.

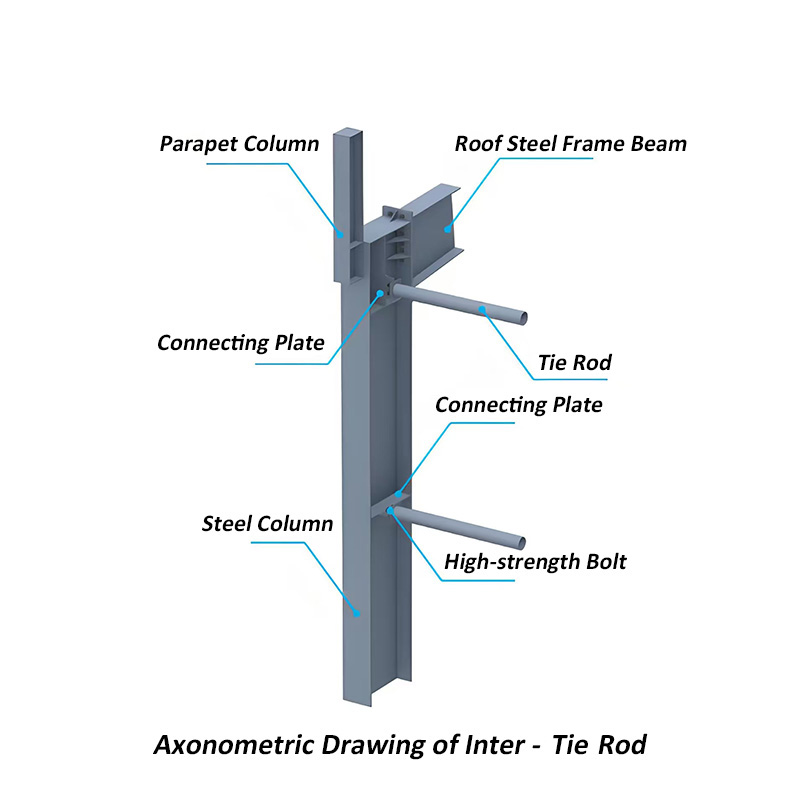

Installation Areas: Commonly used in roof trusses, wall bracing, skylight supports, and crane beam systems.

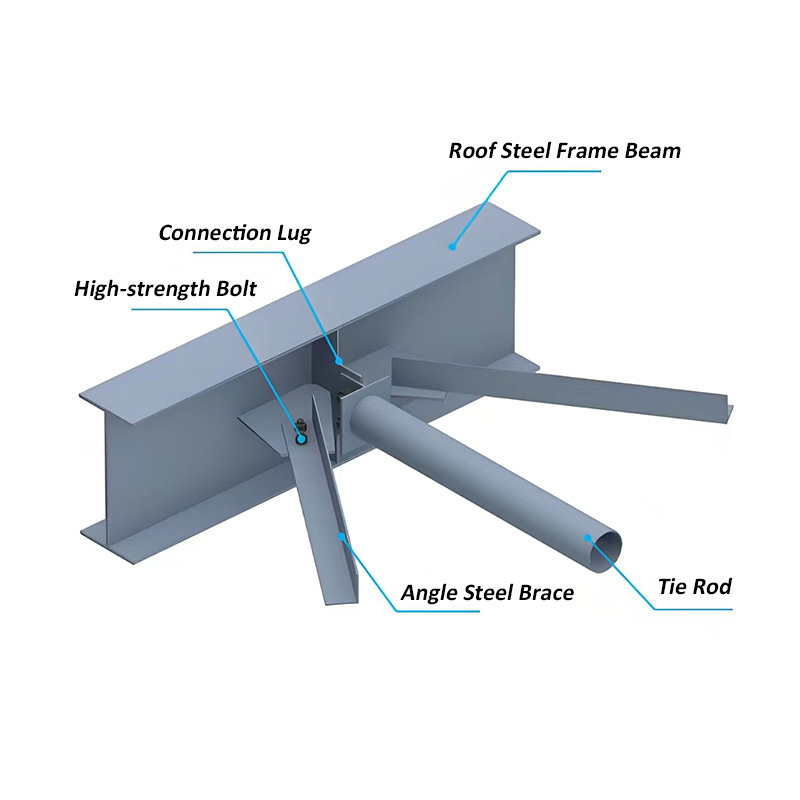

System Integration: Works in coordination with bracing systems and purlins, forming rigid triangular frameworks that enhance overall stiffness.
In short, tie rods not only act as geometric stabilizers but also enhance overall rigidity through pre-tension, forming a balanced load-bearing system within the steel structure.
When a steel structure is subjected to wind or seismic forces, horizontal thrusts may cause the frame to sway or deform. Tie rods provide tensile resistance to counteract these forces, forming a stable triangular mechanism together with compression members. In roof trusses, they often work alongside diagonal bracings to maintain symmetry and resist lateral movement.
Beams and trusses under compression are prone to lateral buckling. By introducing tie rods, engineers can effectively restrict such deformations, ensuring the framework maintains its intended geometry. This is particularly crucial in long-span roofs and façades, where tie rods enhance torsional rigidity and minimize structural deflection.
Structural tie rods help redistribute local stress concentrations by transferring loads between connection points. When certain parts of the frame experience excessive tension or bending, tie rods act as stress balancers — reducing localized strain and enhancing overall safety.
Compared with solid steel bracing systems, tie rods are lighter and easier to install, which reduces steel consumption and construction time. This not only lowers project costs but also improves on-site efficiency, especially for prefabricated or modular steel buildings.
To ensure optimal performance, structural tie rods must be designed and installed following engineering standards and best practices.
Diameter & Strength Grade: Determined by tensile load calculations, typically M16–M36.
Material Selection: Q345 or stainless steel for a balance of strength and corrosion resistance.
Connection Type: Threaded connection with double nuts or spherical end fittings for adjustability.
Alignment: Both ends of the tie rod must be perfectly aligned along the same axis to prevent eccentric loading.
Pre-tensioning: Apply pre-tension during installation to prevent slack or vibration under service loads.
Inspection: Regularly check nut tightness and protective coatings to ensure long-term performance.
Insufficient pre-tension leading to vibration or noise;
Misalignment causing uneven stress distribution;
Corrosion or loose connections reducing tensile capacity.
Conduct annual inspections of tie rod anchor points;
Reapply anti-corrosion coatings for exposed components;
Check and re-adjust pre-tension when necessary.
Proper maintenance not only extends the service life of structural tie rods but also ensures the long-term safety and reliability of the entire building.
Structural tie rods are widely used in various steel structure projects, including:
Industrial Workshops: For column bracing and roof frame stabilization.
Warehouses and Cold Storage Facilities: Providing tension support for large-span structures.
Sports Arenas and Exhibition Halls: Working with cable systems to enhance wind and seismic resistance.
At Liyou Steel Structure, we have implemented high-strength tie rod systems in numerous international projects — from logistics centers in Southeast Asia to industrial warehouses in Africa — earning recognition for our precision engineering and reliable performance.
In every steel building, structural tie rods are the invisible elements that keep everything stable and secure. They play a fundamental role in ensuring frame balance, load distribution, and long-term safety — making them indispensable in modern steel structure engineering.
