In the field of steel construction, structural steel drawings are the foundation of every project.
They serve as the technical "language" connecting architects, engineers, fabricators, and builders — ensuring precision, safety, and cost efficiency throughout the entire construction process.
Understanding and correctly reading these drawings is essential for anyone involved in the design, fabrication, or installation of steel structures.

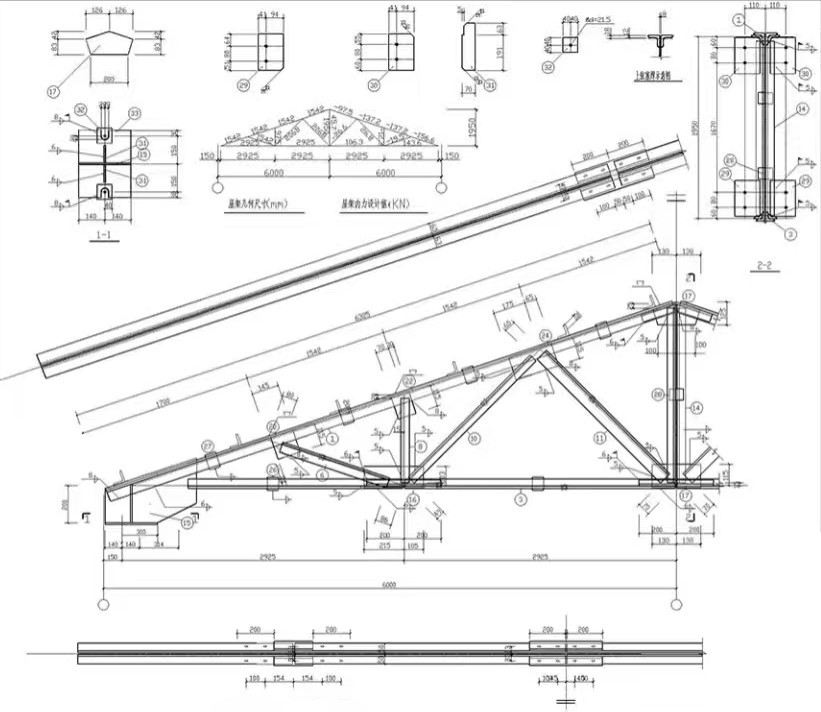

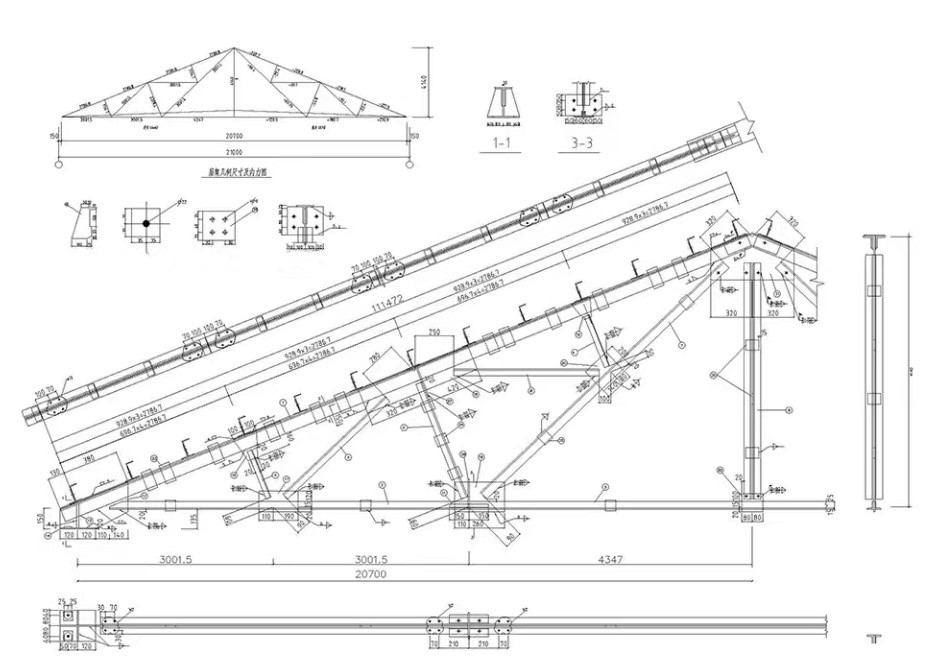

Structural steel drawings are a set of technical documents that illustrate the design, dimensions, materials, and connection details of steel components within a building or structure.
They guide the entire workflow — from workshop fabrication and material procurement to on-site assembly — ensuring that each component fits perfectly during installation.
Below are the main types of structural steel drawings and their purposes:
| Drawing Type | Main Content | Purpose |
|---|---|---|
| General Arrangement Drawing (GA) | Shows overall layout, column grids, beam positions | Helps understand the overall structure |
| Detail Drawing | Specifies component dimensions, hole positions, and plate thickness | Used for fabrication and cutting |
| Connection Detail | Illustrates how parts are joined (bolted, welded, etc.) | Guides assembly and installation |
| Bill of Materials (BOM) | Lists all steel components, quantities, and weights | Used for material planning and cost control |
| Notes & Legends | Includes design codes, welding symbols, and general instructions | Provides design and installation guidelines |
Together, these drawings form the blueprint of the project — and any misinterpretation could lead to costly errors or safety issues.
Accurate interpretation of structural steel drawings is crucial for project success. It helps:
Ensure construction accuracy – Properly understanding dimensions and details prevents rework.
Improve communication – Enables seamless collaboration between designers, fabricators, and site teams.
Control project costs – Optimized material usage minimizes waste.
Guarantee safety and compliance – Ensures all structures meet international standards (AISC, EN, GB).
For international projects, the ability to read and interpret structural steel drawings correctly ensures consistency, safety, and compliance across different regions.
Reading structural steel drawings involves more than recognizing lines and symbols. It's about understanding the structure's logic, relationships, and engineering intent. Here's a step-by-step guide to help you master this essential skill.
Each structural steel drawing is composed of several key sections:
| Section | Description |
|---|---|
| Title Block | Contains drawing title, number, scale, designer, and date |
| General Arrangement | Displays overall layout and major member locations |
| Detail Drawing | Shows individual member shapes, holes, and welds |
| Connection Detail | Illustrates how beams, columns, and plates are joined |
| Material List | Lists specifications, grades, and quantities of steel members |
By recognizing these components, you can quickly locate the information you need during fabrication or installation.
Structural drawings use standardized symbols to simplify communication.
Below are some frequently used ones:
| Symbol | Meaning | Example |
|---|---|---|
| H, C, L, T | Denote steel shapes (H-beam, Channel, Angle, Tee) | H300×300×10×15 |
| Ø / Φ | Hole or diameter symbol | Ø20 = 20mm diameter hole |
| W | Weld symbol | W6 = 6mm weld |
| ↑ / ↓ | Directional indicator | Welding or assembly direction |
| ± | Tolerance | ±3mm = acceptable deviation |
Familiarity with these symbols helps you read faster and reduces the risk of fabrication errors.
To fully understand a structural steel drawing, focus on these three essential views:
Plan View – Displays the horizontal layout: locations of columns, beams, and bracings.
Elevation View – Shows vertical dimensions, levels, and alignment.
Section View – Reveals internal details, cross-sections, and connection relationships.
| Recommended reading order: Plan View → Elevation View → Section View |
This sequence allows you to grasp the overall structure before diving into detailed components.
Professionals usually follow these steps when reading structural drawings:
Review the General Layout – Understand overall geometry and component numbering.
Check Scale and Orientation – Verify drawing scale and direction (north arrow).
Identify Member Marks – Match symbols (B1, C2, P3, etc.) to the Bill of Materials.
Examine Connection Details – Focus on welds, bolts, and joint configurations.
Verify Material List – Cross-check material sizes, thicknesses, and quantities.
Confirm Code Compliance – Ensure drawings meet AISC / EN / GB standards.
Following this process minimizes misinterpretation and helps teams work efficiently across design, fabrication, and installation phases.
Verify the Scale: Avoid taking direct measurements without scale conversion.
Check Node Consistency: Ensure details in connection drawings match general layouts.
Review Elevations Carefully: Incorrect elevation data can cause alignment issues.
Read the Design Notes: Important requirements (e.g., fireproof coating thickness) may only appear there.
Collaborate Actively: Always confirm unclear details with your design or fabrication partner.
At Liyou Steel Structure, we know that clear communication through drawings is vital for every international project.
With over a decade of industry experience, we provide:
Professional structural steel drawings compliant with AISC, EN, and GB standards
BIM and Tekla-based 3D modeling and detailing services
End-to-end technical support from concept design to installation guidance
Customized OEM/ODM project solutions for industrial, commercial, and residential applications
Our expert engineers ensure every client — regardless of technical background — fully understands the drawings and achieves precision in every phase of construction.
Learning how to read structural steel drawings is not just a technical skill — it's the foundation for building safe, efficient, and cost-effective structures.
