In modern steel structure buildings—such as factories, warehouses, and long-span roofing systems—one small but critical component plays a major role in maintaining structural stability: the sag rod.
Although often overlooked, the sag rod is essential for preventing purlin deflection, improving lateral stability, and ensuring the long-term safety of steel structures. This article provides a comprehensive explanation of what sag rods are, how they work, and why they are indispensable in steel structure design.

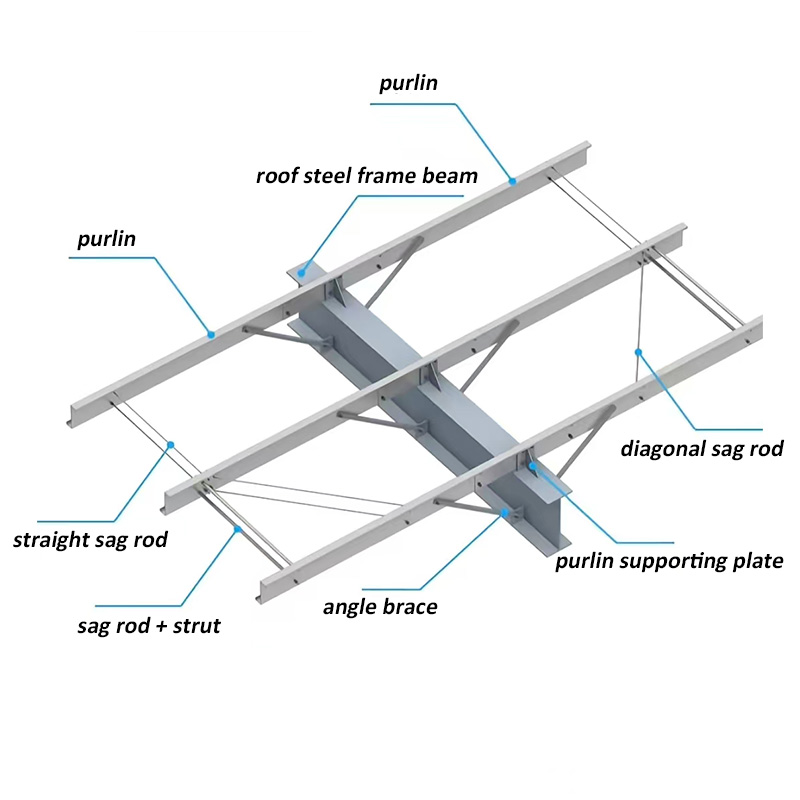

A sag rod is a tension member installed between roof or wall purlins to prevent sagging caused by self-weight or external loads. Typically made of round steel with threaded ends, sag rods are fastened to purlins with nuts or connecting plates to form a bracing system that limits deflection and enhances rigidity.
Standard sag rod diameters range from M10 to M20, with length determined by purlin spacing and design requirements. For corrosion resistance and durability, hot-dip galvanized or stainless steel materials are commonly used.
In large-span or heavy-load roof structures, sag rods are crucial for maintaining the overall stiffness and alignment of the building envelope.
Purlins tend to bend under the combined weight of roofing sheets, insulation, and environmental loads such as wind or snow. A sag rod connects purlins together, forming a support system that significantly reduces deflection and helps maintain the roof's flatness.
In steel structure design, purlins are not only subjected to vertical loads but also lateral torsional forces. By tying purlins together, the sag rod minimizes side sway and prevents twisting, thereby improving the overall rigidity of the system.
During wind or seismic activity, sag rods help redistribute horizontal and vertical loads, ensuring even stress distribution throughout the roof structure. This prevents local overstress and enhances safety.
By controlling deflection, sag rods allow the use of lighter or smaller-section purlins without compromising structural performance. This makes them an economical and efficient design choice.
Key Takeaways:
Reduce purlin deflection
Increase structural rigidity
Optimize load distribution
Lower overall material cost
Sag rods are typically installed at the mid-span or at evenly spaced intervals between purlins to achieve uniform stress distribution. For wide-span roofs, double or multiple layers of sag rods may be used.
For outdoor or humid environments, hot-dip galvanized or stainless-steel sag rods are recommended. All connection points should include lock nuts or anti-loosening devices to maintain long-term stability.

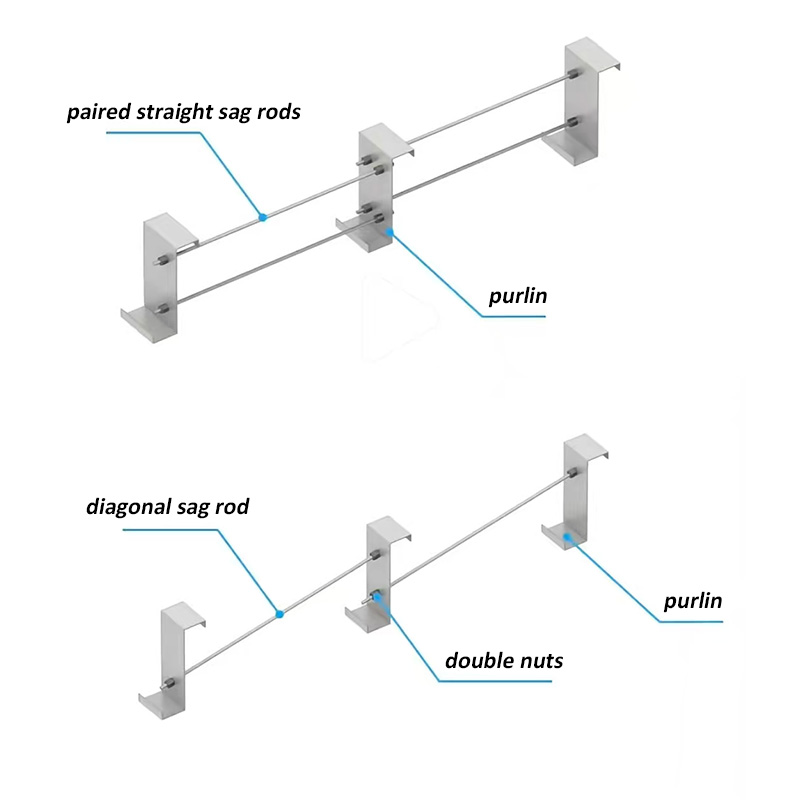

Sag rods are usually fixed to the purlins through pre-punched angle brackets or plates. Ensure even tightening on both ends to avoid structural distortion or slack over time.
Insufficient pretension: leads to sagging or vibration.
Misalignment: causes uneven force distribution.
Poor anti-corrosion treatment: shortens service life.
Proper design and installation can significantly enhance the overall performance and longevity of the steel structure.
| Comparison | Sag Rod | Tie Rod |
|---|---|---|
| Main Function | Reduces purlin deflection | Maintains spacing or frame bracing |
| Load Type | Light tensile load | High tensile load |
| Location | Between purlins | Between frames or columns |
| Material Requirement | Standard or galvanized steel | High-strength steel |
| Common Use | Roof and wall purlin systems | Bracing and frame systems |
While both components serve as tension members, sag rods primarily stabilize secondary framing elements, whereas tie rods handle heavier structural bracing functions. Both are crucial for a well-balanced structural system.
Sag rods are widely used across various steel construction types, including:
Industrial roof systems
Warehouse purlin connections
Long-span roofing structures
Stadiums, exhibition halls, and logistics centers
As a vital part of the purlin bracing system, sag rods contribute to structural integrity by preventing purlin sagging and ensuring uniform load distribution across the roof or wall system.
With over a decade of experience, Liyou Steel Structure is a trusted partner in global steel structure manufacturing. We provide precision-engineered components and comprehensive design support to ensure optimal project outcomes.
Our advantages include:
International Quality Standards: Compliance with ASTM, EN, and GB codes.
Customized Design Solutions: Tailored sag rod and steel frame designs for each project.
Strict Quality Control: From raw material inspection to final assembly testing.
Global Project Experience: Completed projects across Southeast Asia, the Middle East, Africa, the Americas, and Australia.
Choosing Liyou means partnering with an experienced team committed to reliability, precision, and engineering excellence.
Though small in size, the sag rod plays an outsized role in ensuring the stability, safety, and longevity of steel structures. By properly designing and installing sag rods, engineers can enhance the performance of purlin systems, optimize material use, and improve cost efficiency.
For tailored sag rod solutions or complete steel structure design support, contact Liyou Steel Structure—your trusted partner in global steel construction innovation.
