| Quantity: | |
|---|---|

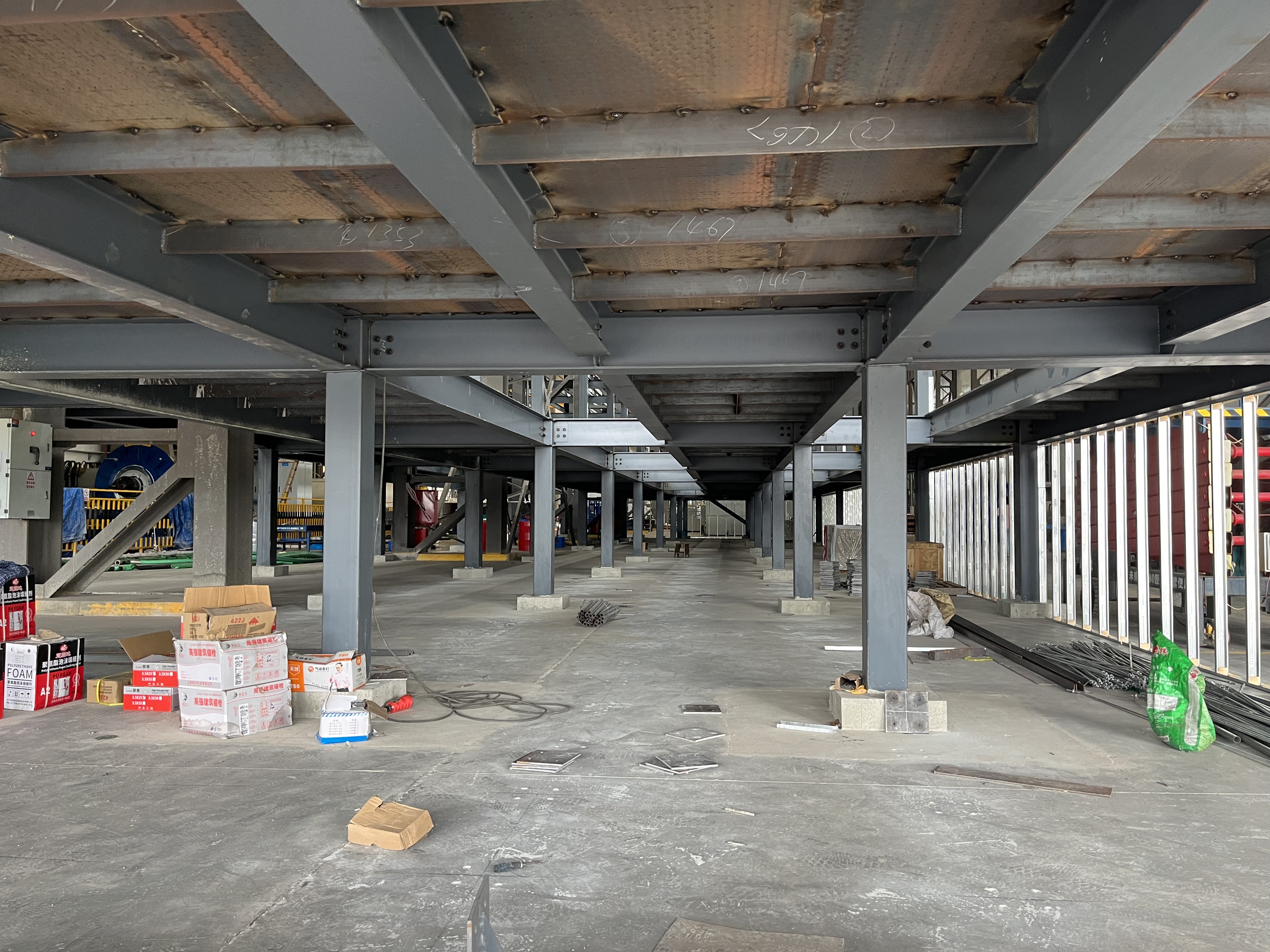

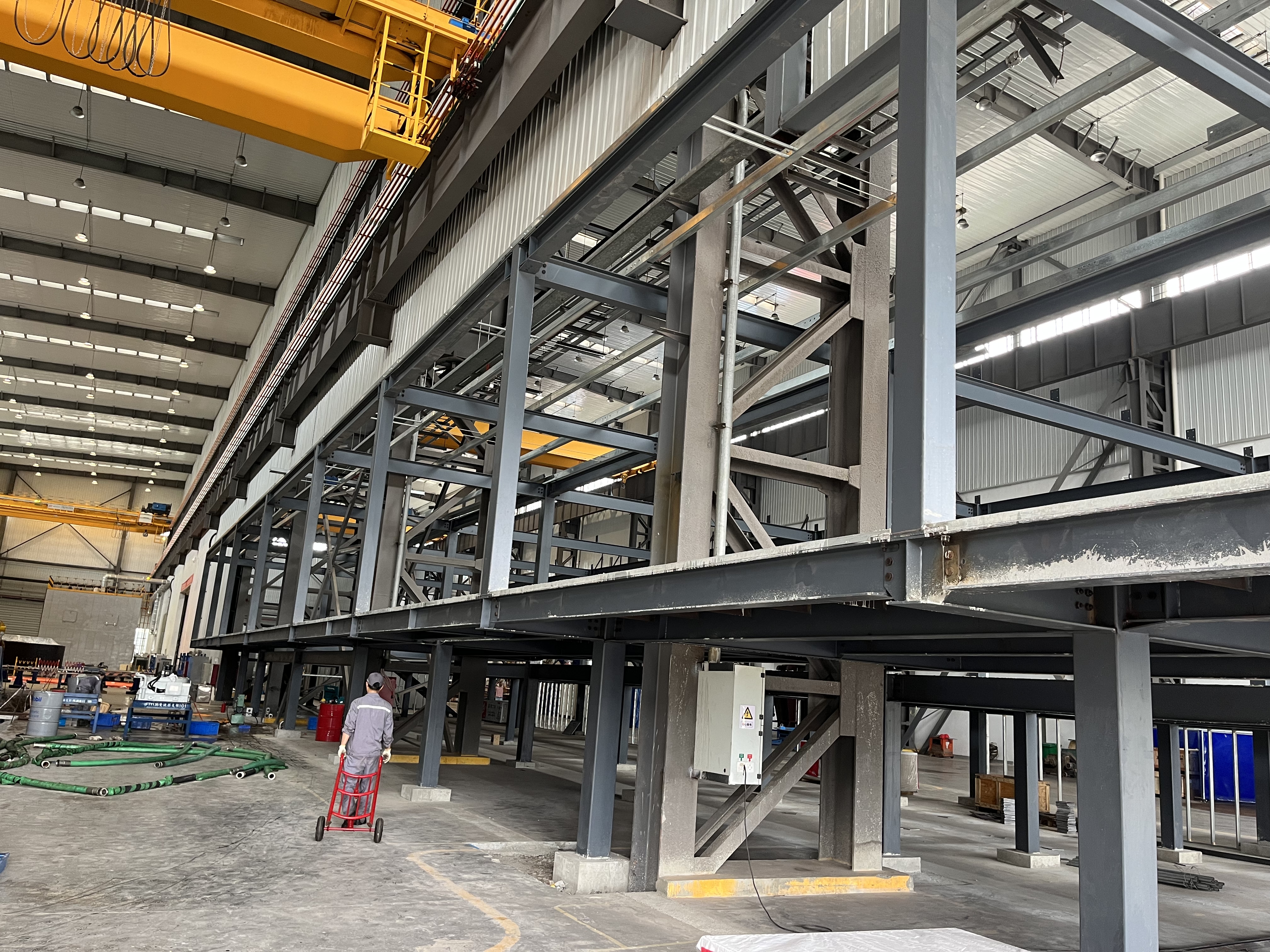

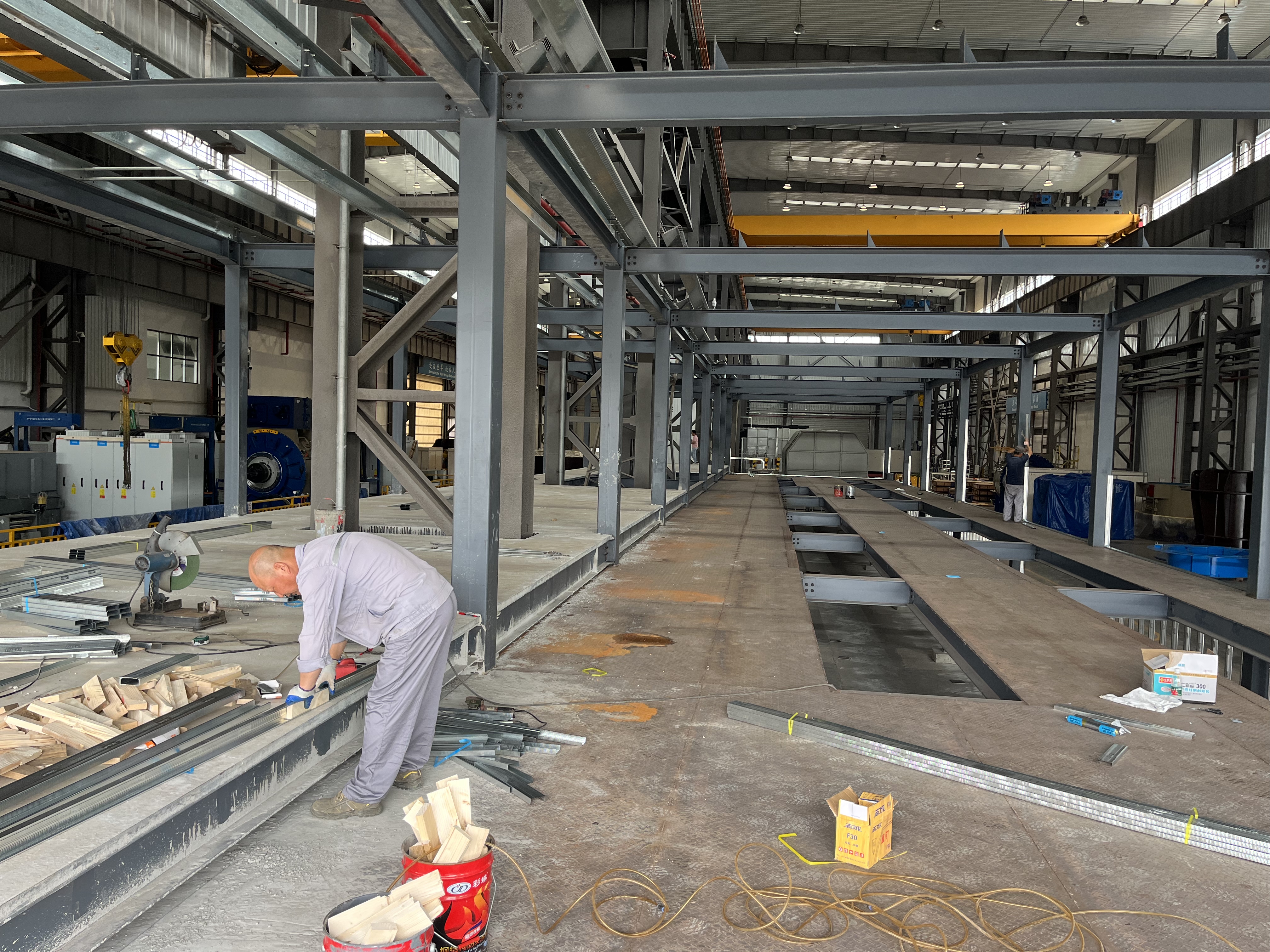

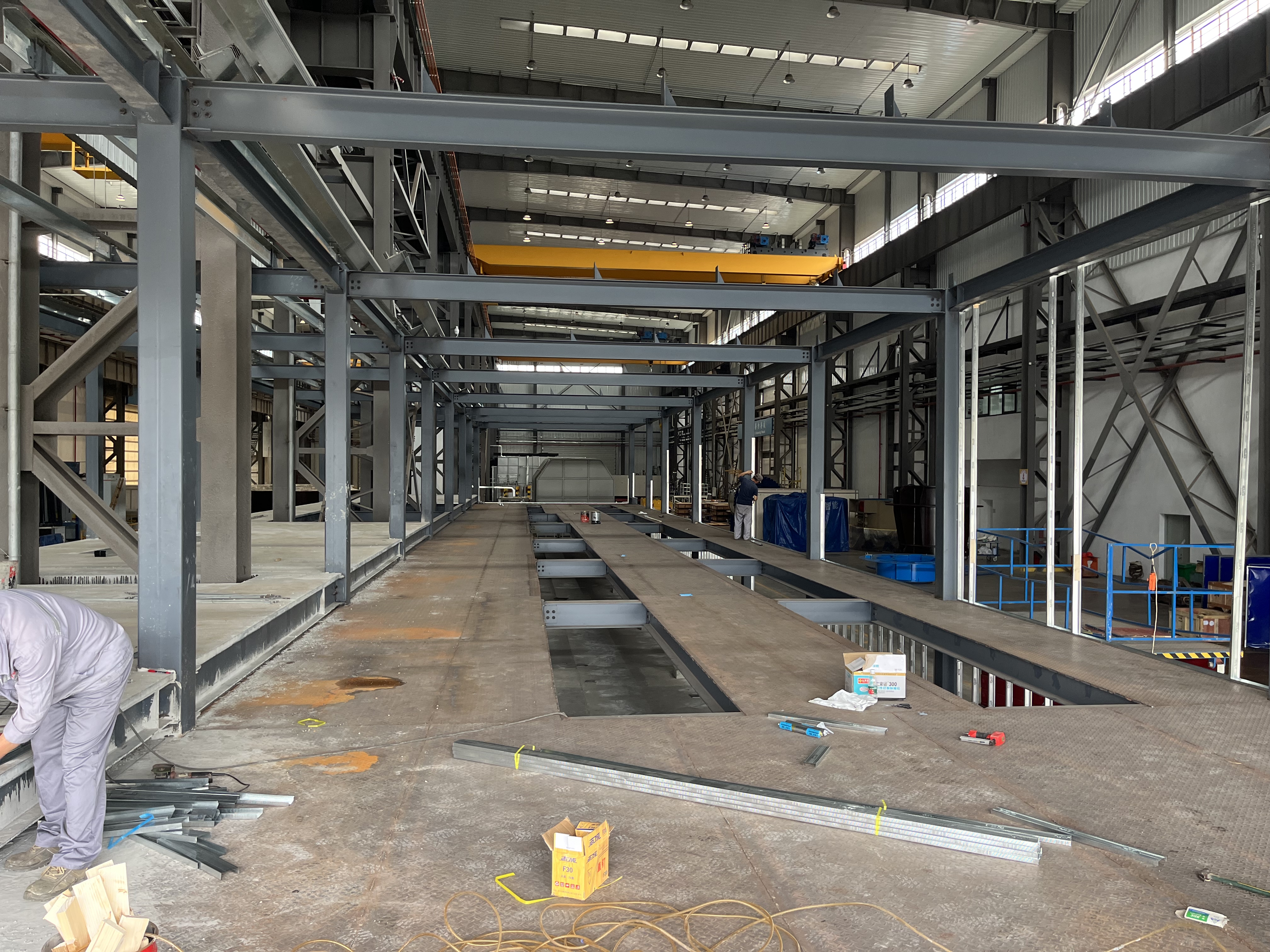

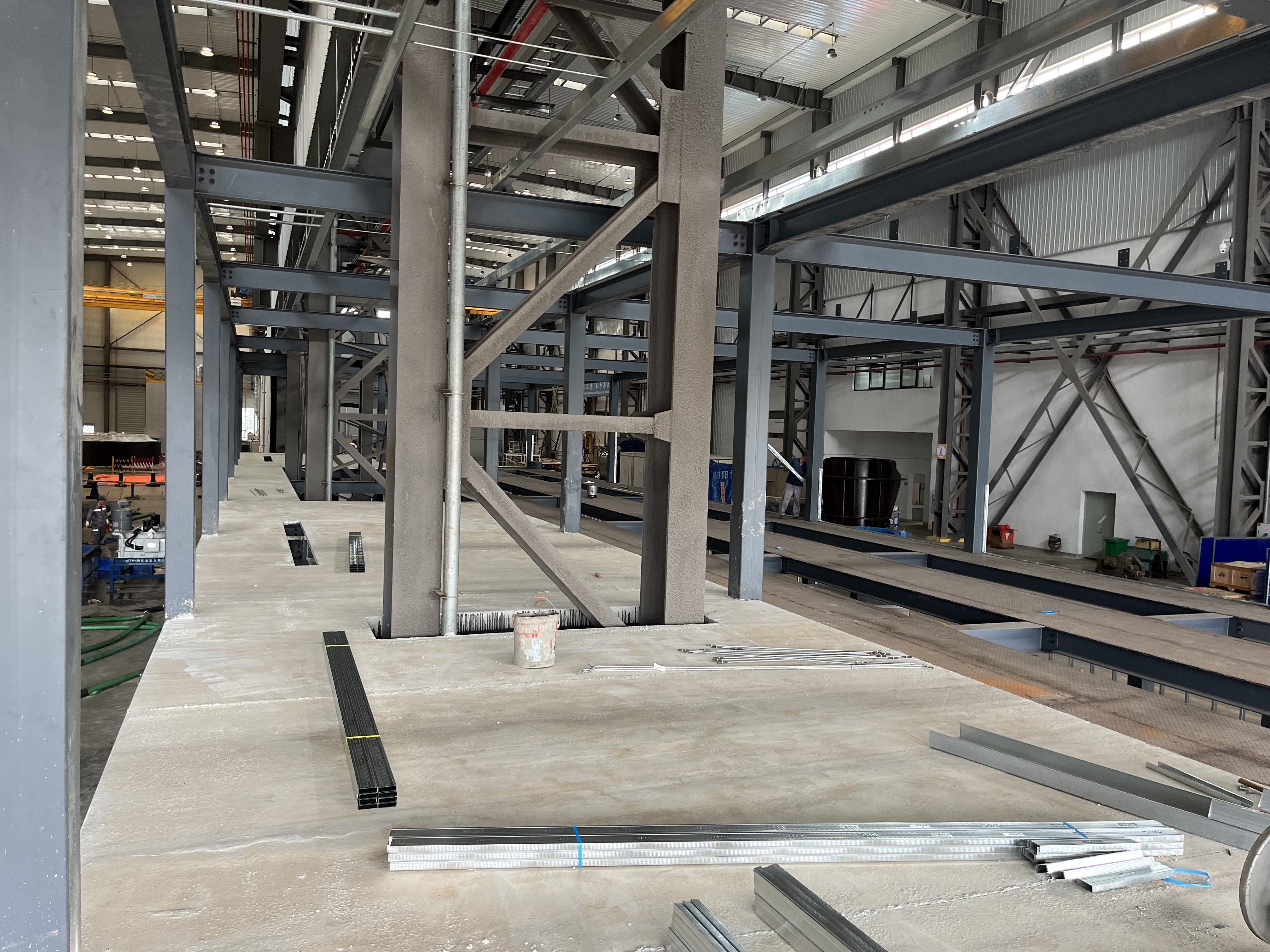

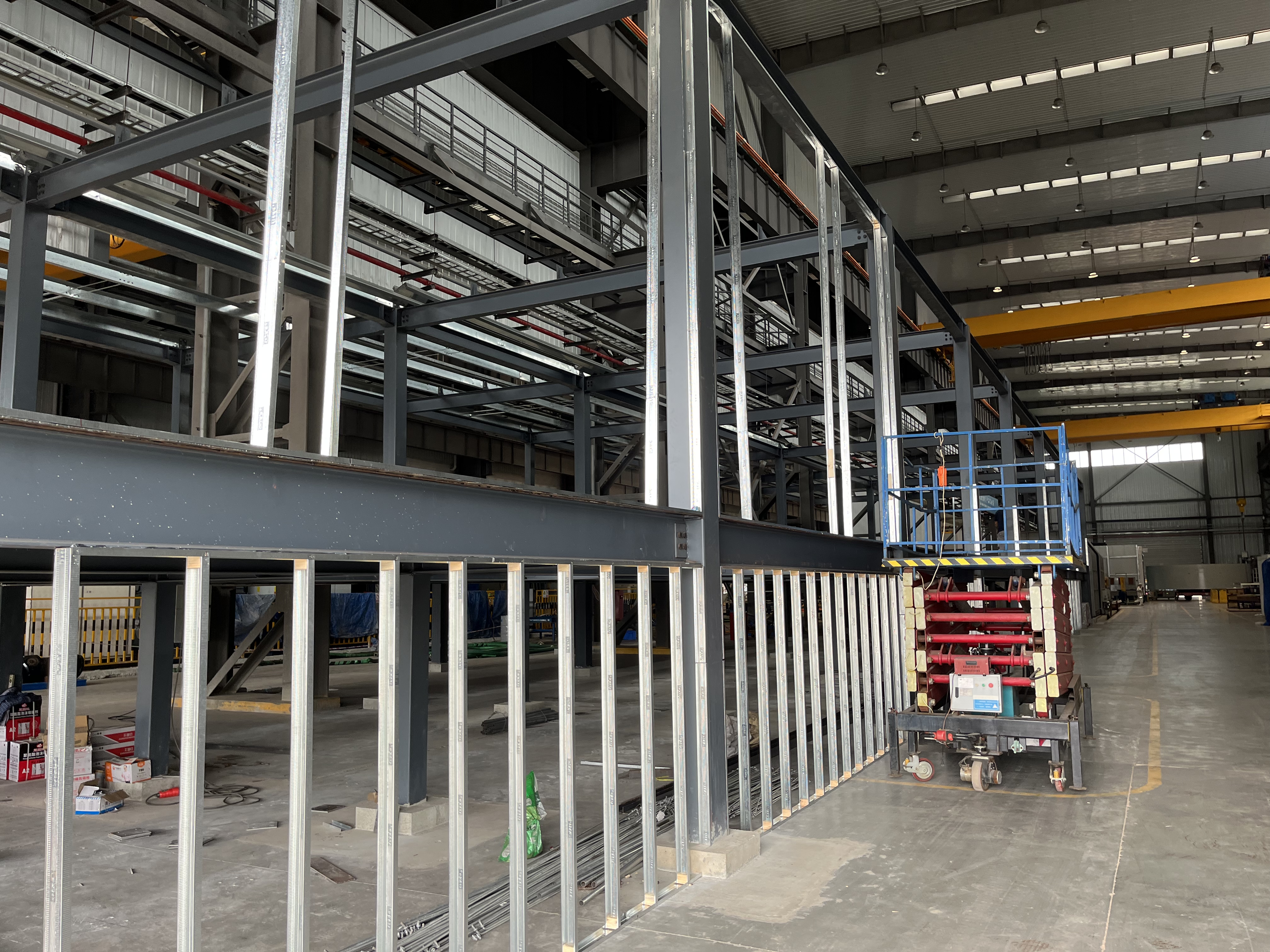

Maximize your warehouse space efficiently with our Steel Frame Mezzanine Platform – a robust and customizable storage solution designed for production, storage, and workflow optimization.
✔ Space Optimization – Adds extra usable floor space without expanding your building footprint.
✔ Heavy-Duty Steel Construction – High-quality steel ensures superior load capacity and long-term durability.
✔ Fully Customizable – Adjustable dimensions, multi-level designs, and varying platform sizes to fit your needs.
✔ Easy Integration – Can be added to existing warehouses or incorporated into new designs from the start.
✔ Worker-Friendly Design – Safe access with stairs, guardrails, and optimized layouts for smooth operations.
✔ Quick Installation – Prefabricated components ensure fast assembly with minimal disruption.
Custom Solutions Available!
Whether you need a single mezzanine or a multi-level platform, we tailor the design to your exact specifications. Just provide your drawings or basic dimensions, and we’ll handle the rest!
Ideal for:
Warehouses & Factories
Production Lines
Storage & Logistics Centers
Industrial Workshops
Contact us today to design your perfect steel mezzanine platform!
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Steel Frame House |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc. | |
Standard: | Type: |
GB | Steel Structure Frame |
Size: | Color: |
Up to Customer's Requirement | Graywhite, Blue, Red, etc.. |
Roof & Wall Material: | Insulation: |
Sandwich Panel | EPS, Rockwool, Glass wool, PU etc.. |
Door & Windows: | Technology: |
Steel Door, Aluminum Sliding Window, PVC Window | Welded steel, Hot Rolled Steel |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Big Metal Building Homes |
Components | Specification |
Anchor Bolt | M30 |
High Strength Bolt | M20，10.9S |
Common Bolt | M16 |
Galvanized Bolt | M12 |
Shear Nail | M16 |
Steel Column(Q345B) | HN600X200X10X15 |
Steel Column(Q345B) | HN300X150X6.5X9 |
Roof Column(Q345B) | HN350X175X6X9 |
Floor Main Beam(Q345B) | HN500X200X9X14 |
Floor Second Beam(Q345B) | HN350X175X6X9 |
Stair | ∅16-bar+2.5mm Chequered Plate |
Tie Rod | ∅89*3.0 |
Horizontal Support | ∅16 |
Roof Purlin（Galvanized) | C180*60*20*2.0 |
Wall Purlin（Galvanized) | C180*60*20*2.0 |
Connecting Plate | 6mm～20mm Steel Sheet |
Paint | 2 Times Spray Paint |
Roof Tile- EPS Sandwich panel | 50mm Color Steel Thickness: 0.426 |
FRP Skylight Panel | Fiber Glass Reinforced Polyester |
Outside Wall Panel -- EPS Sandwich panel | 50mm Color Steel Thickness: 0.426 |
Floor Decking | 1.5mm Galvanized Steel Sheet |
Stair Handrail | 口80*40+口40+口30+口20 |
Gutter | 2.0mm Galvanized Gutter |
Down Pipe | ∅110PVC |
Trimming | 1.0mm Galvanized Steel Sheet |
Steel Structure Building Applications
Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall.
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
