Prefab Steel Warehouse



Total area of this prefab steel warehouse is more than 46000 sqm, made from 2470-ton steel materials. Our steel buildings are an ideal choice for warehouses of any sizes, as well as livestock sheds, garages, plants, workshops, office buildings, airplane hangars, etc. With our superior prefabricated steel components, the construction of a steel structure building will be economical, fast, and labor-saving.

Availability:
Quantity:


Prefab Steel Warehouse Product Overview


Place of Origin:

Product Name:

Foshan, China (Mainland)

Prefab Steel Warehouse

Material:

Q345 Q235 H Section Steel, C/Z Section Steel

Standard:

Type:

GB

Light Steel Structure Frame

Size:

Color:

Up to Customer's Requirement

Graywhite, Blue, Red, etc..

Roof & Wall Material:

Door:

Steel Sheet or Sandwich Panel

Rolling / Sliding Door

Window:

Technology:

Aluminum Alloy Window

Welded steel, Hot Rolled Steel

Drawing Design:

Keywords:

AutoCAD, Tekla Structure, Vertex BD, SketchUp etc.

Steel Structure Buildings


Prefab Steel Warehouse  Material List



Components Specification
Embedded parts
Anchor bolt M24
High strength bolt M20,10.9S
Common bolt M20
Turn buckle M20
Galvanized bolts M12

Brace

M12
Main steel frame
Steel column(Q235B) HN346*174*6*9
Wind column(Q235B) HN298*149*5.5*8
Roof truss(Q235B) HN(580-298)*149*5.5*8
Tie rod ∅89*3.0
Horizontal brace ∅20 steel bar
Column brace ∅20 steel bar
Roof purlin(Galvanized) C160*50*20*2.0
Wall purlin(Galvanized) C160*50*20*2.0
Connecting plate 6~20mm steel sheet
Structure steel fabrication+Sanding + Paint Acetylene, oxygen, electrode, Sa2.5



Prefab Steel Warehouse  Display


Prefab Steel Warehouse Components

Prefab Steel Warehouse Planing & Drawing

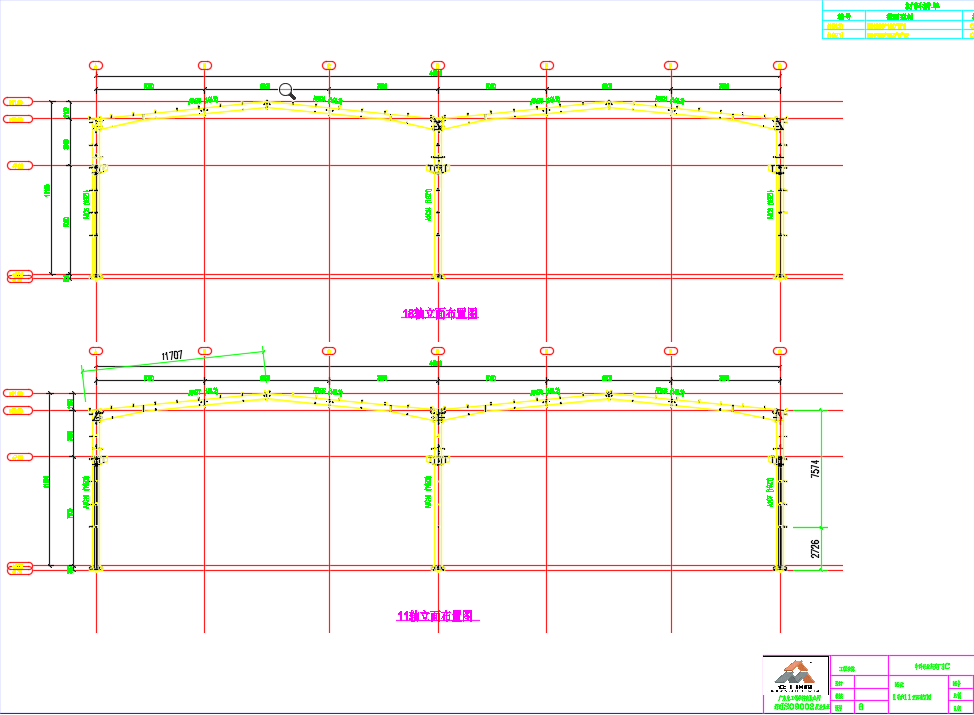

Prefab Steel Warehouse Drawing



Prefab Steel Warehouse Drawing

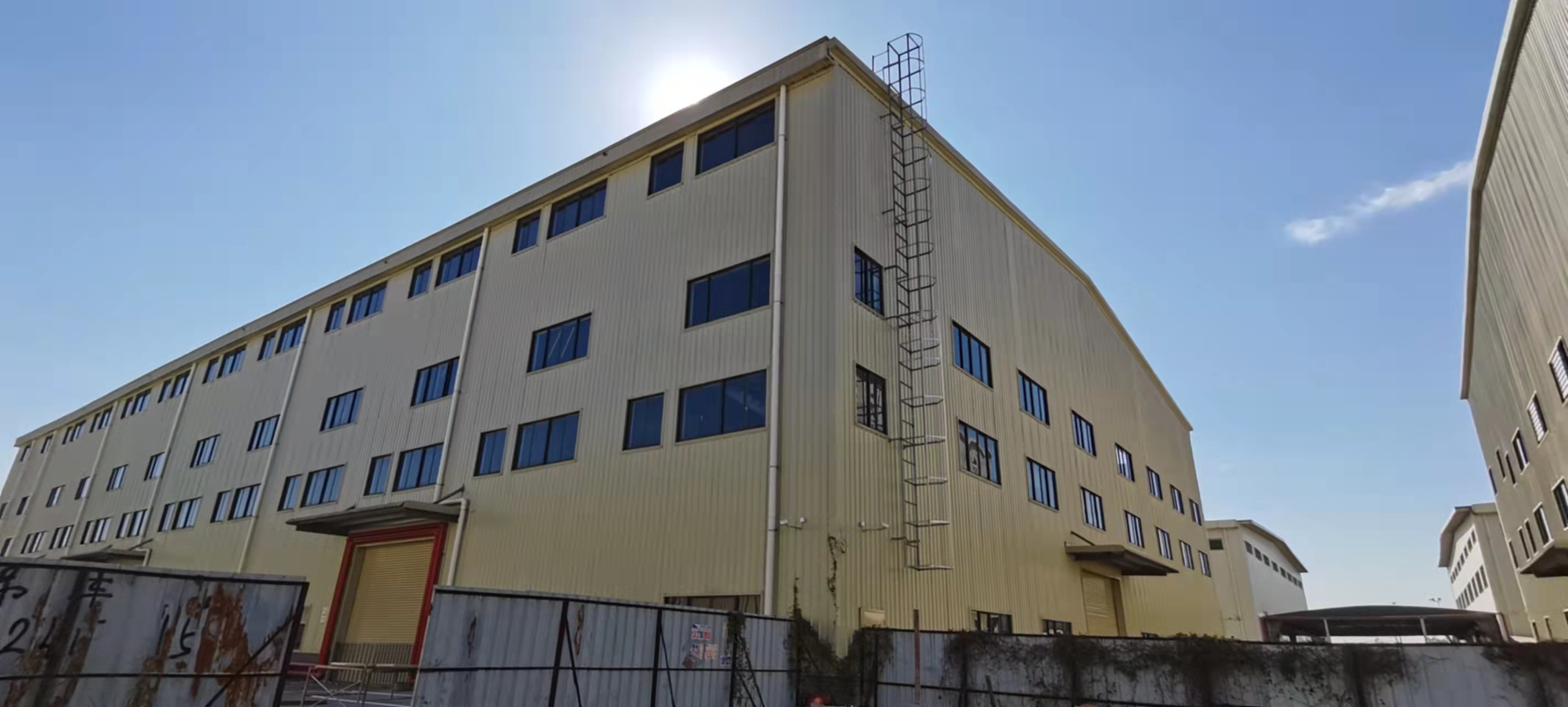

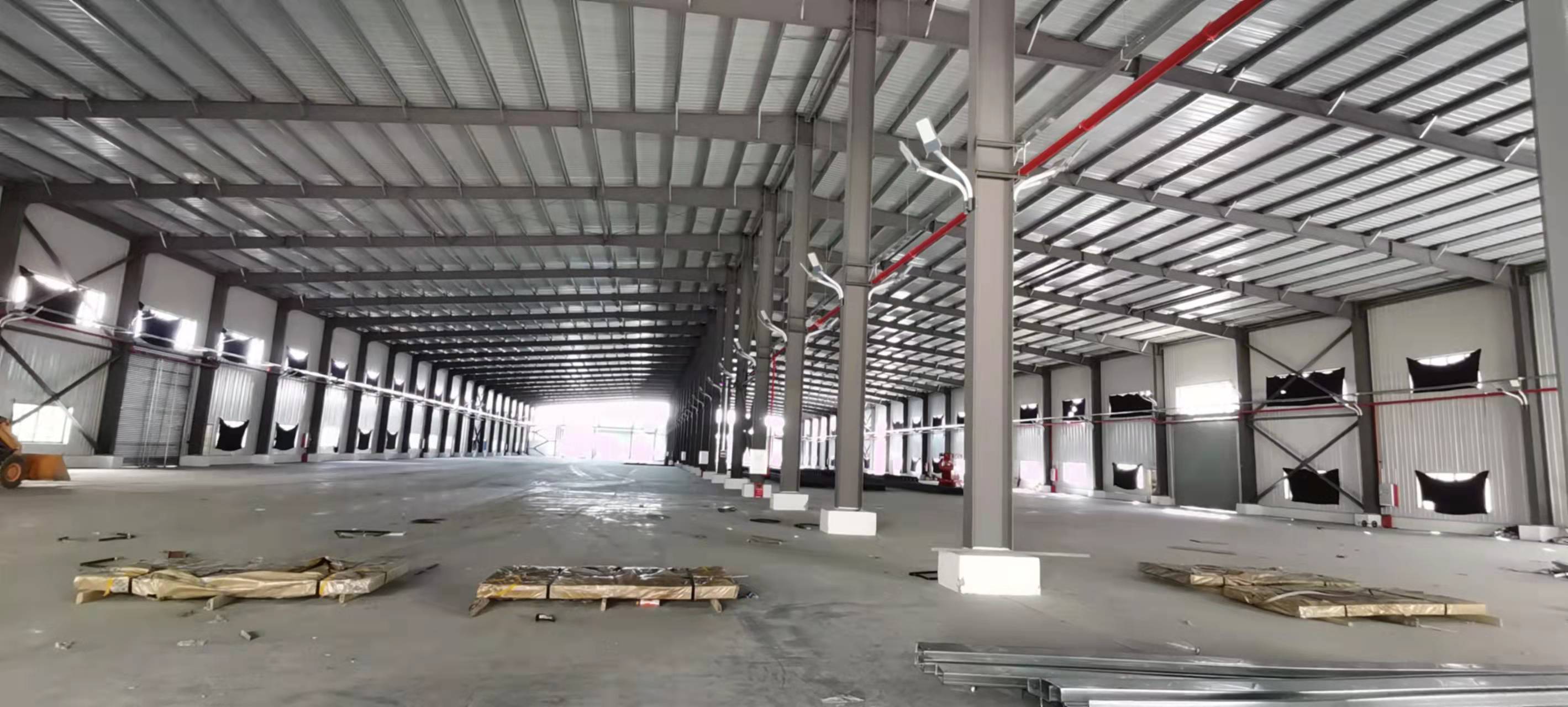

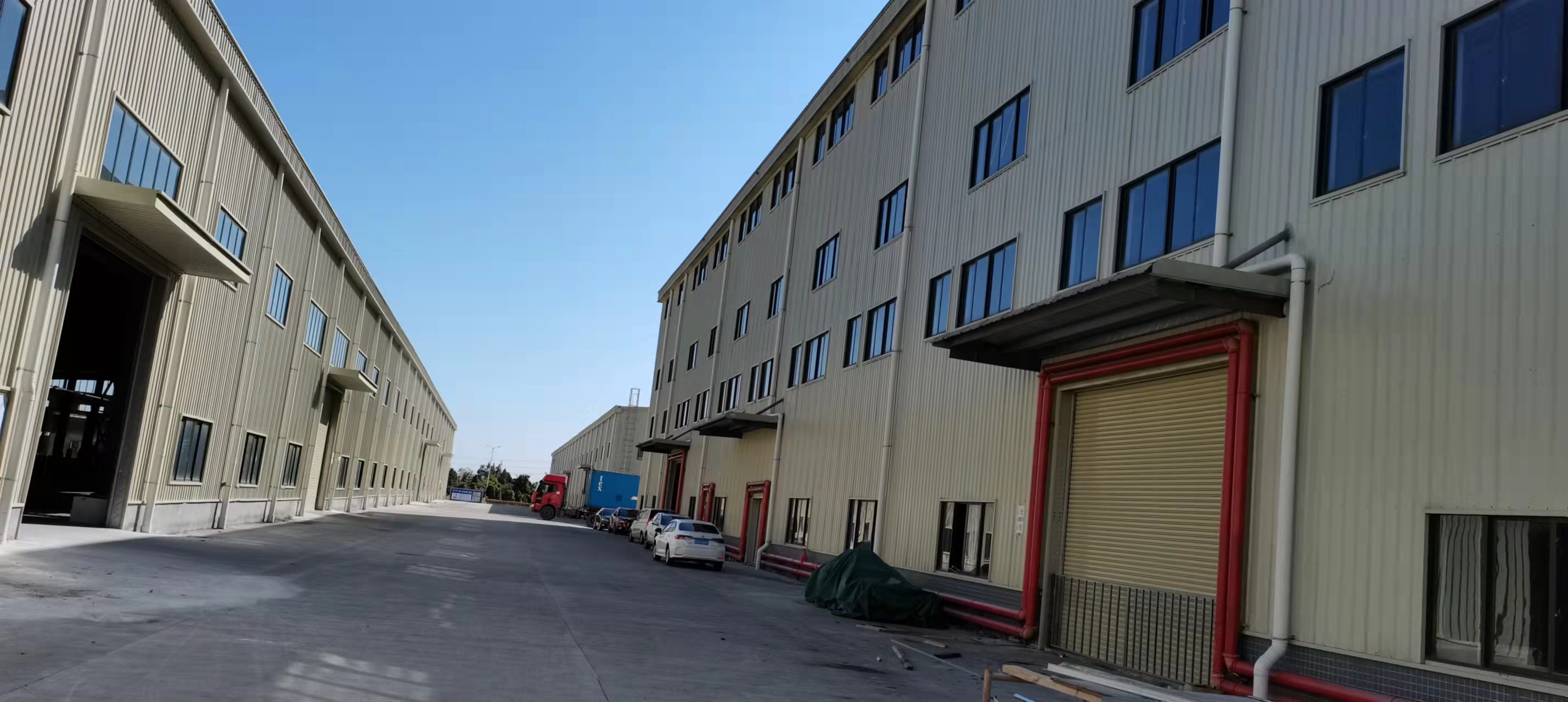

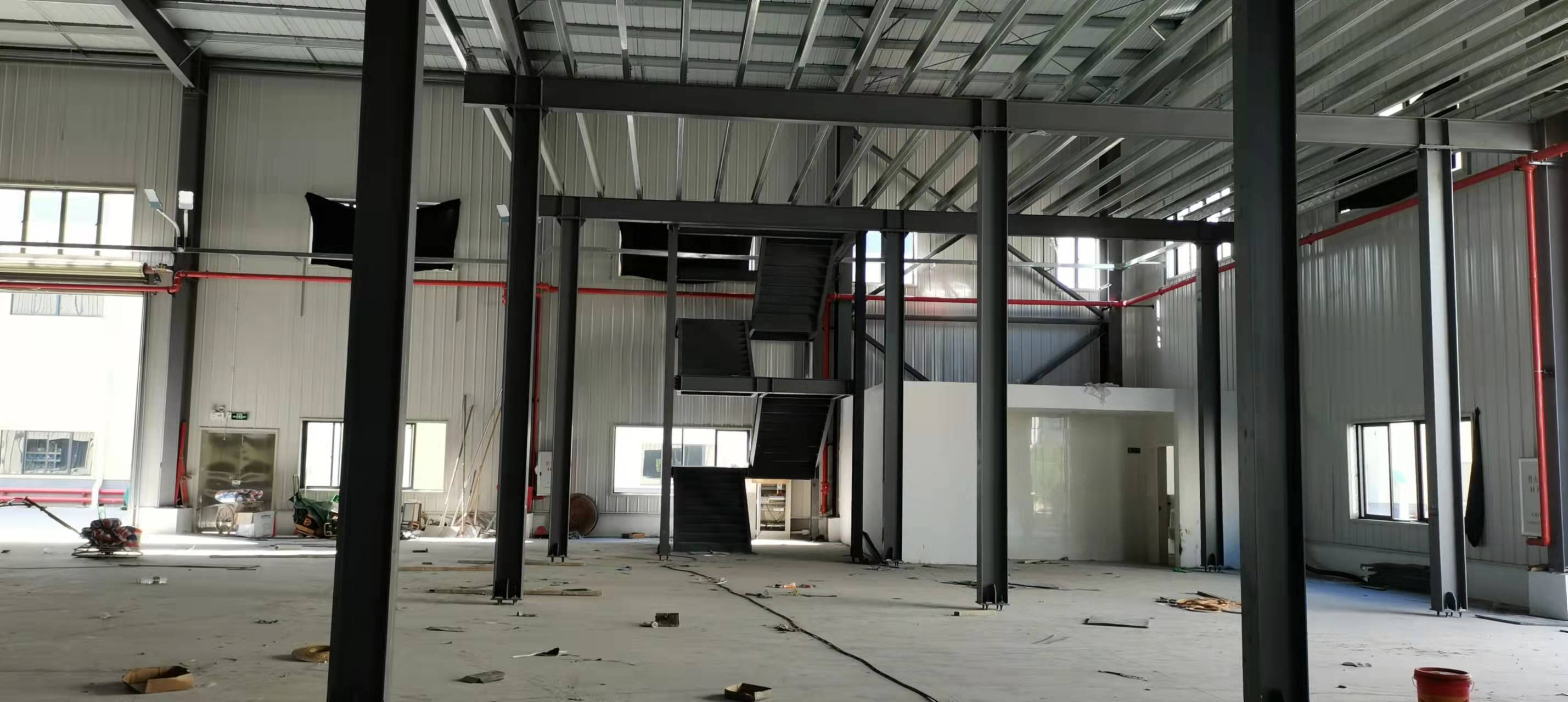

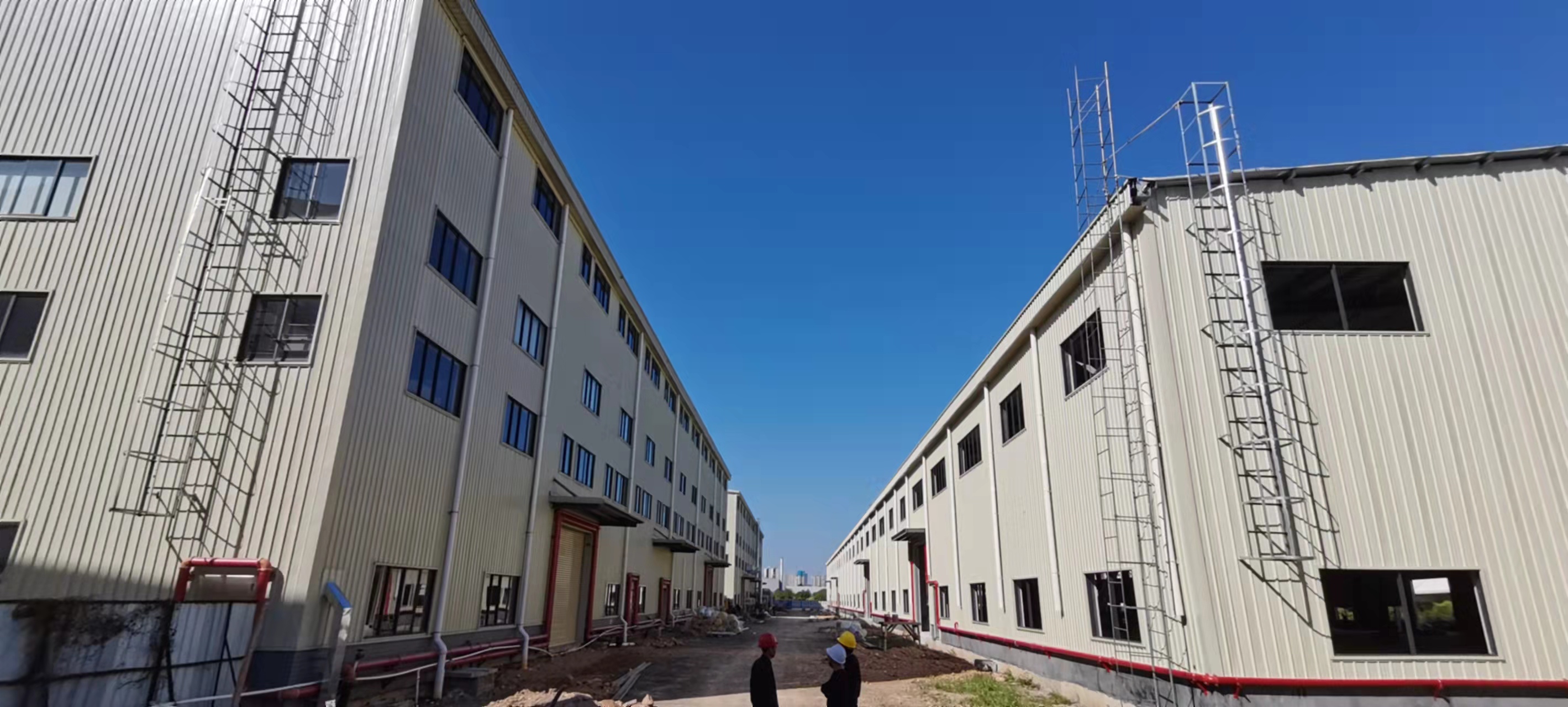

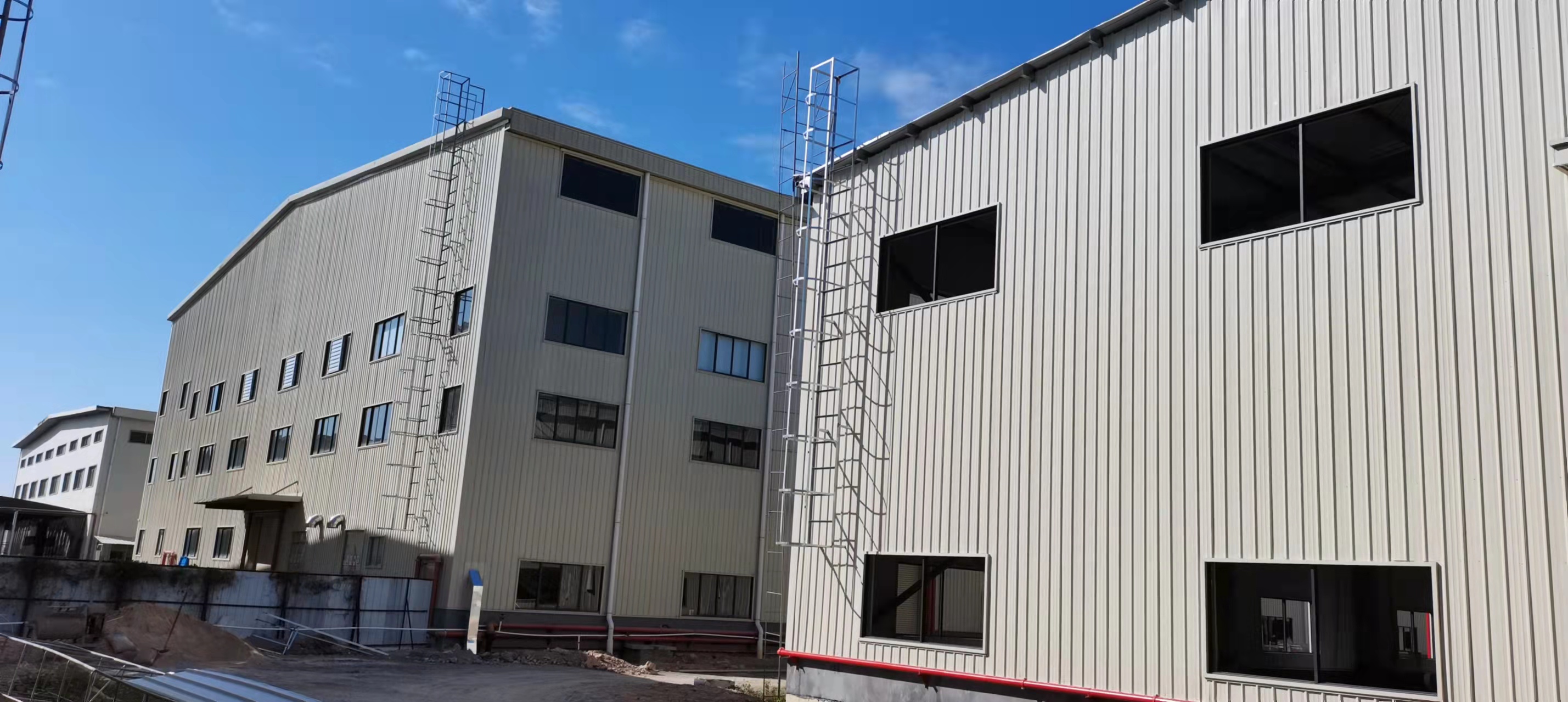

Prefab Steel Warehouse Project Installation

Prefab Steel Warehouse


Prefab Steel Warehouse


Prefab Steel Warehouse


Prefab Steel Warehouse


Prefab Steel Warehouse


Prefab Steel Warehouse


Prefab Steel Warehouse

Prefab Steel Warehouse  Benefits


Low maintenance costs

 Environmentally friendly and recycling.

 Offer flexibility for fixing doors, windows and interior partitions

 Steel structure construction is strong, durable, and stable.

 Steel components is resistant to termites and other destructive insects.

 The service life of steel structure building is more than 50 years.

 Fast construction, easy installation, and convenient to transport.


Prefab Steel Warehouse  Applications


The Prefab Steel Warehouse  is widely used in Steel Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall, etc.

Prefab Steel Warehouse Applications


About Teamwork Prefab Steel Warehouse


Foshan Teamwork Steel Structure Co.,Ltd was found in 2008. We are specialized in designing, manufacturing, marketing and construction of the Prefab Steel Warehouse, steel structure warehouse, steel structure workshop, prefabricated house and light steel villa.

Teamwork Steel Structure have two production workshops covering an area of 17000 square meters. One plant is in LiShui Town, Foshan, which mainly produces prefab house, fence, aluminum door, and window. The other one is located in Gaoming district, Foshan which mainly produces prefab steel structure building. With the modern advanced facility, we have the capability to manufacture 30000~50000 sqm per month.


Prefab Steel Warehouse Supplier


Why Choose Our Prefab Steel Warehouse


01 Customized Design

Offer professional building planning & drawing, and suitable steel components according to your requirements.

02 Quality Assurance

● Strict quality control

● Safe packing

● Quality inspection before shipment


03 After-sales service

Installation instruction on site

Installation technical team backup

Timely communication by Email & Phone



Certification



Prefab Steel Warehouse Certification


Prefab Steel Warehouse Loading


Prefab Steel Warehouse Loading

FAQ


Q: What should you provide before quotation?

A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.


Q: What accessories do we provide for customized steel buildings?

A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.


Q: Can the steel building be installed by yourself?

A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.


Q: What should be prepared for the site before installation?

A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.


Q: Do we have a recommended foundation and associated drawing?

A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
