Place of Origin: | Product Name: |
Foshan, China (Mainland) | Light Steel Villa |
Material: | |
Q235 Square Tube, H Section Steel, C/Z Section Steel, Steel Keel etc. | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Use: | |
Residence, Tourist and Holiday House, Real Estate Development Project | |
Size: | Roof & Wall Material: |
Up to Customer's Requirement | Fiber Cement Board or Cement Board+Glass Wool |
Window: | Door: |
Aluminum Alloy Window/PVC Windows | Steel / Aluminum Door |
Roof & Wall Material: | |
Roof tile-Asphalt shingles/Resin tile, Wall cladding-Cement wall cladding/ PVC wall cladding, etc | |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Light Steel Structure Villa |
Components | Specifications |
Embedded Parts/Bolt | M24 |
Expansion Bolt | M8 |
High Strength Bolt | M20 |
Galvanized Bolt | M12 |
Shear Nail | M16 |
Self-tapping Screw | M5 |
First Floor Steel Column(Q235B) | HN346*174*6*9 |
Second Floor Steel Column(Q236B) | 口100*3.0 |
Roof Beam(Q235B) | 口80*40+口60*30 |
Floor Main Beam(Q235B) | HN346*174*6*9 |
Secondary Beam(Q235B) | HN198*99*4.5*7 |
Ring Beam(Q235B) | 口100*1.8 |
Stairs | [16 u-bar+ 2.5mm Chequered Plate |
Roof Purlin(Q235B) | C120*50*20*2.0 |
Connecting Plate | 4mm-16mm |
Paint | 2 Times Spray Paint |
Roof tile | Roof Waterproof Material +Resin Tile |
Roof Panel | 50mm EPS Sandwich Panel, Color Steel Sheet:0.326mm |
Outside Wall Panel | 75mm Fiber Cement Board |
Partition Wall Panel | 75mm Fiber Cement Board |
Floor Decking | 1.0mm |

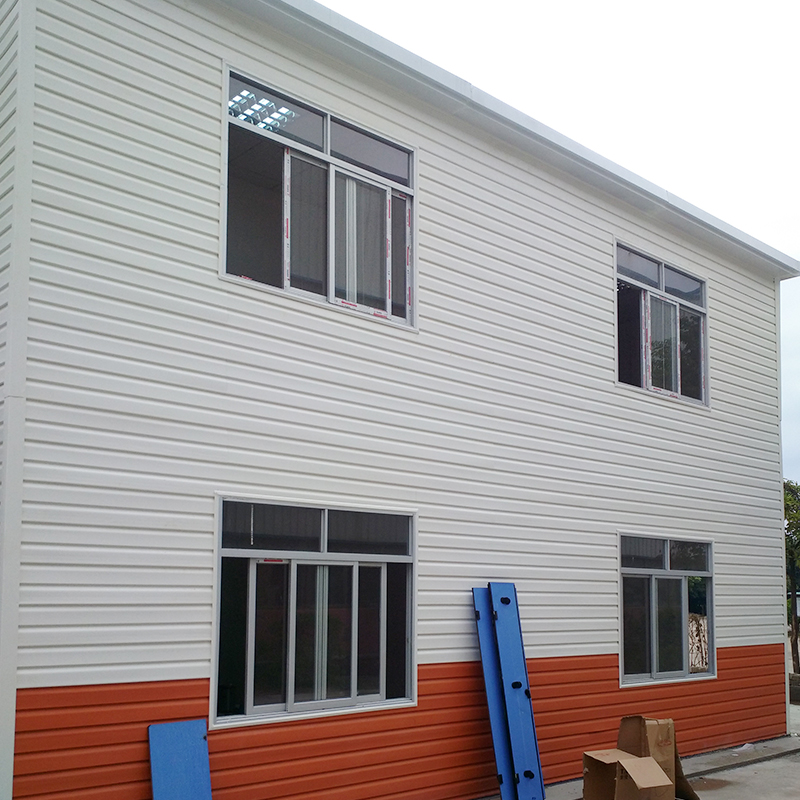

Outside Wall Decoration | PVC Cladding |
Electric Rolling Door | W6000*H2500 |
Steel Door | W880*H2050 |
Aluminum Door | W700*H2050 |
Aluminum Sliding Door | W4000*H2050 |
Aluminum Sliding Window | W1200*H1500 , W900*H600, etc |
Handrail | 口80*40+口40+口30+口20 |
Trimming | Color Steel Sheet, Galvanized plate |
● The flexible interior partition can make good use of the space.
● Resource-efficient practices produce less waste and less impact on the environment.
● Steel structure construction is strong, durability and stability.
● The prefabricated or modular building can be on job sites anywhere.
● Varied designs, luxurious appearance, good comfort, and energy saving.
● The service life is long and more than 30 years.
● Fast construction, easy installation, and convenient to transport.
The light steel villa is widely used in the construction of buildings, such as residence, tourist and holiday house, family house, government residential project real estate development project, etc.
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
01 Customized Design
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
1. Project Dimension
Width__________meters, Length________meters, Height__________meters
2. Roof Slop Grade___________
3. Wall Panel: Fiber Cement Board, Thickness:___________
4. Wall Decoration: Cement Cladding, Metal Cladding, PVC Cladding etc.
5. Roof Panel: EPS / PU / Rockwool Sandwich Panel, Thickness:__________________
6. Roof Decoration: Asphalt Single / Resin Tile / Metal Tile
7. Door: 1)Aluminium Sliding Door 2) Steel Door 3) Roll Up Door(garage), Size :________
8. Window: 1)Aluminium Window 2)PVC Window, Size :______________
9. Draining: 1)Natural draining 2)Gutter+Downspout
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Light Steel Villa |
Material: | |
Q235 Square Tube, H Section Steel, C/Z Section Steel, Steel Keel etc. | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Use: | |
Residence, Tourist and Holiday House, Real Estate Development Project | |
Size: | Roof & Wall Material: |
Up to Customer's Requirement | Fiber Cement Board or Cement Board+Glass Wool |
Window: | Door: |
Aluminum Alloy Window/PVC Windows | Steel / Aluminum Door |
Roof & Wall Material: | |
Roof tile-Asphalt shingles/Resin tile, Wall cladding-Cement wall cladding/ PVC wall cladding, etc | |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Light Steel Structure Villa |
Components | Specifications |
Embedded Parts/Bolt | M24 |
Expansion Bolt | M8 |
High Strength Bolt | M20 |
Galvanized Bolt | M12 |
Shear Nail | M16 |
Self-tapping Screw | M5 |
First Floor Steel Column(Q235B) | HN346*174*6*9 |
Second Floor Steel Column(Q236B) | 口100*3.0 |
Roof Beam(Q235B) | 口80*40+口60*30 |
Floor Main Beam(Q235B) | HN346*174*6*9 |
Secondary Beam(Q235B) | HN198*99*4.5*7 |
Ring Beam(Q235B) | 口100*1.8 |
Stairs | [16 u-bar+ 2.5mm Chequered Plate |
Roof Purlin(Q235B) | C120*50*20*2.0 |
Connecting Plate | 4mm-16mm |
Paint | 2 Times Spray Paint |
Roof tile | Roof Waterproof Material +Resin Tile |
Roof Panel | 50mm EPS Sandwich Panel, Color Steel Sheet:0.326mm |
Outside Wall Panel | 75mm Fiber Cement Board |
Partition Wall Panel | 75mm Fiber Cement Board |
Floor Decking | 1.0mm |
Outside Wall Decoration | PVC Cladding |
Electric Rolling Door | W6000*H2500 |
Steel Door | W880*H2050 |
Aluminum Door | W700*H2050 |
Aluminum Sliding Door | W4000*H2050 |
Aluminum Sliding Window | W1200*H1500 , W900*H600, etc |
Handrail | 口80*40+口40+口30+口20 |
Trimming | Color Steel Sheet, Galvanized plate |
● The flexible interior partition can make good use of the space.
● Resource-efficient practices produce less waste and less impact on the environment.
● Steel structure construction is strong, durability and stability.
● The prefabricated or modular building can be on job sites anywhere.
● Varied designs, luxurious appearance, good comfort, and energy saving.
● The service life is long and more than 30 years.
● Fast construction, easy installation, and convenient to transport.
The light steel villa is widely used in the construction of buildings, such as residence, tourist and holiday house, family house, government residential project real estate development project, etc.
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
01 Customized Design
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
1. Project Dimension
Width__________meters, Length________meters, Height__________meters
2. Roof Slop Grade___________
3. Wall Panel: Fiber Cement Board, Thickness:___________
4. Wall Decoration: Cement Cladding, Metal Cladding, PVC Cladding etc.
5. Roof Panel: EPS / PU / Rockwool Sandwich Panel, Thickness:__________________
6. Roof Decoration: Asphalt Single / Resin Tile / Metal Tile
7. Door: 1)Aluminium Sliding Door 2) Steel Door 3) Roll Up Door(garage), Size :________
8. Window: 1)Aluminium Window 2)PVC Window, Size :______________
9. Draining: 1)Natural draining 2)Gutter+Downspout
