Lower Carbon Footprint:

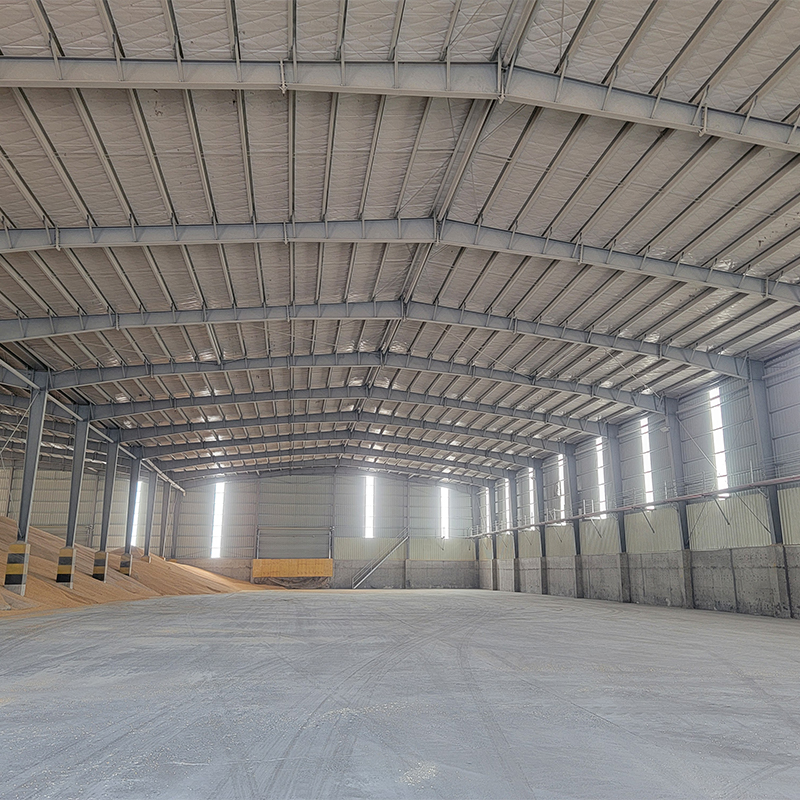

Liyou offers insulated panel systems specifically designed for prefabricated metal buildings. These advanced systems are engineered to deliver superior energy efficiency and thermal comfort, making them ideal for a wide variety of commercial, industrial, and residential projects.
Energy-Efficient Insulation: Our insulated panel systems enhance the energy efficiency of prefabricated metal buildings by offering top-tier thermal resistance, maintaining comfortable indoor temperatures year-round while reducing heating and cooling costs.
Fast and Easy Installation: The prefabricated metal buildings with insulated panels are designed for quick and straightforward assembly, saving you time and money on construction.
Superior Durability: Made from high-strength galvanized steel, Liyou's prefabricated metal buildings are designed to endure harsh conditions, while the insulated panels provide excellent resistance to impact, rust, and corrosion.
Advanced Insulation Technology: Our insulated panel systems are designed using the latest technology to ensure superior thermal performance, keeping your building efficient and cost-effective in the long term.
Fast Construction: With prefabricated metal buildings that include insulated panels, we offer quicker construction times, getting your building up and running faster.
Customization Options: Our prefabricated metal buildings with insulated panel systems are fully customizable, allowing you to choose the dimensions, color, and insulation thickness to suit your specific needs.
| Availability: | |
|---|---|
| Quantity: | |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |
2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |
| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
