● Our steel structure commercial buildings are built with high-quality steel that is painted with anti-corrosion paint to ensure a long life span.
● Each individual weld is put through inspections and tests to ensure a safe, strong weld.
● Steel structure buildings are designed to withstand 110 km/hr winds, and their seismic grading is 8.
● We offer excellent customer service during and after your order's completion.
● Customize the steel structure buildings to suit your needs!
Prefabricated Steel Structure helipad Info
Project Location: China
Wind Resistance: 110km/h
Anti Seismic: 8 grade
Floor Dead Load: 550kg/㎡
Floor Live Load: 300kg/㎡
Building Area:20000㎡
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Prefabricated Steel Structure Buildings |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Size: | Technology: |
Up to Customer's Requirement | Welded steel, Hot Rolled Steel |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Steel Structure buildings |
Components | Specification |
| Anchor bolt | M27*900 |
| High streigth bolt | M20，10.9S |
| Common bolt | M20 |
| Galvanized bolt | M12 |
| Tir rod | Φ12 |
| Brace rod | Φ32*2.5 |
| Connecting panel | 6-20mm Steel panel |
| Aluminum sliding window | 1800X1200 |
Steel Beam | HM390*300*10*16 |
| Steel Beam | HN400*200*8*13 |
| Steel Beam | HN450*200*9*14 GL12 |
| Steel Beam | C14A |
| Steel Beam | C10 |
| Steel Beam | HN450*200*9*14 GL27 |
Steel Column | P80*5 GZ1 |
Steel Column | P80*5 GZ2 |
Steel Column | P80*5 GZ3 |
Steel Column | P80*5 GZ4 |
Steel Column | P80*5 GZ5 |
Steel Column | P80*5 GZ6 |
Steel Column | P80*5 GZ7 |
Steel Column | P80*5 GZ8 |
Steel Staircase | C20A |
On site plate | PL30*6 |
On site plate | PL8*153 |
| On site plate | PL8*152 |
| On site plate | PL8*150 |
| On site plate | PL6*30 |
| On site plate | PL30*6 |
| On site plate | PL80*20 |
| On site plate | PL300*10 |
| On site plate | PL30*6 |
| Angle steel | ZC1 L63*6 |
| Angle steel | ZC2 L63*6 |
| Angle steel | ZC3 L63*6 |
| Angle steel | ZC4 L63*6 |
| Angle steel | ZC5 L63*6 |
| Angle steel | ZC6 L63*6 |
| Angle steel | ZC7 L63*6 |
| Angle steel | ZC8 L63*6 |
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
The steel structure building is widely used in Steel Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building, Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration houses, Resort, Dormitory Building, Shopping Mall, etc.
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q: What should you provide before quotation?
A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.
Q: What accessories do we provide for customized steel buildings?
A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.
Q: Can the steel building be installed by yourself?
A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.
Q: What should be prepared for the site before installation?
A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.

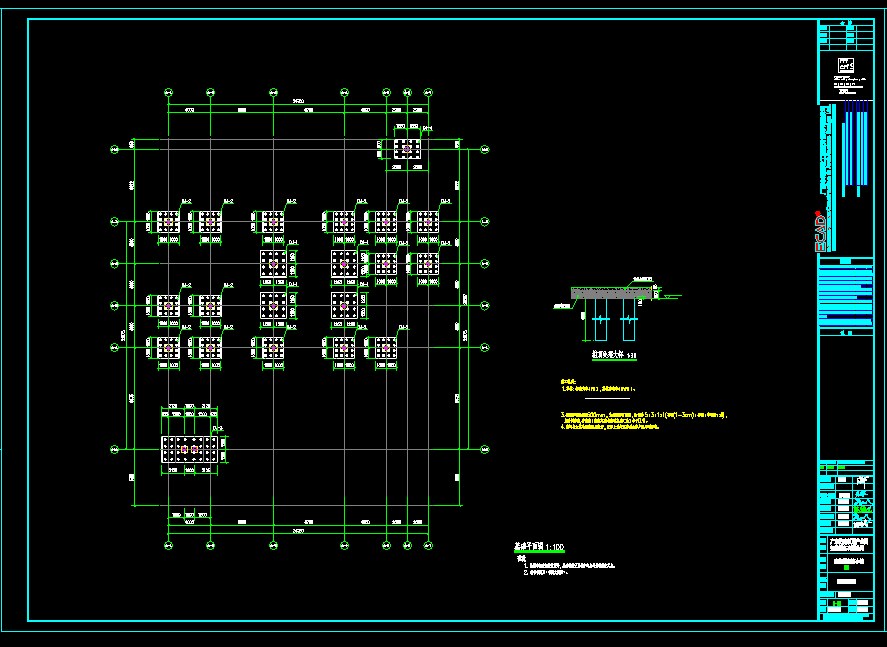

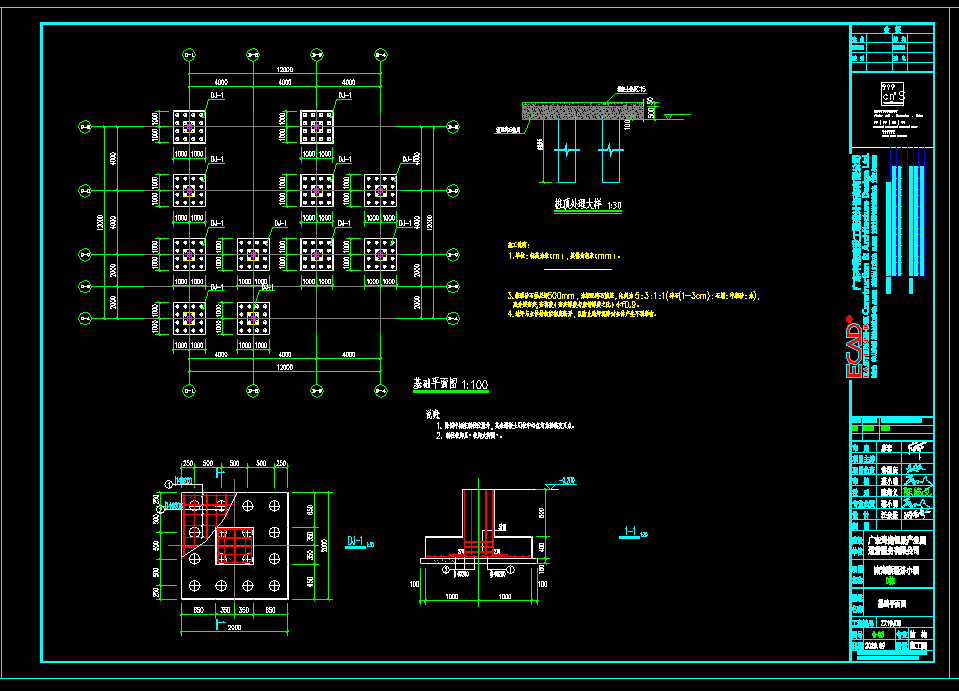

Q: Do we have a recommended foundation and associated drawing?
A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
