Lower Carbon Footprint:
Liyou's metal hangar buildings are designed for high-performance aviation, industrial, and commercial needs. Engineered with wide-span steel framing, these hangars provide unobstructed interior space, advanced weather resistance, and scalable configurations for both fixed-wing aircraft and helicopters.
Clear-Span Design: Column-free interiors maximize usable space for aircraft movement and equipment storage.
Custom Sizing & Access: Fully adaptable dimensions with options for sliding, bi-fold, or vertical lift hangar doors.
All-Weather Protection: Engineered to withstand snow, wind, and seismic loads—ideal for global climates.
Optimized Build Time: Prefabricated components reduce construction time and labor costs significantly.
Aircraft Hangars: Storage and maintenance for commercial, private, or military planes.
Helicopter Shelters: Efficient solutions for helipads and aviation logistics.
Vehicle & Equipment Storage: Covers large trucks, machinery, and oversized assets.
Industrial Use: Large-scale production or assembly buildings requiring expansive interiors.
| Availability: | |
|---|---|
| Quantity: | |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |

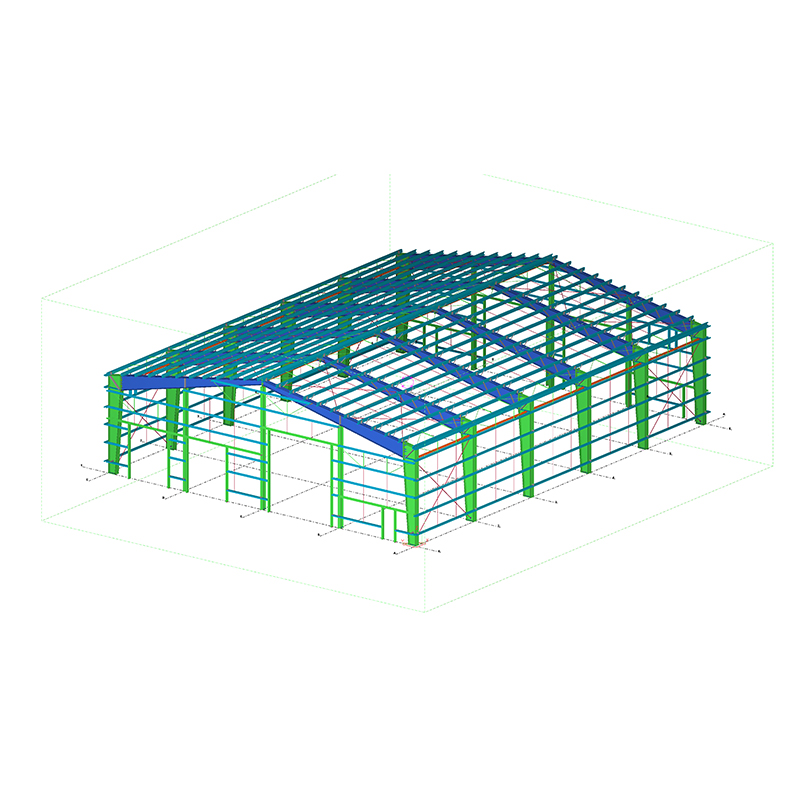

2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |
| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |
2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |
| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
