Lower Carbon Footprint:

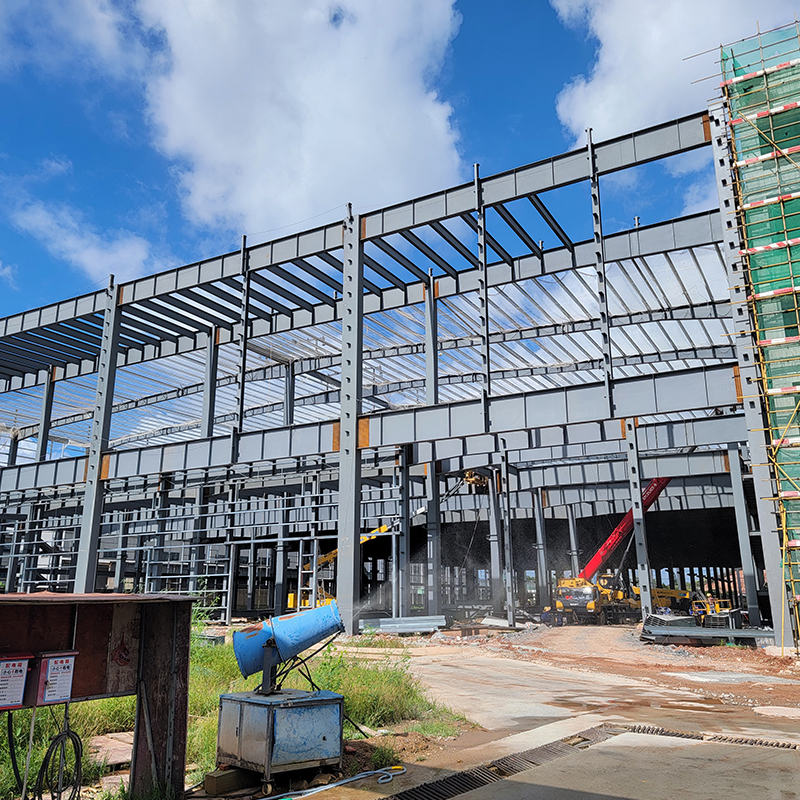

At Liyou, we deliver metal shop buildings that balance structural strength with excellent value. Our 40×120×15m steel building, designed for a curtain wall production facility, reflects how we tailor large-scale workshops to meet both performance demands and budget requirements.
Optimized for Cost Efficiency: Factory-direct production lowers project cost.
Modular Flexibility: Easily adapt dimensions and functions to your workflow.
Rapid Installation: Pre-cut and labeled for fast assembly with minimal waste.
Designed to Perform: Withstands weather, wear, and daily industrial demands.
Curtain Wall Manufacturing Shops
Metal & Glass Fabrication Workshops
Construction Material Warehouses
Heavy Equipment Repair Facilities
Custom Production or Assembly Lines
| Availability: | |
|---|---|
| Quantity: | |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |
2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |
| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |
2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |
| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
