| Quantity: | |
|---|---|
●Industrial and Small Manufacturing Buildings
●Small Retail and Commercial Office Buildings
●Warehouses and Storage Units
●Structural steel framing system
●Metal roofing system
●Wall panels of varying materials
Pre-engineered steel buildings are typically delivered in just a few weeks after approval of drawings. Foundation and anchor bolts are cast parallel with finished, ready for the site bolting.
Due to the systems approach, there is a significant saving in structural component design, manufacturing, and on-site erection cost. The secondary members and cladding bundled can also reduce transportation costs.
As metal structures are manufactured in the factory under controlled conditions, the quality is easier to manage than on project sites.
Buildings are manufactured with the highest quality paint for cladding and steel, applied in a controlled environment, which results in long durability and low maintenance costs.
Why Choose Our Pre Engineered Buildings?
1. The steel structure system adopts the concrete-filled steel tubular lattice column system, which can form T-shaped, L-shaped, cross-shaped and Z-shaped sections to meet the needs of the flexible division of residential buildings and avoid exposed beams and columns.
2. Solve a series of problems such as sound insulation, cracks, and sound insulation encountered by the combination of steel structure housing and a three-board system.
3. Developed supporting processing equipment, processing, and construction techniques. Undertook the work of component scale loading experiment, calculation analysis, organization of expert program demonstration, specification compilation, etc..
4. BIM technology application, visualized communication through the 3D model and adding time and cost BIM technology reflection.

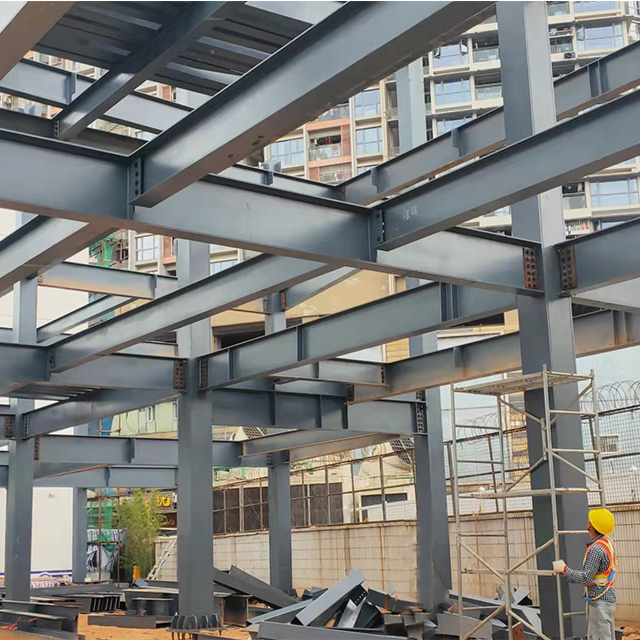

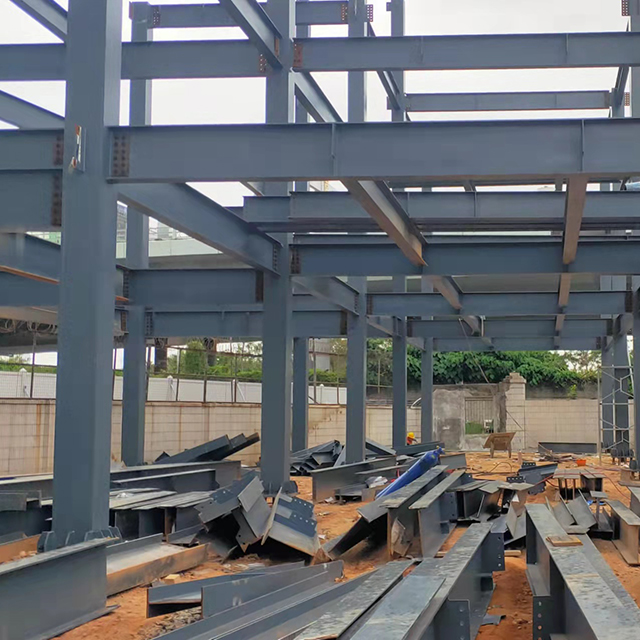

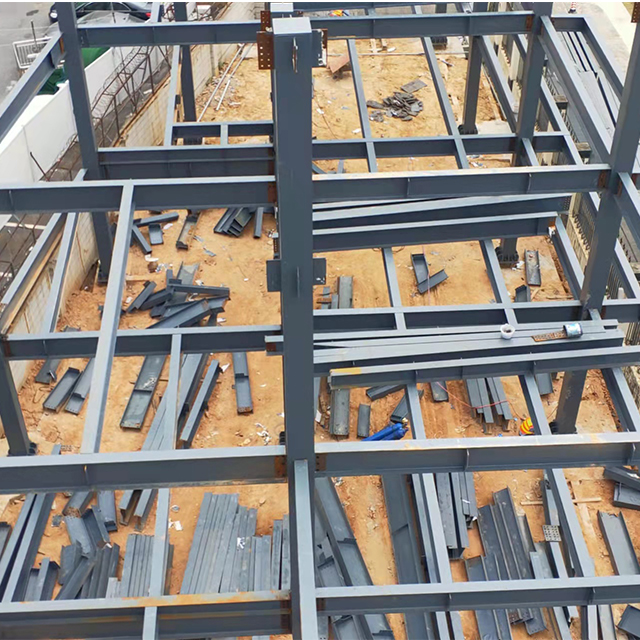

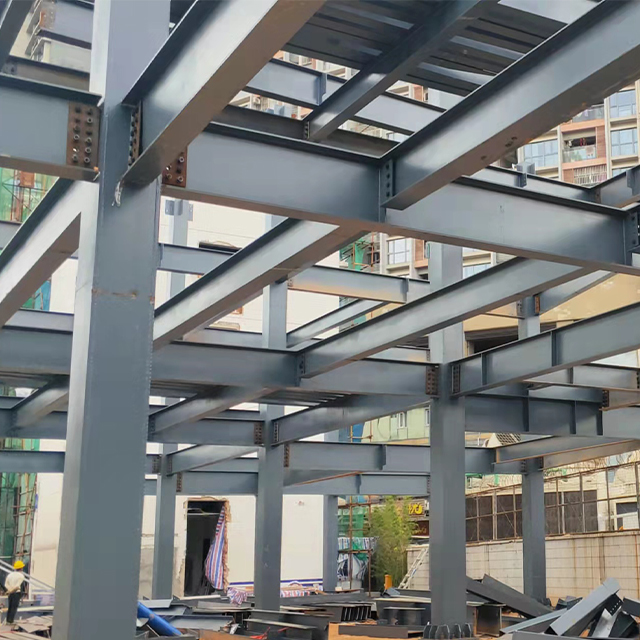

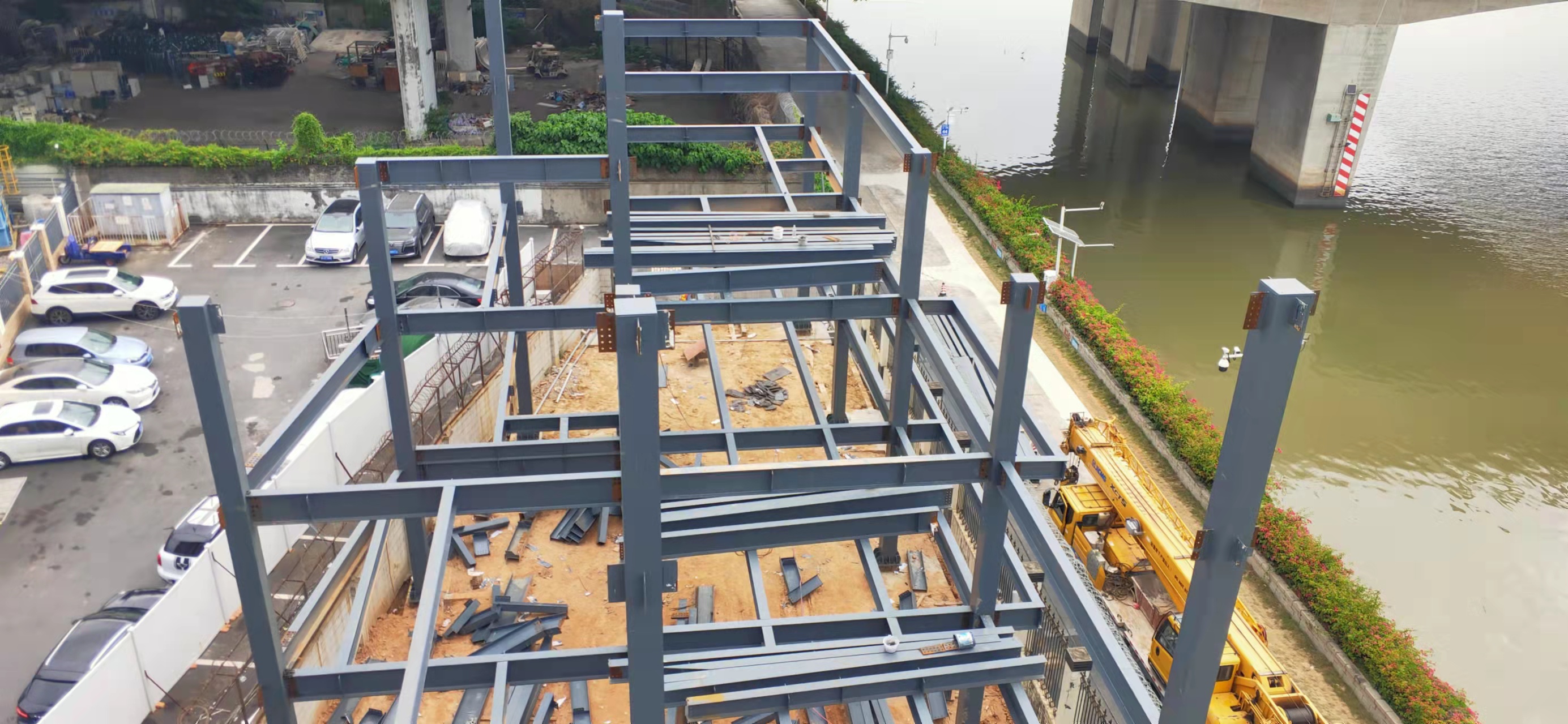

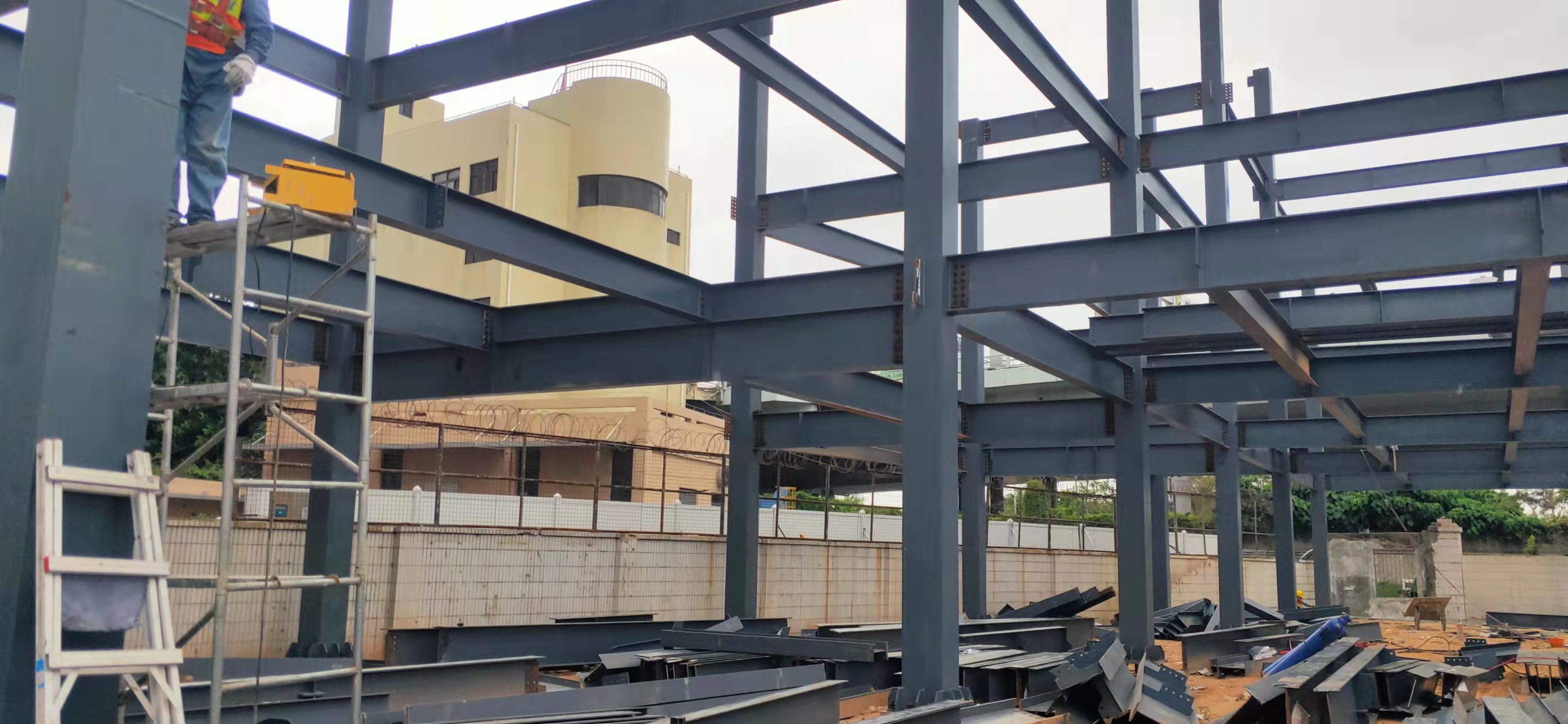

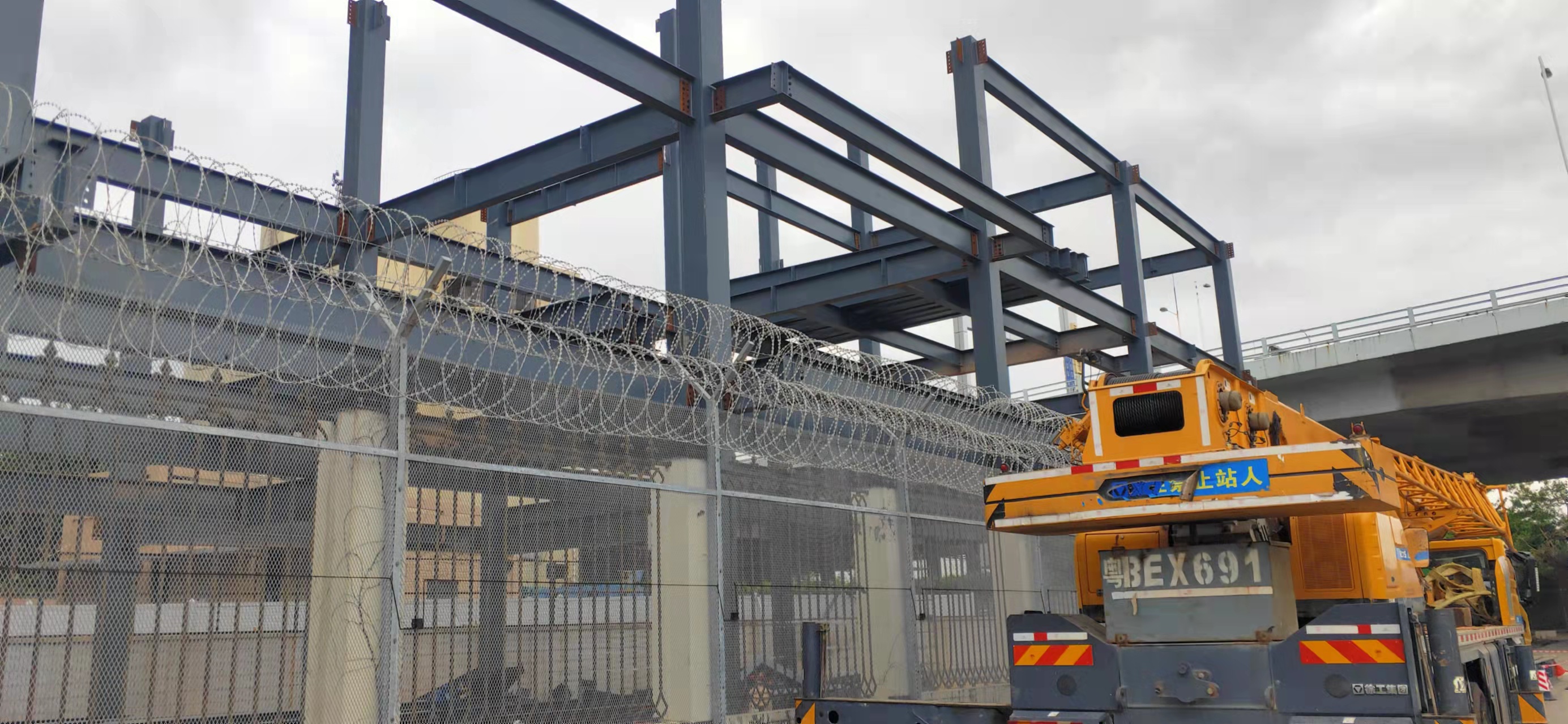

Installation Show
Place of Origin: | Product Portal Frame: |
Foshan, China (Mainland) | Pre Engineered Buildings |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc. | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Size: | Color: |
Up to Customer's Requirement | Graywhite, Blue, Red, etc.. |
Roof & Wall Material: | Technology: |
Sandwich Panel: 50mm, 0.376 Steel sheet | Welded steel, Hot Rolled Steel |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Pre Engineered Metal Building |
| Embedded parts | Specification |
| Anchor bolt | M24 |
| High strength bolt | M20，10.9S |
| Common bolt | M20 |
| Galvanized plate | 6-20MM steel |
| shear nail | Φ16*80 |
| Bracing | Φ32*2.5 |
| Main steel frame | |
| Steel column（Q355B） | 口400X400X20X20 |
| Steel column（Q355B） | 口300X300X14X14 |
| Steel column（Q355B） | 口200X200X12X12 |
| Steel column（Q355B） | Φ550X25 |
| Hot H beam （Q355B） | HN500X200X10X16 |
| Hot H beam （Q355B） | HN550X200X10X16 |
| Hot H beam （Q355B） | HN400X200X8X13 |
| Hot H beam （Q355B） | HN630X200X15X20 |
| Steel stair（Q235B） | 口200X200X12X12 |
| Steel stair（Q235B） | HN450X200X8X12、 [25a |
| Mezzanine board | TD3-90 |
| Structure steel fabrication+Sanding + Paint | Acetylene, oxygen, electrode, Sa2.5 |
| Maintenance | |
Roof panel | 50mm |
Outside wall panel | 100mm |
| Trimming | Galvanized plate,steel sheet |
| Door&Window | |
| Aluminum glass door(double open) | W1800*H2400 |
Aluminium slidding window | W1740*H1500 |
Ceiling | 600*600 |
| Gutter | 2.0mm Galvanized |
| Down pie | PVC material |
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
The steel structure is a light steel structure product, the main structure is cold-formed thin-wall steel component by bolt connection, it could be also combined with another unit by span each other, to ahieve more than span sapce. Comparing with the traditional steel structure, it owns simple architecture, low cost material, small dimension transport, steel structure life span can be up to 50 yearts, it can be used repeatedly.
The steel structure building is widely used in the construction of buildings such as Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall, etc.
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
01 Customized Design
Offer professional Steel Structure Portal Frames building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q: What should you provide before quotation?
A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.
Q: What accessories do we provide for customized steel buildings?
A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.
Q: Can the steel building be installed by yourself?
A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.
Q: What should be prepared for the site before installation?
A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.
Q: Do we have a recommended foundation and associated drawing?
A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
