Pre Engineered Metal Building Design


Our pre engineered metal building design services optimize both structural efficiency and architectural appeal. LiYou's pre engineered metal building design process begins with 3D modeling that analyzes over 50 load scenarios before finalizing specifications. These pre engineered metal building designs typically reduce total steel weight by 15-30% compared to conventional designs, saving material costs without compromising strength. Clients for our pre engineered metal building design services receive: 1) Multiple concept options, 2) Energy efficiency simulations, and 3) Detailed erection drawings. The pre engineered metal building designs we created for Canadian snow regions feature steep 8:12 roof pitches that shed heavy snow loads effectively.

Availability:
Quantity:
Inquire

  • Steel

  • Online technical support

  • Hangar/Shed

  • Guangdong, China

  • Hangar

  • 3 years

  • total solution for projects

  • GB

  • 1. Galvanized 2. Painted

  • C.Z Shape Steel Channel

  • Metal Steel

  • Single item

  • 1X1X1 cm

  • 1.000 kg


Project Introduction

Philippine Large Span Steel Structure Warehouse

Size:    108mx66mx7m High
Area: 7128
Steel grade:  Q355B
Used Steel:  287.46 tons
Fabrication Time:  about 25 days



Shipping Time:           Within 1 week


The Specifications of Steel

No
Components
Specification
Embedded Parts
1
Anchor Bolt
M24
2
High Strength Bolt
M20,10.9S
3
Common Bolt
M16
4
Galvanized Bolt
M12
5
Shear Nail
M16
6
Tir rod
∅32*2.5
Main Steel Structure Parts
1
Steel Column (Q355B)
H550*300*10*16
2
Wind Column (Q355B)
H400*220*6*10
3
Roof Frame Beam (Q355B)
H900~500*220*10*12 H500~650*220*8*12
4
Crane Beam (Q355B)
H650*320/240*10*16/14
5
Tie Bar(Q235B)
∅168*4.0
6
Horizontal Brace (Q235B)
∅168*4.0
7
Column Brace (Q235B)
∅25
8
Angle Brace (Q235B)
L63*5.0
9
Roof Purlin (Galvanized)
Z280*80*20*2.5
10
Wall Purlin (Galvanized)
C250*75*20*2.5
11
Connecting Plate
6mm-30mm
Other Steel Structure Parts
1
Roof Panel
50mm Rock wool Sandwich panel
2
Wall Panel
50mm Rock wool Sandwich panel
3
Gutter
2mm Galvanized Steel Plate
4
Down Pipe
PVC160 (Including parts)
5
Trimming
Color steel 0.5mm Gavanized steel panel

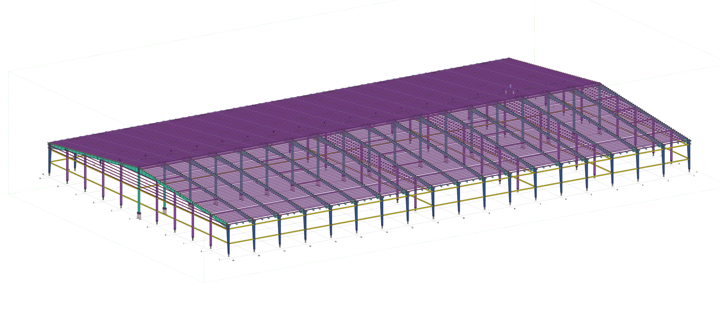

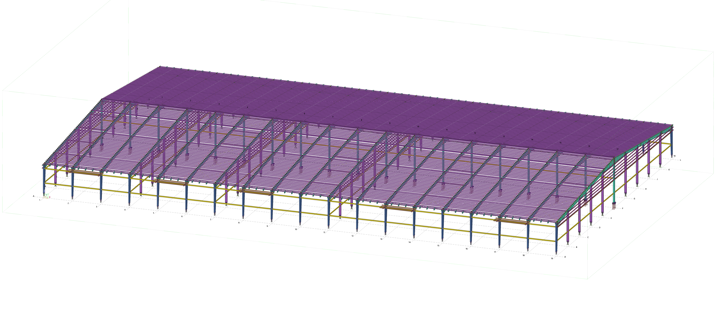

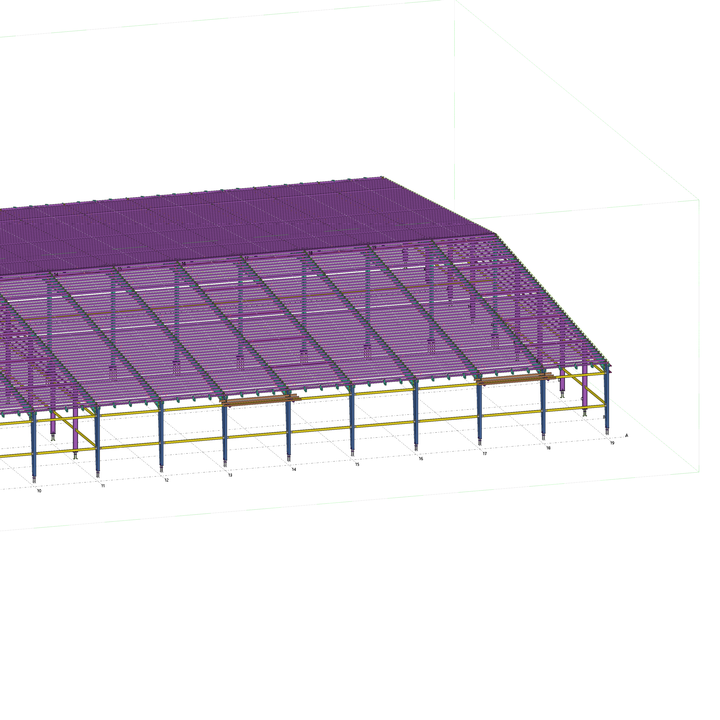

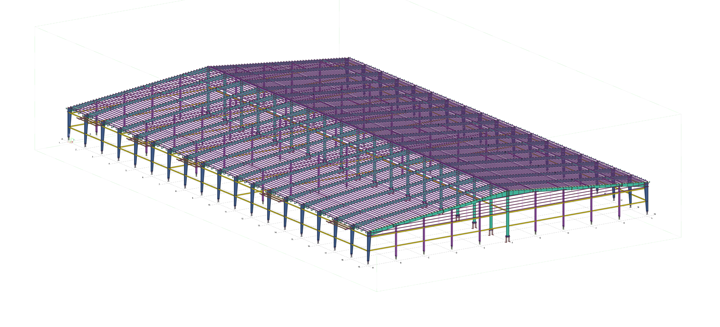

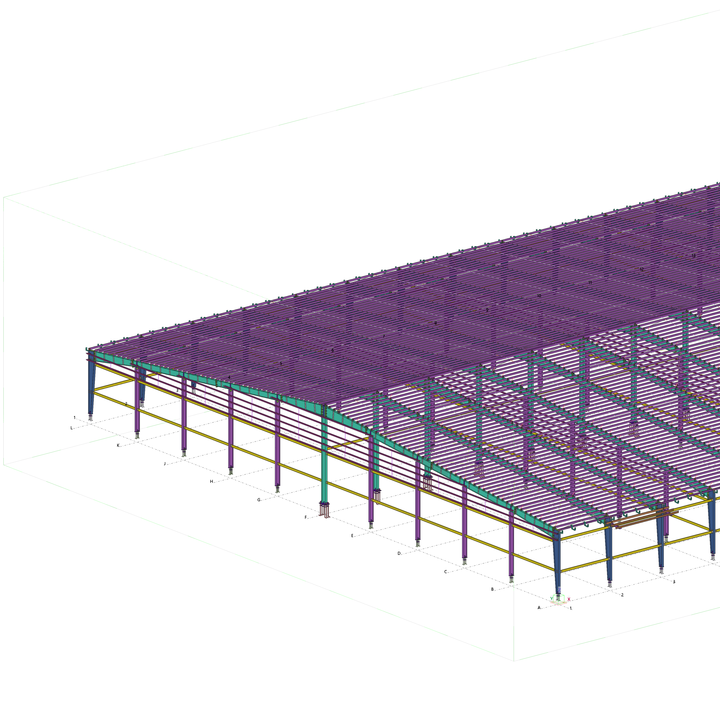

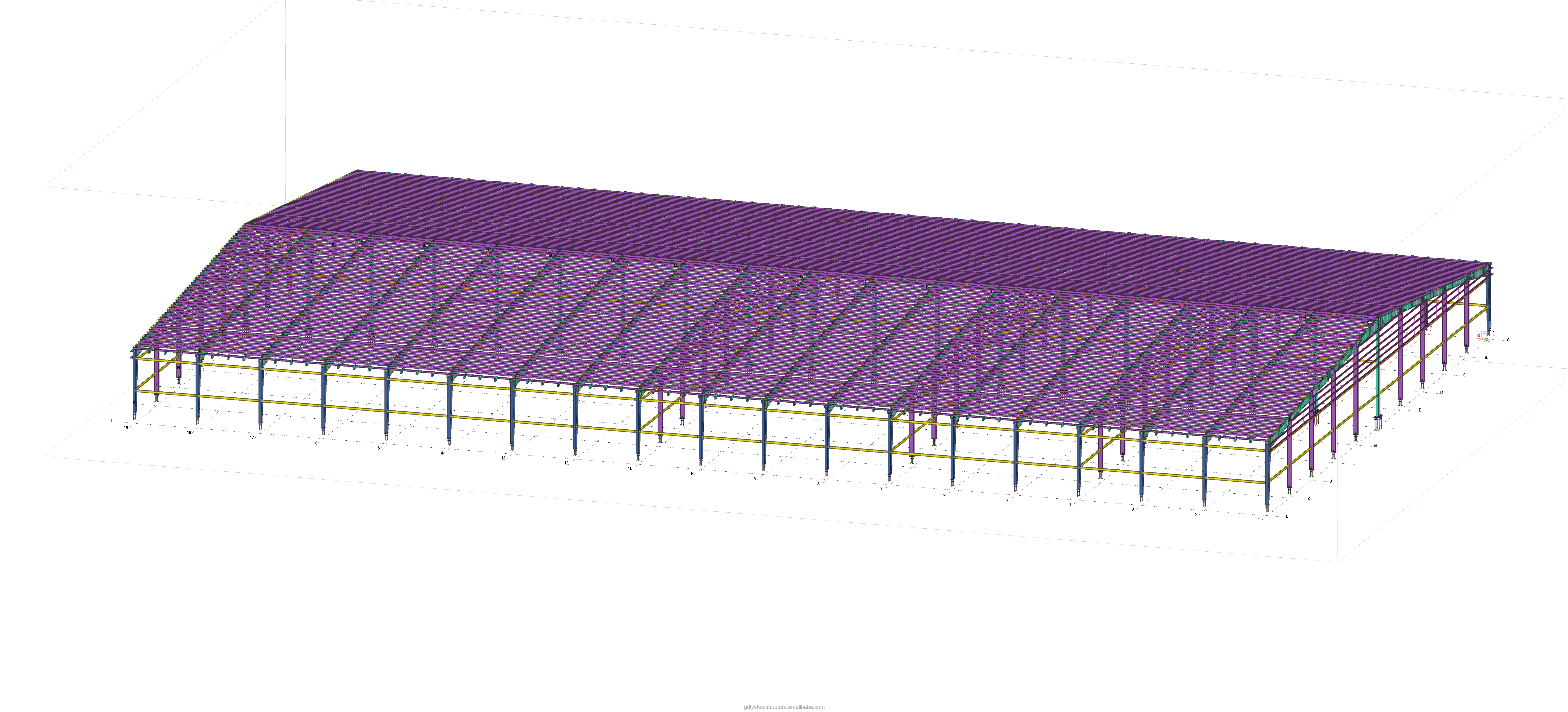

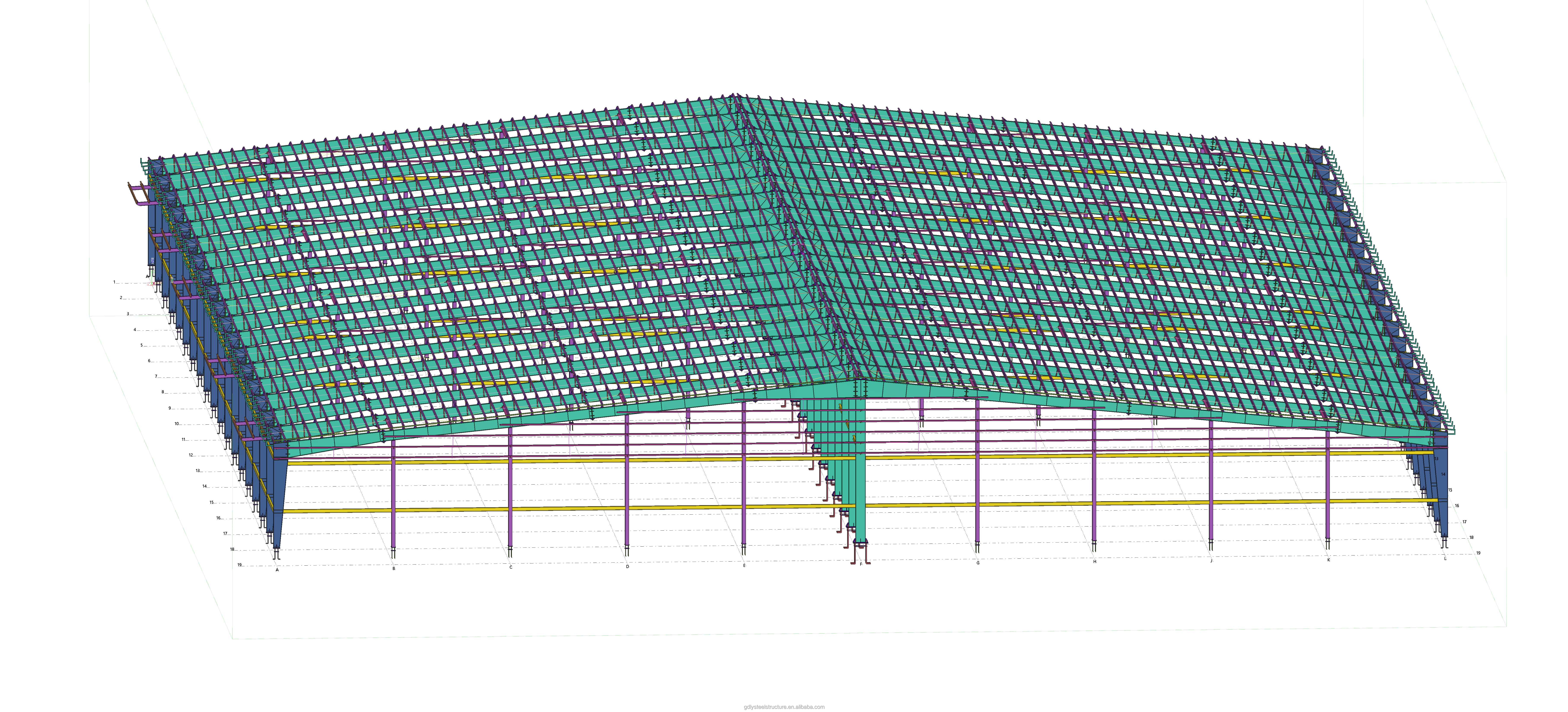

Project Model and Picture


Loading Containers Using Forklifts

Company profile
00:07   02:10
Established in 2014 and located in Gaoming District, Foshan City, Liyou is a leading steel structure company dedicated to
providing high-quality, innovative solutions for a wide range of construction projects. With a commitment to excellence and a focus on global reach, we have become a trusted partner for clients around the world.

Our expertise encompasses the design, fabrication, and export of steel structures used in diverse applications, including:
Industrial: Factories, warehouses, platforms, mezzanines
Commercial: Exhibition halls, multi-story parking lots, canopies
Infrastructure: Bridges
Residential: Villas, residences, high-rise buildings

Liyou has a strong international presence, with a proven track record of successful projects in numerous countries, including Philippines, Thailand, Kazakhstan, Uzbekistan, Zambia, Gambia, United States, Canada, Mexico, Guyana, Honduras, Australia and so on. We are committed to building long-term relationships with our clients by providing exceptional products, competitive price, and outstanding customer service. Our dedication to profession, quality, and customer satisfaction has made us a preferred choice for steel structure solutions worldwide.
Project case
What We Do
Processing
FAQ
1. who are we?
We are based in Guangdong, China, start from 2022,sell to Domestic Market(40.00%),South America(17.00%),Southeast
Asia(15.00%),North America(10.00%),Africa(5.00%),South Asia(2.00%),Eastern Asia(2.00%),Oceania(2.00%),Central America(2.00%),Mid East(2.00%),Western Europe(1.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Steel Structure Building, Steel Structure Warehouse, Steel Structure Workshop, Multi-story Steel Structure, Steel Structure Villa

4. why should you buy from us not from other suppliers?
Guangdong Li You Steel Structure Engineering Co., Ltd. is a facility that specializes in the production of steel components used in the construction of buildings, warehouse,workshops,bridges, and other structures.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
