Lower Carbon Footprint:
Liyou's prefab steel mezzanine systems offer a smart, scalable way to expand usable space without expanding your building footprint. Designed for fast assembly and high structural strength, these elevated platforms create extra storage, office, or work zones inside warehouses and industrial buildings.
Space Optimization: Doubles interior floor area without costly new construction.
Flexible Layouts: Tailored to fit around equipment, walls, or existing infrastructure.
Strong Load Capacity: Designed to hold heavy machinery, racking systems, or personnel.
Prefabricated Efficiency: Delivered in ready-to-install sections, reducing downtime.
Relocatable & Expandable: Modular design makes future adjustments or expansion easy.
Warehouse Expansion: Ideal for storing inventory above existing floor space.
Manufacturing: Supports machinery, packing stations, or assembly lines.
Retail & Showroom: Adds upper-level display areas or stockrooms.
Office Integration: Used for elevated office space within industrial buildings.
Cold Storage Platforms: Elevated racking or prep zones in temperature-controlled facilities.
Availability: | |
---|---|
Quantity: | |
1. Anchor Bolt and Fastener Part
No. | Item | Specification |
1 | Anchor bolt 1 | M20×400 |
2 | Anchor bolt 2 | M16×260 |
3 | High-strength bolt | M20, M16, 8.8S |
4 | Common bolt | M16 |
5 | Galvanized bolt | M12 |
6 | Turnbuckle bolt | M16 |
7 | Sag rod | Ø12 |

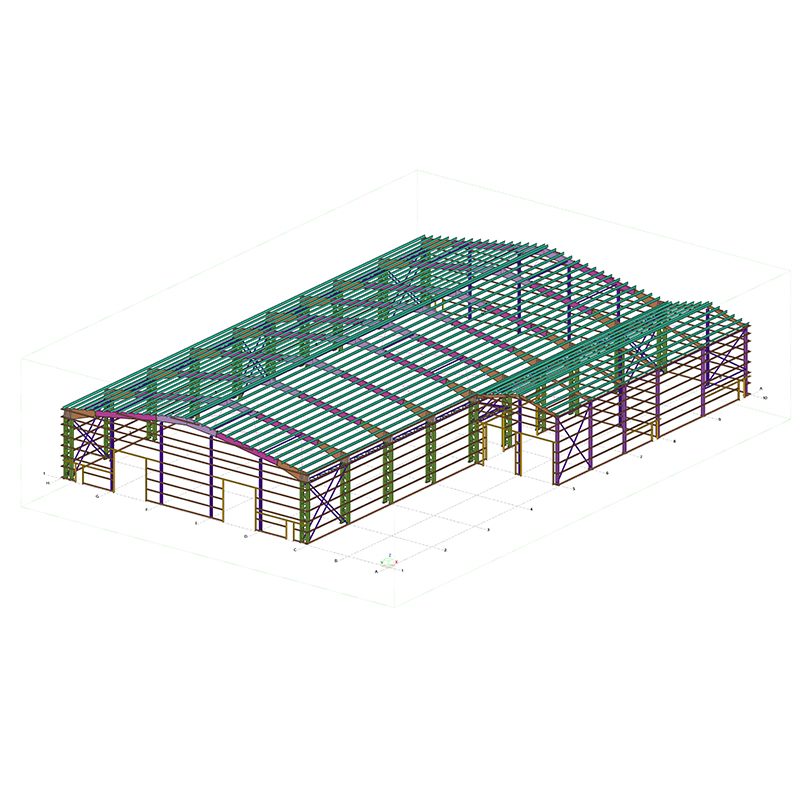

2. Main Steel Structure Part
No. | Item | Specification |
1 | Steel column (Q235B) | HN396×200×7×11 |
2 | Wind column (Q235B) | SHS150×100×5.0 |
3 | Roof truss beam (Q235B) | HN396×200×7×11 |
4 | Floor main beam (Q235B) | HN600×200×11×17 |
5 | Tie bar (Q235B) | SHS100×100×5.0 |
6 | Horizontal/Column brace (Q235B) | Ø16 |
7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
8 | Angle brace (Q235B) | L50×6.0 |
9 | Roof purlin (Q355B) | C250×75×20×2.0 |
10 | Wall purlin (Q355B) | C250×75×20×2.0 |
11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
No. | Item | Specification |
1 | Roof plate | 0.6mm thick, type 840 steel sheet |
2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
3 | Steel man door | 910×2010×2 |
4 | Stainless steel handrail | 1.1m high |
5 | Roof ventilator | 600×600 |
6 | Gutter | 2.0mm galvanized |
7 | Downpipe | Ø110 PVC |
8 | Trimming | 0.55mm thick steel plate |
9 | Hardware accessories | Nails, supports, structural glue, etc. |
1. Anchor Bolt and Fastener Part
No. | Item | Specification |
1 | Anchor bolt 1 | M20×400 |
2 | Anchor bolt 2 | M16×260 |
3 | High-strength bolt | M20, M16, 8.8S |
4 | Common bolt | M16 |
5 | Galvanized bolt | M12 |
6 | Turnbuckle bolt | M16 |
7 | Sag rod | Ø12 |
2. Main Steel Structure Part
No. | Item | Specification |
1 | Steel column (Q235B) | HN396×200×7×11 |
2 | Wind column (Q235B) | SHS150×100×5.0 |
3 | Roof truss beam (Q235B) | HN396×200×7×11 |
4 | Floor main beam (Q235B) | HN600×200×11×17 |
5 | Tie bar (Q235B) | SHS100×100×5.0 |
6 | Horizontal/Column brace (Q235B) | Ø16 |
7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
8 | Angle brace (Q235B) | L50×6.0 |
9 | Roof purlin (Q355B) | C250×75×20×2.0 |
10 | Wall purlin (Q355B) | C250×75×20×2.0 |
11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
No. | Item | Specification |
1 | Roof plate | 0.6mm thick, type 840 steel sheet |
2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
3 | Steel man door | 910×2010×2 |
4 | Stainless steel handrail | 1.1m high |
5 | Roof ventilator | 600×600 |
6 | Gutter | 2.0mm galvanized |
7 | Downpipe | Ø110 PVC |
8 | Trimming | 0.55mm thick steel plate |
9 | Hardware accessories | Nails, supports, structural glue, etc. |
