Small Metal Buildings



Looking for small metal buildings that combine durability, affordability, and quick installation? Guangdong LiYou Steel Structure Engineering Co., Ltd. specializes in high-quality small metal buildings designed for storage, workshops, offices, retail spaces, and more. Our prefabricated small metal buildings are engineered with premium Q355B steel for superior strength and long-lasting performance, just like our recent Canada New Adding Part Steel Structure Warehouse Project (59.27m×18.1m×8.84m, 849.41㎡).



Our small metal buildings feature:
✔ 75mm thick Type 1000 PIR roof panels for excellent insulation and weather resistance
✔ 0.5mm thick Type 900 steel wall cladding for durability and modern aesthetics
✔ Customizable layouts to fit your exact space requirements
✔ Quick assembly with prefabricated components to save time and labor costs



Perfect for storage facilities, workshops, or small commercial spaces, our small metal buildings are built to international standards with ISO, CE, and SGS certifications. With successful projects across Canada, the U.S., Australia, and beyond, LiYou delivers reliable steel structures that stand the test of time.



Availability:
Quantity:
  • Steel

  • Online technical support

  • Hangar/Shed

  • Guangdong, China

  • Hangar

  • 3 years

  • total solution for projects

  • GB

  • 1. Galvanized 2. Painted

  • C.Z Shape Steel Channel

  • Metal Steel

  • Single item

  • 1X1X1 cm

  • 1.000 kg

Project Introduction

Canada New Adding Part Steel Structure Warehouse Project
Size:          59.27mx18.1mx8.84m
Area: 849.41 ㎡
Steel grade: Q355B
Roof panel:          75mm Thick Type 1000 PIR Panels
Wall panel:          0.5mm Thick Type 900 Steel Cladding

NO
ITEM
SPECIFICATION
Anchor Bolt and Fastener Parts
1
Chemical bolt
M16
2
High strength bolt
M20
3
Common bolt
M20
4
Galvanized bolt
M12
5
Turnbuckle bolt
M20
6
Sag rod
∅12
7
Brace rod
φ32*2.0 round tube
Main Steel Structure Parts
1
Steel column(Q355B)
H500X280X12X16
HN300*150*6*9
2
Wind column(Q355B)
HN300*150*6*9
3
Roof tiny column(Q235B)
HN248X124X5X8
4
Wall connection column(Q235B)
SHS150*150*5.0
5
Roof truss beam(Q355B)
H750~500X220X12X14
H500X220X12X14
H500~750X220X12X14
6
Tie bar(Q235B)
∅114*3.0
7
Horizontal brace(Q235B)
∅20
8
Column brace(Q235B)
∅20
9
Angle brace(Q235B)
L50*4.0
10
Roof purlin (Q355B Galvanized)
C200*70*20*2.2
11
Wall purlin(Q3555B Galvanized)
C160*60*20*2.0
12
Connecting panel(Q355B)
6mm-20mm
Enclosure structure part
1
Roof panel(BAOSTEEL)
75mm Thick Type 960 PIR Panels
2
Wall sheet(BAOSTEEL)
0.5mm Thick Type 900 BAOSteel Cladding
3
OH DOOR
W4270*H4880*1
4
Gutter
2mm thick galvanized
5
Down spout
TCT Φ 110 with accessories
6
Trimming
0.5mm color steel plate
7
Hardware accessories
Nails, supports, structural glue, etc.

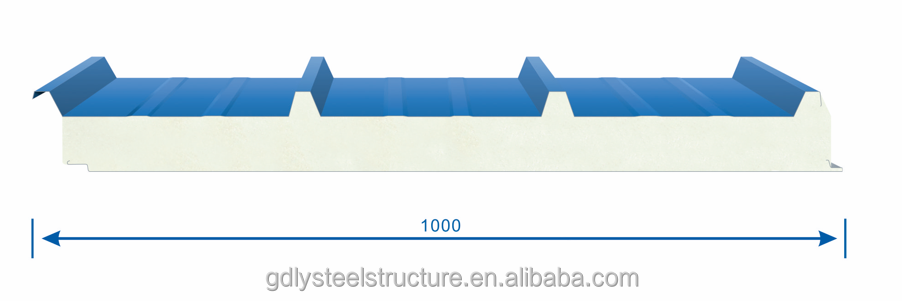

Roof Panel
The polyurethane roof panels are connected by concealed nails, with tight overlap and unique waterproof groove design to effectively prevent rainwater leakage and avoid cold bridge phenomenon. Panel/base plate: color-coated steel plate, stainless steel plate Wave crest height: 42mm, greatly improving the bearing capacity of the roof panel Roof slope: minimum up to 3% Advantages: light weight, high flame retardancy, easy installation, effectively reducing construction costs while ensuring the thermal insulation effect of the building.

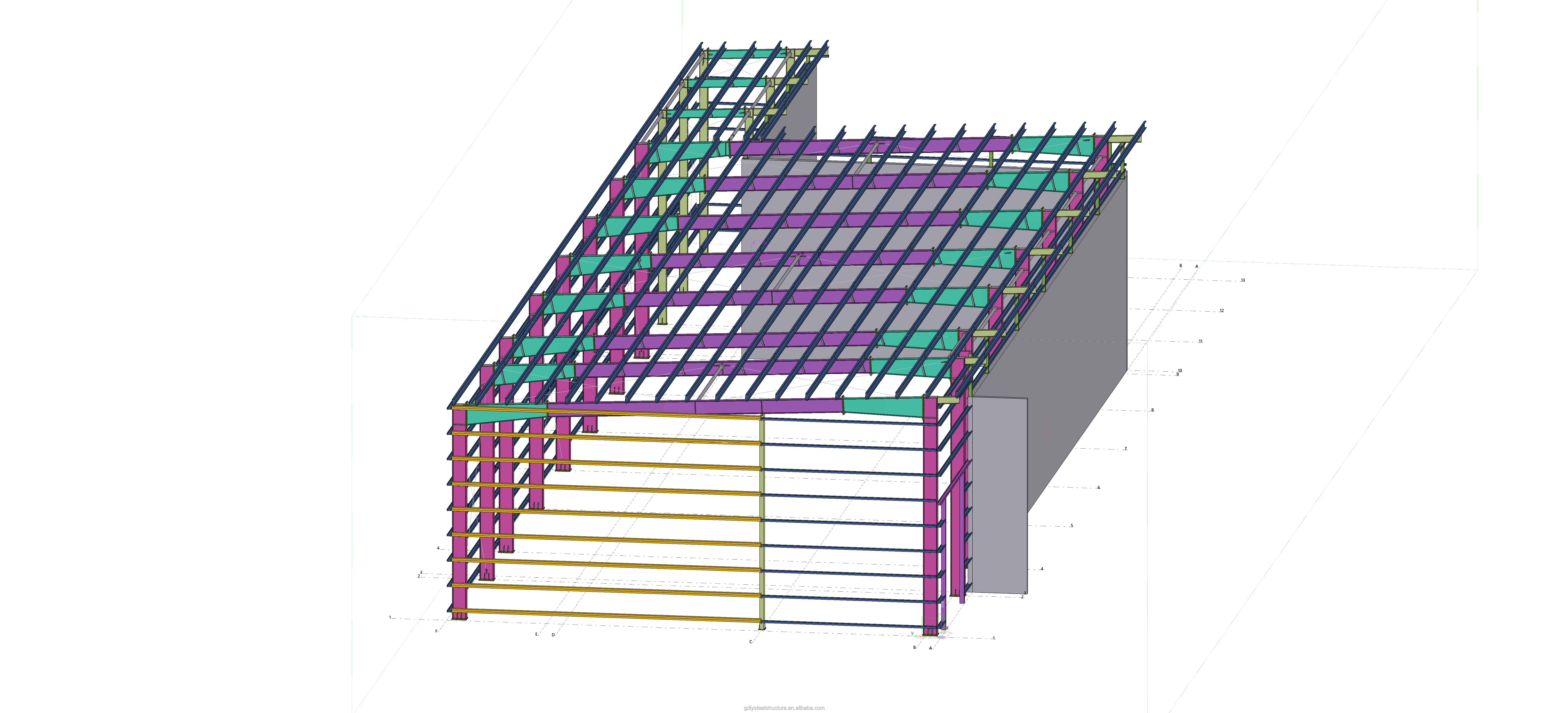

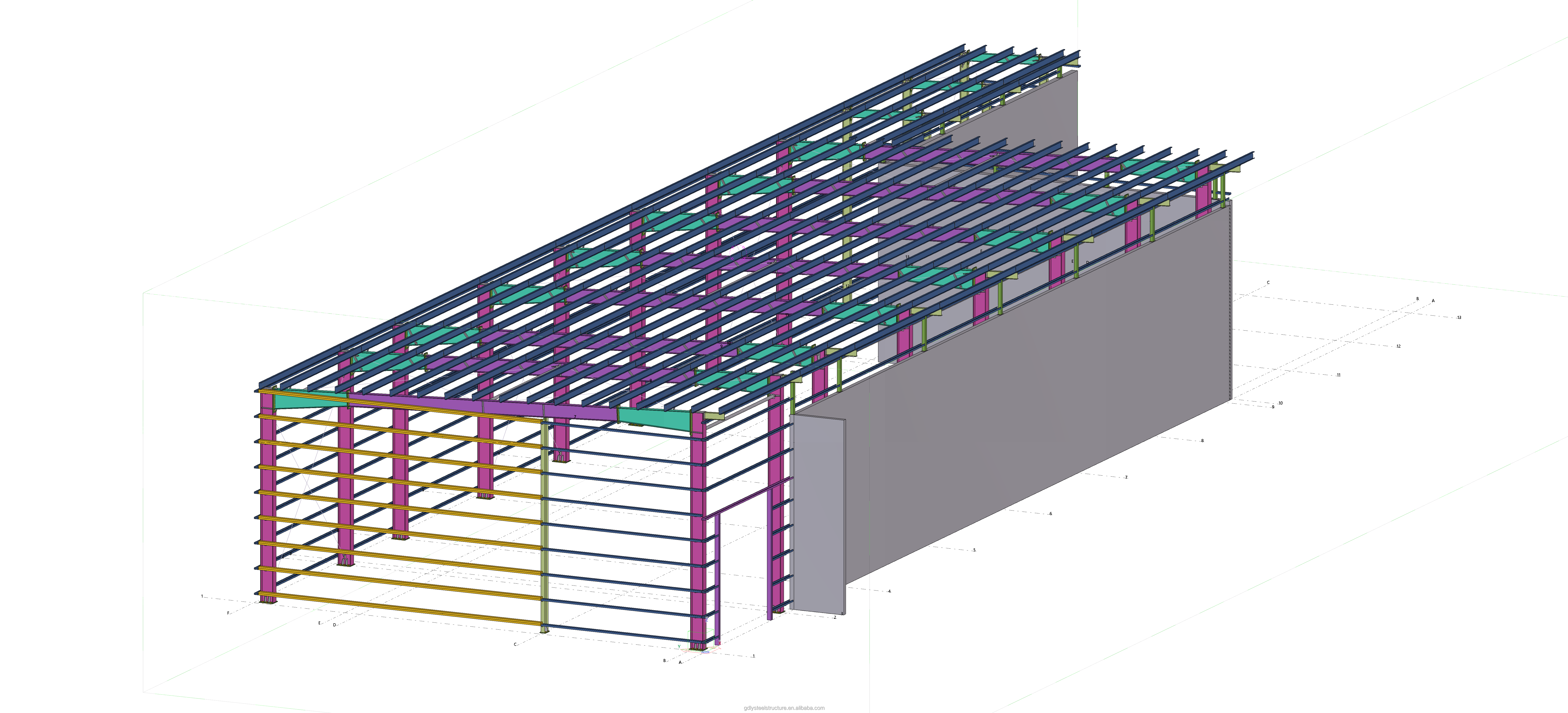

Project Model and Picture

Company profile
  00:00    02:10
Established in 2014 and located in Gaoming District, Foshan City, Liyou is a leading steel structure company dedicated to
providing high-quality, innovative solutions for a wide range of construction projects. With a commitment to excellence and a focus on global reach, we have become a trusted partner for clients around the world.

Our expertise encompasses the design, fabrication, and export of steel structures used in diverse applications, including:
Industrial: Factories, warehouses, platforms, mezzanines
Commercial: Exhibition halls, multi-story parking lots, canopies
Infrastructure: Bridges
Residential: Villas, residences, high-rise buildings

Liyou has a strong international presence, with a proven track record of successful projects in numerous countries, including Philippines, Thailand, Kazakhstan, Uzbekistan, Zambia, Gambia, United States, Canada, Mexico, Guyana, Honduras, Australia and so on. We are committed to building long-term relationships with our clients by providing exceptional products, competitive price, and outstanding customer service. Our dedication to profession, quality, and customer satisfaction has made us a preferred choice for steel structure solutions worldwide.

What We Do

Project case

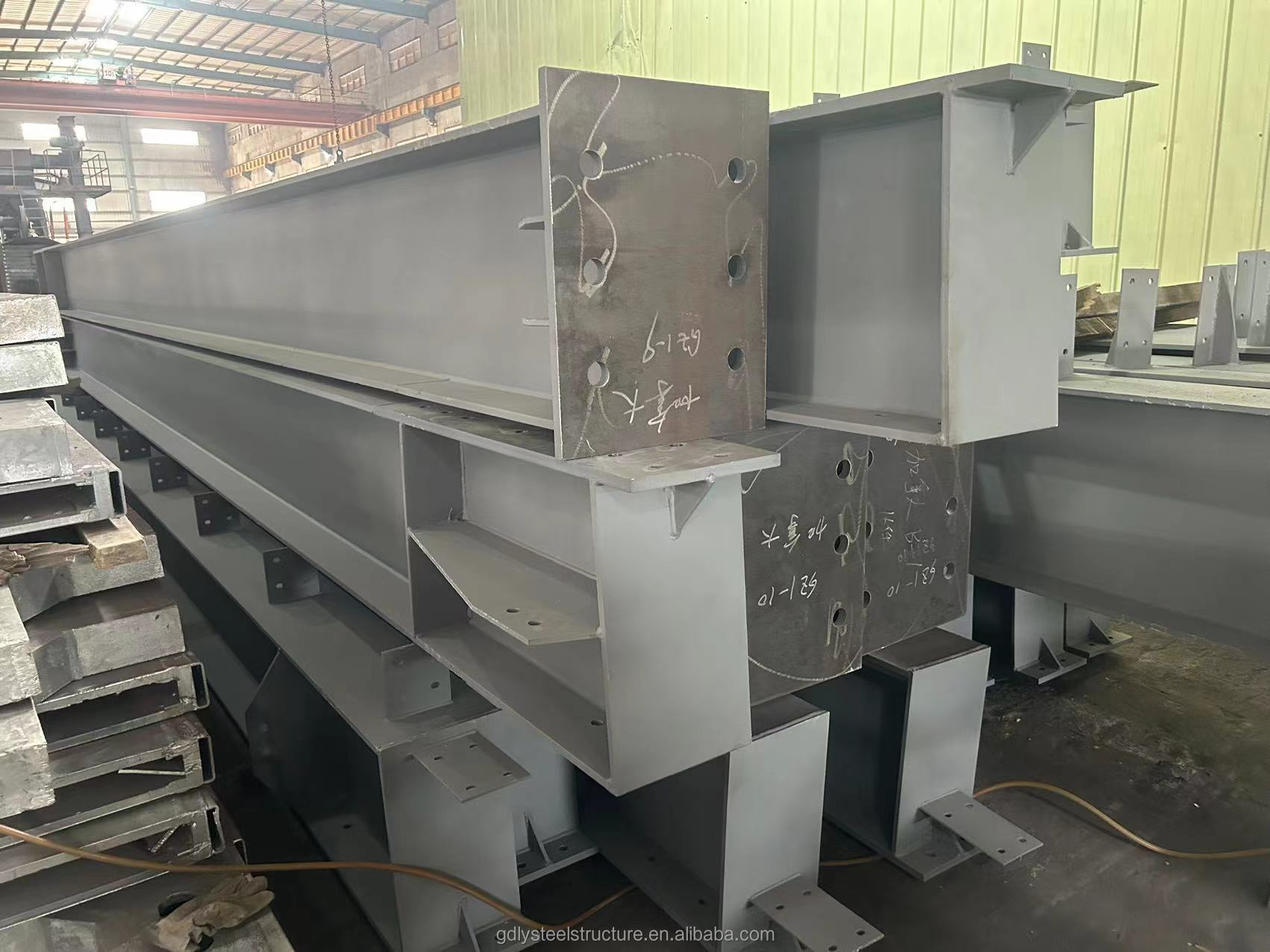

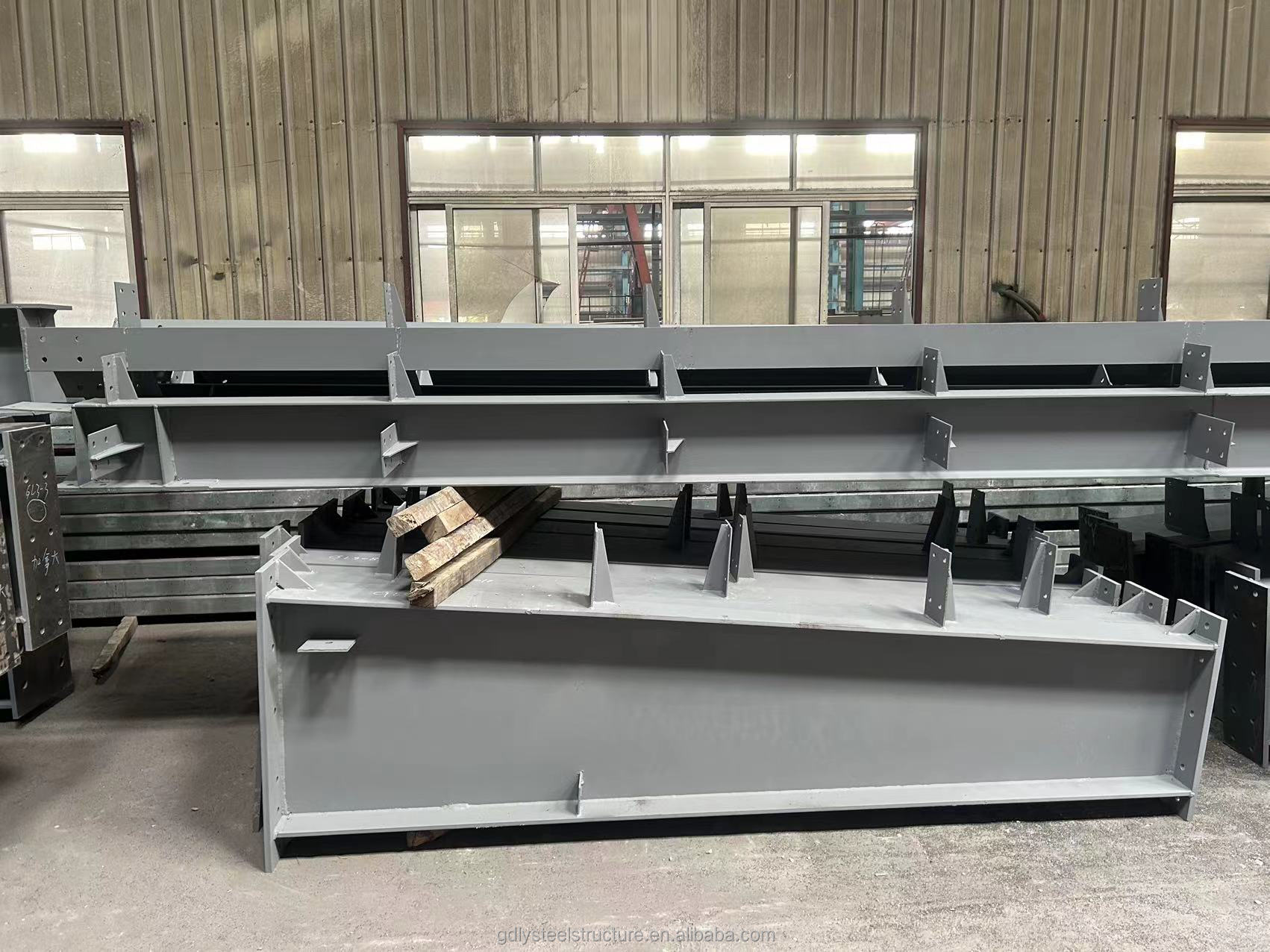

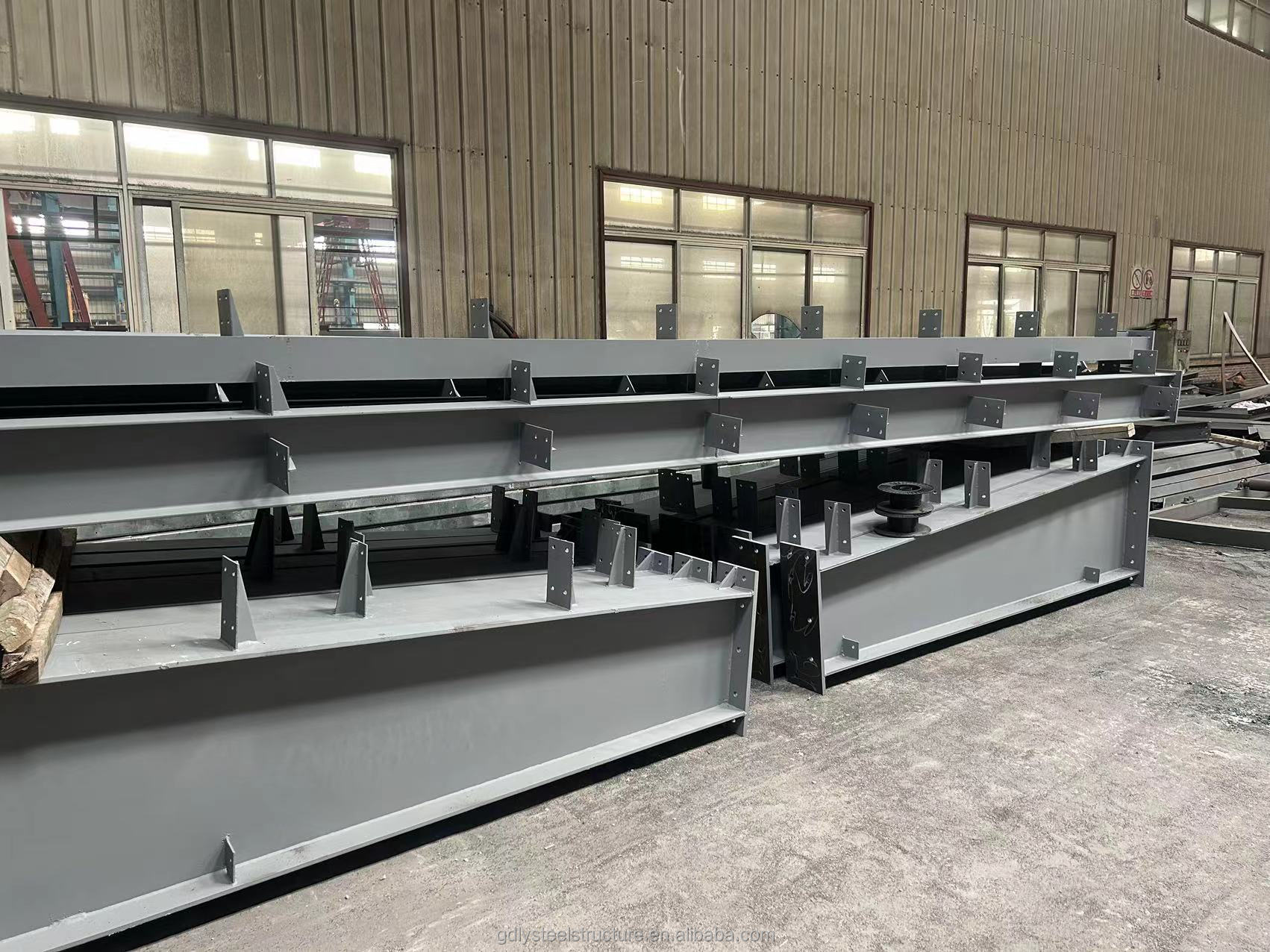

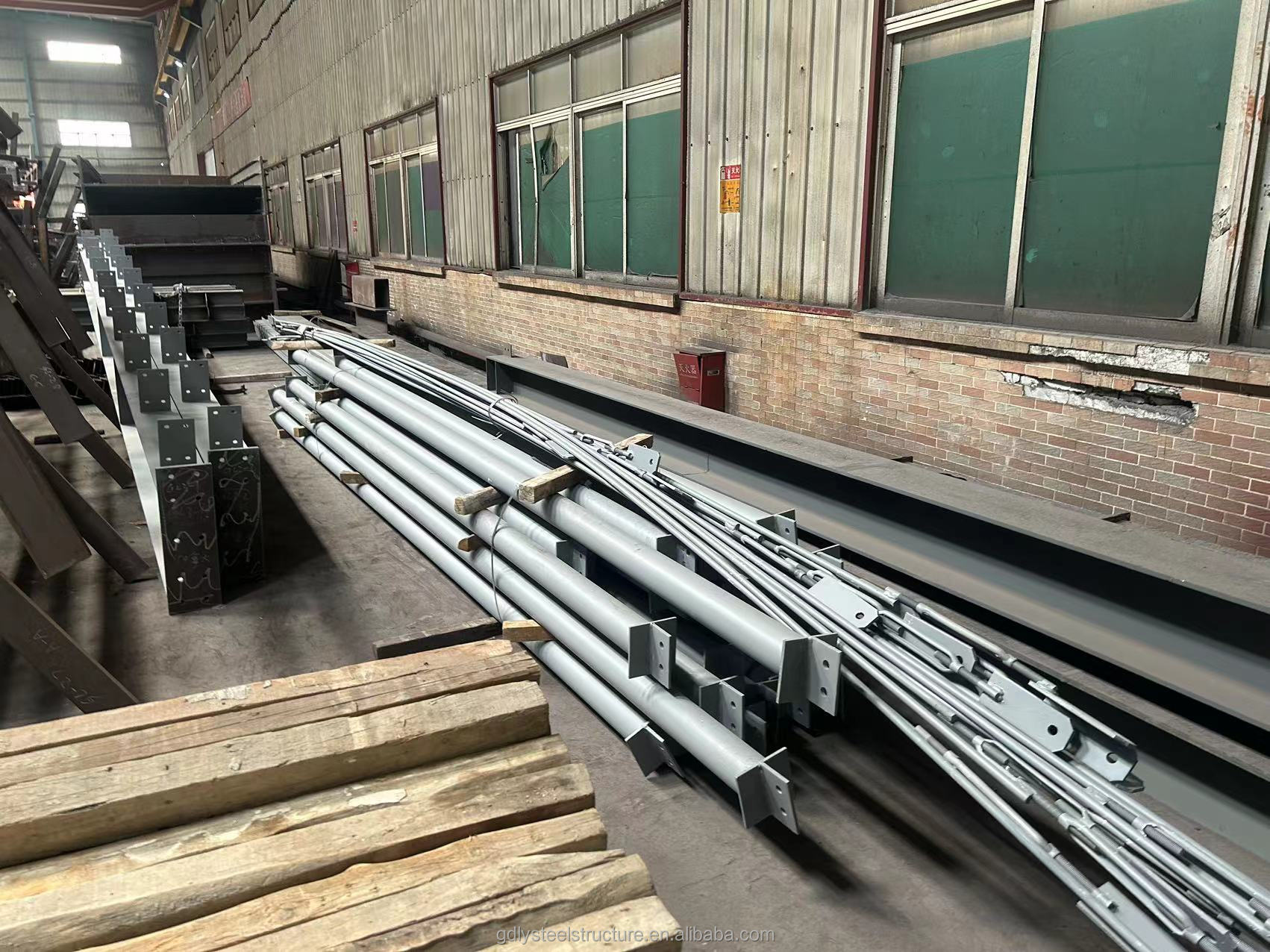

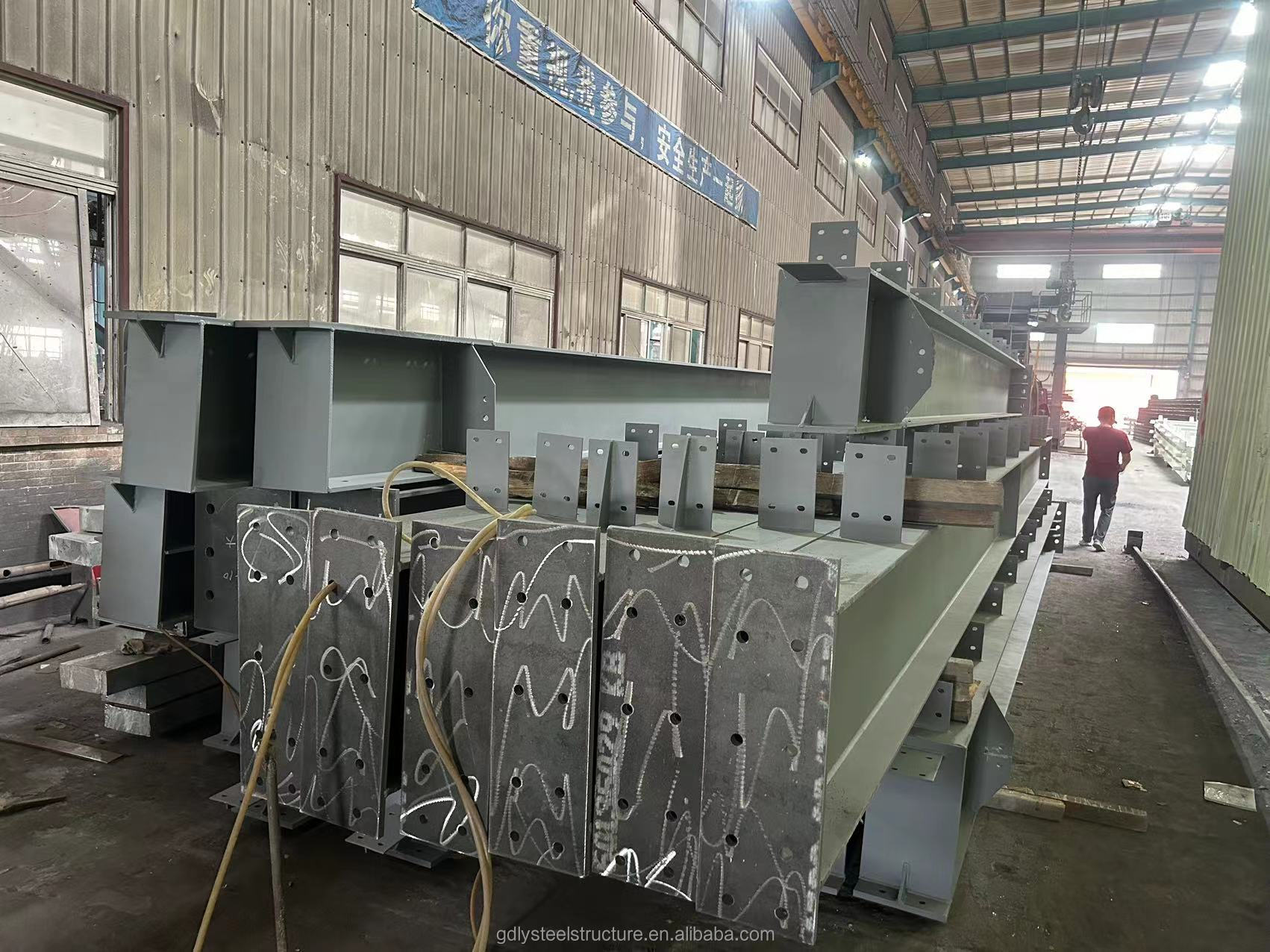

Finished Steel Column


Packing&Delivery
