Our steel hangar construction solutions provide durable, cost-effective, and versatile structures for airports, military bases, and private aviation facilities. Designed for fast installation and long-lasting performance, our prefabricated steel hangars meet international quality standards.
Durability: Constructed from high-quality steel to withstand wind, snow, and seismic loads.
Cost Efficiency: Prefabricated components reduce labor and construction time.
Customizable Design: Sizes, layouts, and finishes can be tailored to your needs.
Quick Installation: Modular assembly enables faster project completion.
Low Maintenance: Steel construction reduces long-term maintenance costs.
Precision-Driven Hangar Engineering: Every structure is designed to meet your local codes, wind loads, and span requirements with zero compromise.
Fast-Track Delivery Worldwide: Liyou's prefabrication system shortens your timeline from blueprint to flight-ready.
Flexible to Future Growth: Need to expand your hangar next year? Our modular design makes it easy and efficient.
Factory Direct Manufacturing: Control your costs with in-house production—no markups, no delays.
| Quantity: | |
|---|---|
Workshop
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
Modern
Guangdong, China
Lifetime
engineer guidance
Liyou
LY001
CE Certification
Industrial Commercial

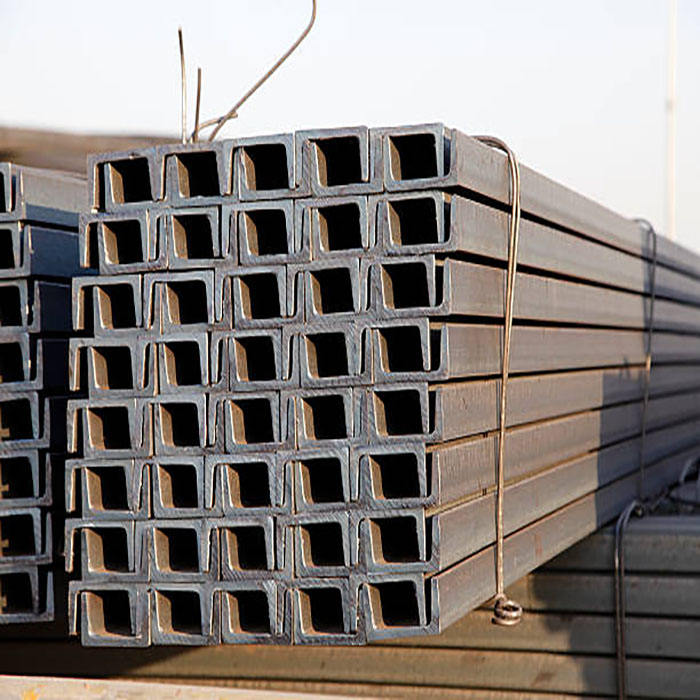

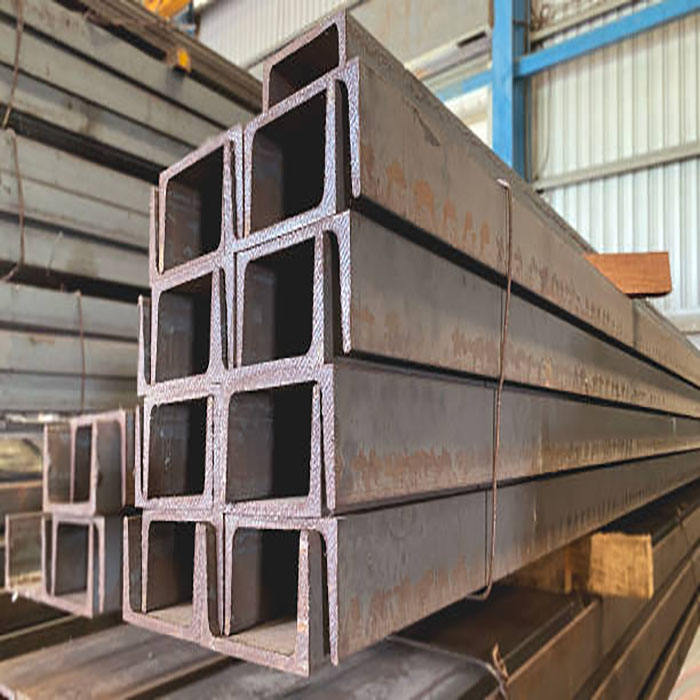

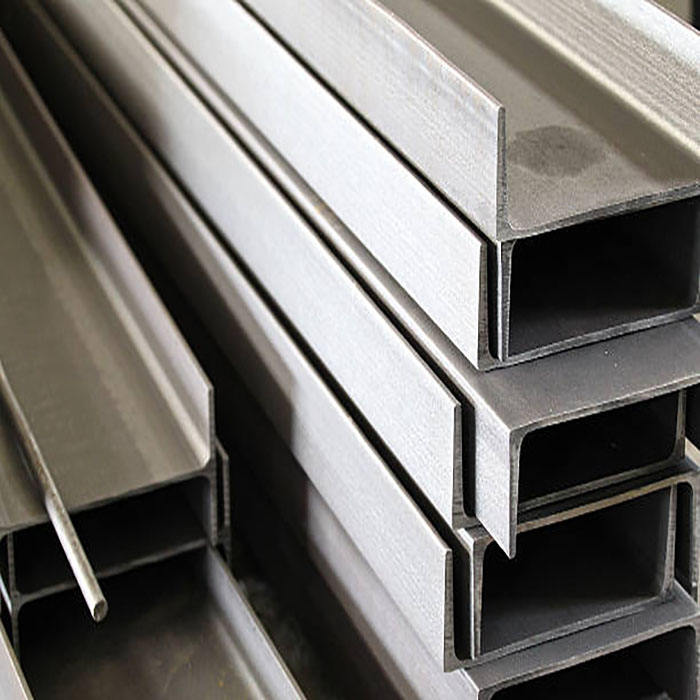

C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
A steel hangar is a large, open-space structure made from prefabricated steel frames, designed to house aircraft, equipment, or industrial materials. Unlike traditional concrete buildings, steel hangars offer:
Large clear spans without internal columns
Quick and efficient assembly
High resistance to extreme weather conditions
Types of Steel Hangars:
Clear Span Hangars: Ideal for aircraft storage without internal obstructions.
Modular Hangars: Expandable structures suitable for airports or private aviation facilities.
Multi-Bay Hangars: Perfect for commercial or military applications requiring multiple storage bays.
Steel hangars are widely used across industries:
Commercial Airports: Hangars for passenger and cargo aircraft.
Military Bases: Secure, durable storage for military aircraft and vehicles.
Private Aviation: Hangars for private jets and small planes.
Industrial & Logistics Facilities: Storage for equipment or large machinery.
Our proven construction process ensures efficiency, safety, and quality:
Planning & Engineering Design: Customized hangar designs based on site conditions and client requirements.
Prefabrication & Quality Control: All steel components are manufactured under strict quality standards.
Site Assembly & Installation: Modular parts are quickly assembled on-site to minimize downtime.
Commissioning & Delivery Inspection: Each project is inspected to meet international building codes and performance standards.
A: Depending on size and complexity, prefabricated steel hangars can be installed in a few weeks to a few months.
A: Yes, we provide fully customizable hangars, including dimensions, layout, materials, and finishes.
A: All hangars comply with international building codes and structural engineering standards.
A: Absolutely. Our hangars are designed to withstand high winds, heavy snow loads, and seismic activity.
| No | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||

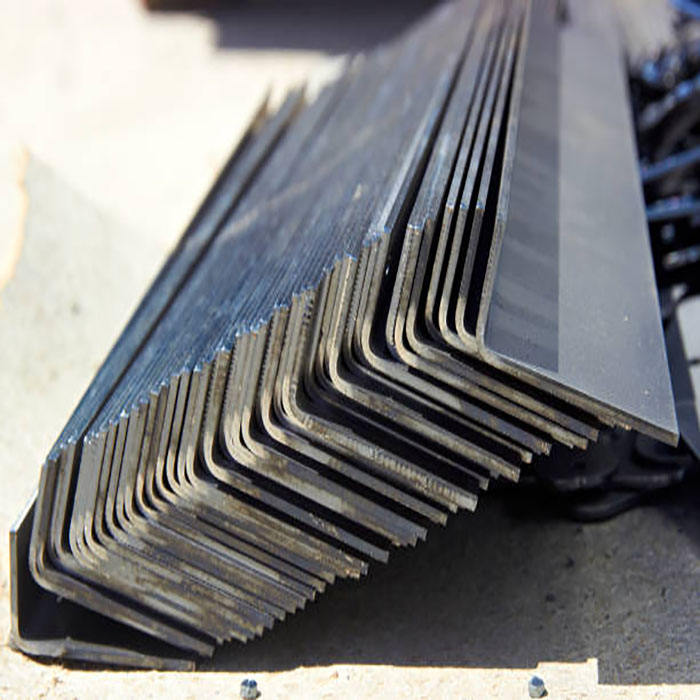

| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
