Lower Carbon Footprint:
Liyou's steel hoop buildings offer a streamlined, high-performance solution for clients needing cost-effective shelter with quick installation and long-term reliability. The curved steel design maximizes space usage and airflow, making these structures perfect for agriculture, storage, or mobile operations in harsh or remote environments.
Optimized for Speed: Modular design enables rapid deployment without heavy equipment.
Weather-Resilient: Withstands high winds, snow, and rain—ideal for demanding climates.
Custom Length & Width: Flexible sizing to meet different site and usage needs.
Minimal Foundation Requirements: Works with or without concrete for greater adaptability.
Durability with Low Overhead: Long-lasting materials reduce upkeep and total cost of ownership.

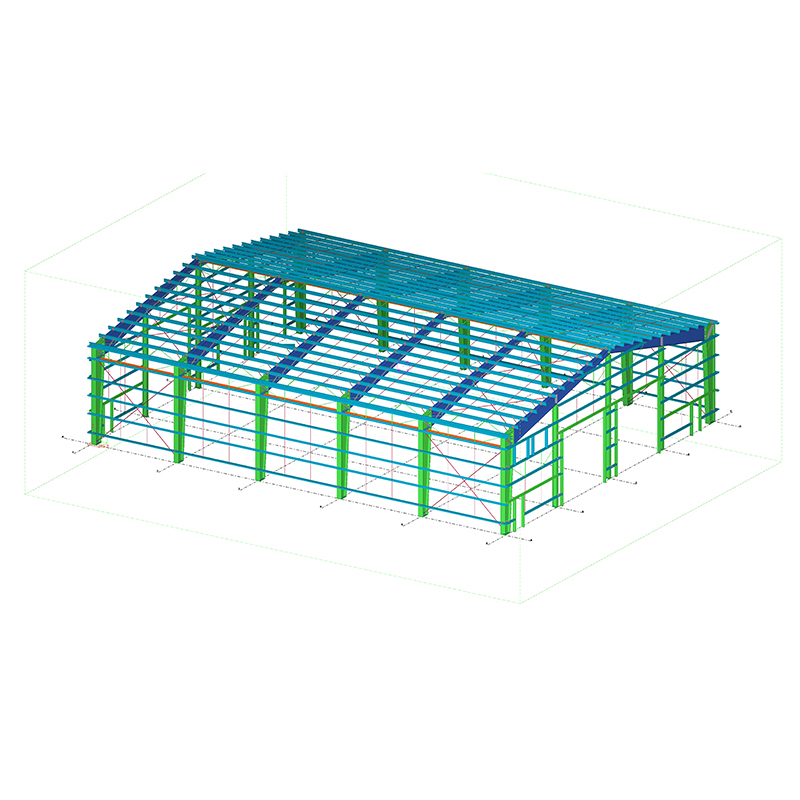

Structure Type: Arch-frame steel construction using tubular or square-section steel.
Cover Options: Heavy-duty PVC fabric or metal cladding depending on site needs.
Frame Coating: Hot-dip galvanized or powder-coated for rust resistance.
Installation Method: Prefabricated components with bolted connections—minimal welding required.
Size Configuration: Span, height, and length customizable, designed to meet local wind/snow load codes upon request.
| Availability: | |
|---|---|
| Quantity: | |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |
2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |
| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |
2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |
| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
