Steel Structure Factory

Steel structure factory uses steel as the primary structural element of the building. It can be designed to be large or small. Due to its strength, durability, and ease of construction, structural steel is used in most industries to construct industrial structures. We offer a complete solution for making your steel factory buildings, and our products are competitively priced to help you save money and time.
Availability:
Quantity:

Steel Structure Factory  Info


The Project Aera: 2000 ㎡                                                   Weight:  1500 tons


Wind Resistance: 110km/h                                           Anti Seismic: 8 grade


Floor Dead load: 35kg/㎡                                             Floor Live Load:50kg/㎡

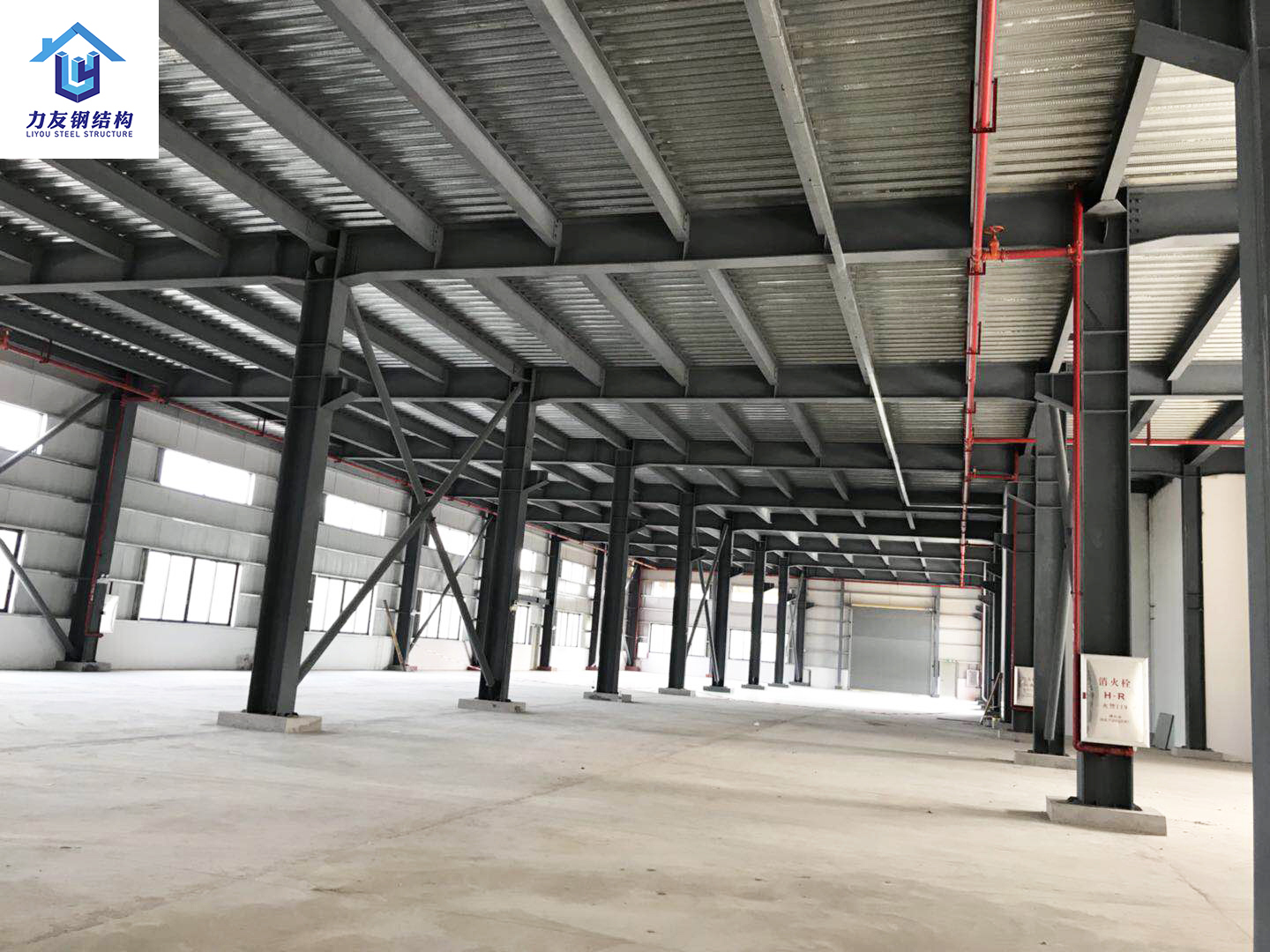

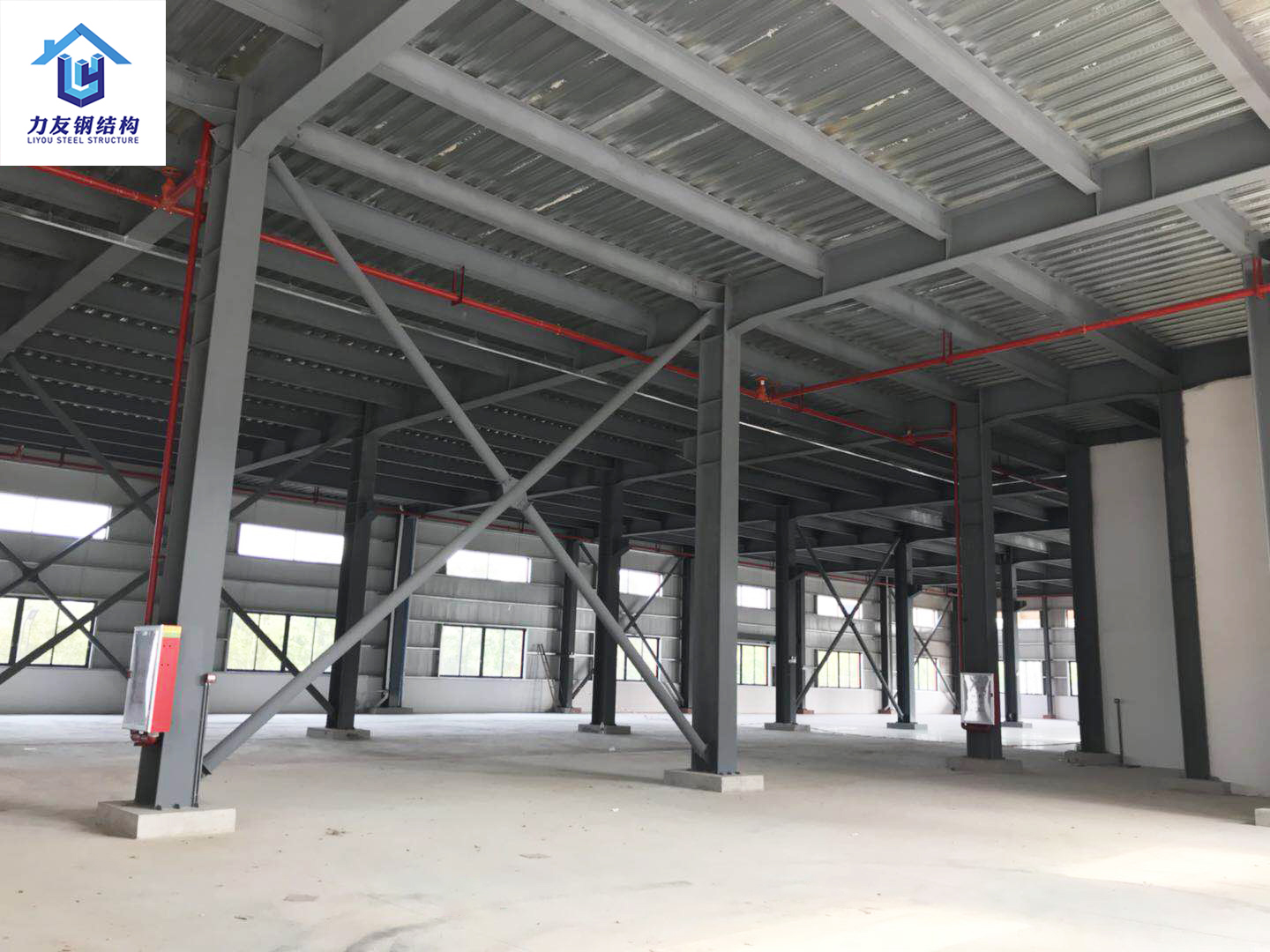

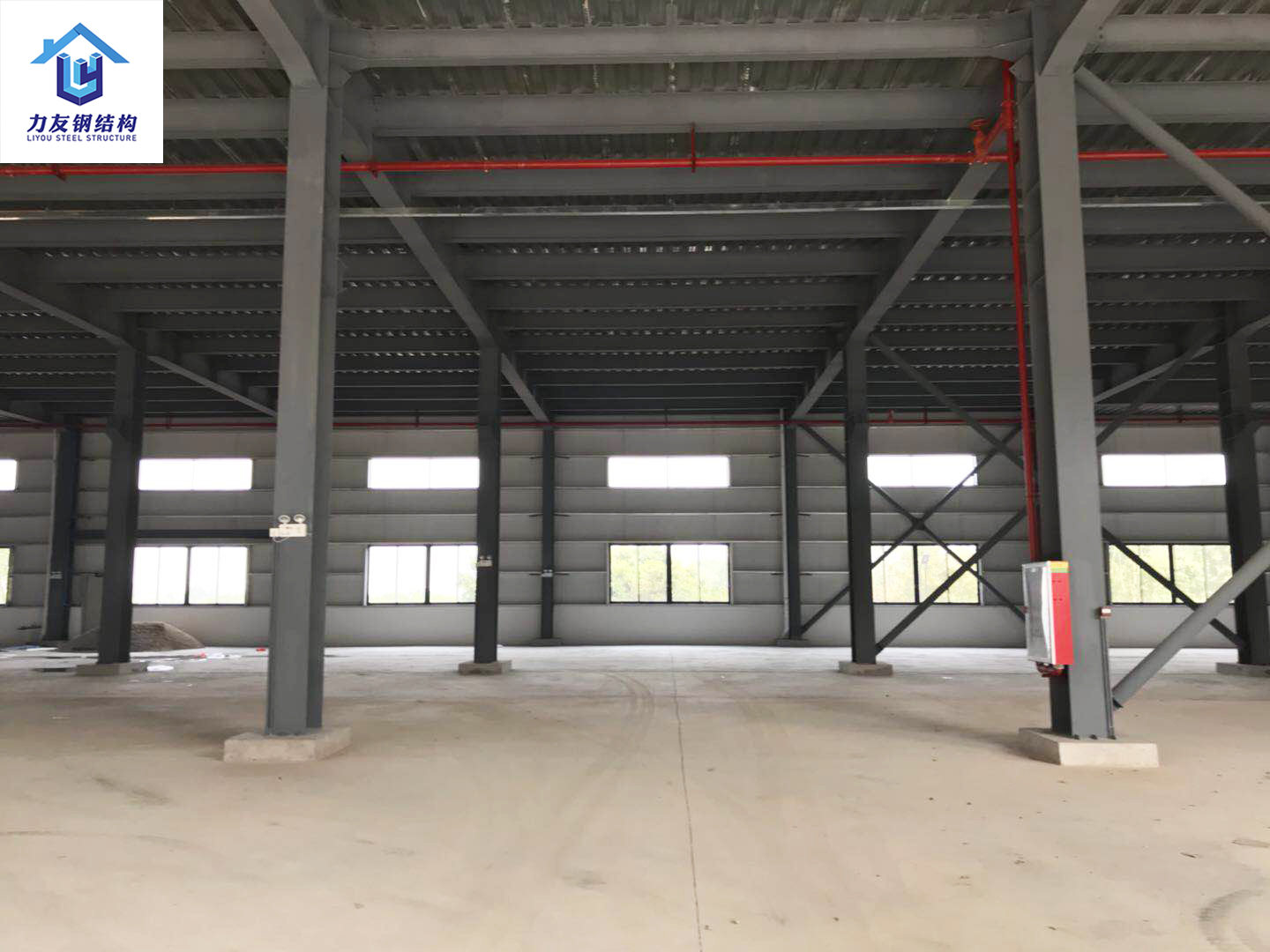

Steel Structure Factory Display

steel structure factory 4steel structure factory 5steel structure factory 3


Steel Structure Factory  Overview


Place of Origin:

Product Portal Frame:

Foshan, China (Mainland)

Steel Structure Factory

Material:

Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc.

Standard:

Type:

GB

Light Steel Structure Frame

Size:

Color:

Up to Customer's Requirement

Graywhite, Blue, Red, etc..

Roof & Wall Material:

Door:

Sandwich Panel: 50mm, 0.376 Steel sheet

Rolling Door

Window:

Technology:

Aluminum Alloy Window

Welded steel, Hot Rolled Steel

Drawing Design:

Keywords:

AutoCAD, Tekla Structure, Vertex BD, SketchUp etc.

Metal buildings for sale


Steel Structure Building Plant Material  List



Components Specification
Embedded parts
Anchor bolt M24
High strength bolt M20,10.9S
Common bolt M20
Galvanized bolts M12
Bracing M12
Main steel frame parts
Steel column(Q235B) H(250-550)*200*6*8(mm)
Wind column(Q235B) H300*150*6*8(mm)
Roof truss beam(Q235B) H(500-250)*180*6*8(mm)
Tie rod ∅89*3.0
Horizontal brace ∅20 steel bar
Column brace ∅20 steel bar
Roof purlin(Galvanized) C160*50*20*2.0
Wall purlin(Galvanized) C160*50*20*2.0
Connecting plate 6~20mm steel sheet
Structure steel fabrication+Sanding + Paint Acetylene, oxygen, electrode, Sa2.5
Maintenance

Roof panel

50mm

Outside wall panel

100mm
Trimming Galvanized plate,steel sheet
Door&Window
Aluminum sliding door (double open) W1800*H2400

Aluminium slidding window

W1740*H1500

Ceiling

600*600
Gutter 2.0mm Galvanized
Down pie PVC material



Steel Structure Building Plant Materials Display


Components of Portal Frame

Steel Structure Building Plant Benefits


Low maintenance costs

 Environmentally friendly and recycling.

 Offer flexibility for fixing doors, windows and interior partitions

 Steel structure construction is strong, durable, and stable.

 Steel components are resistant to termites and other destructive insects.

 The service life of steel structure building is more than 50 years.

 Fast construction, easy installation, and convenient to transport.


Steel Structure Building Plant Applications

The steel structure is a light steel structure product, the main structure is cold-formed thin-wall steel component by bolt connection, it could be also combined with another unit by span each other, to ahieve more than span sapce. Comparing with the traditional steel structure, it owns simple architecture, low cost material, small dimension transport, steel structure life span can be up to 50 yearts, it can be used repeatedly.

The steel structure building is widely used in the construction of buildings such as Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall, etc.


Portal Frame

Portal Frame

About Guangdong Liyou Steel Structure


Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.



Liyou steel structure


Why Choose Us


01 Customized Design

Offer professional Steel Structure Portal Frames building planning & drawing, and suitable steel components according to your requirements.


02 Quality Assurance

● Strict quality control

● Safe packing

● Quality inspection before shipment


03 After-sales service

Installation instruction on site

Installation technical team backup

Timely communication by Email & Phone


Loading


Portal Frame Loading

FAQ


Q: What should you provide before quotation?

A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.


Q: What accessories do we provide for customized steel buildings?

A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.


Q: Can the steel building be installed by yourself?

A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.


Q: What should be prepared for the site before installation?

A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.


Q: Do we have a recommended foundation and associated drawing?

A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
