| Quantity: | |
|---|---|
Steel
Online technical support
Hangar/Shed
Guangdong, China
Hangar
3 years
total solution for projects
GB
1. Galvanized 2. Painted
C.Z Shape Steel Channel
Metal Steel
Single item
1X1X1 cm
1.000 kg
Steel structure frames form the primary load-bearing system for buildings and industrial facilities, offering superior strength-to-weight ratios compared to traditional materials. At Liyou Steel, we engineer and fabricate high-performance steel frames that combine structural integrity with cost efficiency.
Best for: Single-story industrial buildings
Span Capacity: 15-50 meters
Key Features:
Moment-resisting connections
Sloped roof configurations
Minimal interior columns
Best for: High-rise buildings
Height Capacity: Up to 100+ stories
Key Features:
Diagonal bracing systems
Excellent seismic performance
X-bracing or K-bracing options
Best for: Fast-track projects
Assembly Time: 30-50% faster than conventional
Key Features:
Prefabricated volumetric units
Bolt-together connections
Quality-controlled factory production
| Component | Standard Options | Custom Capabilities |
|---|---|---|
| Columns | H-section (200×200 to 1000×400) | Curved/tapered designs |
| Beams | I-beams, wide flange | Castellated beams |
| Connections | Bolted (Grade 8.8/10.9) | Welded moment connections |
| Coatings | Hot-dip galvanized | Intumescent fireproofing |
✔ Precision Engineering - ±2mm dimensional tolerance
✔ Material Efficiency - Optimized steel usage reduces costs
✔ Seismic Resilience - Designed per IBC/EN seismic codes
✔ Fast Erection - Pre-drilled components simplify assembly
Project Example:
Philippines Logistics Hub
Frame Type: Clear-span rigid frame
Dimensions: 80m span × 12m height
Steel Weight: 850 tons
Erection Time: 6 weeks
Load Analysis - Dead/live/wind/seismic loads
3D Modeling - Using Tekla Structures
Connection Design - Moment-resisting or pinned
CNC Fabrication - Automated cutting/drilling
Quality Control - UT testing for critical welds
| NO | ITEM | SPECIFICATION | ||
| Anchor Bolt and Fastener Parts | ||||
| 1 | Anchor bolt | M24 | ||
| 2 | High strength bolt | M20 | ||
| 3 | Common bolt | M20 | ||
| 4 | Galvanized bolt | M12 | ||
| 5 | Turn buckle | M20 | ||
| 6 | Sag rod | ∅12 | ||
| 7 | Brace rod | ∅32*2.0 | ||
| Main Steel Structure Parts | ||||

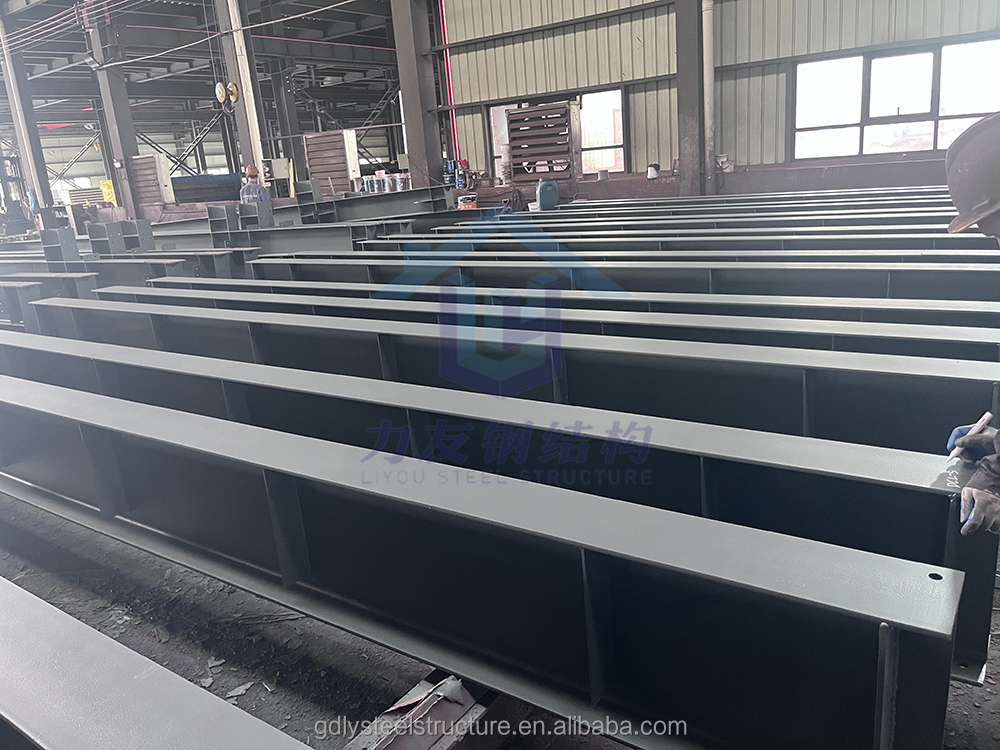

| 1 | Steel column(Q355B) | HN396*199*7*11 | ||
| 2 | Wind column(Q235B) | HN248*124*5*8 | ||
| 3 | Roof truss beam (Q355B) | HN298*149*5.5*8 | ||
| 4 | Crane beam (Q355B) | HN446*199*8*12 | ||
| 5 | Tie bar(Q235B) | ∅89*3.0 | ||
| 6 | Horizontal bracing(Q235B) | ∅20 | ||
| 7 | Column bracing (Q235B) | ∅89*3.0 | ||
| 8 | Angle brace(Q235B) | L50*3.0 | ||

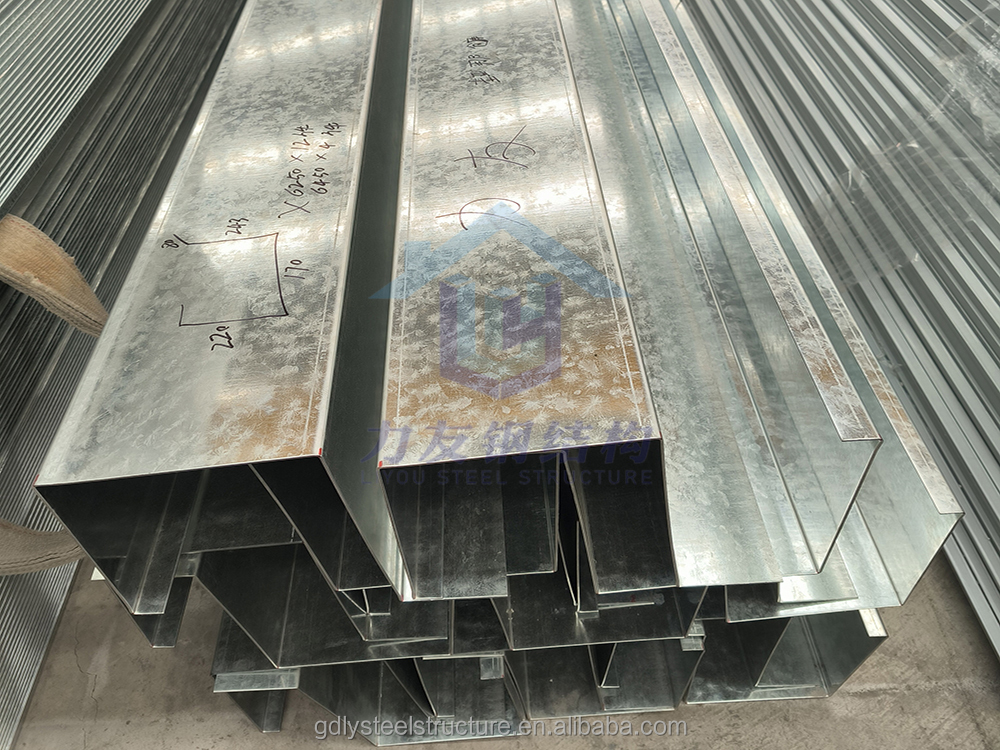

| 9 | Roof purlin(Q235B Galvanized) | C200*70*20*2.0 | ||
| 10 | Wall purlin(Q235B Galvanized) | C160*50*20*2.0 | ||
| 11 | Connecting plate | 6mm-20mm | ||
| Enclosure Parts | ||||

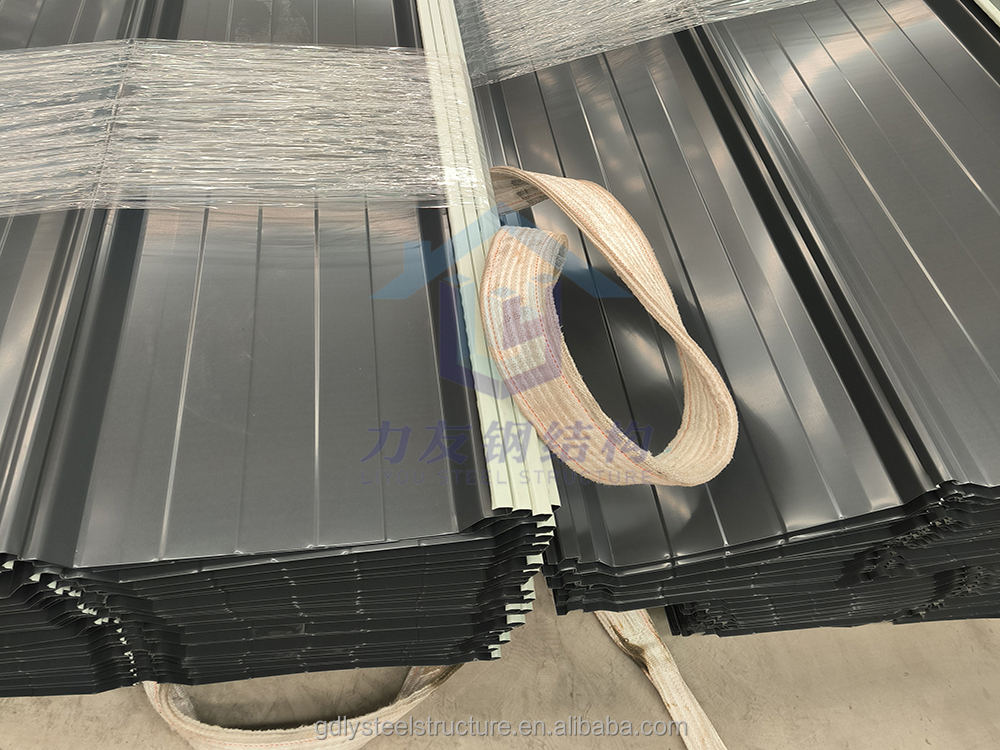

| 1 | Roof panel | 0.45mm Color steel sheet #820 | ||
| 2 | External wall panel | 0.45mm Color steel sheet #900 | ||
| 3 | Partition board | 0.45mm Color steel sheet #900 | ||

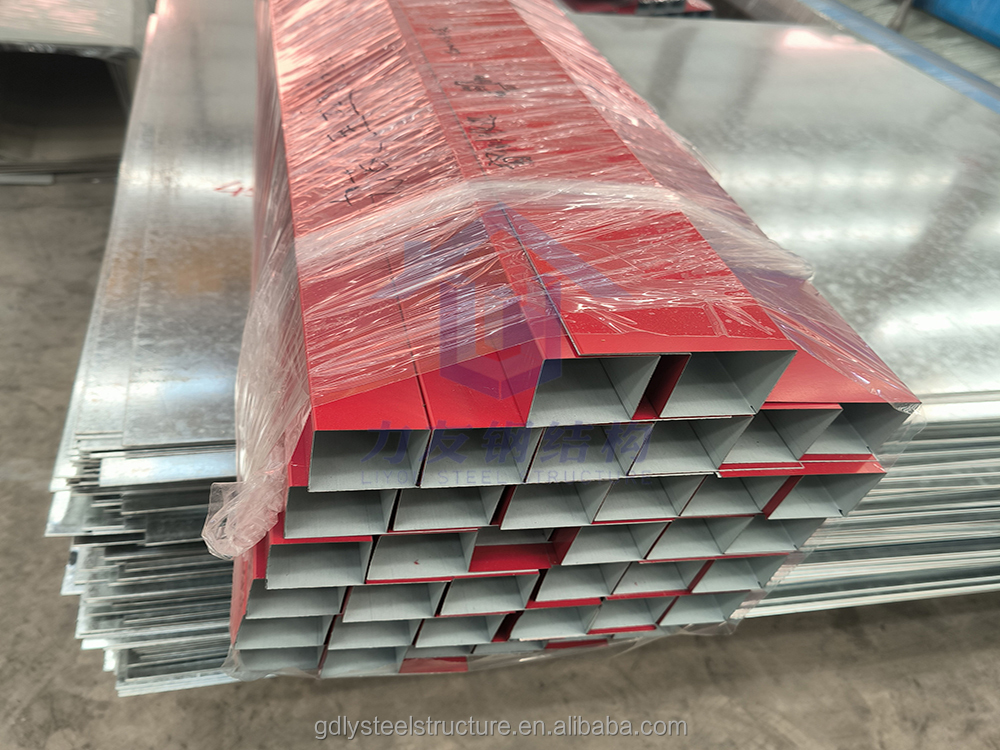

| 4 | Flashing | Color steel sheet 0.45mm | ||
| 5 | Gutter | 2mm Galvanized gutter | ||
| 6 | Downspouts | PVC110 Downspout Including parts | ||
| 7 | Electric rolling door | W5000*H5000 | ||
| 8 | Aluminium alloy glass wall | W5000*H3400 | ||
| 9 | Aluminium fixing window | W2500*H1200 | ||
| 10 | Metal parts | Support,self-tapping screw,glass glue etc | ||
