Steel Structure School Building

Steel Structure is a new type of construction material for school buildings which can replace traditional architecture materials, and is a structural building with steel structure and plasterboard wall panel system.
Availability:
Quantity:

 Steel Structure School Building Info


The Project Aera: 1000㎡                                        Weight: 85 tons


Wind Resistance: 110km/h                                      Anti Seismic: 8 grade


Floor Dead load: 35kg/㎡                                         Floor Live Load:50kg/㎡


This is a district government school project in Sir Lanka. Because the government needs to expand the school, the construction period is very urgent, which happens to be during our Spring Festival. Our factory worked overtime to complete the production and loading of all materials for the project within 20 days. The local government department praised the speed of China's manufacturing. We have completed more than 10 steel structure projects in our factory in the past five years.


Advantages of Steel Structure School Building



Steel Structure is a new type of construction material for school buildings which can replace traditional architecture materials, and is a structural building with steel structure and plasterboard wall panel system. Steel Structure School Building has the advantages of:



1. Light weight


This advantage is that the steel structure building can save lots of heavy construction materials so as to greatly reduce the load of our construction. The weight of one square meter steel structure panel is about 7kg, and the weight of traditional architecture material for school buildings is about 50kg-60kg. So we can see that it has 60 times of advantage comparing with traditional building.



2. Safety and anti-earthquake structure of building


Steel Structure School Building has excellent seismic insulation and it is an anti-earthquake building material. It can break the damage of earthquake, even after an earthquake strike, for a long time stable performance will be enjoyed by its structural stability. Besides, it also releases heat effectively to adapt to the temperature of its environment and avoid heat dissipation from outside to make it a good building material which makes the air inside air tight.



3. Low construction costs


Steel Structure School Building saves lots of expense of land. Structure building is independent and combined with the structure, so it can occupy less land and save lots of money. Besides, in the field of structural building, steel structure is the most mature and commonly used material. So we can decide easily who to cooperate with on material supply, which will reduce our cost effectively. And nowadays all previous problems about metal materials such as rusting or corrosion problem have been solved so it can be a very low-cost building material for school buildings.



4. Long service life


Steel structure building has a long service life. So it can reduce the cost of maintenance repeatedly in the later days, which makes it a very suitable material for school buildings.



5. Good thermal insulation and decorative effect of building


In addition to the advantage of low construction costs, Steel Structure School Building can achieve both good insulation performance and decorative effect. It is because steel structure panels are used to cover as wall material so that it not only has good thermal insulation performance but also has beautiful appearance, which creates a comfortable environment inside the classrooms.



6. Good noise insulation of steel structure building


Steel Structure School Building has a good noise insulation performance, and its wall layer can greatly attenuate the noise emission and make the appearance of building more elegant. In addition, it can also reduce heat loss from outside to make the air inside air tight, which will reduce heat losses in summer and winter.

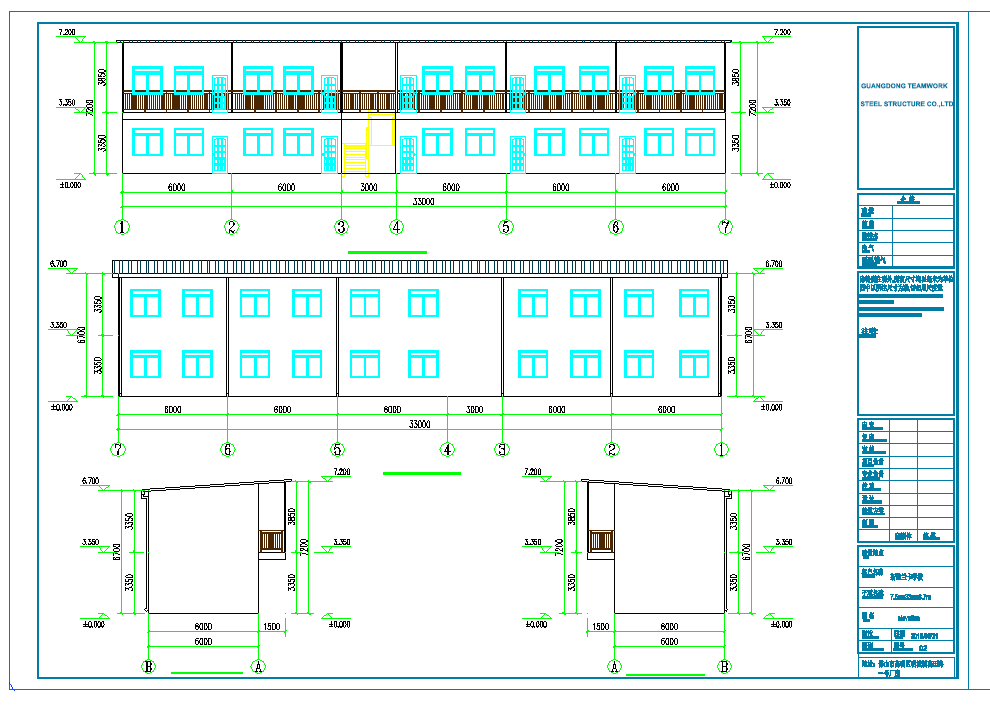

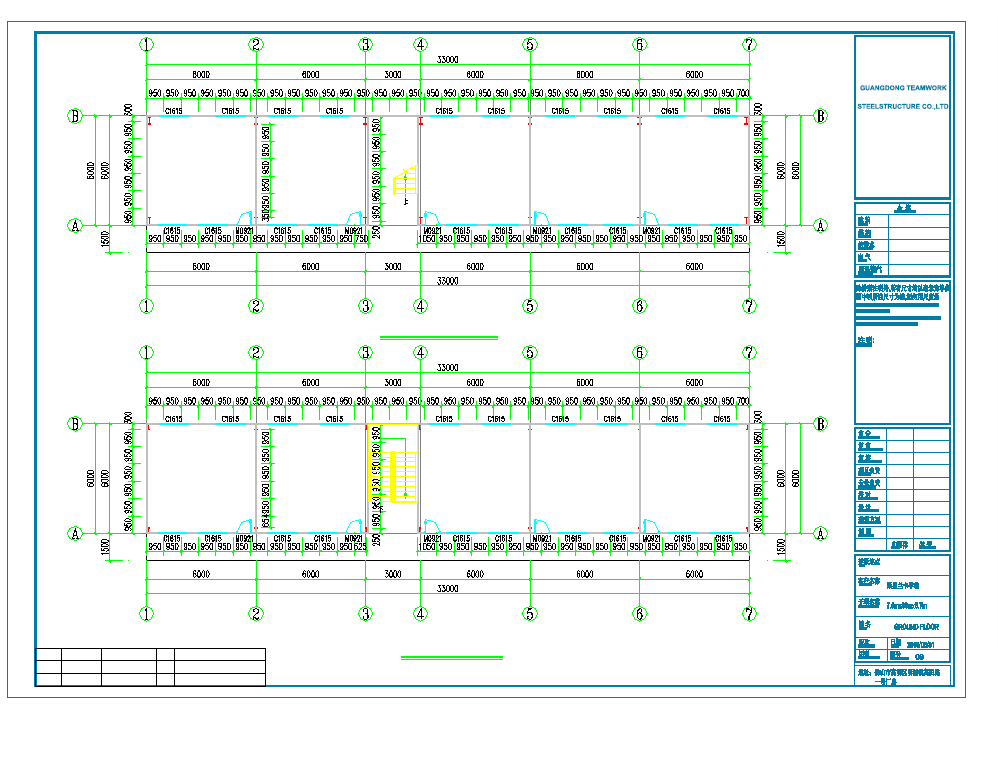

 Steel Structure School Building Drawing Show

School Building

School Building

School Building

School Building



Steel Structure School Building Overview


Place of Origin:

Product Portal Frame:

Foshan, China (Mainland)

Steel Construction Frame Building

Material:

Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc.

Standard:

Type:

GB

Light Steel Structure Frame

Size:

Color:

Up to Customer's Requirement

Graywhite, Blue, Red, etc..

Roof & Wall Material:

Door:

Sandwich Panel: 50mm, 0.376 Steel sheet

Rolling Door

Window:

Technology:

Aluminum Alloy Window

Welded steel, Hot Rolled Steel

Drawing Design:

Keywords:

AutoCAD, Tekla Structure, Vertex BD, SketchUp etc.

Metal buildings for sale


Steel Structure School Building Material List



Components Specification
Embedded parts
Anchor bolt M24
High strength bolt M20,10.9S
Common bolt M20
Galvanized bolts M12
Bracing M12
Main steel frame
Steel column(Q235B) HN346*174*6*9
Wind column(Q235B) HN298*149*5.5*8
Roof truss(Q235B) HN(580-298)*149*5.5*8
Tie rod ∅89*3.0
Horizontal brace ∅20 steel bar
Column brace ∅20 steel bar
Roof purlin(Galvanized) C160*50*20*2.0
Wall purlin(Galvanized) C160*50*20*2.0
Connecting plate 6~20mm steel sheet
Structure steel fabrication+Sanding + Paint Acetylene, oxygen, electrode, Sa2.5
Maintenance

Roof panel

50mm

Outside wall panel

100mm
Trimming Galvanized plate,steel sheet
Door&Window
Aluminum glass door(double open) W1800*H2400

Aluminium slidding window

W1740*H1500

Ceiling

600*600
Gutter 2.0mm Galvanized
Down pie PVC material



Steel Structure School Building Materials Display


Components of Portal Frame

Steel Structure School Building Benefits


Low maintenance costs

 Environmentally friendly and recycling.

 Offer flexibility for fixing doors, windows and interior partitions

 Steel structure construction is strong, durable, and stable.

 Steel components are resistant to termites and other destructive insects.

 The service life of steel structure building is more than 50 years.

 Fast construction, easy installation, and convenient to transport.


Steel Structure School Building Applications

The steel structure is a light steel structure product, the main structure is cold-formed thin-wall steel component by bolt connection, it could be also combined with another unit by span each other, to ahieve more than span sapce. Comparing with the traditional steel structure, it owns simple architecture, low cost material, small dimension transport, steel structure life span can be up to 50 yearts, it can be used repeatedly.

The steel structure building is widely used in the construction of buildings such as Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall, etc.


Portal Frame

Portal Frame

Guangdong Liyou Steel Structure Manufacturer


Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.


厂房1office


Why Choose Us


01 Customized Design

Offer professional Steel Structure Portal Frames building planning & drawing, and suitable steel components according to your requirements.


02 Quality Assurance

● Strict quality control

● Safe packing

● Quality inspection before shipment


03 After-sales service

Installation instruction on site

Installation technical team backup

Timely communication by Email & Phone


Loading


Portal Frame Loading

FAQ


Q: What should you provide before quotation?

A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.


Q: What accessories do we provide for customized steel buildings?

A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.


Q: Can the steel building be installed by yourself?

A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.


Q: What should be prepared for the site before installation?

A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.


Q: Do we have a recommended foundation and associated drawing?

A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
