Steel Workshop

Liyou's steel workshop solutions are designed for strength, speed, and industrial-grade performance. Whether you need a facility for machinery, assembly, fabrication, or storage, our steel structures offer unmatched durability, low maintenance, and flexible design options to meet your operational goals.



Technical Specification

Main Structure: Welded H-beams or bolted steel frames.

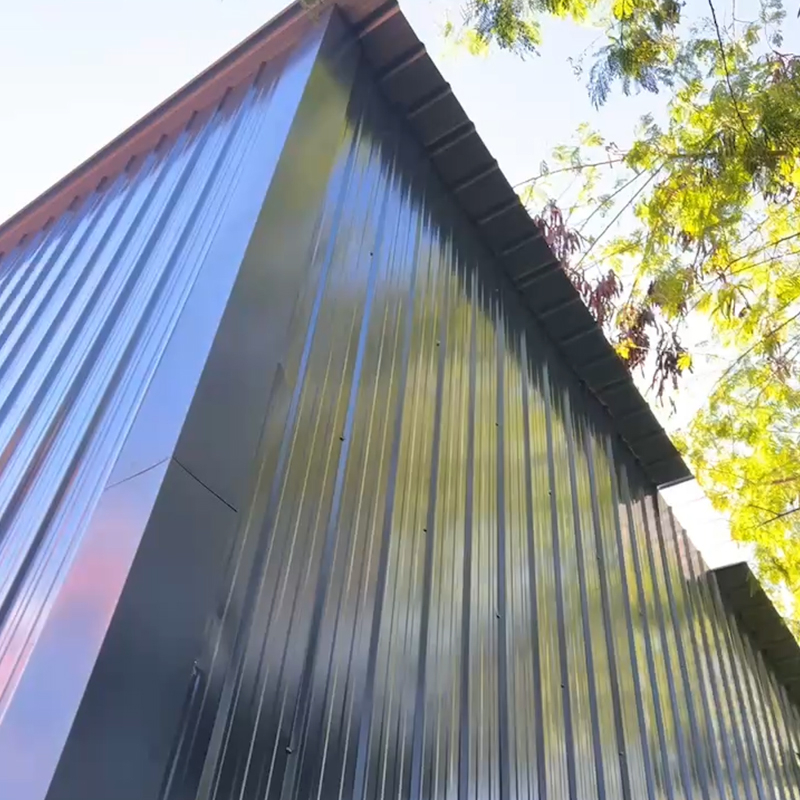

Cladding Options: PPGL corrugated steel sheets or sandwich panels with PU/EPS/Rockwool insulation.

Roof Type: Gable or mono-slope design with optional skylights and ventilation systems.

Load Standards: Designed based on local snow, wind, and seismic codes.



Why Choose Liyou

Tailor-Made Steel Solutions: Every steel workshop is custom-designed for your unique needs.

Time-Saving Construction: Precision prefabrication significantly reduces building time.

Built to Last: Engineered for decades of performance with low lifecycle cost.

Global Reach: Exported to 15+ countries with complete international packaging and technical support.

Turnkey Support: From engineering and production to export logistics, we provide seamless service.

Availability:
Quantity:



Project Specifications
Dimensions: 31m (L) × 14m (W) × 6.5m (H)

Steel Material: GB Q235B / Q355B

Design: Fully Customized

Required Containers: 2–3 x 40HC

Delivery Time: 20–30 Days

Shipping Time: ~20 Days

Installation Time: 10 Days





Galvanized Steel Advantages

Corrosion Resistance
Zinc Coating Protection:
Acts as a sacrificial layer to prevent rust.

Extended Lifespan:
Reduces maintenance frequency.

Weather Durability:
Performs well in moisture- and salt-prone environments.
Sustainability
Eco-Friendly:
100% recyclable.

Lower Carbon Footprint:
Long service life means fewer replacements.




Aesthetic Appeal
Modern Appearance:
Clean, sleek look.

Custom Finishes Available:
Adaptable to various architectural styles.







Key Features
1
Precision-Engineered Steel Columns & Beams
Every structural component is labeled with a unique identifier for easy on-site identification and smooth assembly.
2
Tailor-Made Solutions
Designed to match your specific requirements for layout, function, and aesthetics.
3
Fast and Efficient Installation
Optimized for quick on-site assembly with clearly marked parts.
4
Cost-Effective & Low Maintenance
Built to last with minimal upkeep, reducing long-term costs.



Warranty Information

Applicable Products:Steel Structure Warehouses, Workshops, Multi-Story Buildings

I-Beam Structural Warranty: 50 Years
Galvalume Roof Warranty: 25 Years
Standing Seam Roof Warranty: 20 Years



Why Choose Liyou Steel Structure
At Liyou, every project begins with clear communication and collaboration. We take time to understand how your structure will be used, where it will be located, and your preferences for design—inside and out.

Our engineers also consider environmental factors like wind and snow loads, along with insulation needs, to ensure your hangar is safe, compliant, and durable. Once your ideal building kit is identified, we help customize it with doors, windows, and color options—flexibly and cost-effectively.

From concept to completion, we deliver quality materials, thoughtful design, and professional support to bring your vision to life.


Loading and Shipping


1. Anchor Bolt and Fastener Part


No.ItemSpecification
1Anchor bolt 1M20×400
2Anchor bolt 2M16×260
3High-strength boltM20, M16, 8.8S
4Common boltM16
5Galvanized boltM12
6Turnbuckle boltM16
7Sag rodØ12



2. Main Steel Structure Part


No.ItemSpecification
1Steel column (Q235B)HN396×200×7×11
2Wind column (Q235B)SHS150×100×5.0
3Roof truss beam (Q235B)HN396×200×7×11
4Floor main beam (Q235B)HN600×200×11×17
5Tie bar (Q235B)SHS100×100×5.0
6Horizontal/Column brace (Q235B)Ø16
7Steel stairs[250#、[200#、[160# channel steel, 4mm checkered plate]
8Angle brace (Q235B)L50×6.0
9Roof purlin (Q355B)C250×75×20×2.0
10Wall purlin (Q355B)C250×75×20×2.0
11Connecting plate (Q235B)6mm–16mm



3. Enclosure Part


No.ItemSpecification
1Roof plate0.6mm thick, type 840 steel sheet
2Exterior wall0.6mm thick, type 900 steel sheet
3Steel man door910×2010×2
4Stainless steel handrail1.1m high
5Roof ventilator600×600
6Gutter2.0mm galvanized
7DownpipeØ110 PVC
8Trimming0.55mm thick steel plate
9Hardware accessoriesNails, supports, structural glue, etc.
