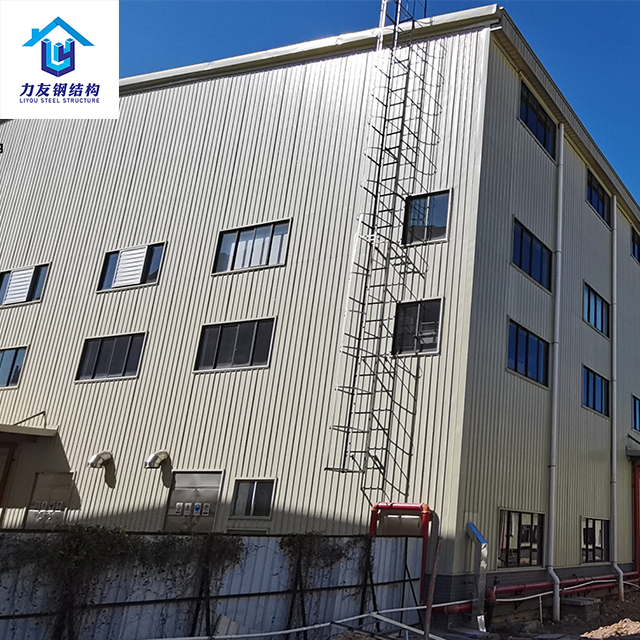

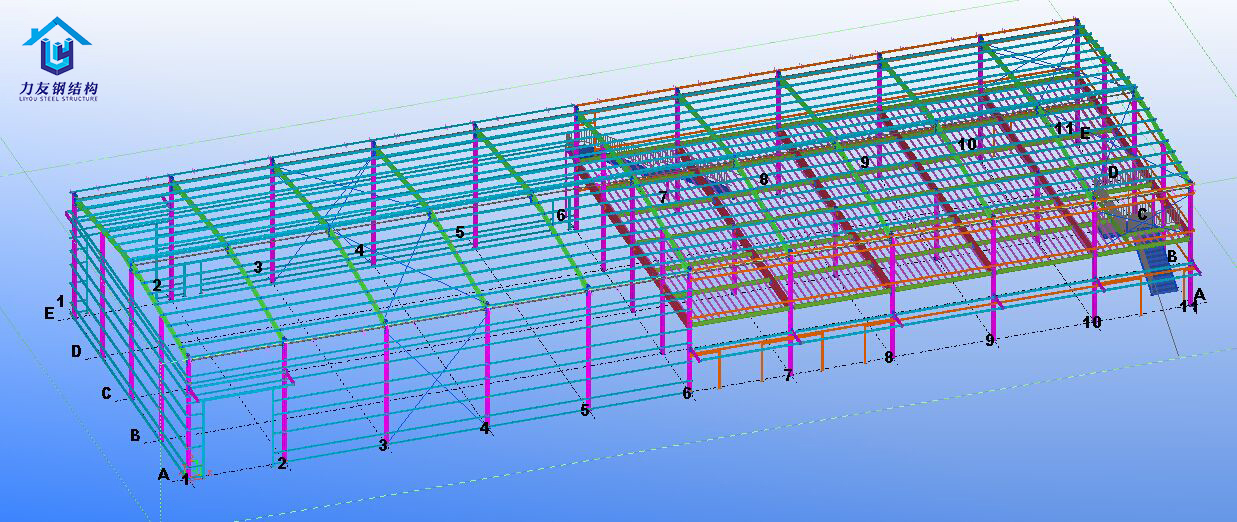

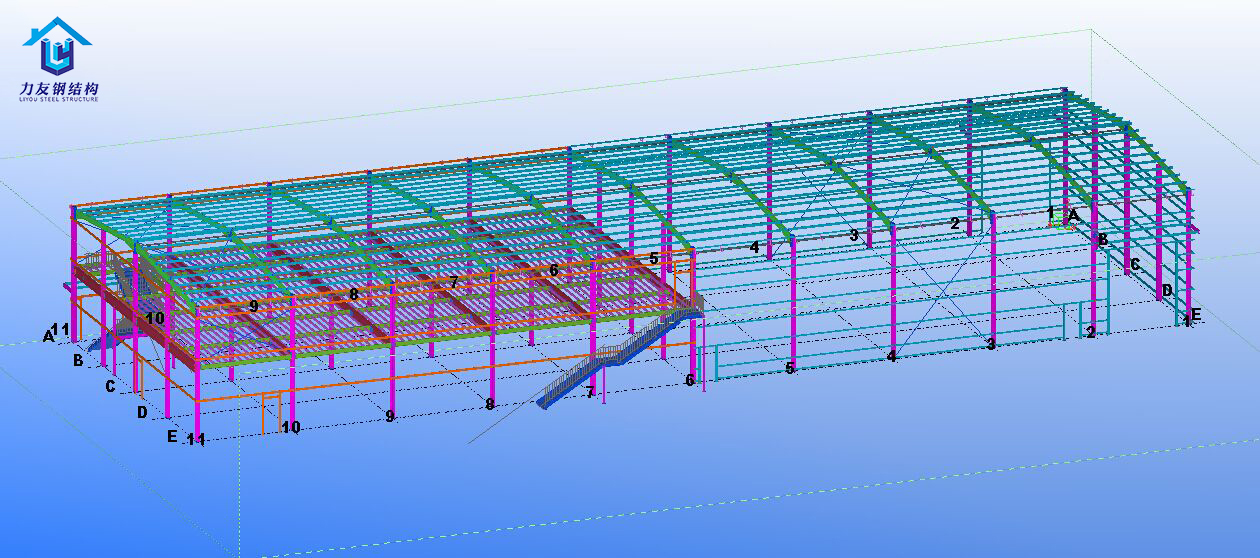

Two Story Steel Building For Plant Plans & Drawing
Two Story Steel Building Information:
Area: 156m x 36m x 12m H（Two layers）=11232㎡ Weight: 972 Ton
Wind resistance: 110km/h Anti-seismic: 8 grade
Roof dead load: 25kg/㎡ Roof live load: 50kg/㎡
Floor dead load:260kg/㎡ Floor live load:500kg/㎡
Requirement: Due to the relatively large column spacing and floor bearing load, the specifications of the main beam on the floor are much larger than that of the general workshop, and the overall steel consumption and construction cost are also higher. In addition, the construction period is very urgent, and the entire project will be completed and accepted within three months.

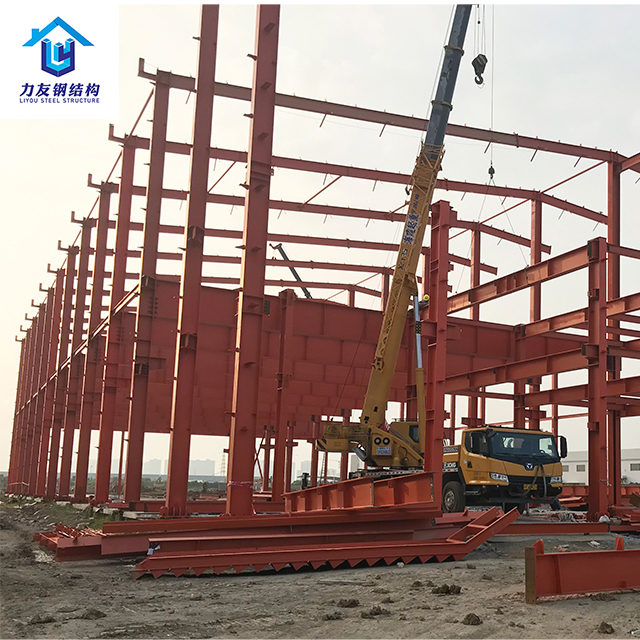

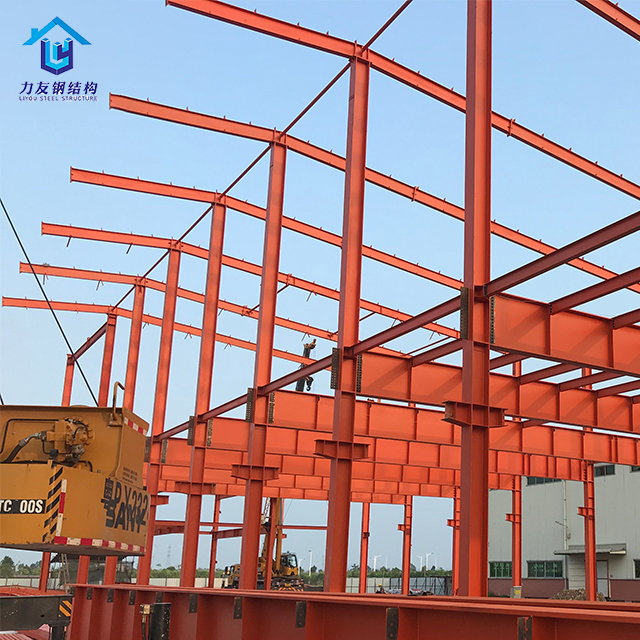

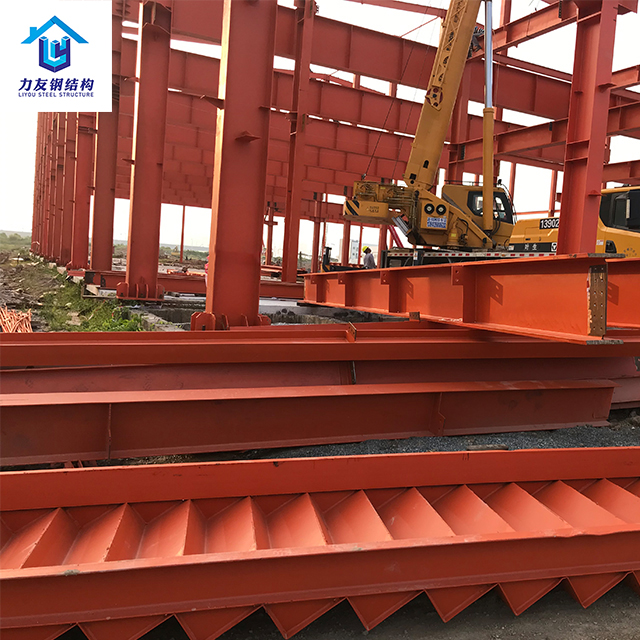

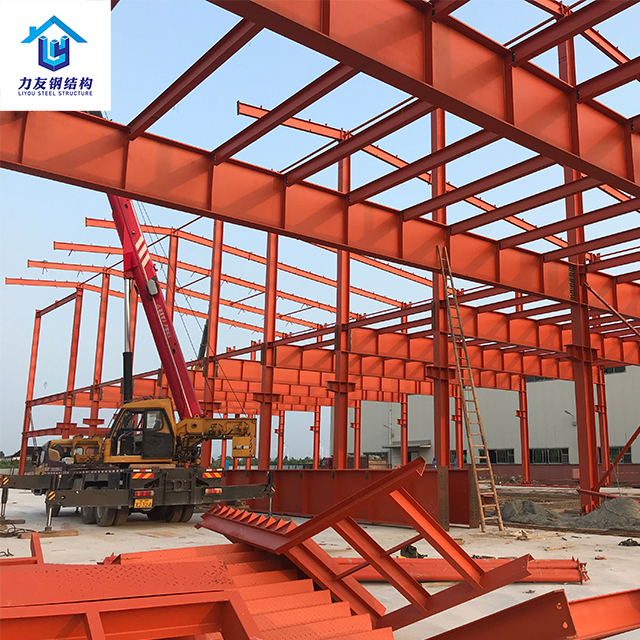

Solution: The construction period is urgent, and the factory works overtime to catch the goods. While shipping in order, the construction site is installed at the same time. The construction site was hoisted by three cranes, and more than 40 construction workers rushed to work. The division of labor was clear and orderly, and it was completed on time with high efficiency and delivered to Party A for use. It has also been highly recognized and praised by Party A.

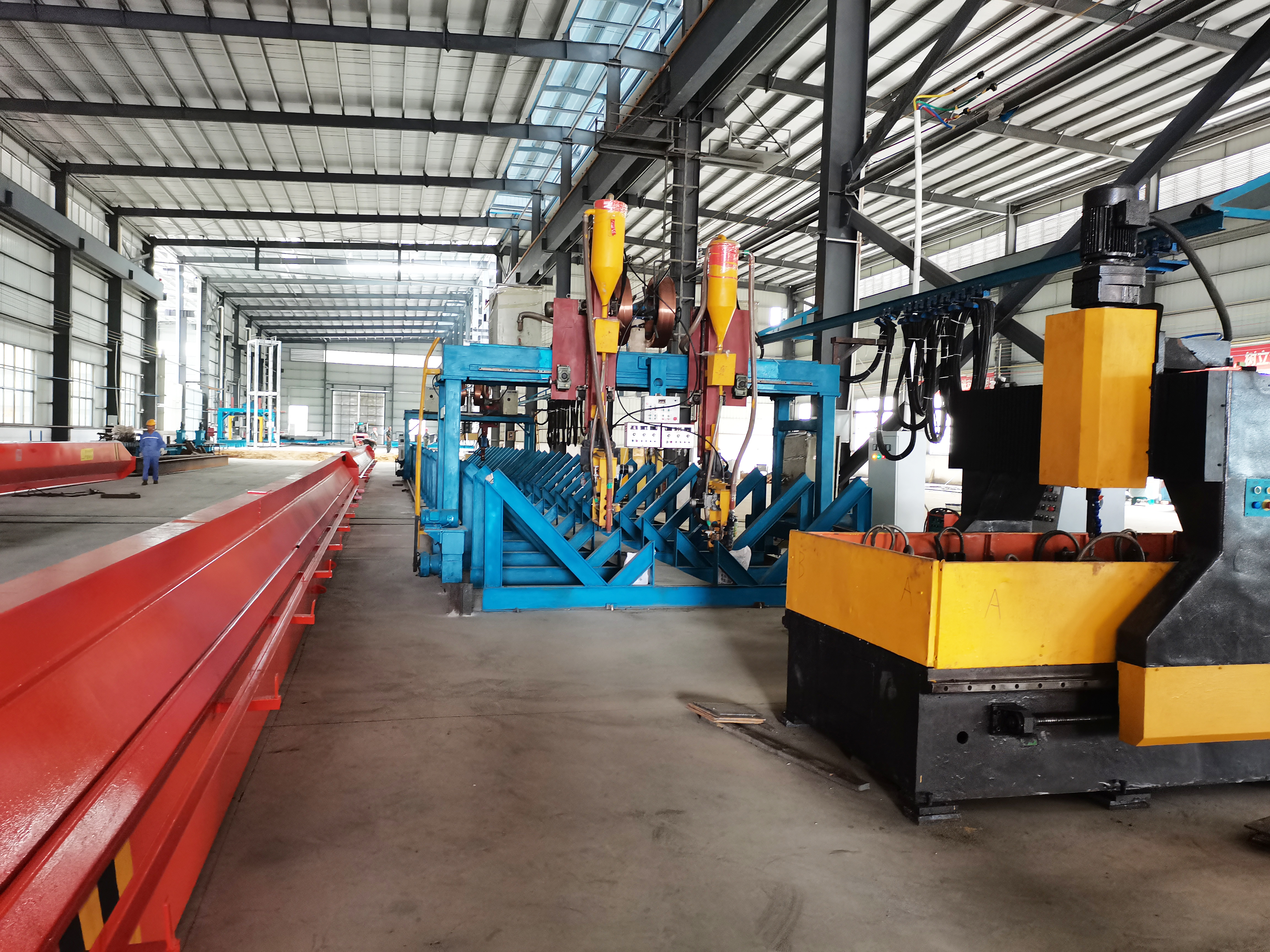

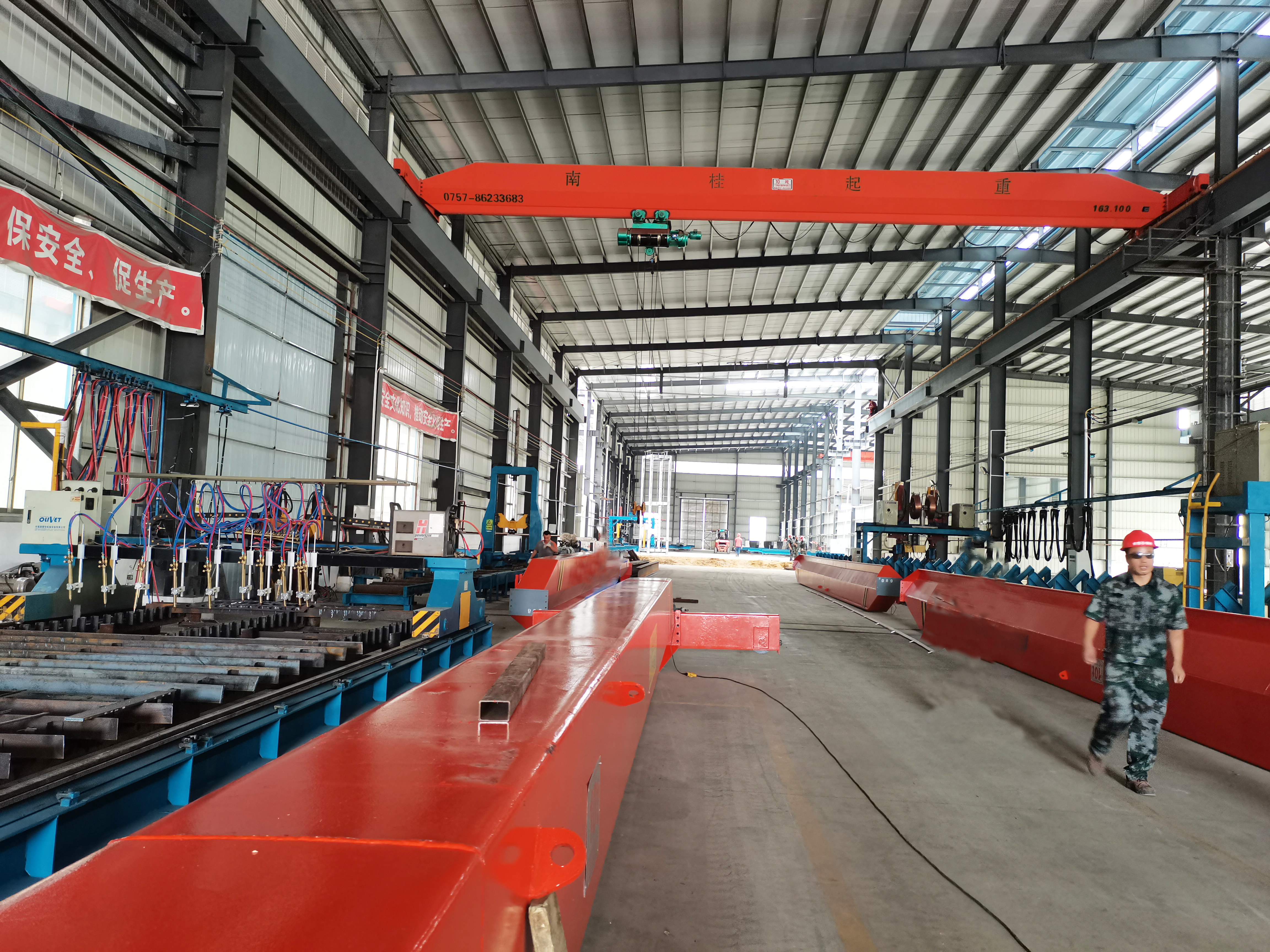

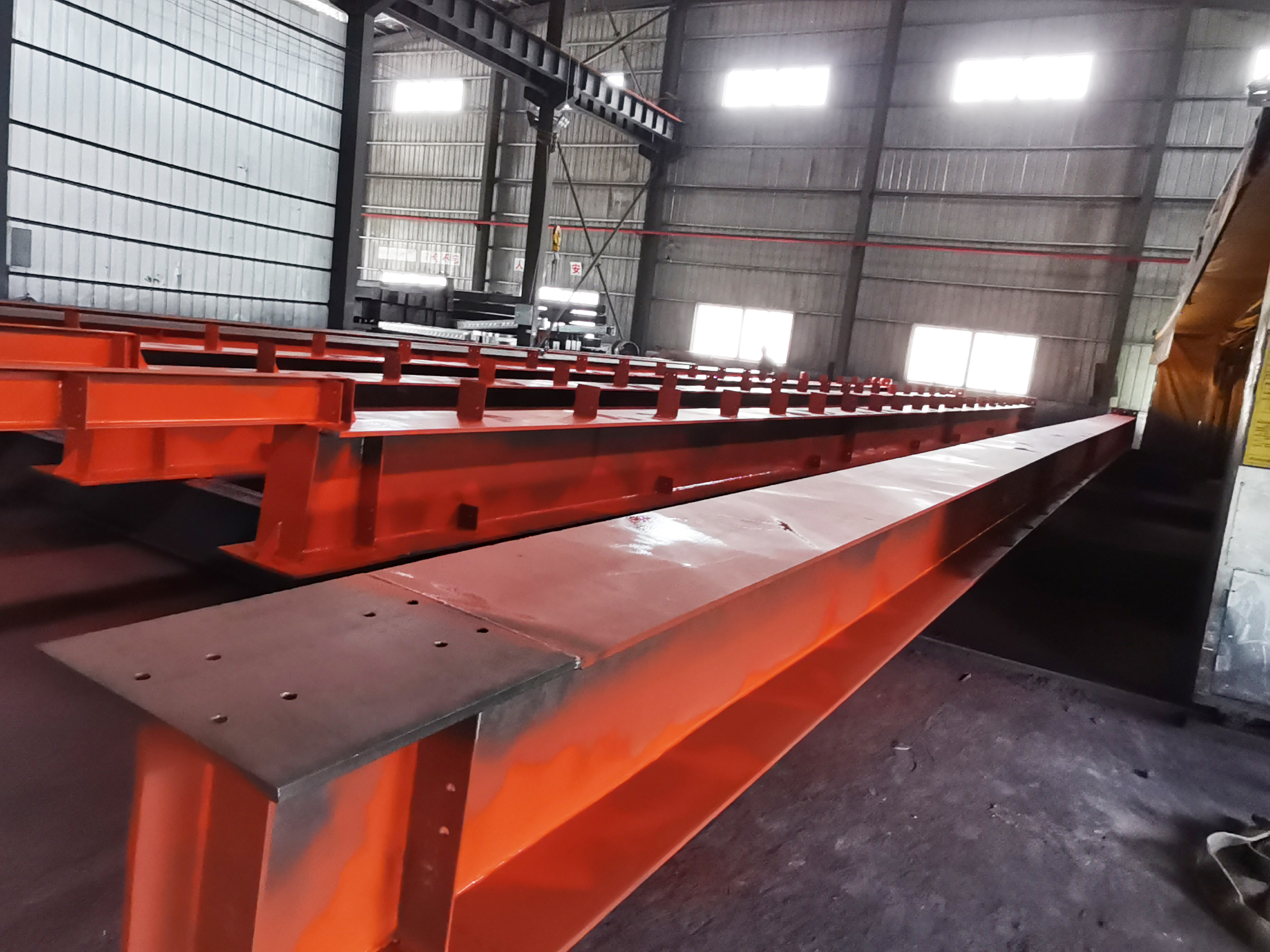

Two Story Steel Building Production Show
Two Story Steel Building Product Overview
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Steel Structure Fabrication |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel, Square Tube etc. | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Size: | Color: |
Up to Customer's Requirement | Graywhite, Blue, Red, etc.. |
Roof & Wall Material: | Door: |
Steel Sheet or Sandwich Panel | Rolling / Sliding Door |
Window: | Technology: |
Aluminum Alloy Window | Welded steel, Hot Rolled Steel |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Prefab Steel Structure |
Components | Specification |
Anchor Bolt | M30 |
High Strength Bolt | M20，10.9S |
Common Bolt | M16 |
Galvanized Bolt | M12 |
Shear Nail | M16 |
Steel Column(Q345B) | HN600X200X10X15 |
Roof Column(Q345B) | HN350X175X6X9 |
Tie Rod | ∅89*3.0 |
Horizontal Support | ∅16 |
Roof Purlin（Galvanized) | C180*60*20*2.0 |
Wall Purlin（Galvanized) | C180*60*20*2.0 |
Connecting Plate | 6mm～20mm Steel Sheet |
Paint | 2 Times Spray Paint |
Roof Tile | Steel sheet, thickness: 0.426 mm |
FRP Skylight Panel | Fiber Glass Reinforced Polyester |
Outside Wall Panel | Steel sheet, thickness: 0.426 mm |
Gutter | 2.0mm Galvanized Gutter |
Down Pipe | ∅110 PVC |
| Trimming | 0.426 mm Steel Sheet |
| Structure steel fabrication+Sanding + Paint | Acetylene, oxygen, electrode, Sa2.5 |
Livestock Shed, Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall, etc.
Foshan Teamwork Steel Structure Co.,Ltd was found in 2008. We are specialized in designing, manufacturing, marketing and construction of the steel structure warehouse, steel structure workshop, prefabricated house and light steel villa.
Teamwork Steel Structure have two production workshops covering an area of 20000 square meters. One plant is in LiShui Town, Foshan, which mainly produces prefab house, fence, aluminum door, and window. The other one is located in Gaoming district, Foshan which mainly produces prefab steel structure building. With the modern advanced facility, we have the capability to manufacture 30000~50000 sqm per month.
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q: What should you provide before quotation?
A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.
Q: What accessories do we provide for customized steel buildings?
A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.
Q: Can the steel building be installed by ourselives?
A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.
Q: What should be prepared for the site before installation?
A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.
Q: Do we have a recommended foundation and associated drawing?
A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
