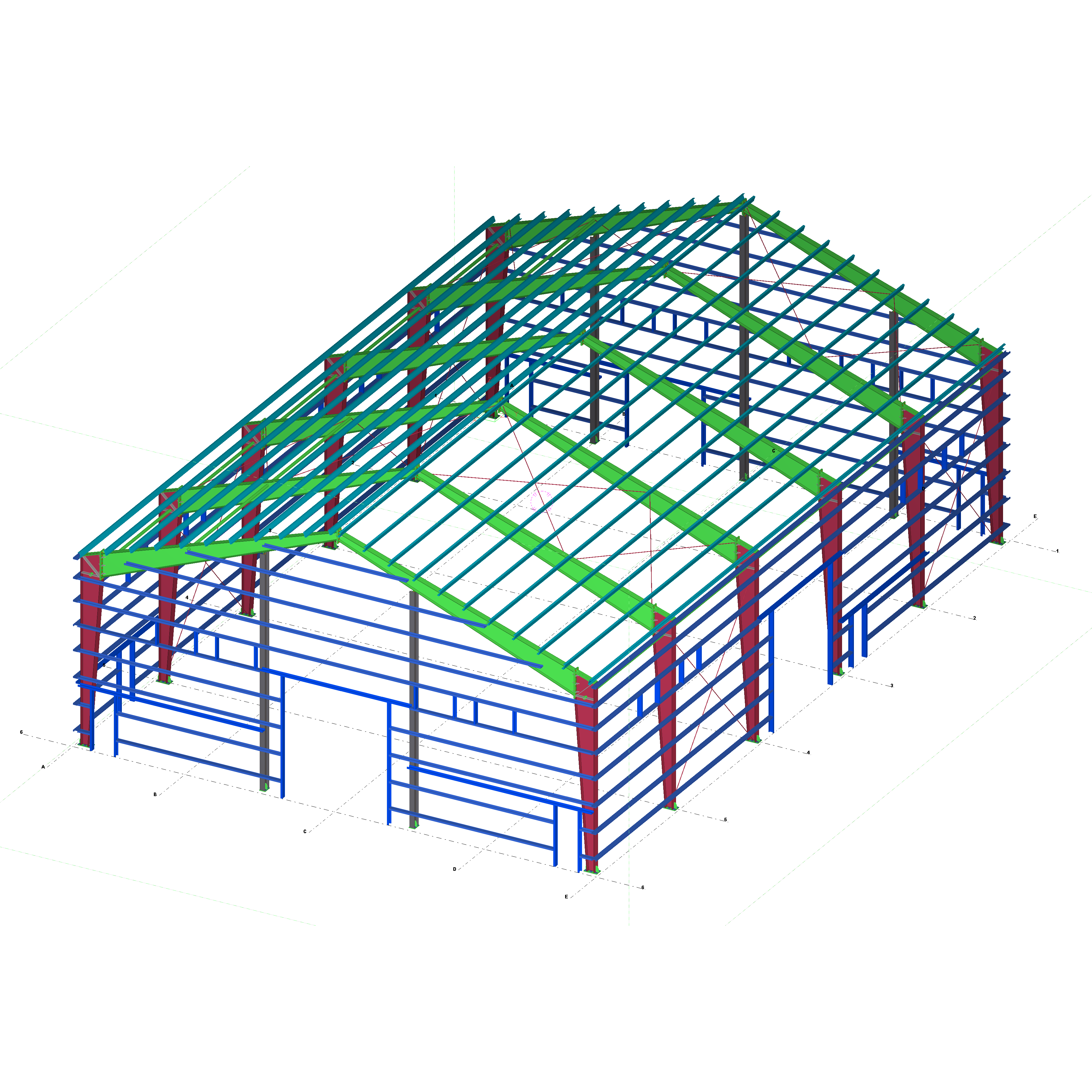

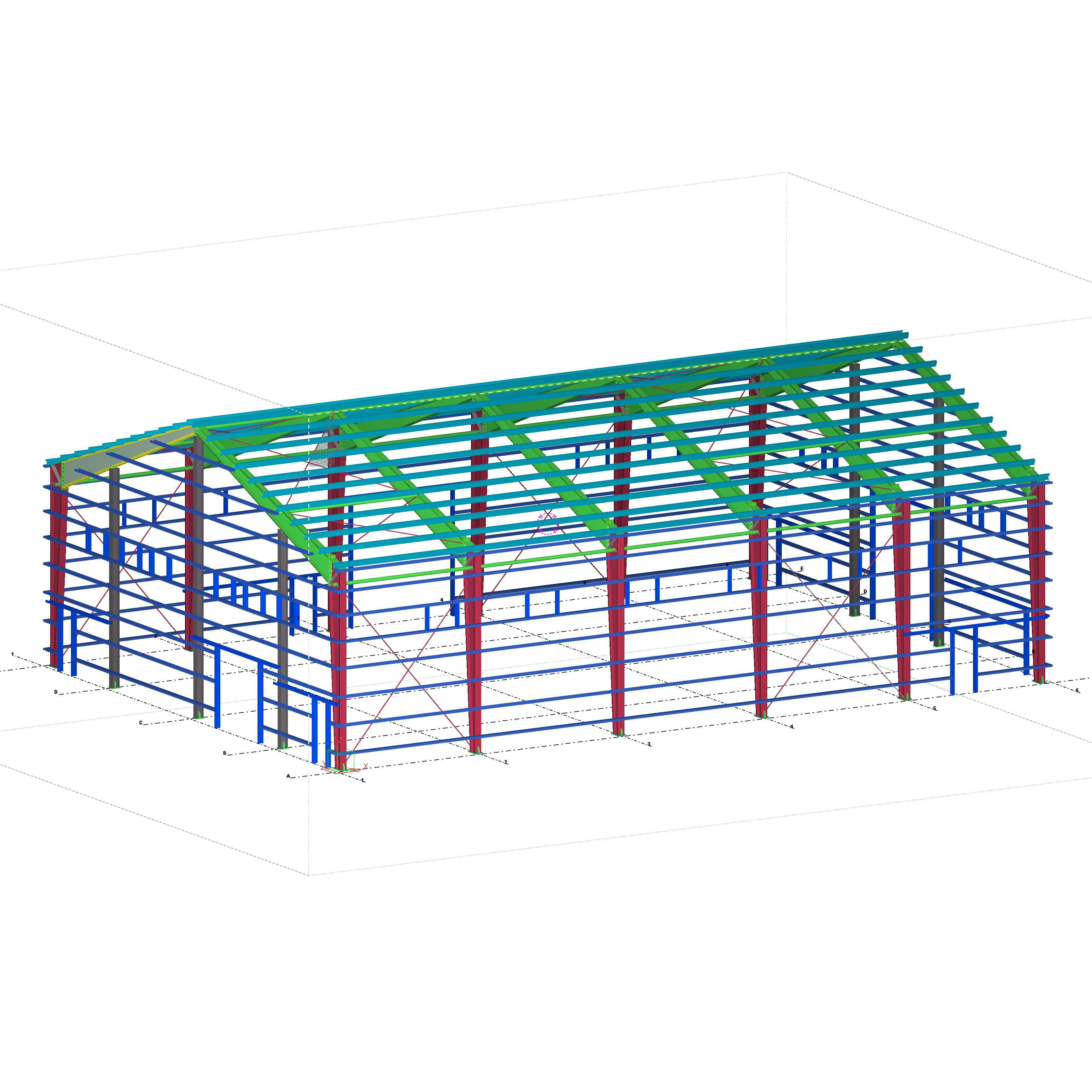

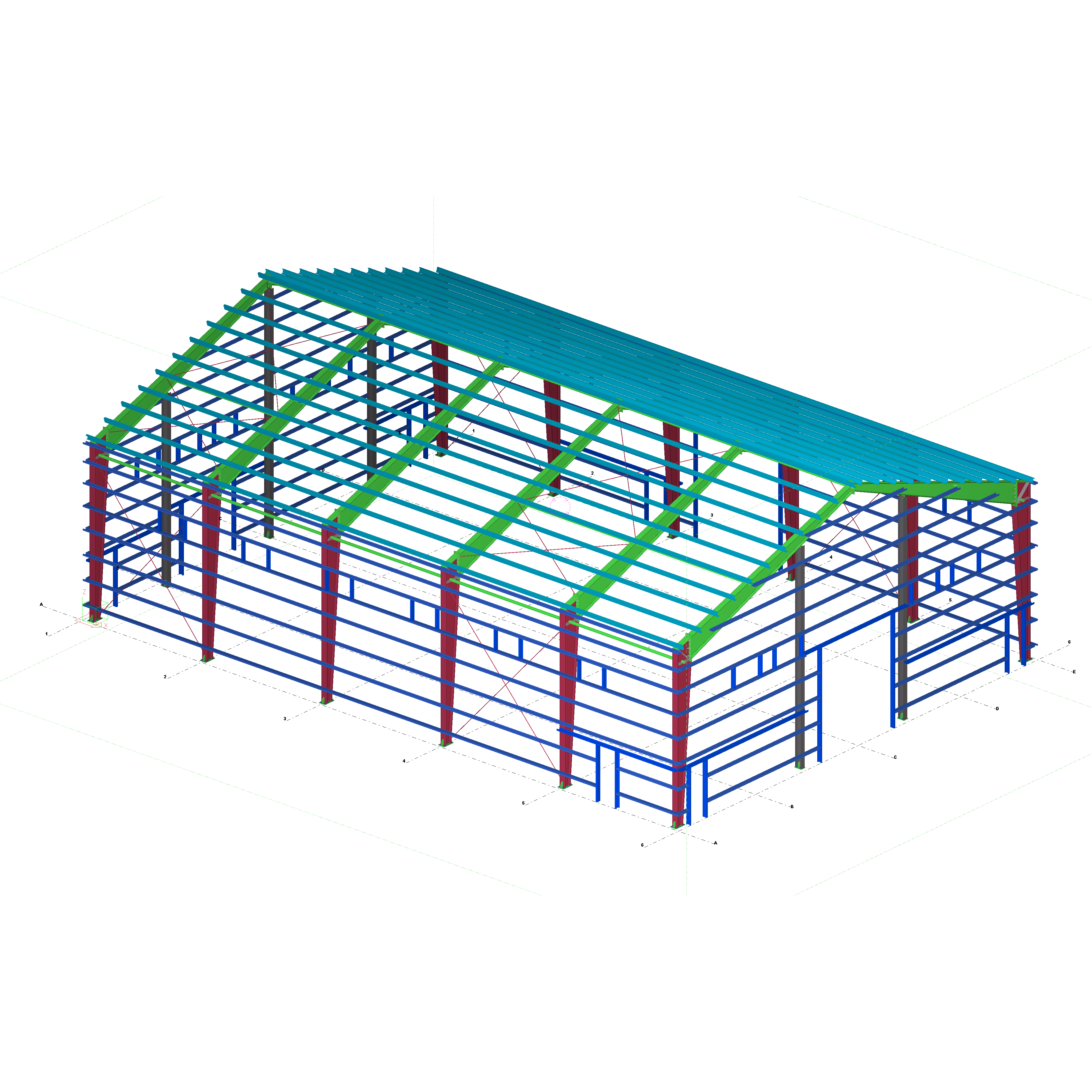

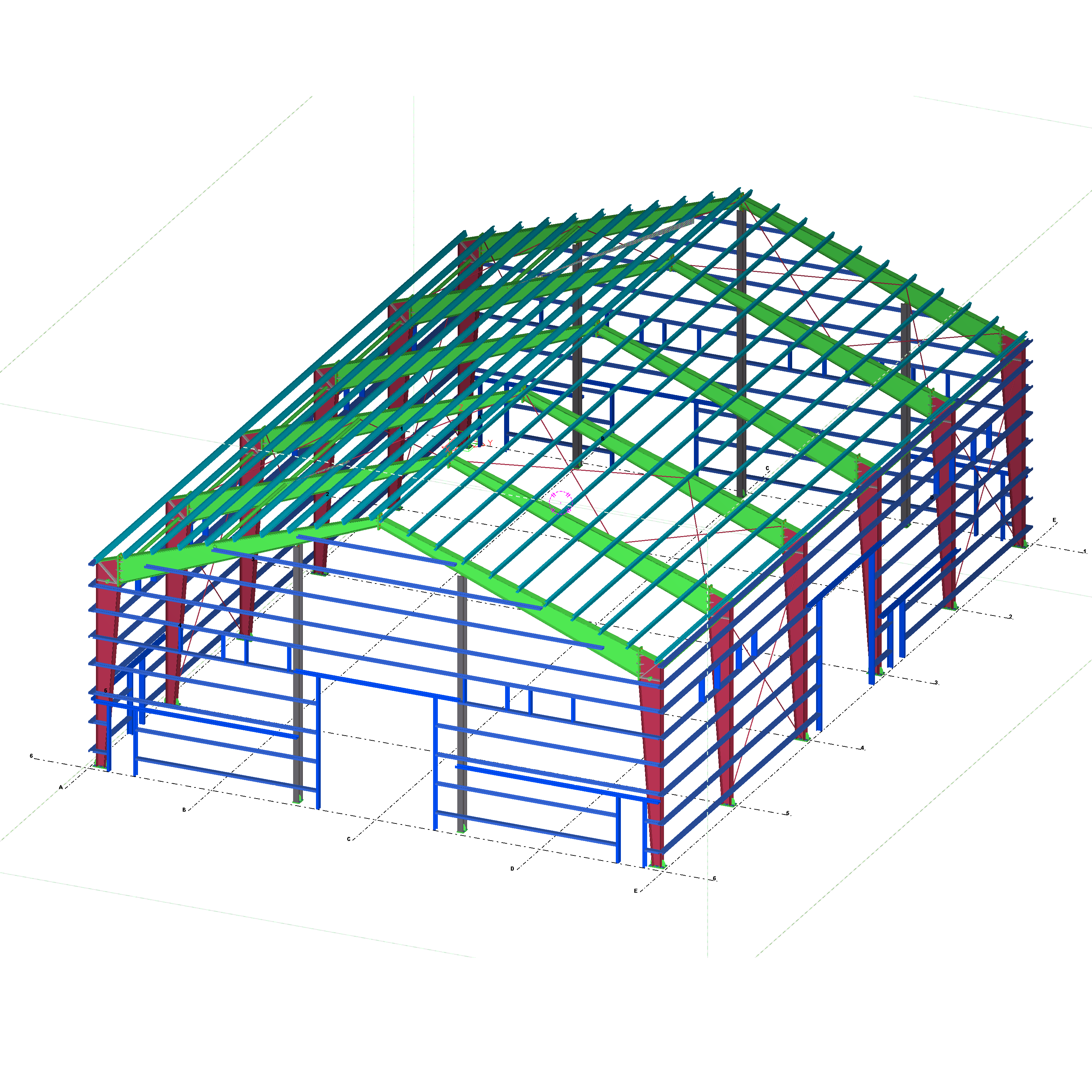

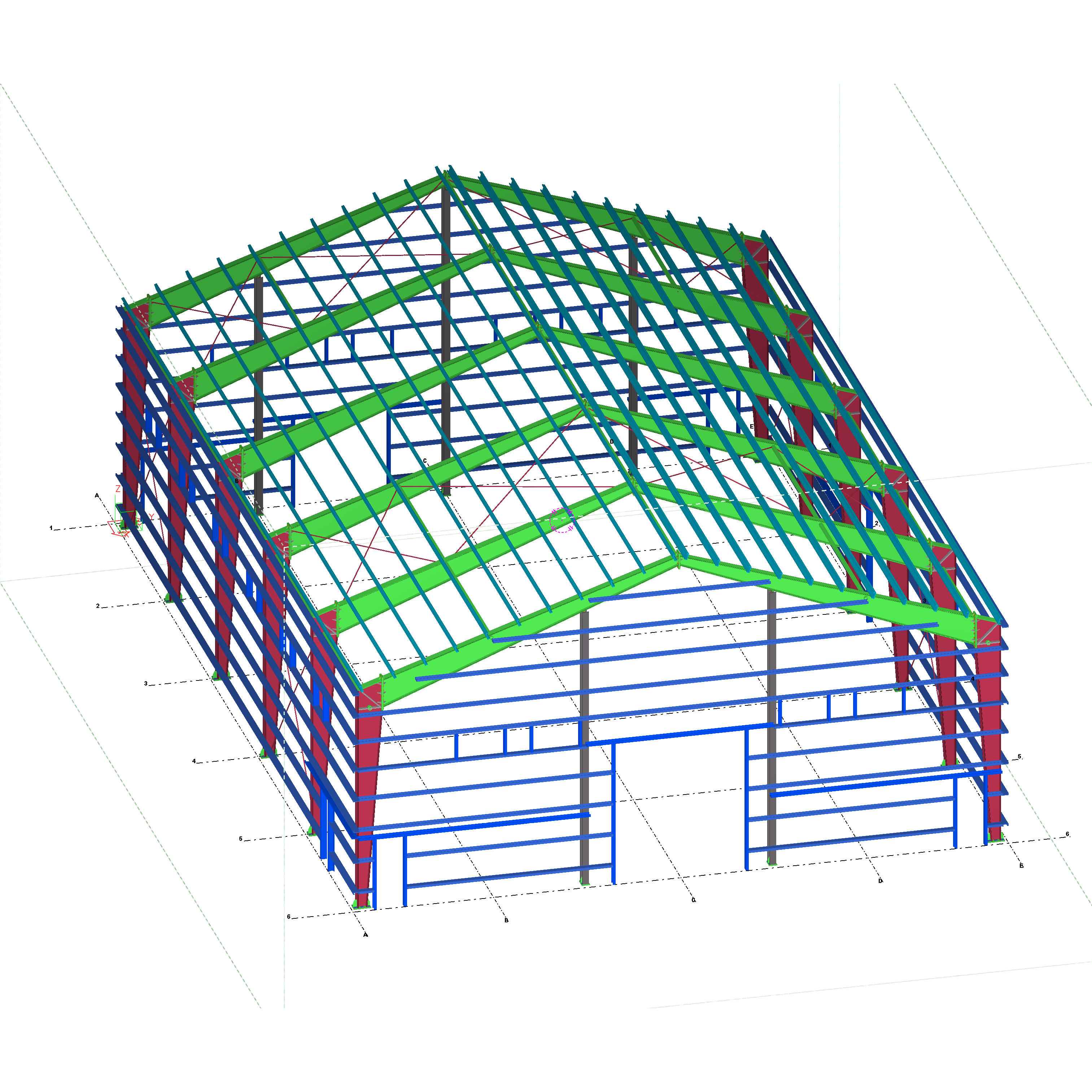

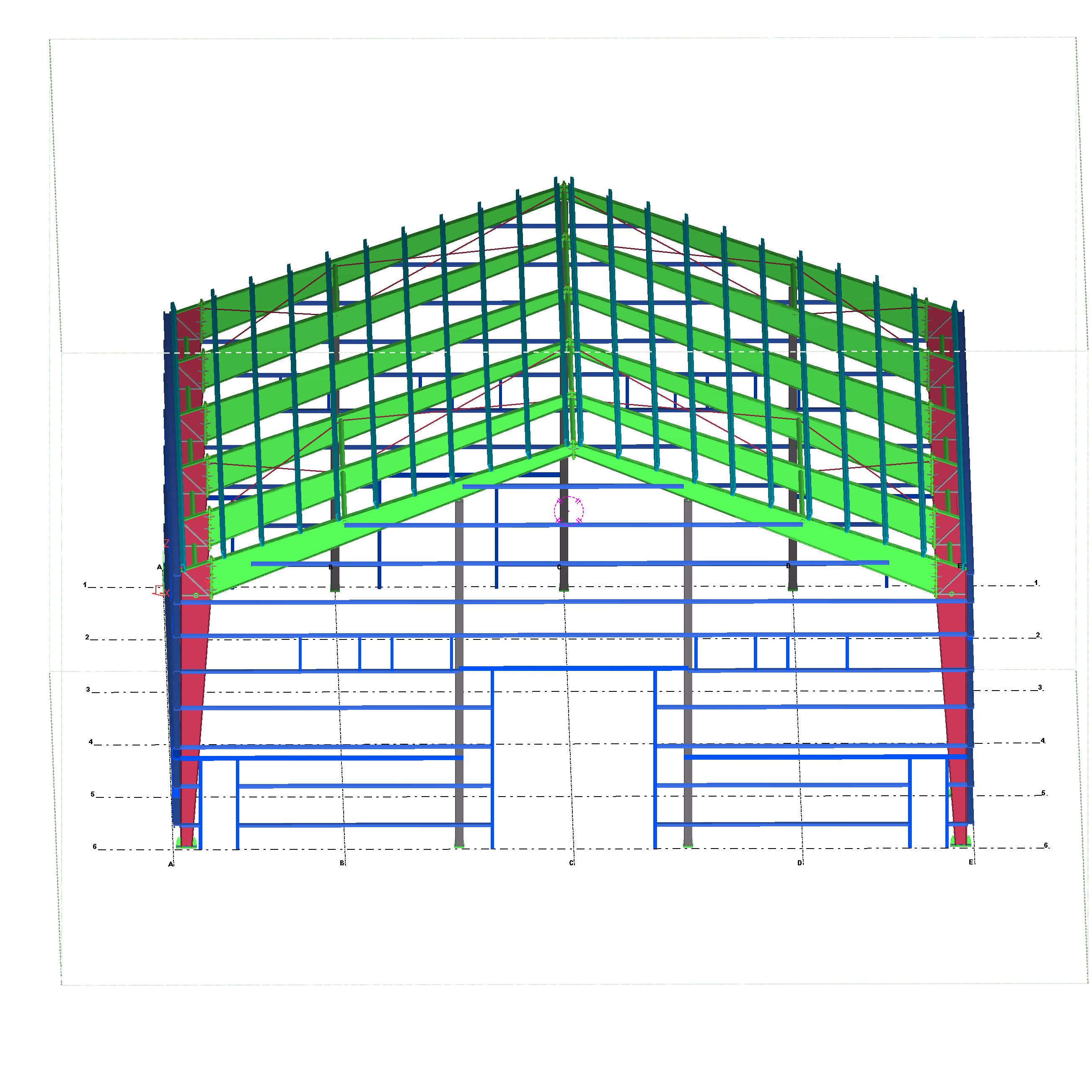

Barn Style Metal Buildings

Barn Style Metal Buildings – Engineered for Authenticity & Strength

Liyou manufactures ASTM-certified barn style metal buildings with verified structural specifications:

Certified Technical Specifications:

✔ Frame: 12-14 gauge steel columns (ASTM A653 G90 galvanized)
✔ Roof Load: 40 psf snow load / 90 mph wind rating (ASCE 7-16 compliant)
✔ Clear Spans: 30'-80' (9m-24m) engineered spans
✔ Wall Height: 12'-20' (3.6m-6m) standard eave height
✔ Cladding: 26-gauge steel panels (0.0187" thick)

Precision-Engineered Features:

  • Gambrel Roof Pitch: 12/12 & 14/12 options (verified load distribution)

  • Door Openings: Up to 16'x14' (4.8m x 4.2m) for equipment access

  • Foundation Requirements: 4,000 psi concrete minimum

Request Certified Drawings:
 PE-stamped structural calculations
 AISC/MBMA compliant fabrication

Availability:
Quantity:
Inquire





What Are Barn Style Metal Buildings


Barn style metal buildings are steel-framed structures designed to reflect traditional barn shapes and roof lines.

They offer the visual appeal of classic barns while providing the structural performance, low maintenance, and long service life of metal buildings.





Key Features of Barn Style Metal Buildings


·  Traditional barn-inspired roof and facade design

·  Strong steel frame for long-term structural stability

·  Large clear spans for flexible interior layouts

·  High resistance to wind, snow, and weather

·  Lower maintenance compared to wood barns

These features make barn style metal buildings practical for long-term use.





Common Applications


Barn style metal buildings are widely used for:

·  Farm equipment storage

·  Livestock and animal shelters

·  Hay and feed storage

·  Agricultural workshops

·  Rural garages and utility buildings

The interior layout can be customized based on daily operational needs.





Customization Options


We provide customized barn style metal buildings to match project requirements, including:

·  Building width, length, and height

·  Roof pitch and barn-style profiles

·  Open bays, sliding doors, and access points

·  Wall and roof panel materials

·  Ventilation and insulation options

Customization ensures both appearance and function are fully aligned.





Steel Structure Advantages Over Traditional Barns


Compared with wood barns, barn style metal buildings offer:

·  Better structural consistency

·  Higher resistance to pests and rot

·  Faster construction and installation

·  Longer service life

·  More predictable maintenance costs

This makes them suitable for modern agricultural operations.





Design and Manufacturing Capability


Our barn style metal buildings are engineered based on:

·  Local wind and snow load requirements

·  Usage conditions and internal layout

·  Structural safety and stability standards

All steel components are fabricated for accuracy and efficient on-site assembly.




Project Specifications
Dimensions: 31m (L) × 14m (W) × 6.5m (H)

Steel Material: GB Q235B / Q355B

Design: Fully Customized

Required Containers: 2–3 x 40HC

Delivery Time: 20–30 Days

Shipping Time: ~20 Days

Installation Time: 10 Days





Galvanized Steel Advantages

Corrosion Resistance
Zinc Coating Protection:
Acts as a sacrificial layer to prevent rust.

Extended Lifespan:
Reduces maintenance frequency.

Weather Durability:
Performs well in moisture- and salt-prone environments.
Sustainability
Eco-Friendly:
100% recyclable.

Lower Carbon Footprint:
Long service life means fewer replacements.




Aesthetic Appeal
Modern Appearance:
Clean, sleek look.

Custom Finishes Available:
Adaptable to various architectural styles.







Key Features
1
Precision-Engineered Steel Columns & Beams
Every structural component is labeled with a unique identifier for easy on-site identification and smooth assembly.
2
Tailor-Made Solutions
Designed to match your specific requirements for layout, function, and aesthetics.
3
Fast and Efficient Installation
Optimized for quick on-site assembly with clearly marked parts.
4
Cost-Effective & Low Maintenance
Built to last with minimal upkeep, reducing long-term costs.



1
Warranty Information

Applicable Products：Steel Structure Warehouses, Workshops, Multi-Story Buildings

I-Beam Structural Warranty: 50 Years
Galvalume Roof Warranty: 25 Years
Standing Seam Roof Warranty: 20 Years
Read More



Why Choose Liyou Steel Structure
At Liyou, every project begins with clear communication and collaboration. We take time to understand how your structure will be used, where it will be located, and your preferences for design—inside and out.

Our engineers also consider environmental factors like wind and snow loads, along with insulation needs, to ensure your hangar is safe, compliant, and durable. Once your ideal building kit is identified, we help customize it with doors, windows, and color options—flexibly and cost-effectively.

From concept to completion, we deliver quality materials, thoughtful design, and professional support to bring your vision to life.
Read More


Loading and Shipping


1. Anchor Bolt and Fastener Part


No.ItemSpecification
1Anchor bolt 1M20×400
2Anchor bolt 2M16×260
3High-strength boltM20, M16, 8.8S
4Common boltM16
5Galvanized boltM12
6Turnbuckle boltM16
7Sag rodØ12



2. Main Steel Structure Part


No.ItemSpecification
1Steel column (Q235B)HN396×200×7×11
2Wind column (Q235B)SHS150×100×5.0
3Roof truss beam (Q235B)HN396×200×7×11
4Floor main beam (Q235B)HN600×200×11×17
5Tie bar (Q235B)SHS100×100×5.0
6Horizontal/Column brace (Q235B)Ø16
7Steel stairs[250#、[200#、[160# channel steel, 4mm checkered plate]
8Angle brace (Q235B)L50×6.0
9Roof purlin (Q355B)C250×75×20×2.0
10Wall purlin (Q355B)C250×75×20×2.0
11Connecting plate (Q235B)6mm–16mm



3. Enclosure Part


No.ItemSpecification
1Roof plate0.6mm thick, type 840 steel sheet
2Exterior wall0.6mm thick, type 900 steel sheet
3Steel man door910×2010×2
4Stainless steel handrail1.1m high
5Roof ventilator600×600
6Gutter2.0mm galvanized
7DownpipeØ110 PVC
8Trimming0.55mm thick steel plate
9Hardware accessoriesNails, supports, structural glue, etc.
