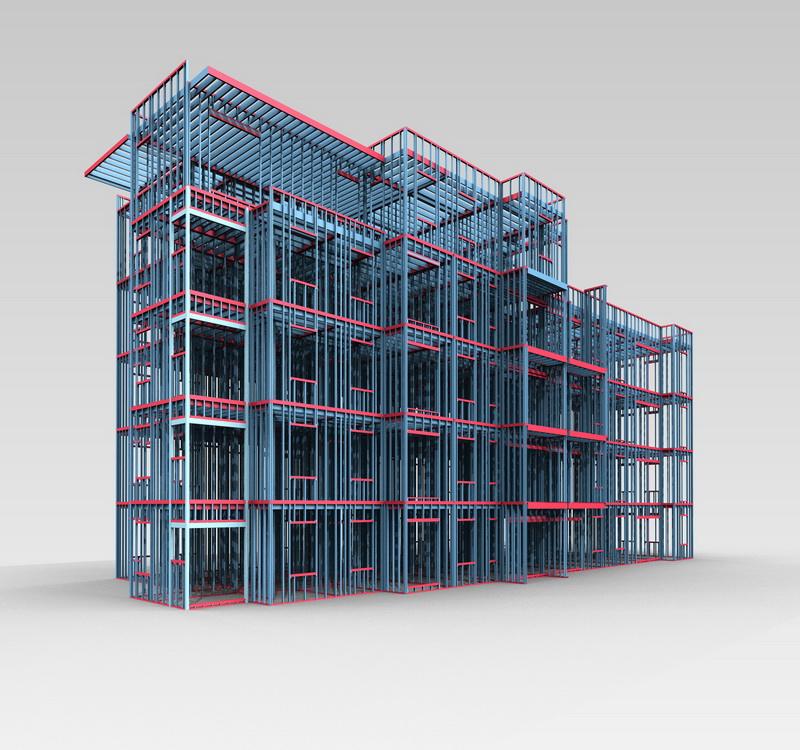

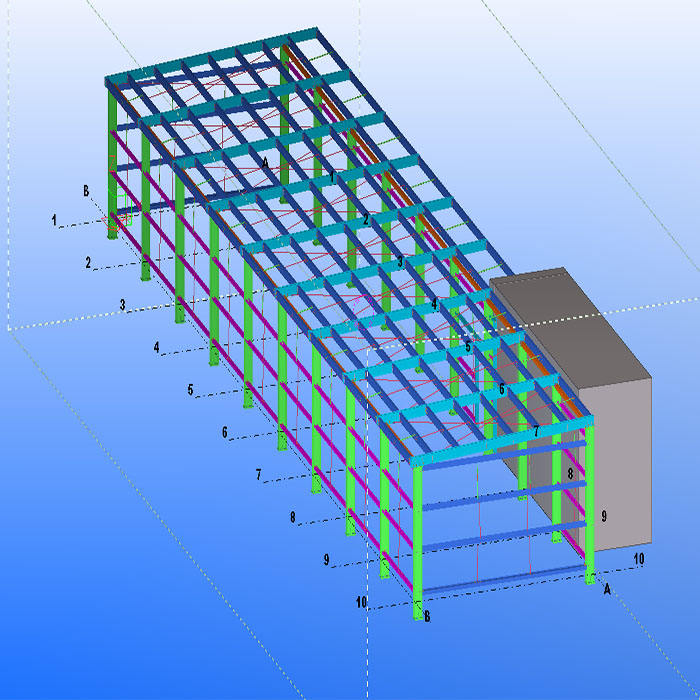

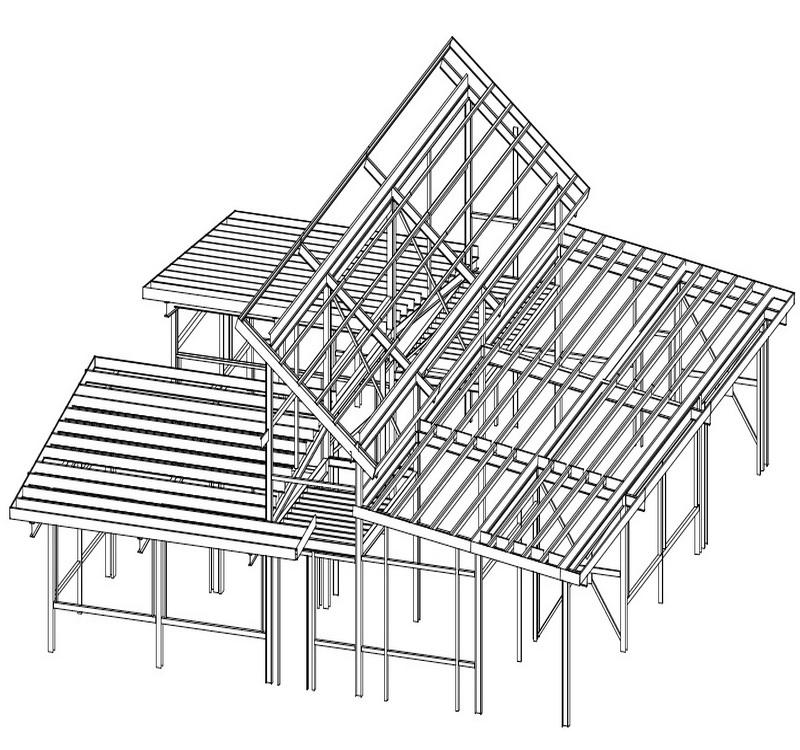

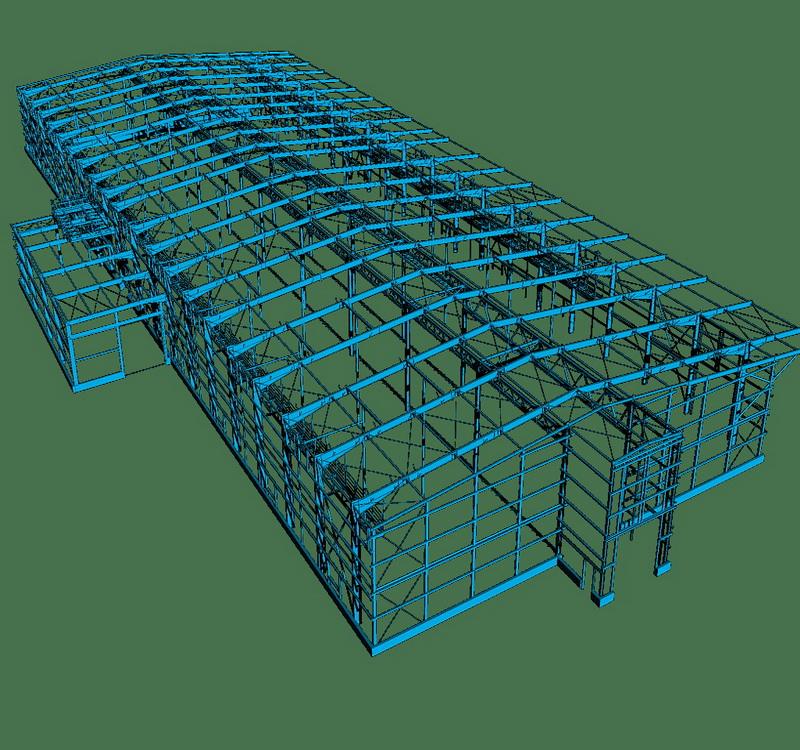

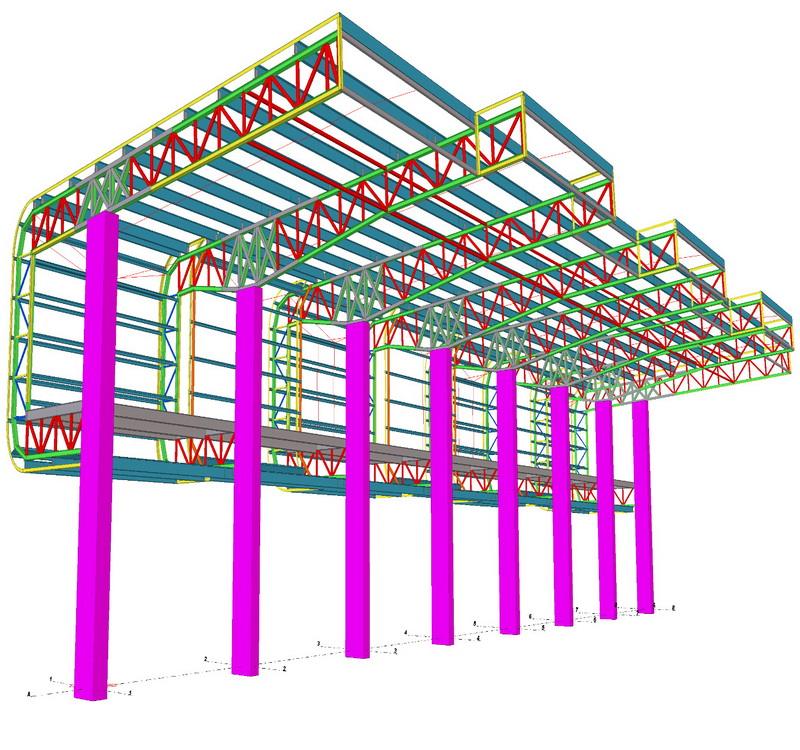

Expert structural steel detailing is essential for creating accurate and efficient steel construction projects. It involves producing detailed drawings, specifications, and plans for steel components, ensuring every beam, column, truss, and connection is fabricated and assembled with precision. Liyou offers professional structural steel detailing services that enhance construction efficiency, reduce errors, and guarantee structural integrity. Our solutions provide clients with clear, reliable, and fully customizable detailing for industrial, commercial, and residential projects.
Precision & Accuracy: Detailed plans ensure correct fabrication and assembly.
Customizable Solutions: Tailored detailing for project-specific architectural and engineering requirements.
Efficiency Enhancement: Optimizes material usage and reduces on-site errors.
Integration Ready: Coordinates seamlessly with other construction elements.
Reliable Documentation: Comprehensive drawings support fabrication, inspection, and assembly.
Industrial Buildings: Factories, warehouses, and workshops
Commercial Structures: Offices, retail centers, exhibition halls, and public buildings
Infrastructure: Bridges, transportation hubs, and utility facilities
Residential & Mixed-Use: High-rise apartments, villas, and community developments
| Quantity: | |
|---|---|
Steel
Online technical support
Steel Agricultural Shed
Guangdong, China
Industrial Area
3 years
total solution for projects
LYB-001
Steel Agricultural Shed
Industrial
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
PRODUCT SPECIFICATIONS
| No | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
