Lower Carbon Footprint:

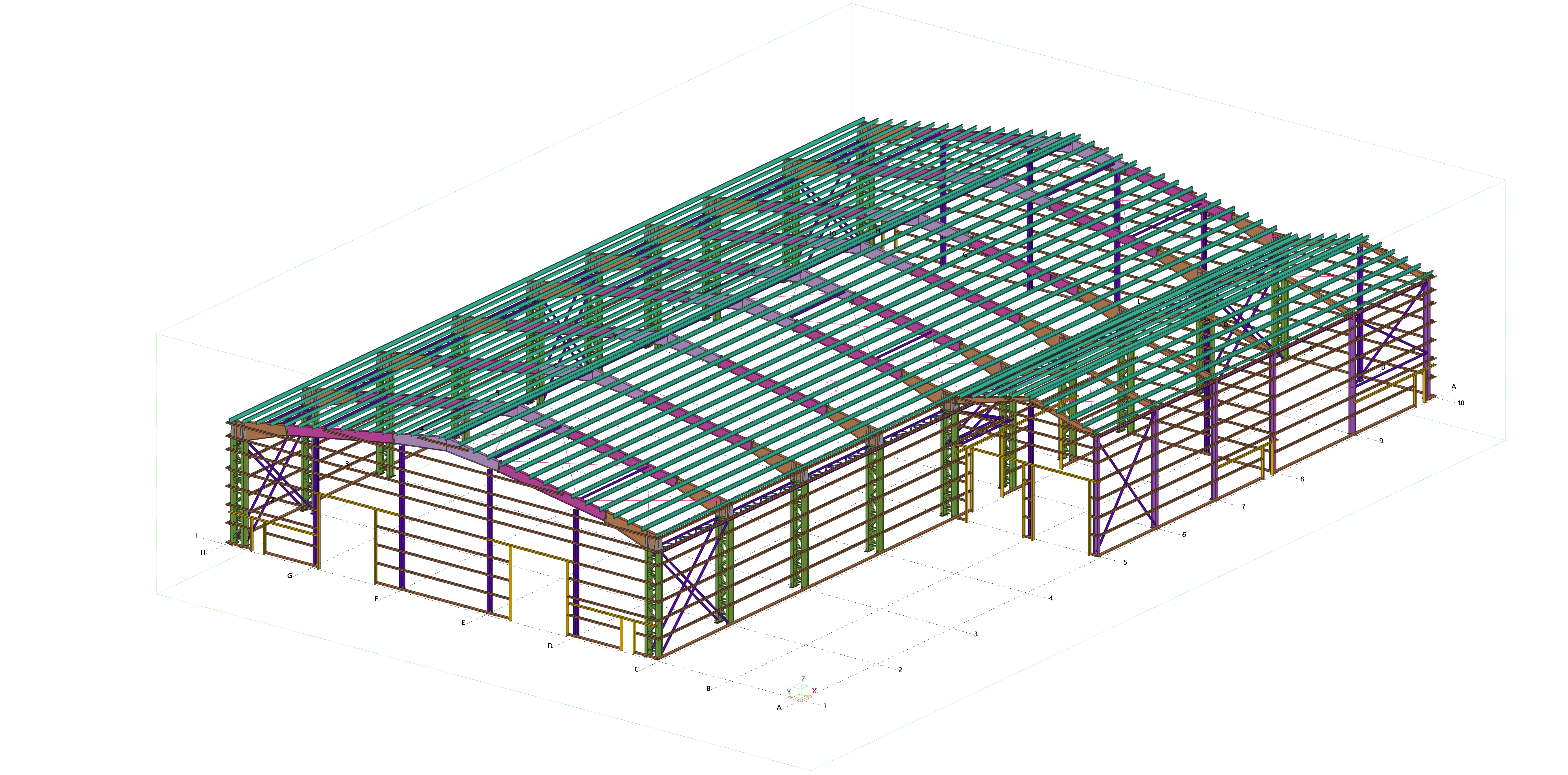

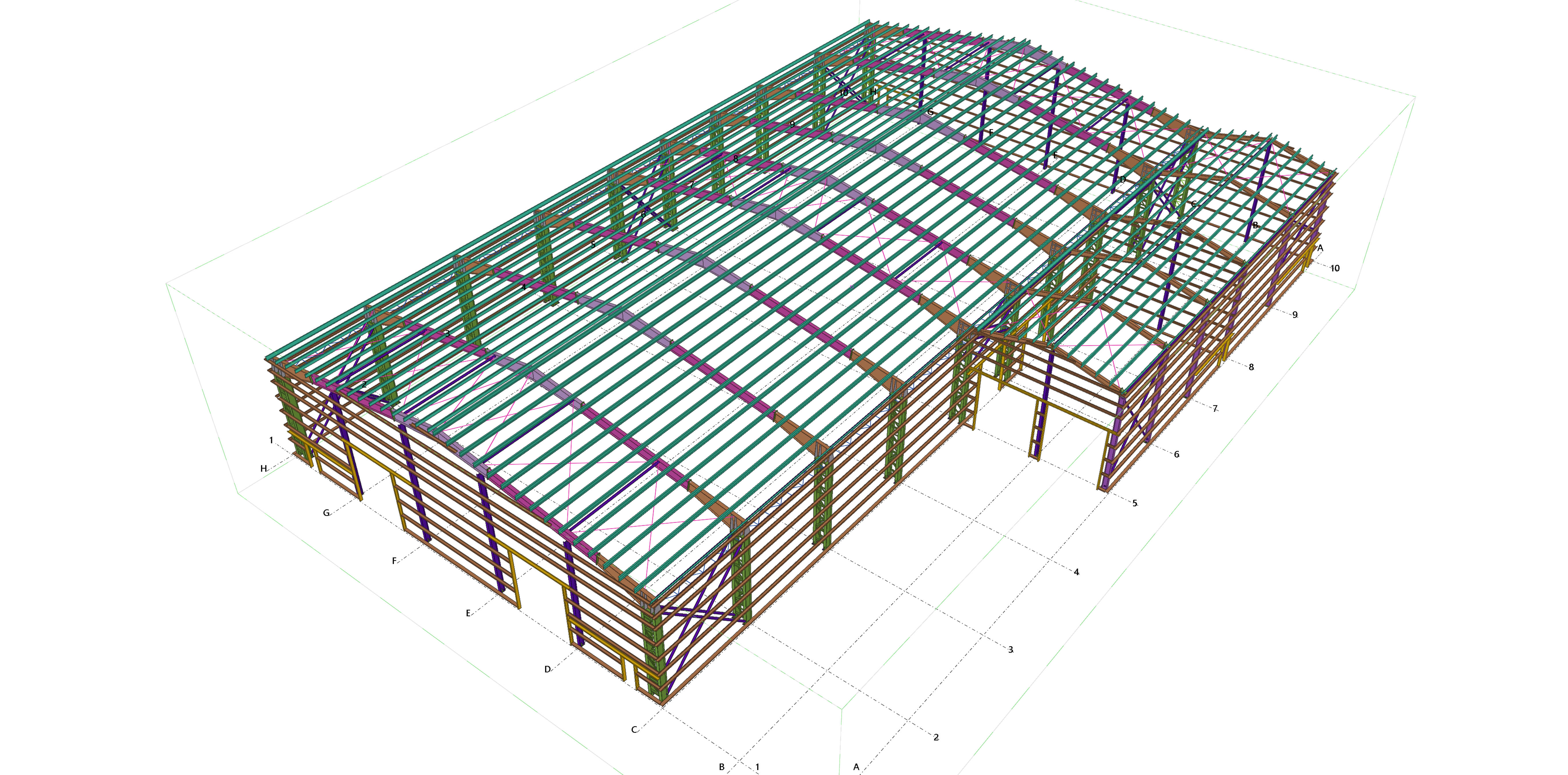

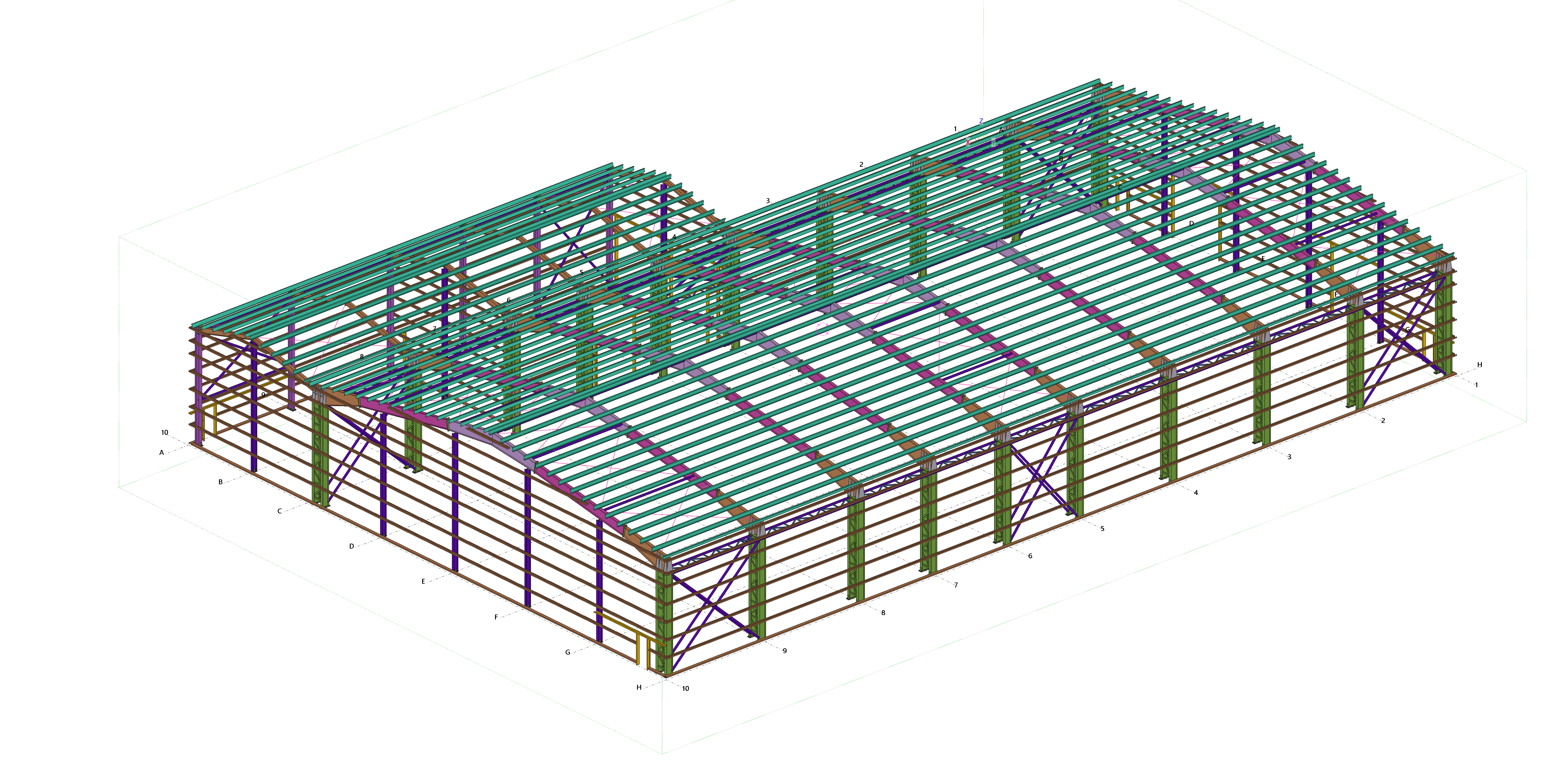

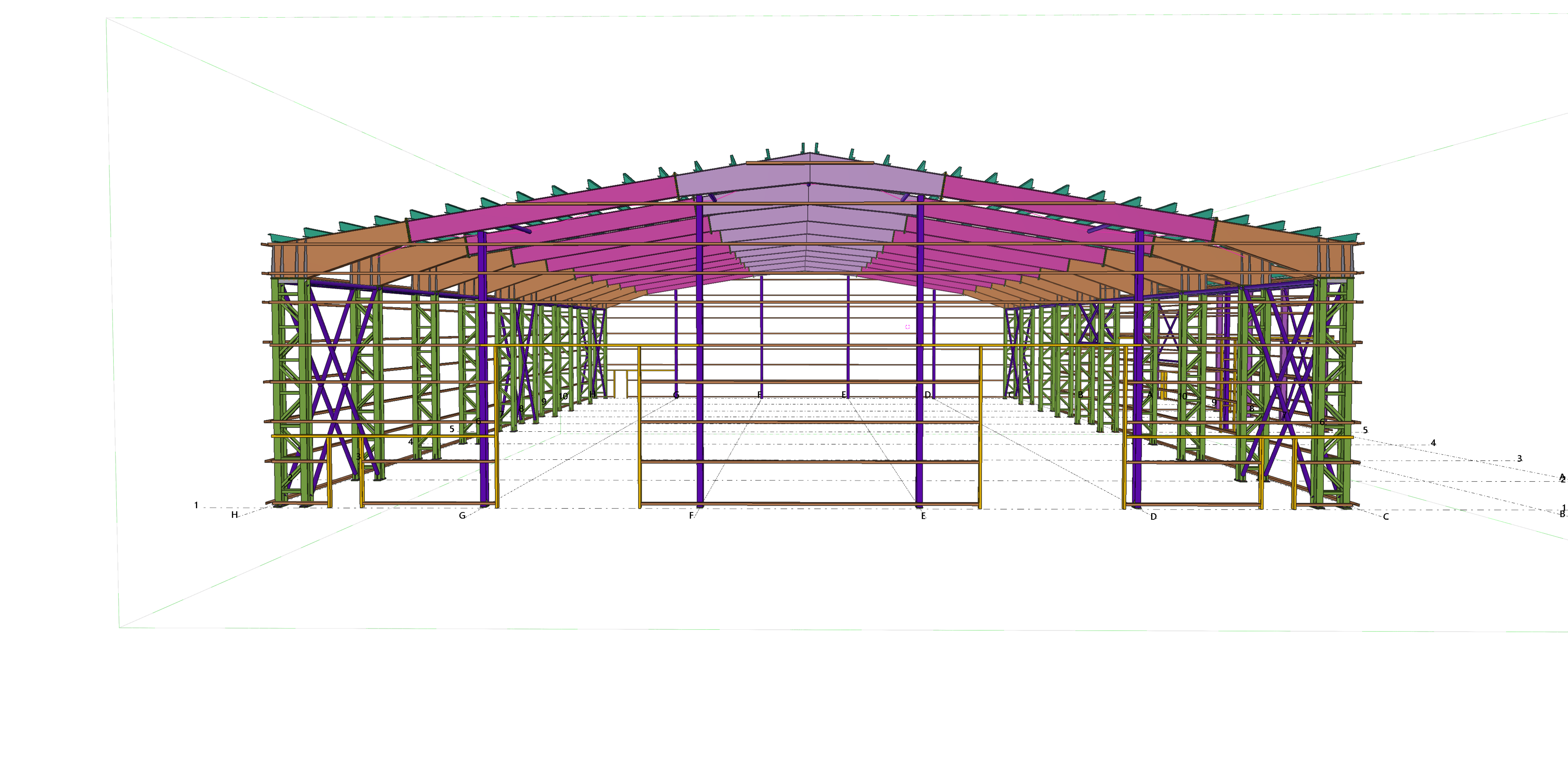

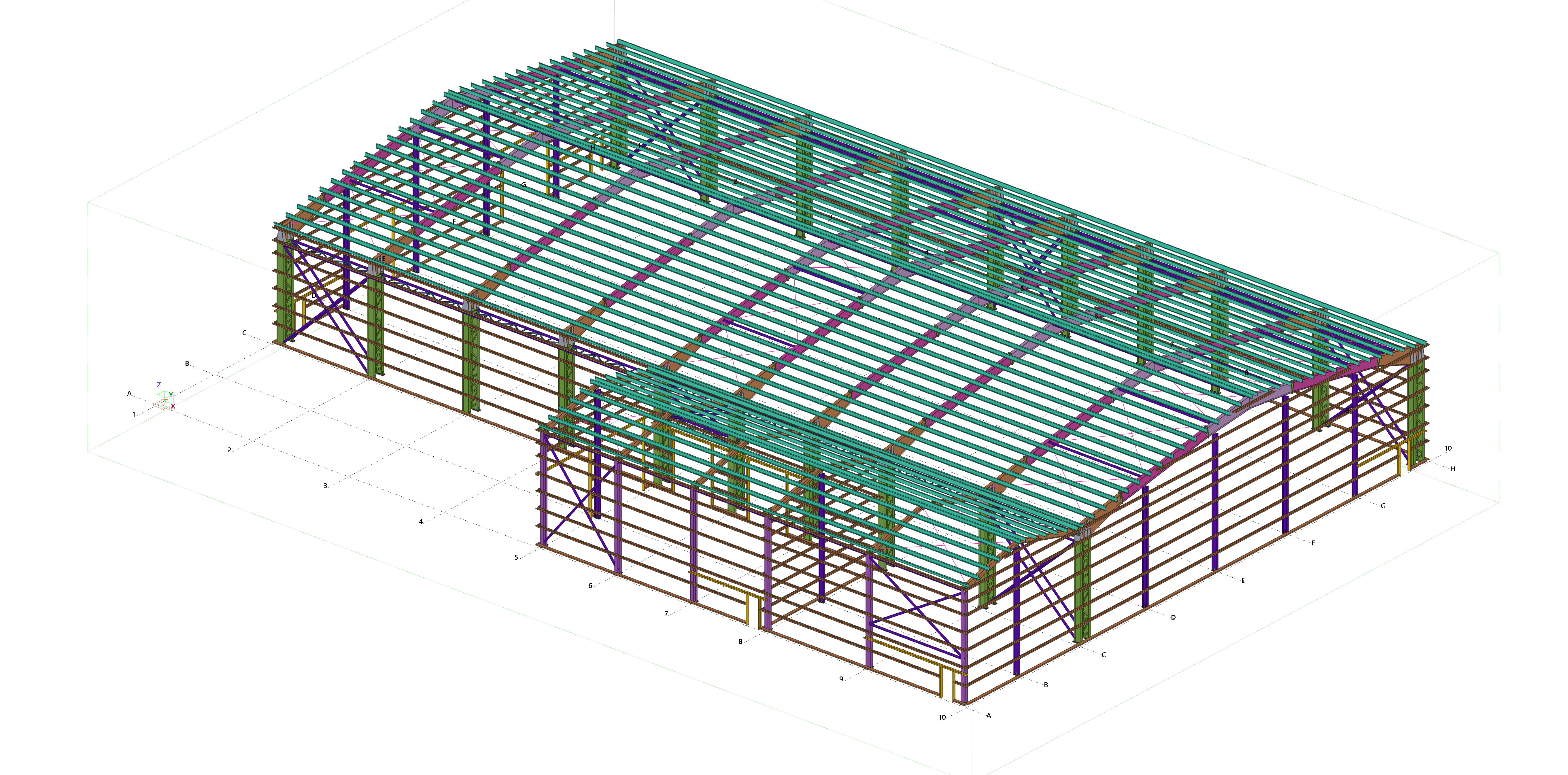

Liyou's L shaped metal buildings combine innovative design with maximum flexibility to suit a wide range of commercial, industrial, and residential needs. These customizable steel buildings offer ample space with the ability to divide and create multiple functional areas within a single structure.
Innovative L Shape: The L-shaped design maximizes usable space by providing a versatile layout for different functions.
Durable Steel Construction: Made from high-strength steel for superior strength and long-lasting durability.
Customizable Dimensions: Tailored to your specific needs, allowing for varied sizes, layouts, and configurations.
Quick & Easy Installation: Prefabricated components ensure fast assembly, reducing construction time and labor costs.
Industrial: Warehouses, factories, workshops, and manufacturing facilities.
Commercial: Retail stores, office complexes, and showrooms.
Agricultural: Barns, storage units, equipment shelters, and livestock housing.
Residential: Multi-purpose homes, custom housing designs, and workshops.
Custom Projects: Ideal for unique projects requiring a flexible building layout, such as event spaces or complex industrial setups.
Availability: | |
---|---|
Quantity: | |
1. Anchor Bolt and Fastener Part
No. | Item | Specification |
1 | Anchor bolt 1 | M20×400 |
2 | Anchor bolt 2 | M16×260 |
3 | High-strength bolt | M20, M16, 8.8S |
4 | Common bolt | M16 |
5 | Galvanized bolt | M12 |
6 | Turnbuckle bolt | M16 |
7 | Sag rod | Ø12 |
2. Main Steel Structure Part
No. | Item | Specification |
1 | Steel column (Q235B) | HN396×200×7×11 |
2 | Wind column (Q235B) | SHS150×100×5.0 |
3 | Roof truss beam (Q235B) | HN396×200×7×11 |
4 | Floor main beam (Q235B) | HN600×200×11×17 |
5 | Tie bar (Q235B) | SHS100×100×5.0 |
6 | Horizontal/Column brace (Q235B) | Ø16 |
7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
8 | Angle brace (Q235B) | L50×6.0 |
9 | Roof purlin (Q355B) | C250×75×20×2.0 |
10 | Wall purlin (Q355B) | C250×75×20×2.0 |
11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
No. | Item | Specification |
1 | Roof plate | 0.6mm thick, type 840 steel sheet |
2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
3 | Steel man door | 910×2010×2 |
4 | Stainless steel handrail | 1.1m high |
5 | Roof ventilator | 600×600 |
6 | Gutter | 2.0mm galvanized |
7 | Downpipe | Ø110 PVC |
8 | Trimming | 0.55mm thick steel plate |
9 | Hardware accessories | Nails, supports, structural glue, etc. |
