Lower Carbon Footprint:

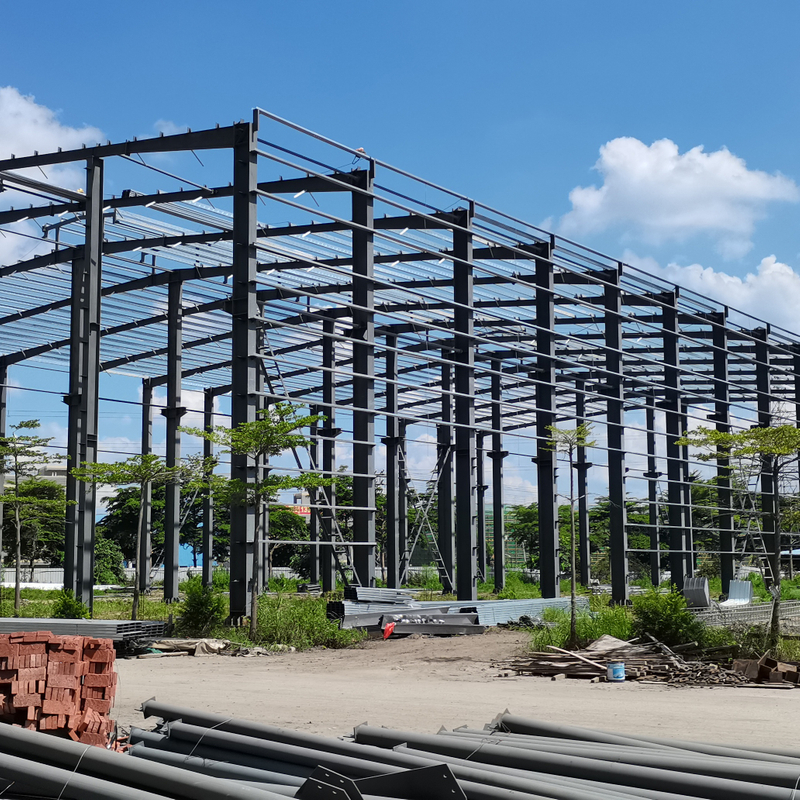

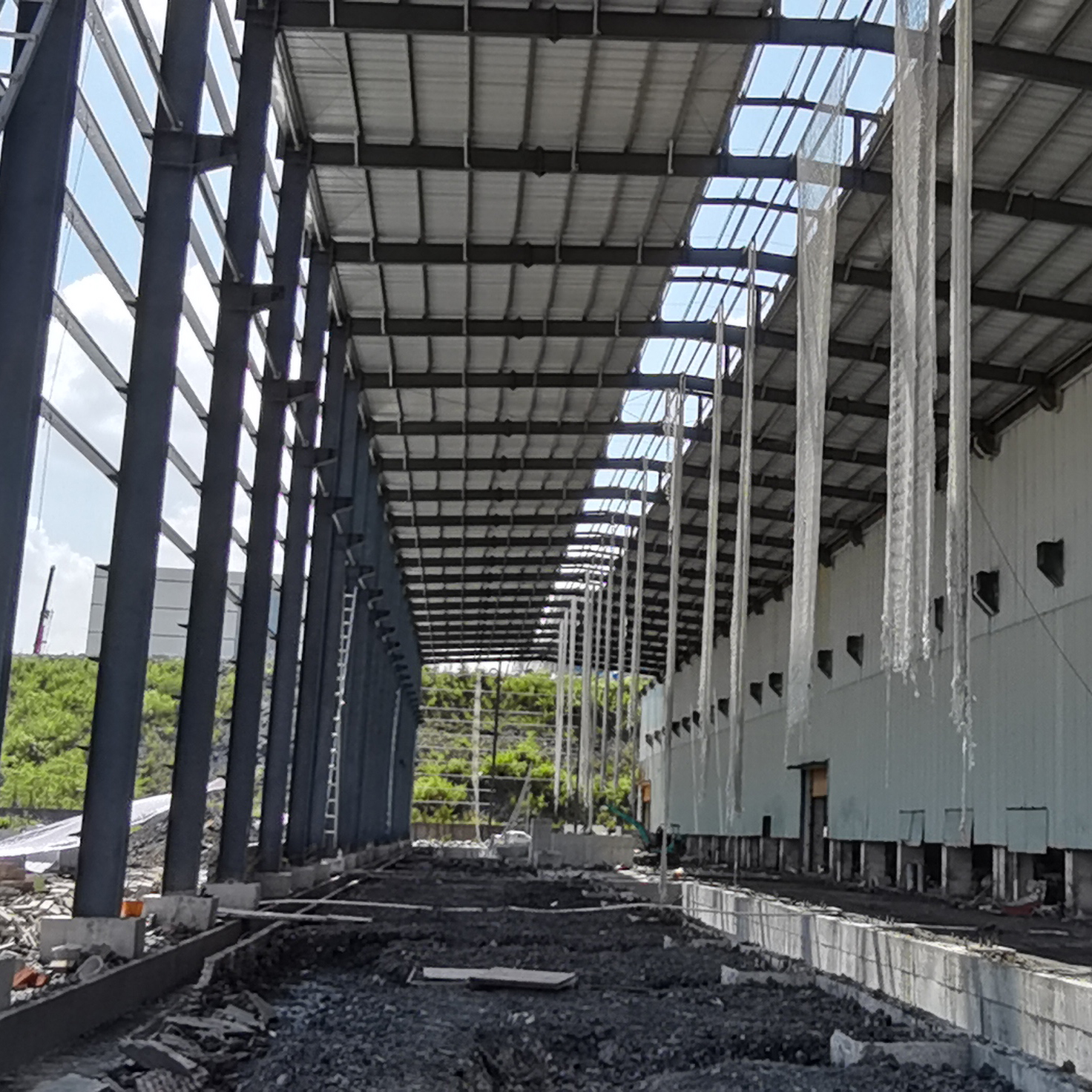

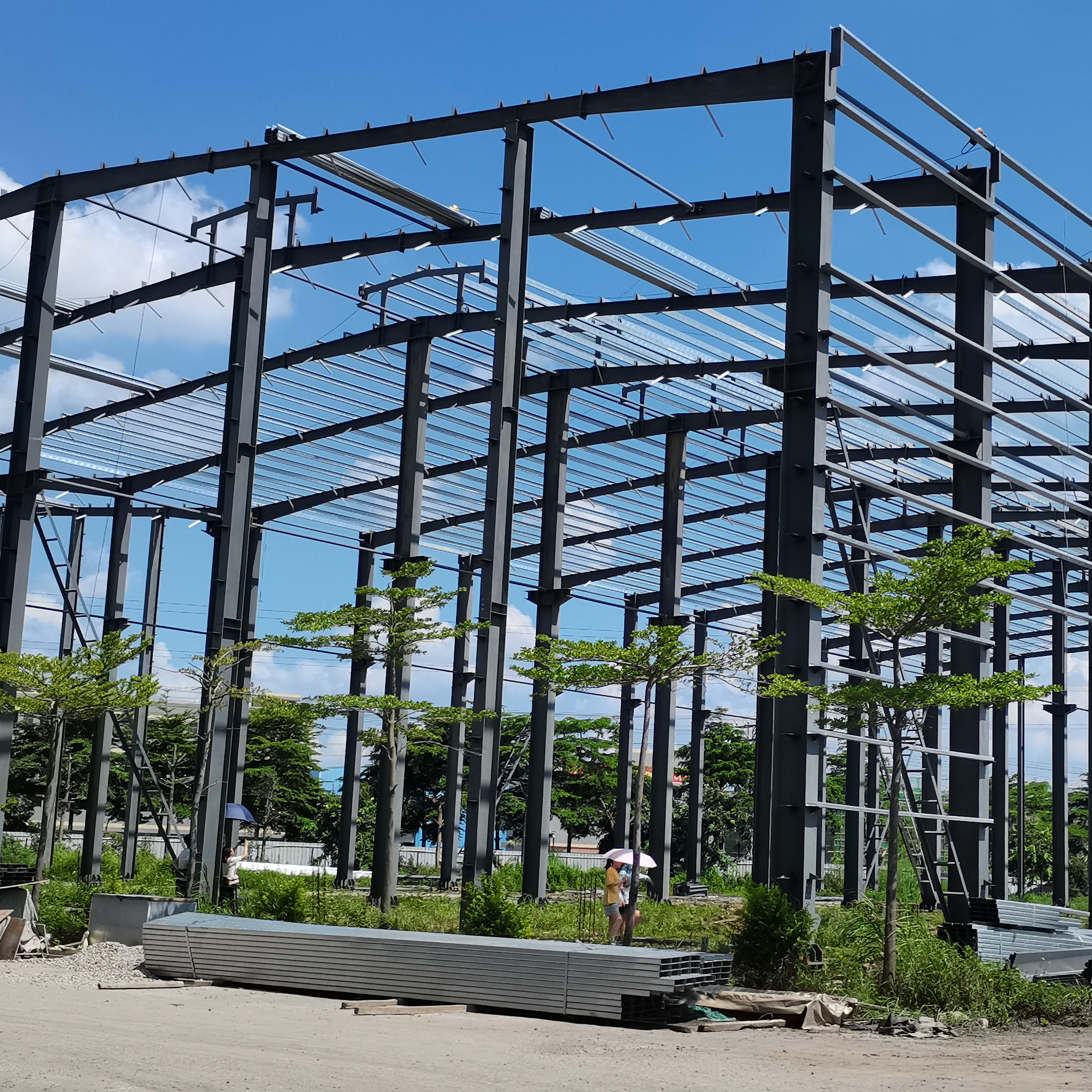

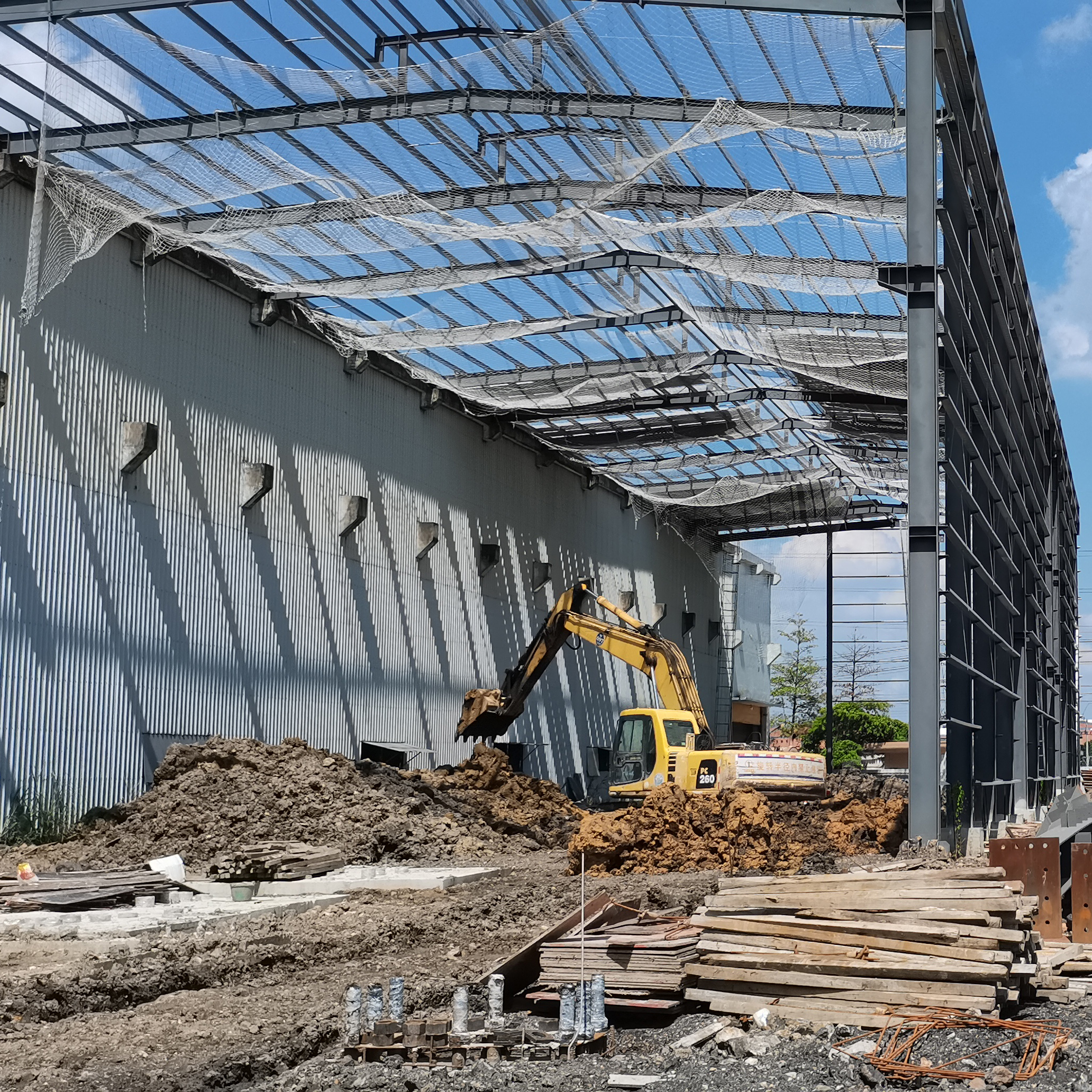

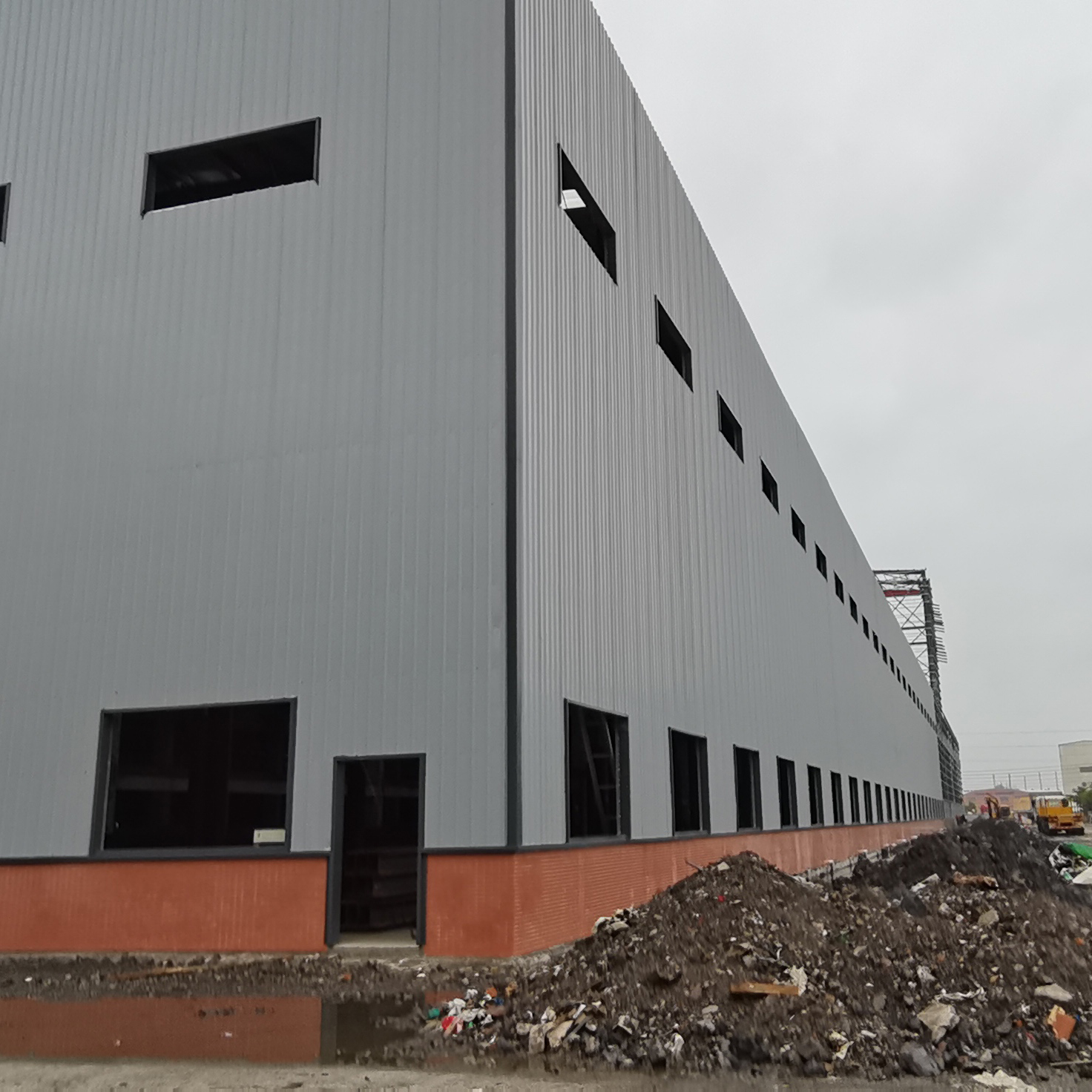

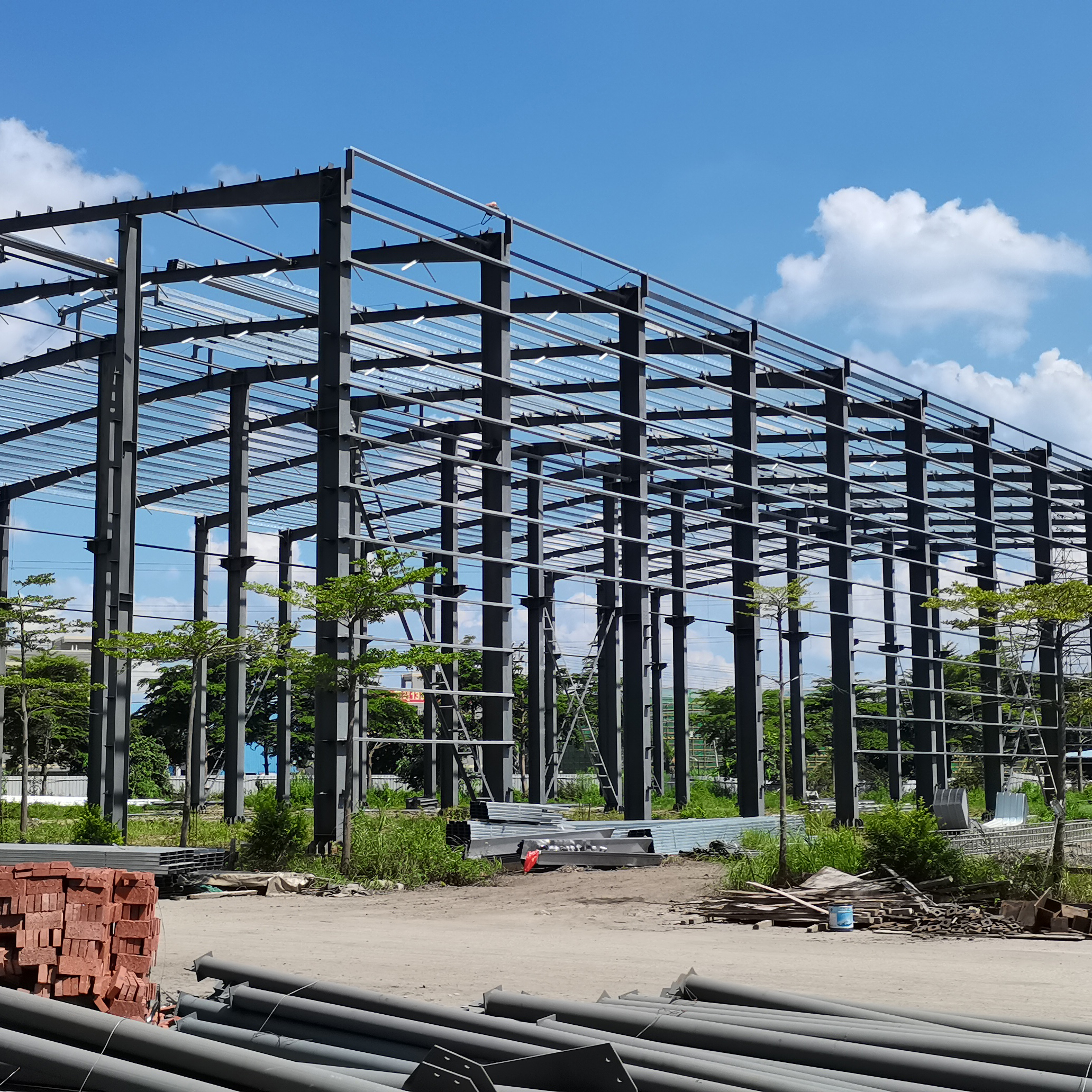

Our Metal Building Barns provide superior strength, weather resistance, and low-maintenance durability—ideal for agricultural, industrial, and storage needs. Built with high-grade galvanized steel, these barns offer long-lasting protection against harsh conditions while maximizing usable space.
✔ Ultra-Durable Steel Construction – Resists rust, rot, termites, and fire (with optional treatments)
✔ Clear-Span Design – No interior columns for unobstructed storage space
✔ Customizable Sizes & Layouts – Choose from single or multi-bay designs (for livestock, hay, tractors, workshops, etc.)
✔ Fast & Easy Installation – Pre-engineered components save time & labor costs
✔ Low Maintenance – No need for repainting or frequent repairs
✔ Weatherproof Options – Insulated panels available for temperature control
Roof Styles: Regular, vertical, or boxed eave
Wall & Roof Panels: Bare steel, insulated, or colored finishes
Doors: Roll-up, sliding, or bi-fold (ideal for large machinery)
Ventilation & Lighting: Optional windows, skylights, or exhaust fans
Contact us for a free quote & design consultation!
Availability: | |
---|---|
Quantity: | |
1. Anchor Bolt and Fastener Part
No. | Item | Specification |
1 | Anchor bolt 1 | M20×400 |
2 | Anchor bolt 2 | M16×260 |
3 | High-strength bolt | M20, M16, 8.8S |
4 | Common bolt | M16 |
5 | Galvanized bolt | M12 |
6 | Turnbuckle bolt | M16 |
7 | Sag rod | Ø12 |
2. Main Steel Structure Part
No. | Item | Specification |
1 | Steel column (Q235B) | HN396×200×7×11 |
2 | Wind column (Q235B) | SHS150×100×5.0 |
3 | Roof truss beam (Q235B) | HN396×200×7×11 |
4 | Floor main beam (Q235B) | HN600×200×11×17 |
5 | Tie bar (Q235B) | SHS100×100×5.0 |
6 | Horizontal/Column brace (Q235B) | Ø16 |
7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
8 | Angle brace (Q235B) | L50×6.0 |
9 | Roof purlin (Q355B) | C250×75×20×2.0 |
10 | Wall purlin (Q355B) | C250×75×20×2.0 |
11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
No. | Item | Specification |
1 | Roof plate | 0.6mm thick, type 840 steel sheet |
2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
3 | Steel man door | 910×2010×2 |
4 | Stainless steel handrail | 1.1m high |
5 | Roof ventilator | 600×600 |
6 | Gutter | 2.0mm galvanized |
7 | Downpipe | Ø110 PVC |
8 | Trimming | 0.55mm thick steel plate |
9 | Hardware accessories | Nails, supports, structural glue, etc. |
1. Anchor Bolt and Fastener Part
No. | Item | Specification |
1 | Anchor bolt 1 | M20×400 |
2 | Anchor bolt 2 | M16×260 |
3 | High-strength bolt | M20, M16, 8.8S |
4 | Common bolt | M16 |
5 | Galvanized bolt | M12 |
6 | Turnbuckle bolt | M16 |
7 | Sag rod | Ø12 |
2. Main Steel Structure Part
No. | Item | Specification |
1 | Steel column (Q235B) | HN396×200×7×11 |
2 | Wind column (Q235B) | SHS150×100×5.0 |
3 | Roof truss beam (Q235B) | HN396×200×7×11 |
4 | Floor main beam (Q235B) | HN600×200×11×17 |
5 | Tie bar (Q235B) | SHS100×100×5.0 |
6 | Horizontal/Column brace (Q235B) | Ø16 |
7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
8 | Angle brace (Q235B) | L50×6.0 |
9 | Roof purlin (Q355B) | C250×75×20×2.0 |
10 | Wall purlin (Q355B) | C250×75×20×2.0 |
11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
No. | Item | Specification |
1 | Roof plate | 0.6mm thick, type 840 steel sheet |
2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
3 | Steel man door | 910×2010×2 |
4 | Stainless steel handrail | 1.1m high |
5 | Roof ventilator | 600×600 |
6 | Gutter | 2.0mm galvanized |
7 | Downpipe | Ø110 PVC |
8 | Trimming | 0.55mm thick steel plate |
9 | Hardware accessories | Nails, supports, structural glue, etc. |
