Prefab Metal Building Kits

Liyou provides top-of-the-line prefab metal building kits designed to simplify the construction process while offering strength, flexibility, and reliability. Whether you're building a warehouse, garage, or even a custom home, our prefab kits are tailored to fit your specific needs.



Key Features

Customizable Sizes and Layouts: Whether you need a small storage shed or a large commercial warehouse, Liyou offers a variety of sizes and configurations to meet your project’s unique requirements.

Energy-Efficient Options: We provide optional insulation and climate control features to ensure energy efficiency, helping to lower your building’s operating costs.

Versatility: Our kits can be used for a wide range of applications, from homes and garages to industrial facilities and commercial spaces.



Availability:
Quantity:
Inquire





What Are Prefab Metal Building Kits


Prefab metal building kits are complete steel building packages that are designed, manufactured, and prepared in advance for easy on-site assembly.

Each kit includes pre-engineered structural components that are factory-fabricated, labeled, and delivered ready for installation, reducing construction time and complexity.

These kits are widely used for industrial, commercial, agricultural, and storage buildings.





What Is Included in a Prefab Metal Building Kit


A typical prefab metal building kit contains all major structural components required for the building frame.

Common kit components include:

Primary steel frames and columns

Roof beams and secondary framing members

Pre-drilled connection plates and bolts

Bracing systems for structural stability

Optional systems such as wall panels, roof panels, and accessories can be supplied based on project needs.





How Prefab Metal Building Kits Are Installed


Prefab metal building kits are designed to simplify on-site construction.

Key installation characteristics:

Components are factory-cut and pre-drilled

Bolt-connected assembly with minimal welding

Clear installation drawings provided

Reduced on-site labor and equipment time

This approach allows faster erection compared to conventional steel construction.





Applications of Prefab Metal Building Kits


Prefab metal building kits are suitable for a wide range of building types.

Typical applications include:

Warehouses and storage facilities

Workshops and industrial buildings

Agricultural buildings and barns

Commercial and utility structures

The modular nature of the kits allows future expansion or relocation.





Advantages of Prefab Metal Building Kits


Compared with traditional building methods, prefab metal building kits offer several advantages:

Shorter construction schedules

Predictable material quality

Reduced on-site fabrication work

Lower overall construction cost

Simplified logistics and installation planning

These benefits make kits an ideal solution for time-sensitive projects.





Customization Options for Building Kits


Although supplied as kits, prefab metal building systems can be customized.

Customization options include:

Building span, length, and height

Roof slope and structural layout

Load design for wind, snow, and seismic zones

Integration with doors, windows, and cranes

Each kit is prepared according to project-specific requirements.

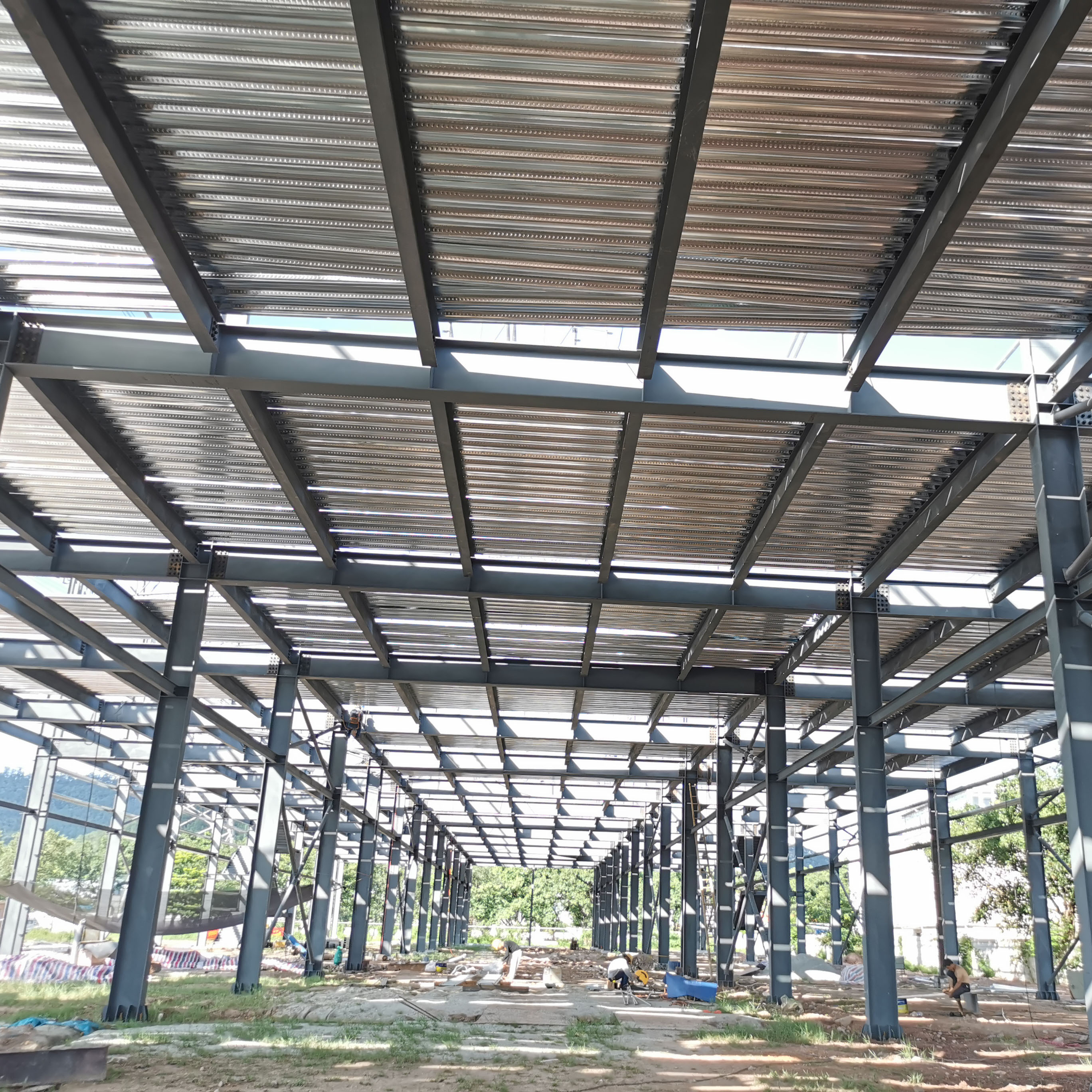

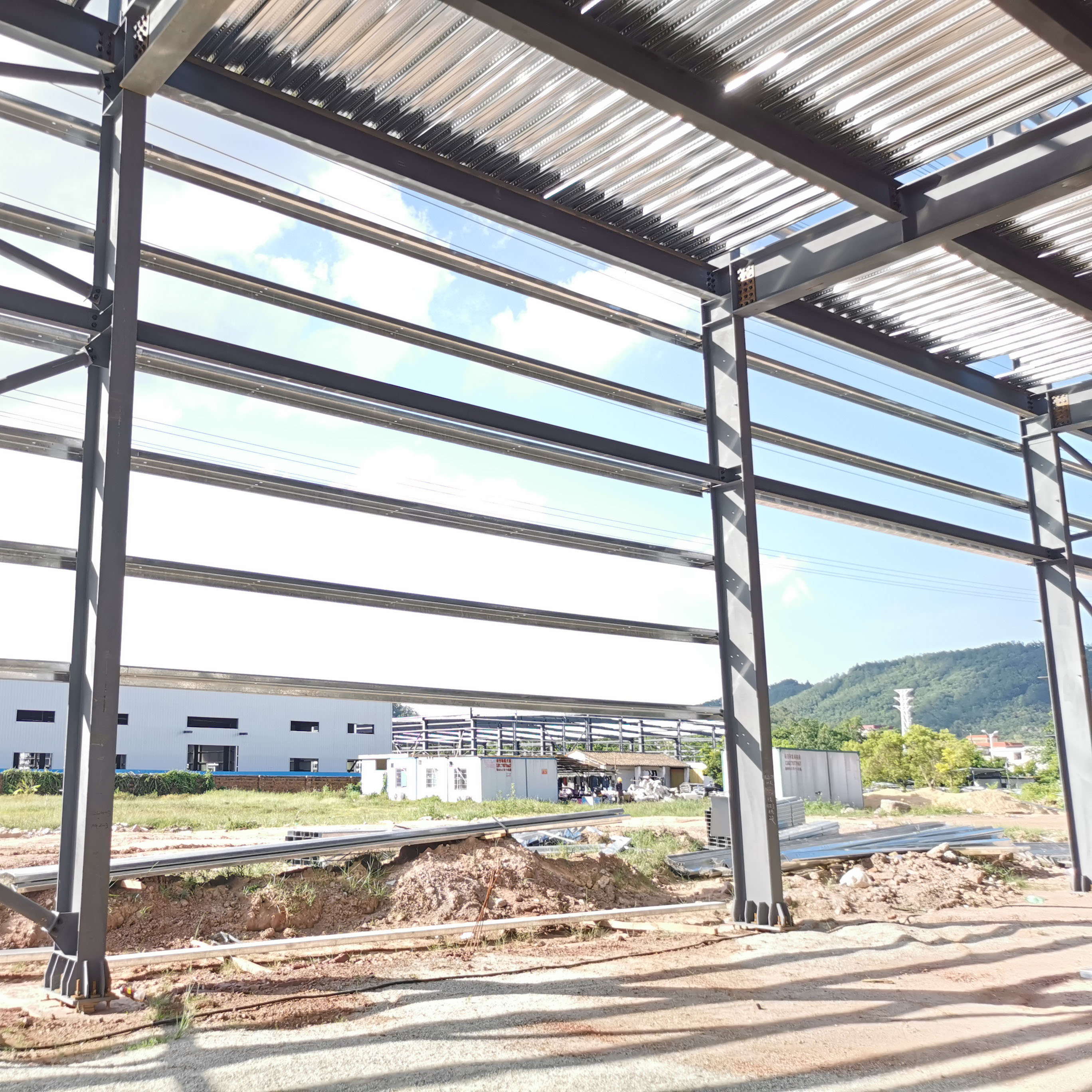

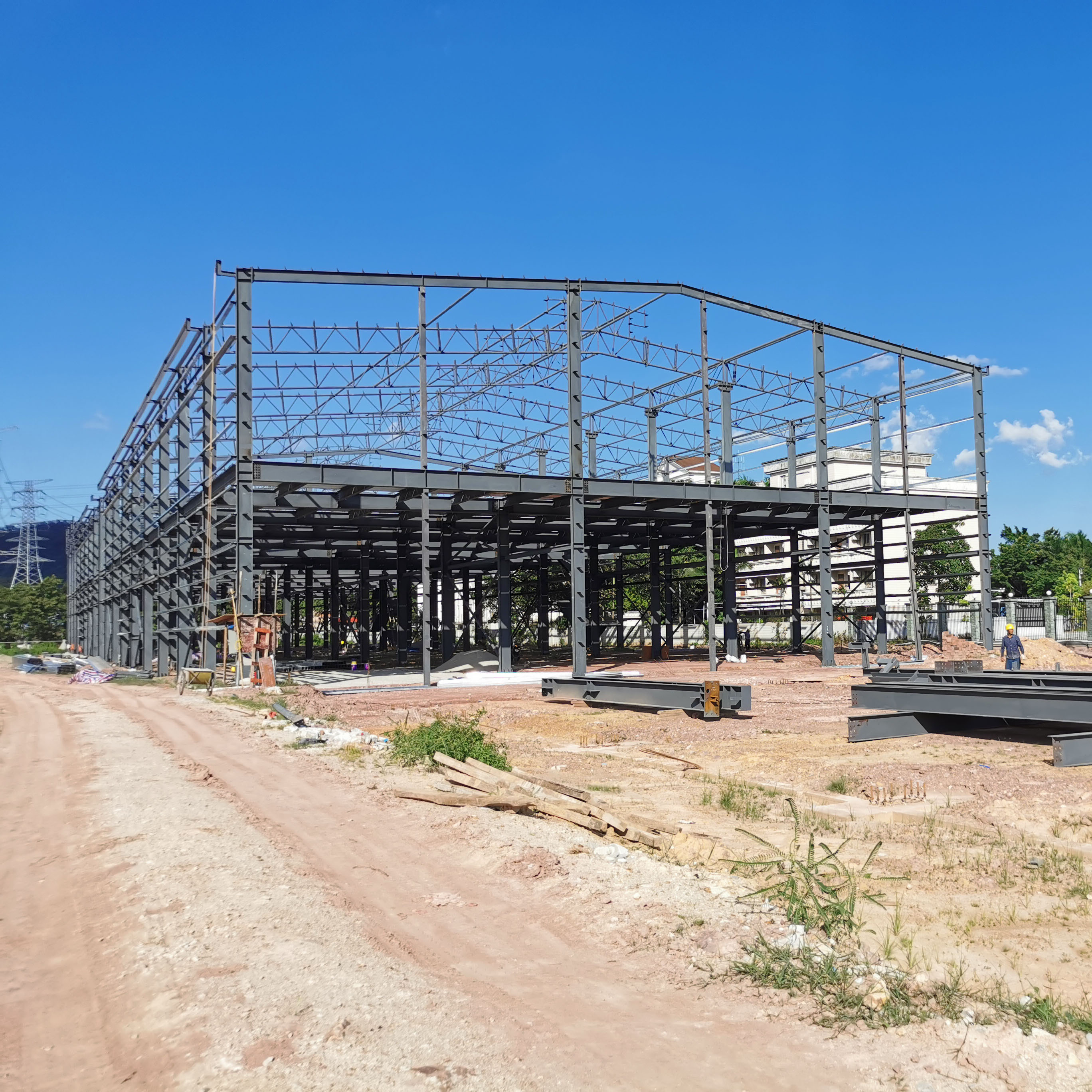

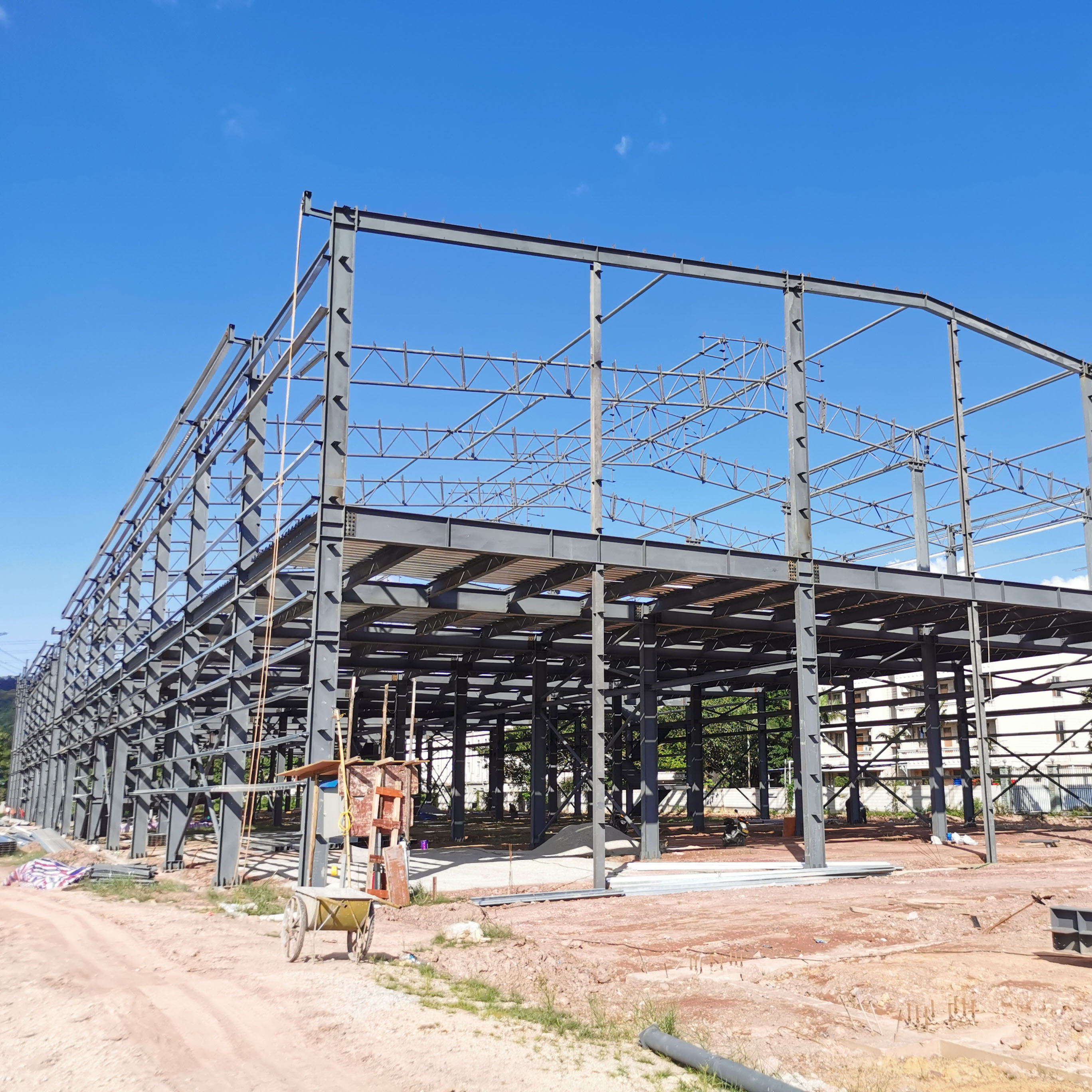

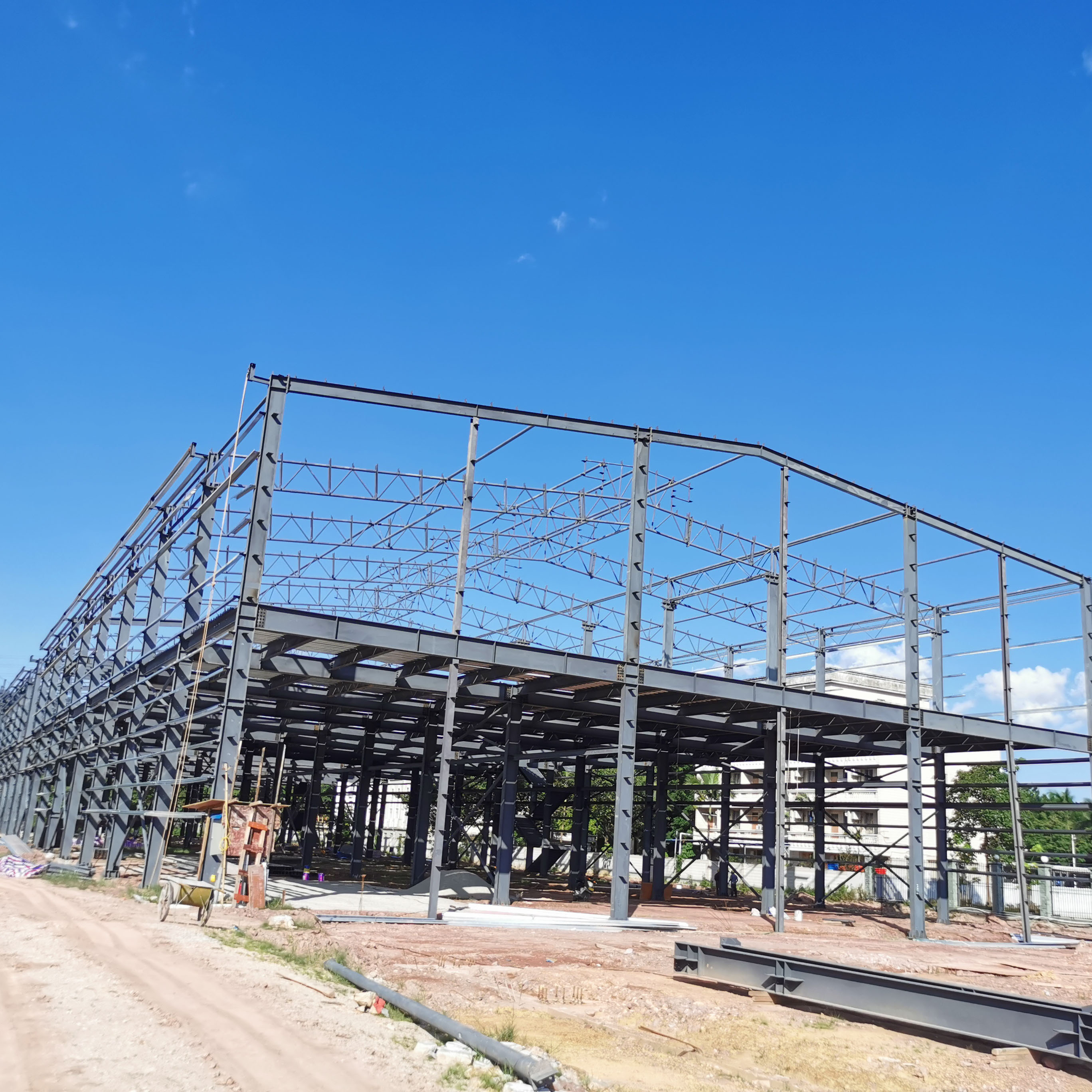

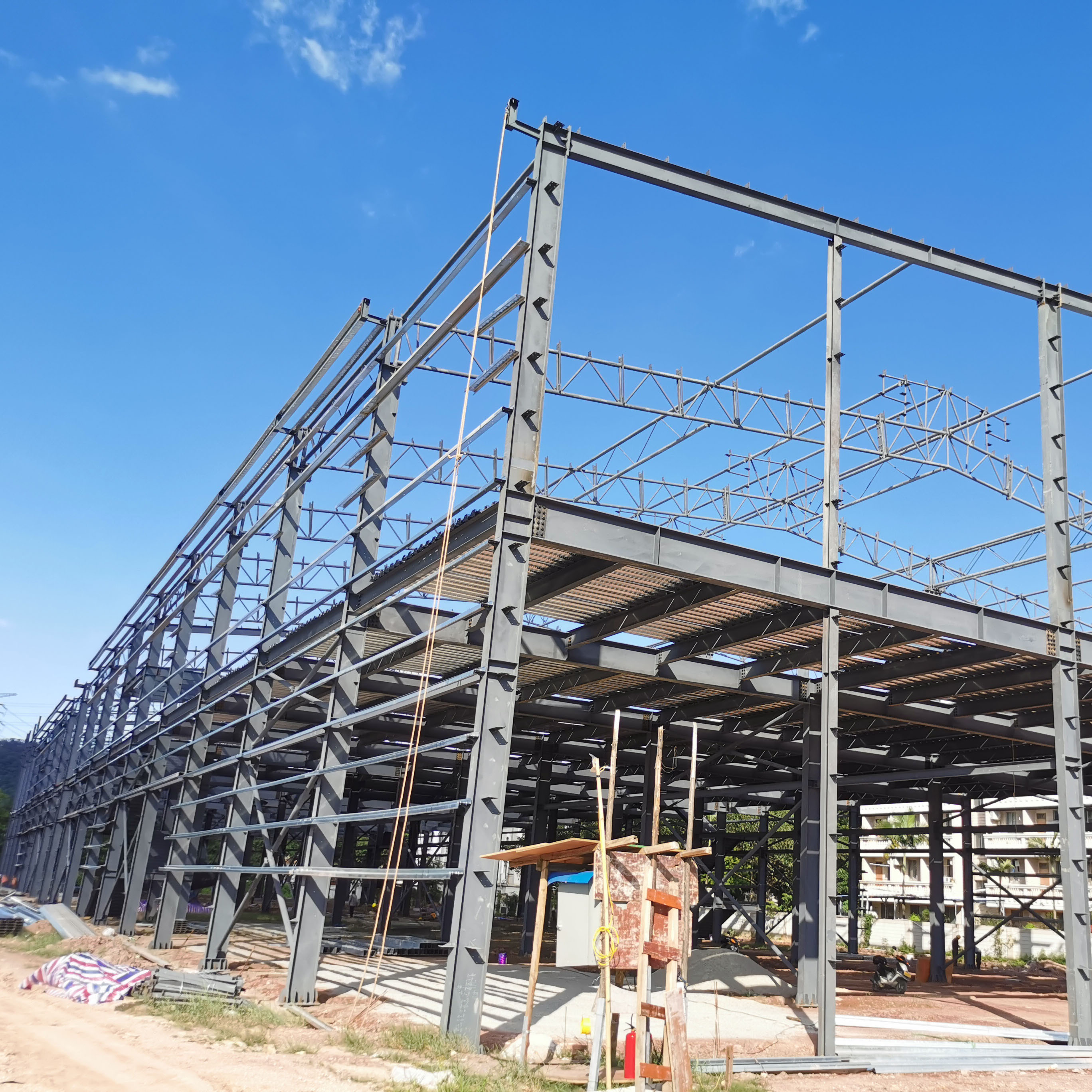

Project Specifications
Dimensions: 31m (L) × 14m (W) × 6.5m (H)

Steel Material: GB Q235B / Q355B

Design: Fully Customized

Required Containers: 2–3 x 40HC

Delivery Time: 20–30 Days

Shipping Time: ~20 Days

Installation Time: 10 Days





Galvanized Steel Advantages

Corrosion Resistance
Zinc Coating Protection:
Acts as a sacrificial layer to prevent rust.

Extended Lifespan:
Reduces maintenance frequency.

Weather Durability:
Performs well in moisture- and salt-prone environments.
Sustainability
Eco-Friendly:
100% recyclable.

Lower Carbon Footprint:
Long service life means fewer replacements.




Aesthetic Appeal
Modern Appearance:
Clean, sleek look.

Custom Finishes Available:
Adaptable to various architectural styles.







Key Features
1
Precision-Engineered Steel Columns & Beams
Every structural component is labeled with a unique identifier for easy on-site identification and smooth assembly.
2
Tailor-Made Solutions
Designed to match your specific requirements for layout, function, and aesthetics.
3
Fast and Efficient Installation
Optimized for quick on-site assembly with clearly marked parts.
4
Cost-Effective & Low Maintenance
Built to last with minimal upkeep, reducing long-term costs.



1
Warranty Information

Applicable Products：Steel Structure Warehouses, Workshops, Multi-Story Buildings

I-Beam Structural Warranty: 50 Years
Galvalume Roof Warranty: 25 Years
Standing Seam Roof Warranty: 20 Years
Read More



Why Choose Liyou Steel Structure
At Liyou, every project begins with clear communication and collaboration. We take time to understand how your structure will be used, where it will be located, and your preferences for design—inside and out.

Our engineers also consider environmental factors like wind and snow loads, along with insulation needs, to ensure your hangar is safe, compliant, and durable. Once your ideal building kit is identified, we help customize it with doors, windows, and color options—flexibly and cost-effectively.

From concept to completion, we deliver quality materials, thoughtful design, and professional support to bring your vision to life.
Read More


Loading and Shipping


1. Anchor Bolt and Fastener Part


No.ItemSpecification
1Anchor bolt 1M20×400
2Anchor bolt 2M16×260
3High-strength boltM20, M16, 8.8S
4Common boltM16
5Galvanized boltM12
6Turnbuckle boltM16
7Sag rodØ12



2. Main Steel Structure Part


No.ItemSpecification
1Steel column (Q235B)HN396×200×7×11
2Wind column (Q235B)SHS150×100×5.0
3Roof truss beam (Q235B)HN396×200×7×11
4Floor main beam (Q235B)HN600×200×11×17
5Tie bar (Q235B)SHS100×100×5.0
6Horizontal/Column brace (Q235B)Ø16
7Steel stairs[250#、[200#、[160# channel steel, 4mm checkered plate]
8Angle brace (Q235B)L50×6.0
9Roof purlin (Q355B)C250×75×20×2.0
10Wall purlin (Q355B)C250×75×20×2.0
11Connecting plate (Q235B)6mm–16mm



3. Enclosure Part


No.ItemSpecification
1Roof plate0.6mm thick, type 840 steel sheet
2Exterior wall0.6mm thick, type 900 steel sheet
3Steel man door910×2010×2
4Stainless steel handrail1.1m high
5Roof ventilator600×600
6Gutter2.0mm galvanized
7DownpipeØ110 PVC
8Trimming0.55mm thick steel plate
9Hardware accessoriesNails, supports, structural glue, etc.
