Guangdong LiYou Steel Structure Engineering Co., Ltd. +8619147784007 liyousteelstructure@outlook.com
 |
| Quantity: | |
|---|---|
Workshop
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
Steel Workshop, garage shed, storage closet, buildings prefab workshop, steel warehouse, Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and kids, Outdoor, Storage & Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage & Shed, Gym, Laundry
Modern
Guangdong, China
Lifetime
engineer guidance
Liyou
LY001
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
Single item
1X1X1 cm
1.000 kg
High Strength & Durability: Examples show steel frames supporting heavy loads and resisting environmental stress.
Versatile Applications: Projects include warehouses, gyms, factories, workshops, commercial buildings, and modular residential units.
Prefabricated Components: Many examples use factory-fabricated beams and columns for fast on-site assembly.
Customizable Design: Width, length, height, roof type, and wall panels tailored to project requirements.
Sustainable Construction: Efficient material usage reduces waste while ensuring long-term performance.
| Example Type | Description | Key Features |
|---|---|---|

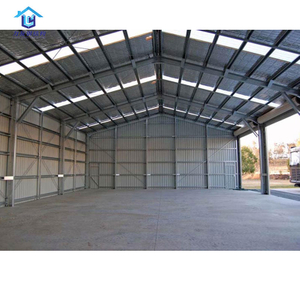

| Industrial Warehouse | Large-span storage building | Prefabricated I-beams, H-columns, steel roof decking |
| Commercial Gymnasium | Multi-purpose sports facility | Wide clear spans, durable steel trusses, modular roof panels |
| Agricultural Barn | Livestock and storage barn | High-strength frame, optional insulated panels |
| Office & Retail | Commercial spaces | Custom layouts, open floor plans, modern steel beams |
| Modular Residential Units | Prefabricated homes | Lightweight steel frames, fast assembly, scalable design |
Faster Construction: Prefabricated steel components reduce on-site labor and assembly time.
Long-Term Reliability: Steel frames resist corrosion, pests, and fire, ensuring low maintenance.
Design Flexibility: Wide spans, open layouts, and modular options suit multiple applications.
Cost Efficiency: Reduced material waste and faster construction lead to overall savings.
Evaluate Your Needs: Identify whether the project requires wide spans, multi-story frames, or modular units.
Select Suitable Components: Consider I-beams, H-columns, steel trusses, and decking options.
Visualize Layouts: Study examples to plan space optimization, workflow, and building orientation.
Consult Professionals: Work with structural engineers and suppliers to adapt examples to local codes and requirements.
Dimensions & Layouts: Fully customizable steel frame dimensions to meet your project needs.
Roof & Wall Options: Gable, arched, flat roofs; insulated or standard panels.
Optional Features: Doors, windows, skylights, side panels, and accessories.
Quotation Assistance: Contact us for a tailored steel frame solution and cost estimate.
PRODUCT SPECIFICATIONS
| No | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
