Optimize your building’s roof system with LiYou’s expert steel roof truss design services. Our steel roof truss designs are engineered for maximum strength-to-weight ratios, ideal for warehouses, airports, and residential villas. Using software like PKPM and 3D3S, we create steel roof truss designs that accommodate snow loads, wind pressures, and aesthetic requirements—all while reducing material waste.

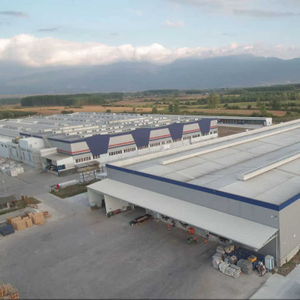

From the Philippine Logistics Warehouse (11,790㎡) to the Guangxi Health Food Plant, our steel roof truss designs have spanned 12+ countries. We use galvanized or painted steel trusses with precision-cut connectors for easy installation. Every steel roof truss design undergoes 3+ quality checks, including anti-rust treatment and load simulations.
Why LiYou?
20+ years of steel roof truss design experience (Senior Engineer Jim Xu).
Custom spans up to 60 meters without intermediate supports.
CE and ISO-certified manufacturing.
On-site installation guidance available.
| Quantity: | |
|---|---|
Steel
Online technical support
Metal Frame School/Classroom Project
Guangdong, China
Industrial Area
3 years
total solution for projects
LYB-001
Metal Frame School/Classroom Project
Industrial
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
Single item
1X1X1 cm
1.000 kg
High Load-Bearing Capacity: Supports heavy roof loads, including snow, wind, and mechanical equipment.
Long Span Design: Large open interiors without the need for additional columns.
Durable Materials: High-strength steel resists corrosion, fire, and environmental wear.
Customizable Layouts: Gable, mono-pitch, curved, or multi-span trusses according to building requirements.
Prefabricated Components: Factory-made trusses enable efficient assembly and reduced labor costs.
Versatile Applications: Warehouses, industrial buildings, aircraft hangars, commercial structures, and sports facilities.
| Component | Description |
|---|---|
| Top Chord | Upper horizontal members of the truss supporting the roof |
| Bottom Chord | Lower horizontal members supporting the ceiling or floor below |
| Web Members | Diagonal and vertical components distributing loads |
| Gusset Plates | Connect and secure all truss members at joints |
| Optional Features | Purlins, roofing panels, insulation, and ventilation components |
Planning & Structural Analysis: Calculate load requirements, span, roof slope, and truss type.
Material Selection: Choose steel grade, purlin type, and protective coatings.
Fabrication: Prefabricated steel truss components produced according to design specifications.
Installation: Trusses lifted and secured, followed by purlin and roof panel attachment.
Inspection & Safety Check: Ensure all joints, bolts, and welds meet structural standards.
Warehouses & Storage Buildings: Long-span trusses provide column-free interiors.
Industrial Facilities: Support heavy machinery, cranes, or mezzanines.
Aircraft Hangars & Workshops: Wide open space for aircraft, vehicles, or equipment.
Commercial & Sports Buildings: Stadiums, gymnasiums, and exhibition halls with high load requirements.
Truss Type & Layout: Gable, mono-pitch, curved, or multi-span.
Materials & Finish: Galvanized steel, powder-coated, or painted finishes for corrosion protection and aesthetics.
Optional Features: Purlins, roofing panels, insulation, skylights, and ventilation.
Request a Quote: Submit project specifications for a custom steel roof truss design and pricing.
| No | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||

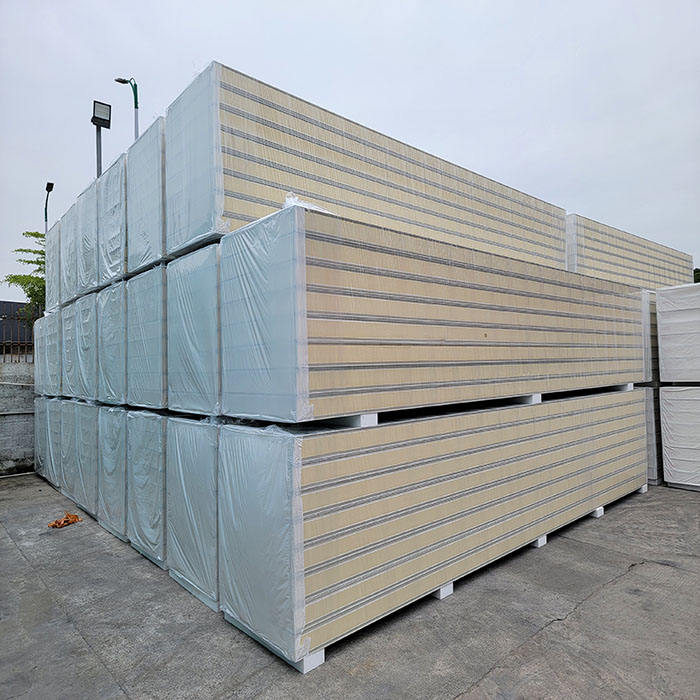

| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
