Lower Carbon Footprint:

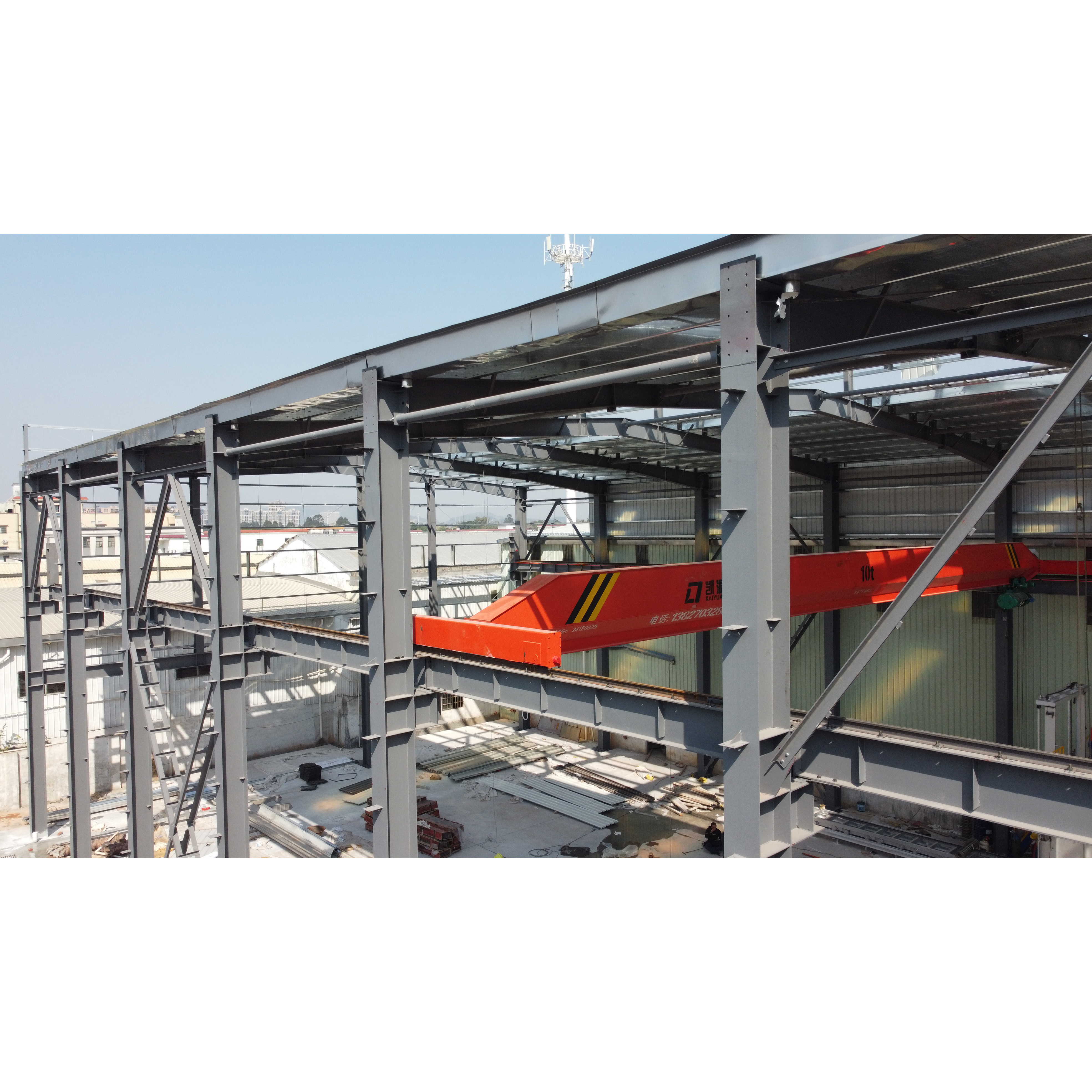

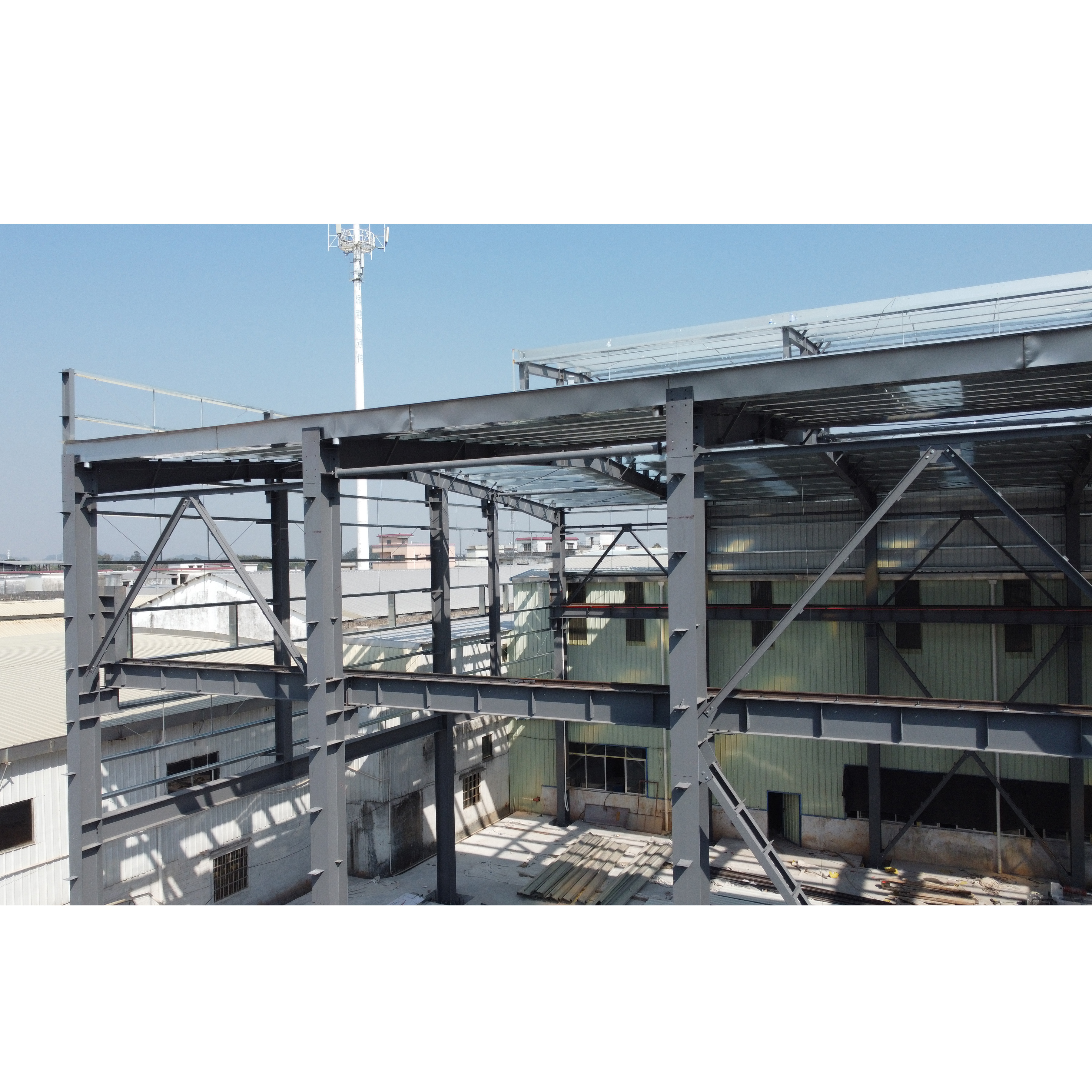

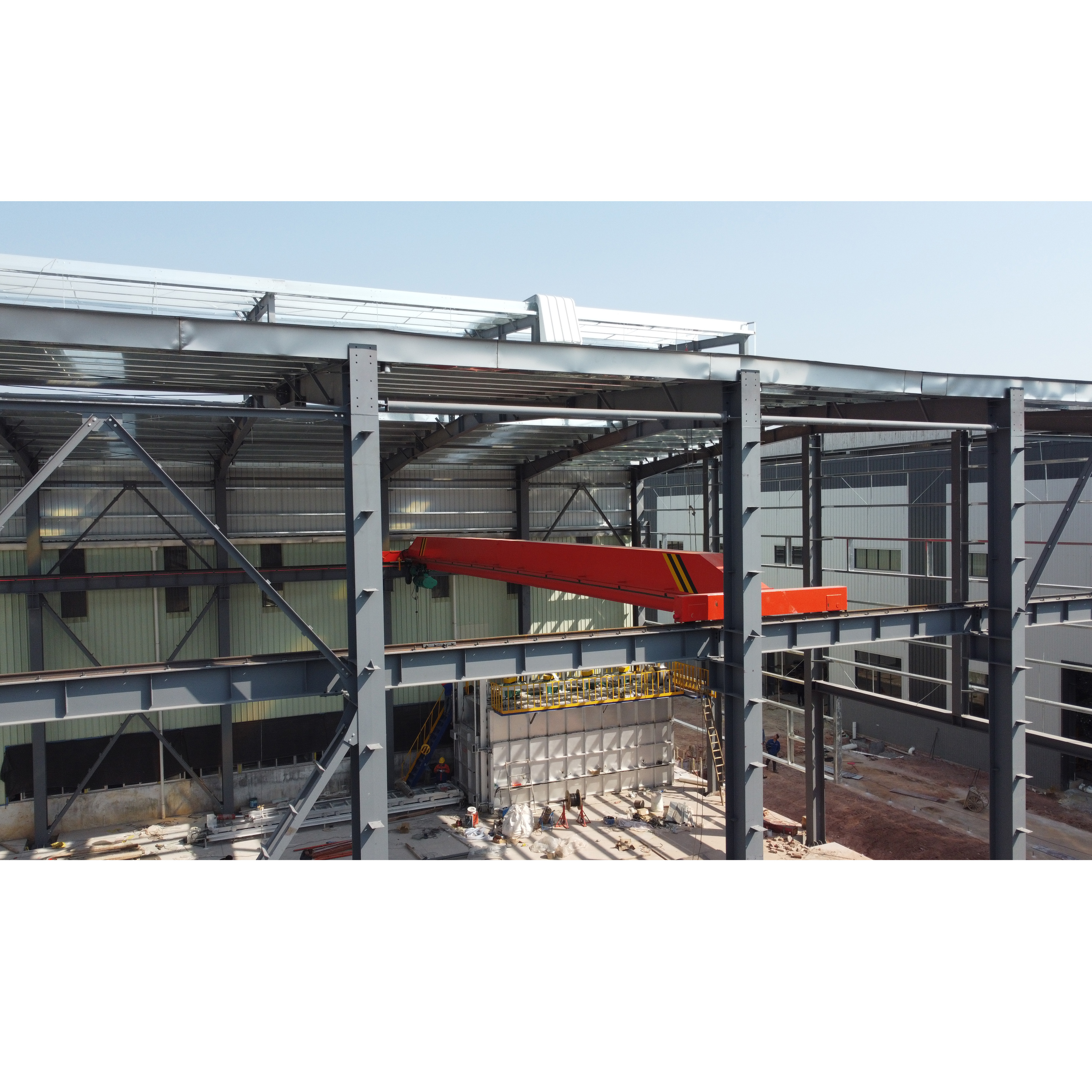

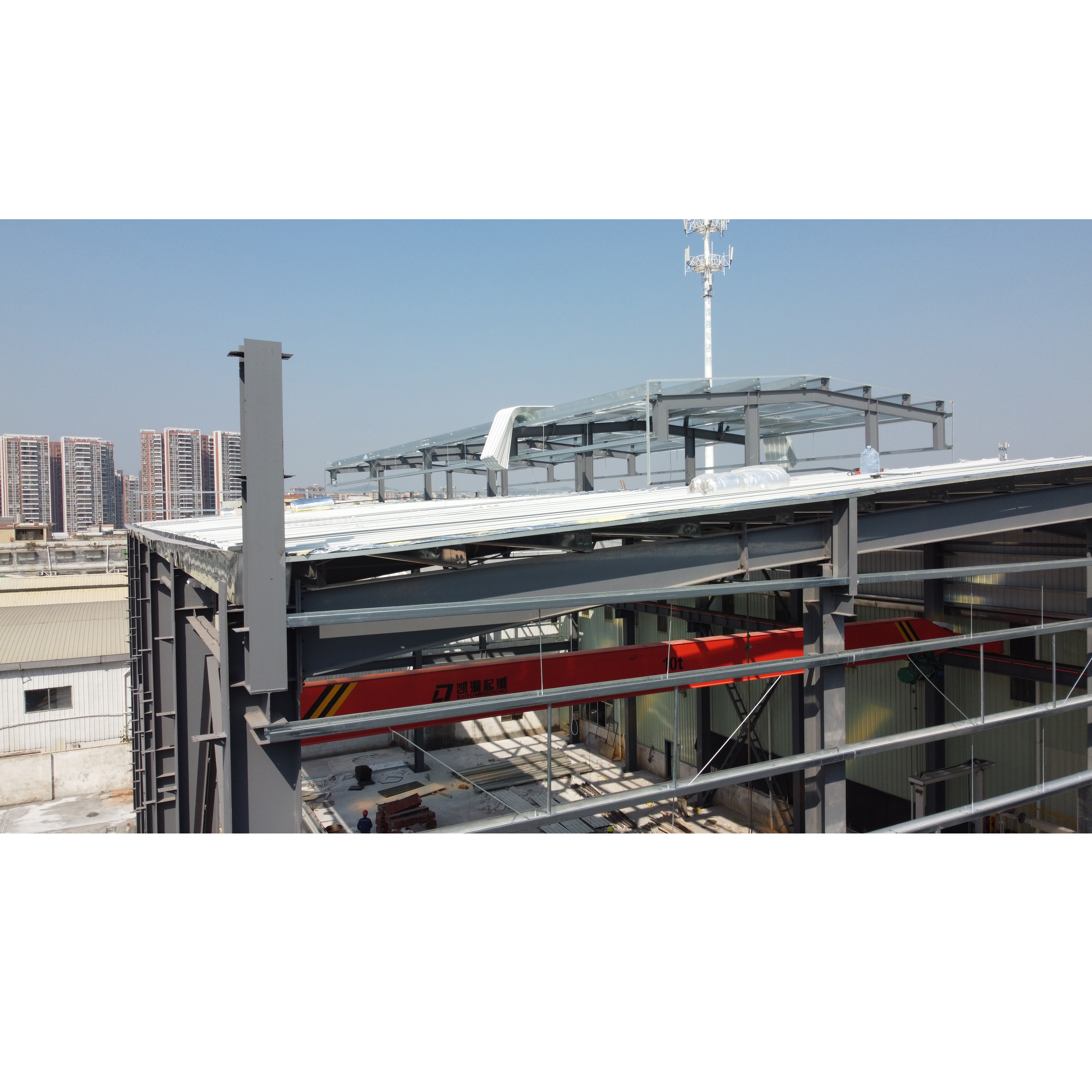

Liyou specializes in steel frame structures that combine superior strength with design flexibility. Our steel frame systems provide a robust and cost-effective foundation for all kinds of building applications—from industrial warehouses to commercial buildings and residential projects.
Dimensions: Fully customizable to meet your project's size and load-bearing requirements.
Coating Options: Available in galvanized, powder-coated, or painted finishes for superior corrosion resistance.
Insulation: Optional insulated panels for improved thermal control and energy savings.
Foundation Options: Compatible with various foundation systems such as concrete slabs, pier foundations, or anchor bolt systems.
Compliance: Built to meet international standards for safety, strength, and performance.
Custom Steel Frames: Liyou's steel frame structures are fully customizable to suit your specific needs, whether for a small building or a large-scale project.
Fast & Efficient Construction: Prefabricated components ensure that your steel frame building is quick to assemble, saving you both time and money.
Affordable Solutions: Liyou offers competitive pricing, providing high-value steel frame solutions that deliver cost savings in both short and long-term.
Proven Expertise: With a strong global presence and extensive experience, Liyou is a trusted name in steel frame structure fabrication, ensuring quality and reliability in every project.
| Availability: | |
|---|---|
| Quantity: | |
1. Anchor Bolt and Fastener Part
| No. | Item | Specification |
| 1 | Anchor bolt 1 | M20×400 |
| 2 | Anchor bolt 2 | M16×260 |
| 3 | High-strength bolt | M20, M16, 8.8S |
| 4 | Common bolt | M16 |
| 5 | Galvanized bolt | M12 |
| 6 | Turnbuckle bolt | M16 |
| 7 | Sag rod | Ø12 |
2. Main Steel Structure Part
| No. | Item | Specification |
| 1 | Steel column (Q235B) | HN396×200×7×11 |
| 2 | Wind column (Q235B) | SHS150×100×5.0 |
| 3 | Roof truss beam (Q235B) | HN396×200×7×11 |
| 4 | Floor main beam (Q235B) | HN600×200×11×17 |
| 5 | Tie bar (Q235B) | SHS100×100×5.0 |
| 6 | Horizontal/Column brace (Q235B) | Ø16 |
| 7 | Steel stairs | [250#、[200#、[160# channel steel, 4mm checkered plate] |
| 8 | Angle brace (Q235B) | L50×6.0 |
| 9 | Roof purlin (Q355B) | C250×75×20×2.0 |
| 10 | Wall purlin (Q355B) | C250×75×20×2.0 |
| 11 | Connecting plate (Q235B) | 6mm–16mm |
3. Enclosure Part
| No. | Item | Specification |

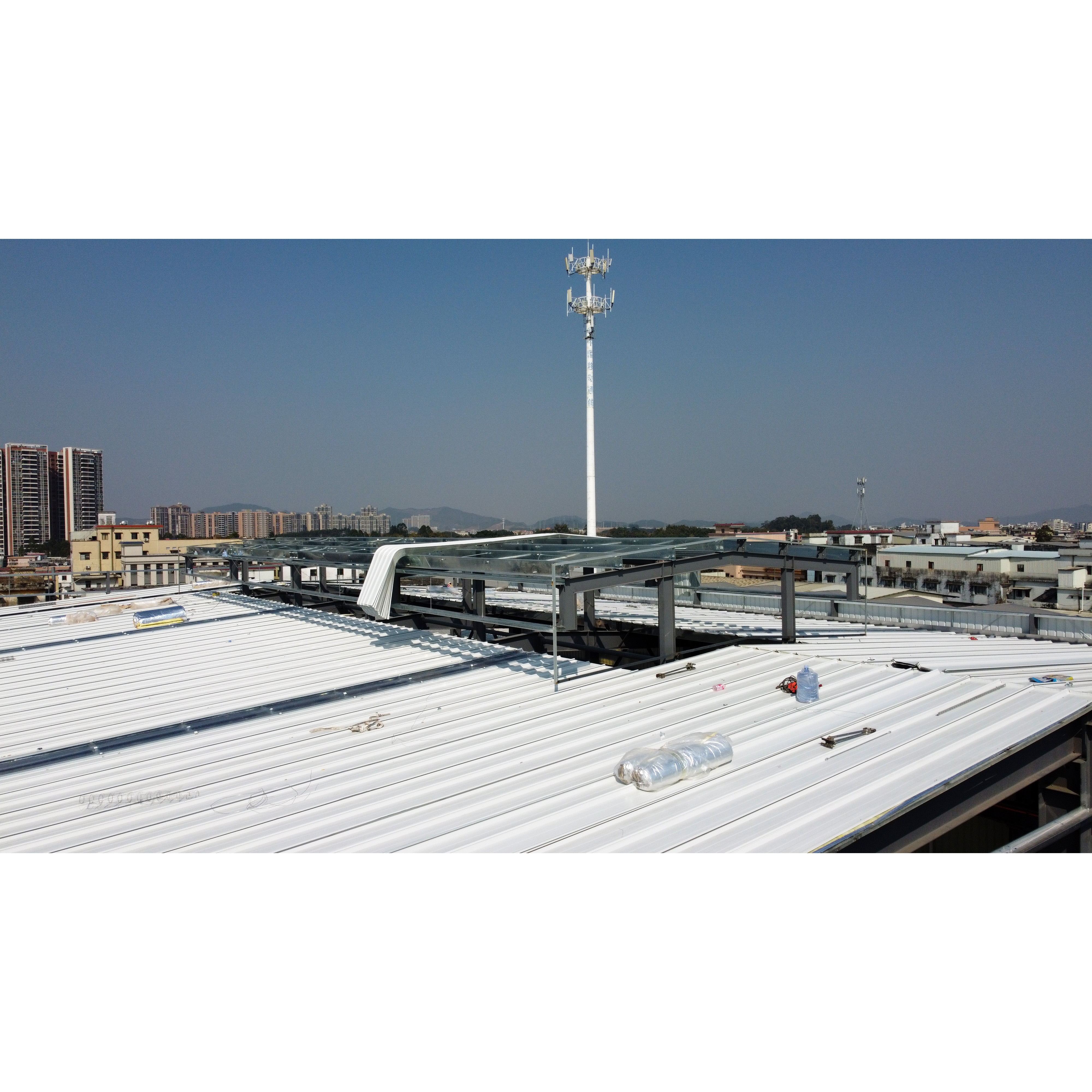

| 1 | Roof plate | 0.6mm thick, type 840 steel sheet |
| 2 | Exterior wall | 0.6mm thick, type 900 steel sheet |
| 3 | Steel man door | 910×2010×2 |
| 4 | Stainless steel handrail | 1.1m high |
| 5 | Roof ventilator | 600×600 |
| 6 | Gutter | 2.0mm galvanized |
| 7 | Downpipe | Ø110 PVC |
| 8 | Trimming | 0.55mm thick steel plate |
| 9 | Hardware accessories | Nails, supports, structural glue, etc. |
