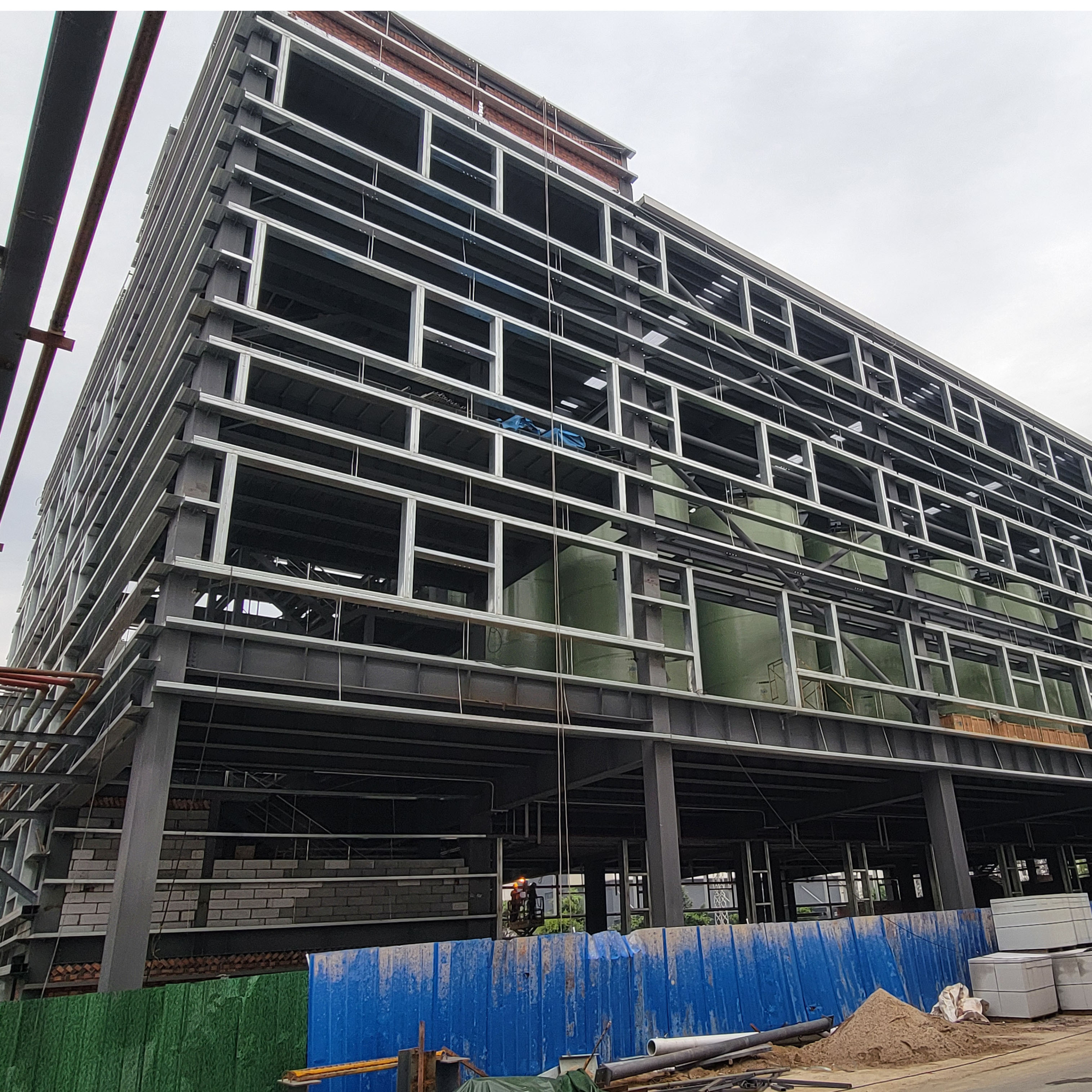

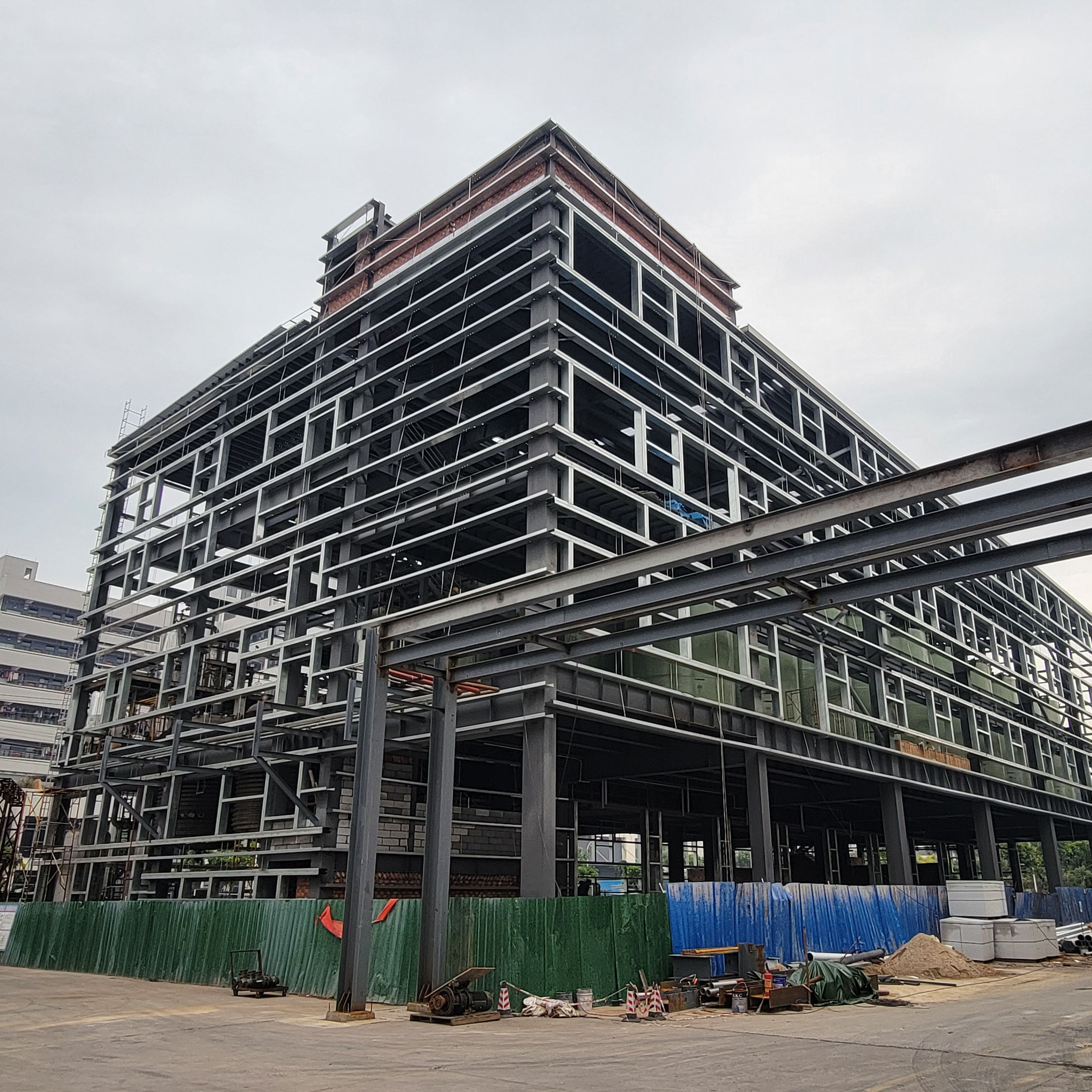

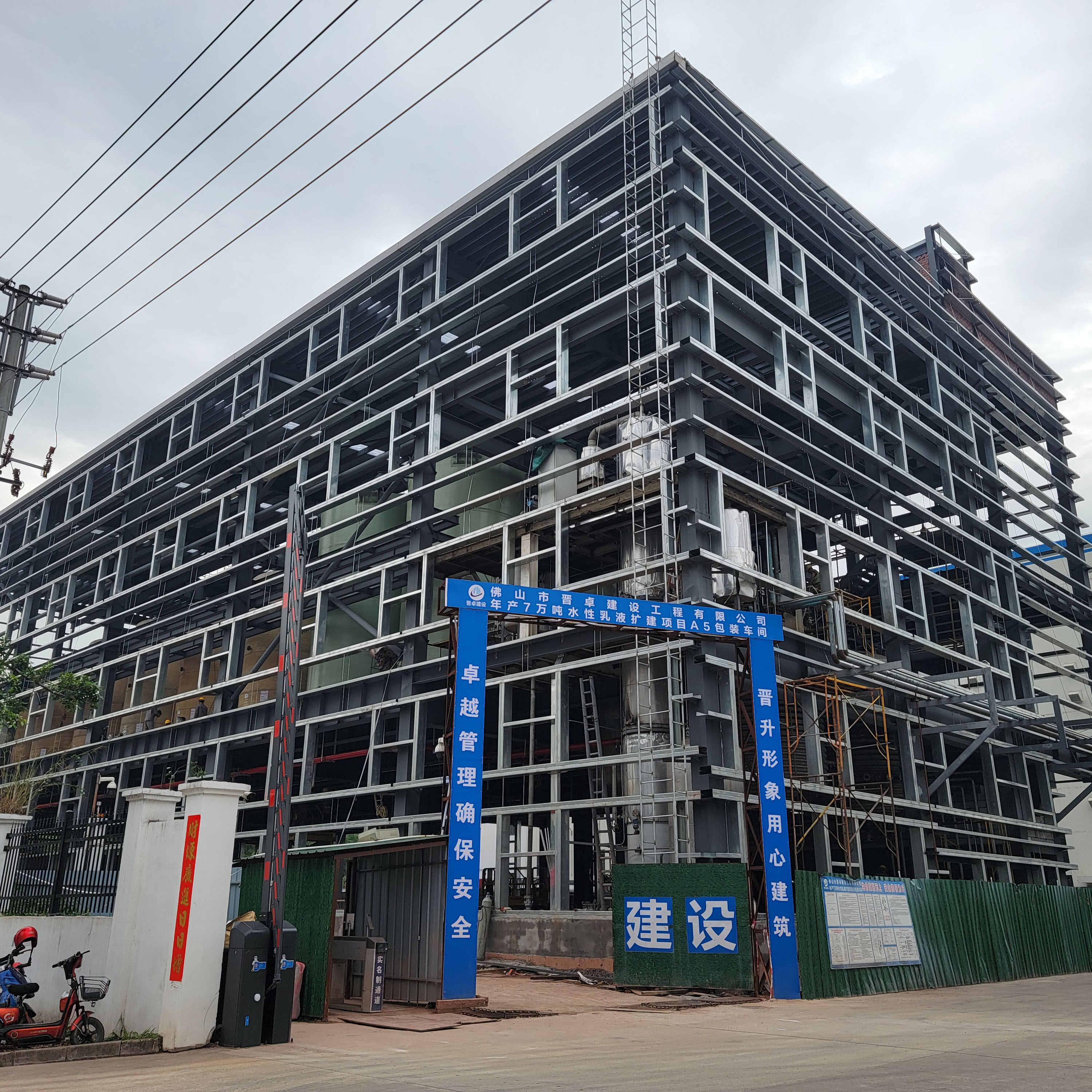

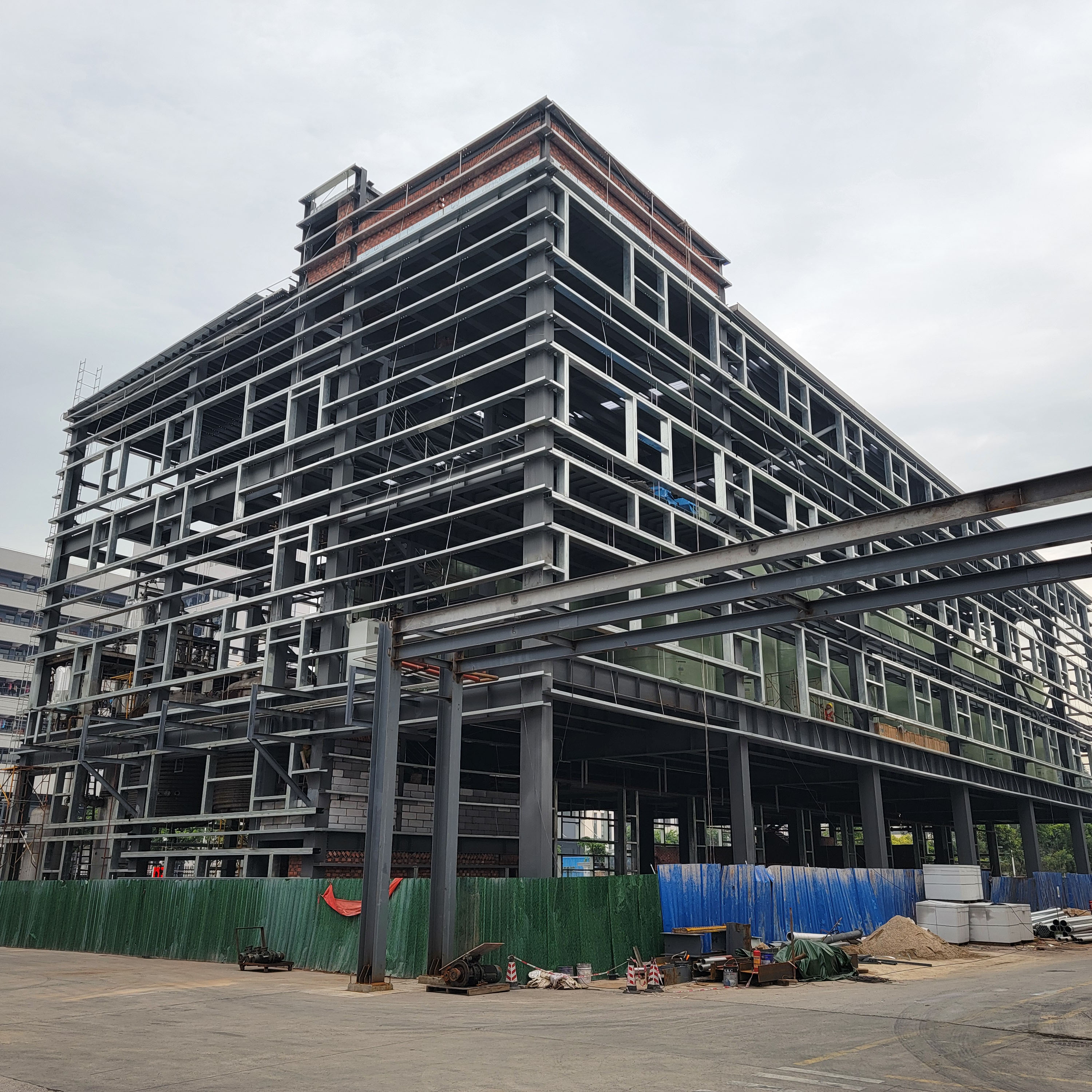

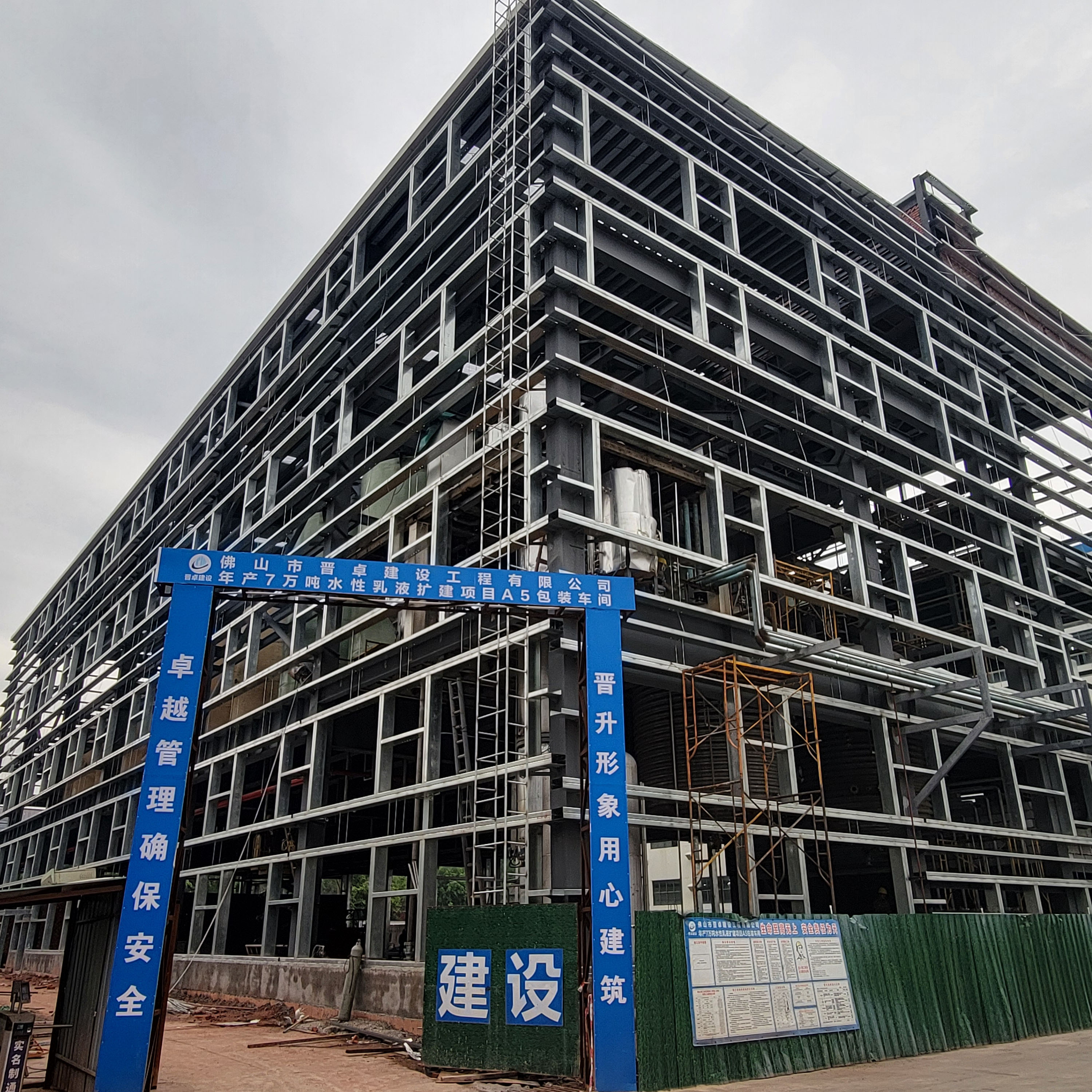

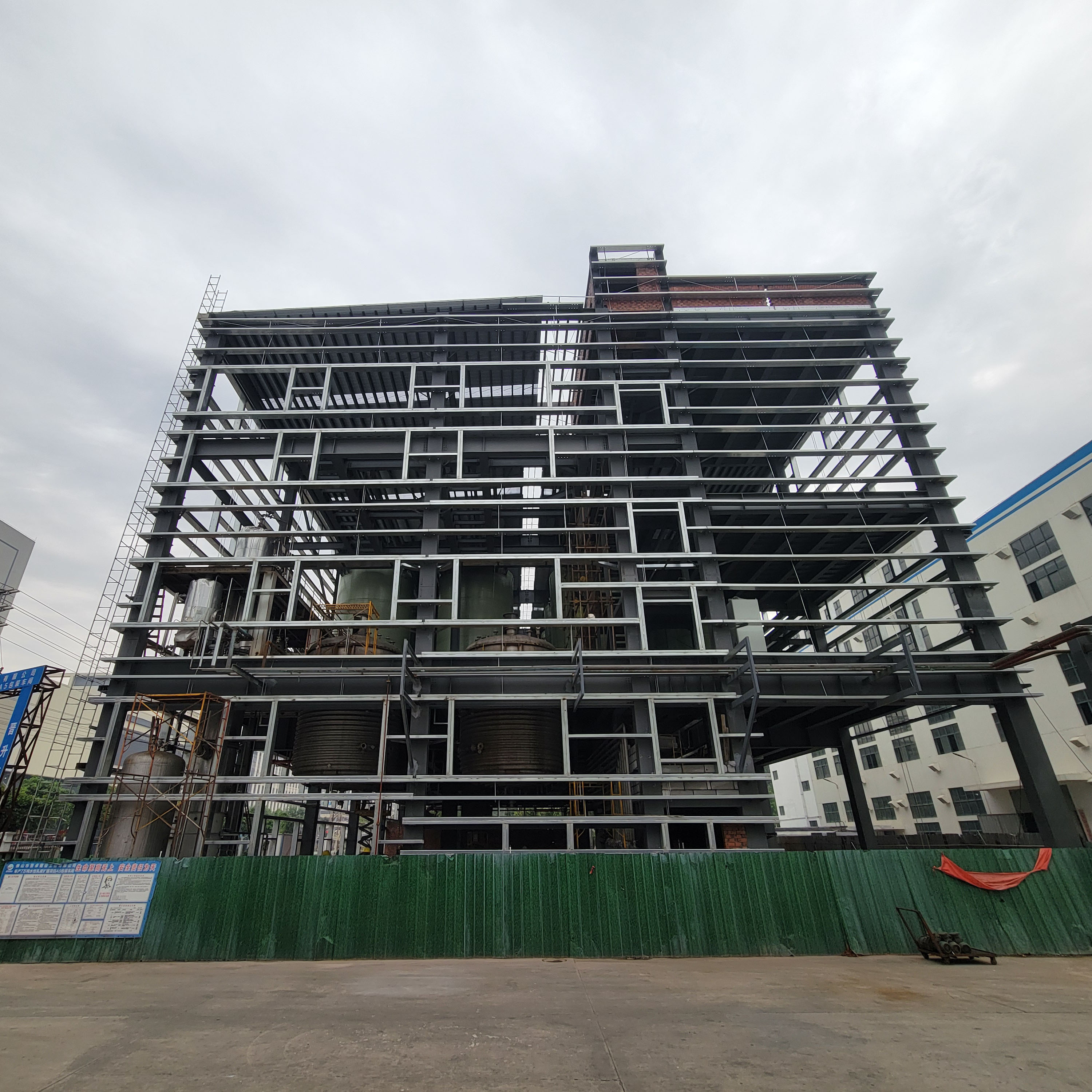

Steel Structure Building

At Liyou, we specialize in crafting steel structure buildings that deliver exceptional durability, flexibility, and efficiency for every type of construction project. Backed by advanced fabrication technology and strict quality control, our structures are trusted worldwide for their strength and adaptability.



Applications

Industrial Use: Production workshops, warehouses, machinery plants.

Commercial Facilities: Malls, office blocks, supermarkets.

Agricultural Buildings: Grain storage, livestock sheds, processing units.

Residential Projects: Steel villas, modular homes, staff dormitories.

Public Infrastructure: Terminals, exhibition centers, indoor stadiums.



Why Choose Liyou

Heavy-Duty Build: We don't just meet standards—we exceed them with steel that's visibly thicker and stronger.

Custom Solutions: Tailored for your space, climate, budget, and load demands.

Export-Ready: Proven track record in Asia, Africa, the Americas, and Australia.

Seamless Process: From 3D design to on-site assembly guidance, we handle it all.

Value & Performance: Factory-direct pricing backed by professional engineering and top-tier materials.

Availability:
Quantity:



Project Specifications
Dimensions: 31m (L) × 14m (W) × 6.5m (H)

Steel Material: GB Q235B / Q355B

Design: Fully Customized

Required Containers: 2–3 x 40HC

Delivery Time: 20–30 Days

Shipping Time: ~20 Days

Installation Time: 10 Days





Galvanized Steel Advantages

Corrosion Resistance
Zinc Coating Protection:
Acts as a sacrificial layer to prevent rust.

Extended Lifespan:
Reduces maintenance frequency.

Weather Durability:
Performs well in moisture- and salt-prone environments.
Sustainability
Eco-Friendly:
100% recyclable.

Lower Carbon Footprint:
Long service life means fewer replacements.




Aesthetic Appeal
Modern Appearance:
Clean, sleek look.

Custom Finishes Available:
Adaptable to various architectural styles.







Key Features
1
Precision-Engineered Steel Columns & Beams
Every structural component is labeled with a unique identifier for easy on-site identification and smooth assembly.
2
Tailor-Made Solutions
Designed to match your specific requirements for layout, function, and aesthetics.
3
Fast and Efficient Installation
Optimized for quick on-site assembly with clearly marked parts.
4
Cost-Effective & Low Maintenance
Built to last with minimal upkeep, reducing long-term costs.



Warranty Information

Applicable Products:Steel Structure Warehouses, Workshops, Multi-Story Buildings

I-Beam Structural Warranty: 50 Years
Galvalume Roof Warranty: 25 Years
Standing Seam Roof Warranty: 20 Years



Why Choose Liyou Steel Structure
At Liyou, every project begins with clear communication and collaboration. We take time to understand how your structure will be used, where it will be located, and your preferences for design—inside and out.

Our engineers also consider environmental factors like wind and snow loads, along with insulation needs, to ensure your hangar is safe, compliant, and durable. Once your ideal building kit is identified, we help customize it with doors, windows, and color options—flexibly and cost-effectively.

From concept to completion, we deliver quality materials, thoughtful design, and professional support to bring your vision to life.


Loading and Shipping


1. Anchor Bolt and Fastener Part


No.ItemSpecification
1Anchor bolt 1M20×400
2Anchor bolt 2M16×260
3High-strength boltM20, M16, 8.8S
4Common boltM16
5Galvanized boltM12
6Turnbuckle boltM16
7Sag rodØ12



2. Main Steel Structure Part


No.ItemSpecification
1Steel column (Q235B)HN396×200×7×11
2Wind column (Q235B)SHS150×100×5.0
3Roof truss beam (Q235B)HN396×200×7×11
4Floor main beam (Q235B)HN600×200×11×17
5Tie bar (Q235B)SHS100×100×5.0
6Horizontal/Column brace (Q235B)Ø16
7Steel stairs[250#、[200#、[160# channel steel, 4mm checkered plate]
8Angle brace (Q235B)L50×6.0
9Roof purlin (Q355B)C250×75×20×2.0
10Wall purlin (Q355B)C250×75×20×2.0
11Connecting plate (Q235B)6mm–16mm



3. Enclosure Part


No.ItemSpecification
1Roof plate0.6mm thick, type 840 steel sheet
2Exterior wall0.6mm thick, type 900 steel sheet
3Steel man door910×2010×2
4Stainless steel handrail1.1m high
5Roof ventilator600×600
6Gutter2.0mm galvanized
7DownpipeØ110 PVC
8Trimming0.55mm thick steel plate
9Hardware accessoriesNails, supports, structural glue, etc.
