Q: Which is more economical for a 15-storey building?
A: Hybrid systems typically offer 10-15% savings over pure steel.
Q: How to connect steel beams to RCC columns?
A: Use embedded shear connectors with 150mm development length.
Q: Fire rating for hybrid structures?
A: Spray-applied fireproofing (SFRM) on steel + concrete encasement achieves 2-4 hours.
| Quantity: | |
|---|---|
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
garage shed, storage closet, poultry houses, Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and kids, Outdoor, Storage & Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage & Shed, Gym, Laundry

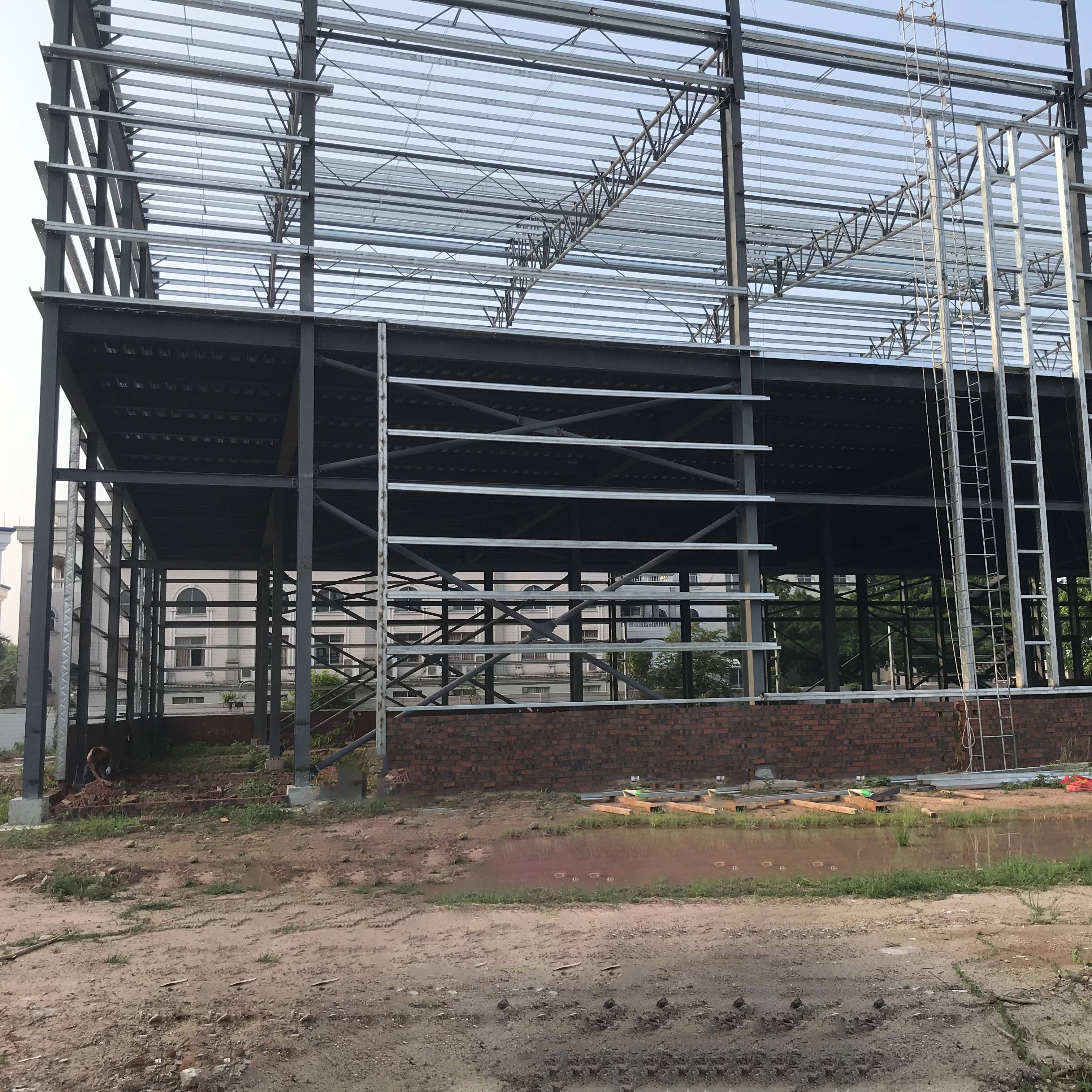

steel
Guangdong, China
Modern
Lifetime
Liyou
LYB-001
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
| Parameter | RCC Structures | Steel Structures |
|---|---|---|
| Material Strength | 25-40 MPa (concrete) | 235-690 MPa (steel) |
| Construction Speed | 0.5-1 floor/week | 2-3 floors/week |
| Span Capability | 10-15m (typical) | 20-50m+ |
| Foundation Load | Heavy (120-150 kN/m²) | Light (60-80 kN/m²) |
| Seismic Performance | Brittle failure risk | Ductile behavior |
| Typical Cost | $150-300/m² | $200-400/m² |
| Design Life | 50-75 years | 50-100 years |
RCC is Better For:
Low-rise buildings (<10 floors)
High mass requirements (blast resistance)
Curved/shell structures
High fire resistance needed (3-4 hrs)
Steel is Better For:
High-rise (>15 floors)
Fast-track projects
Long-span structures
Modular construction
A. Common Hybrid Systems:
Steel Frame + RCC Core (high-rises)
Core handles lateral loads
Steel provides column-free spaces

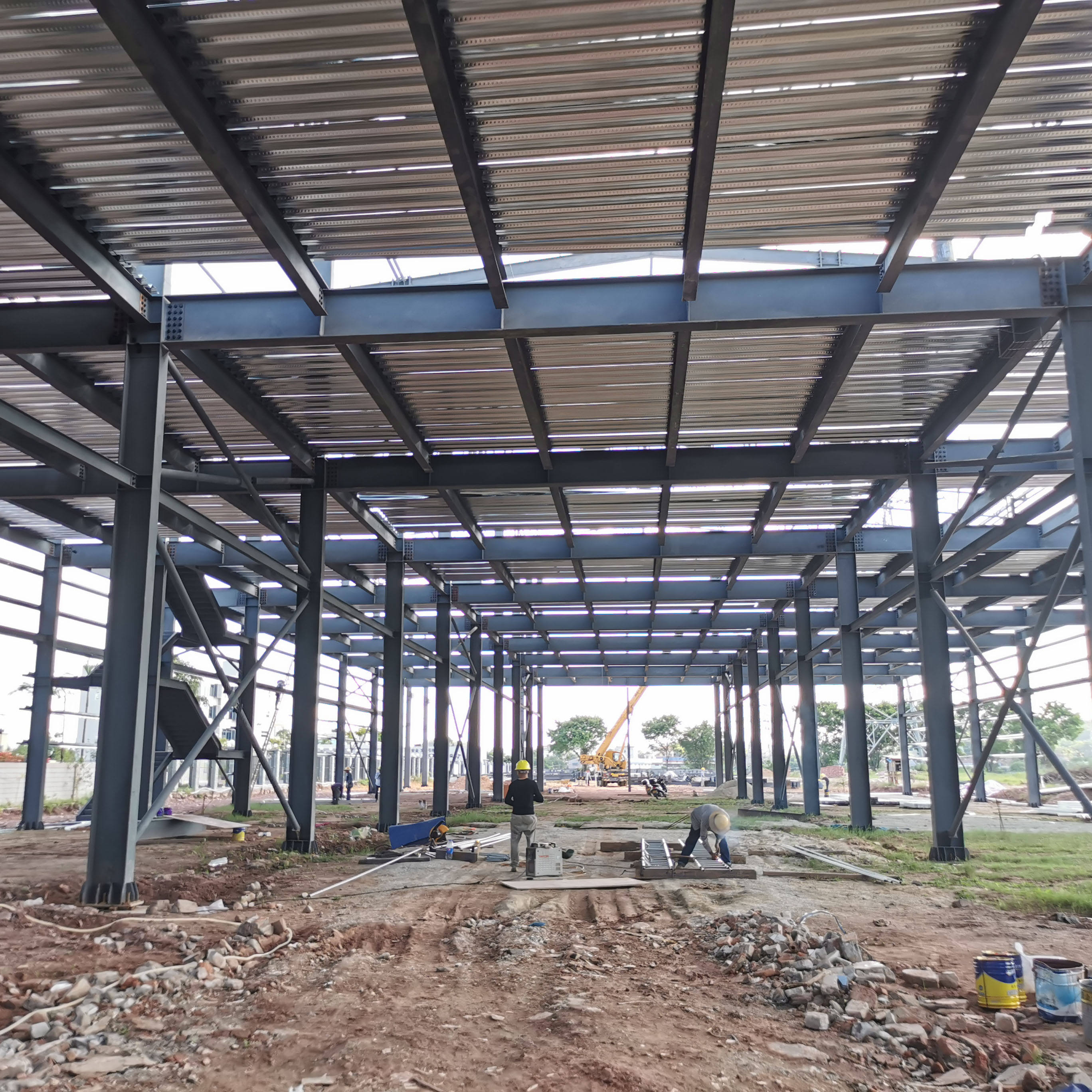

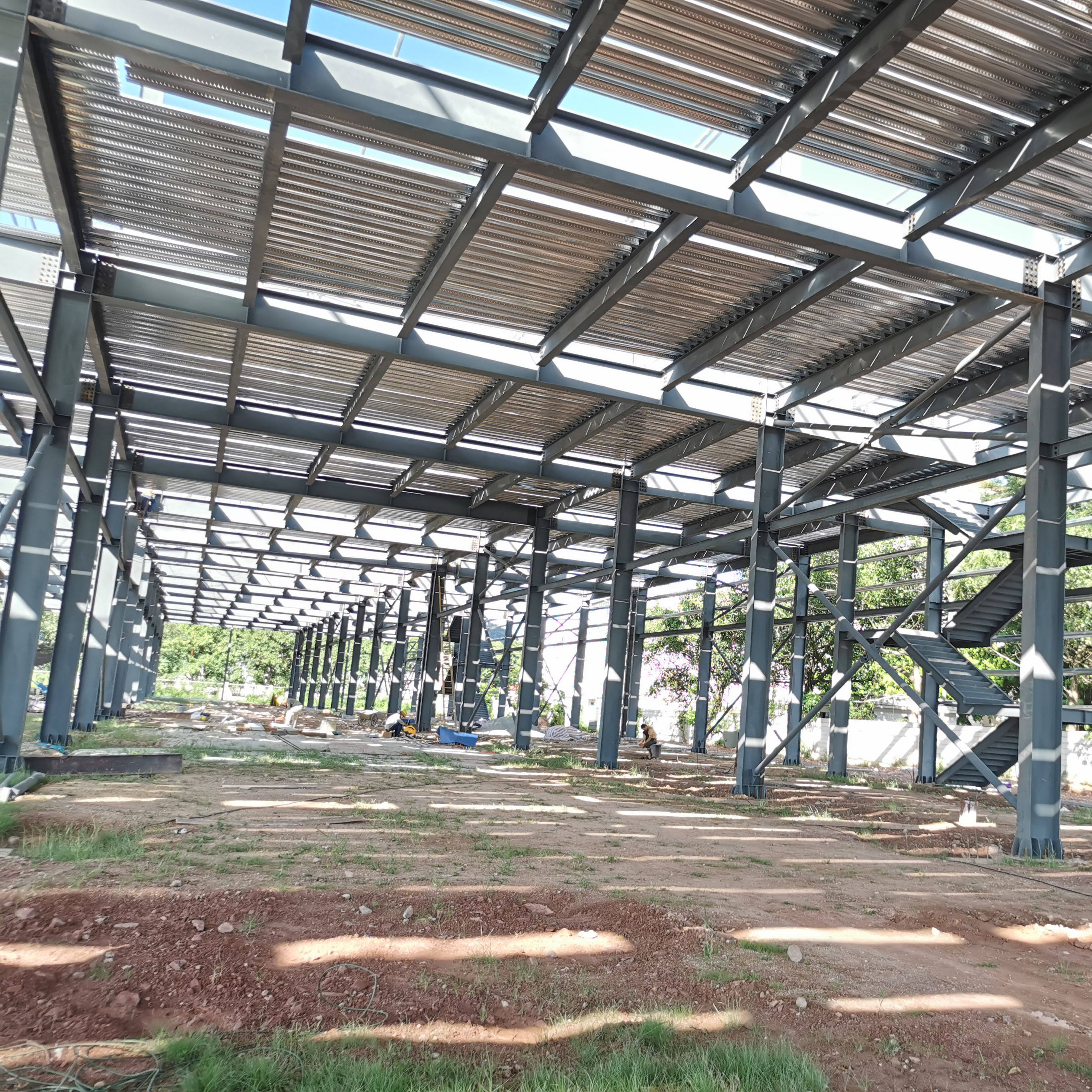

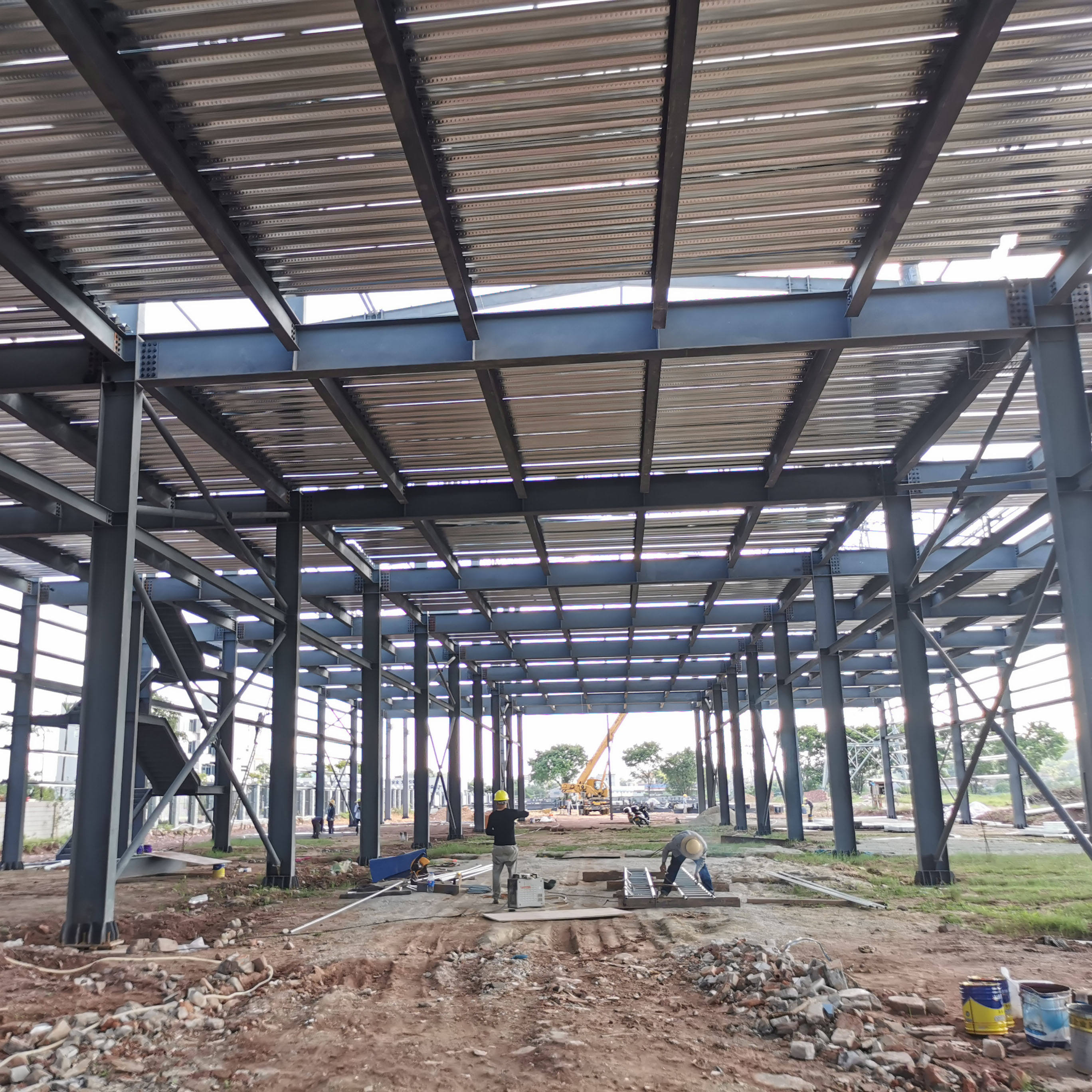

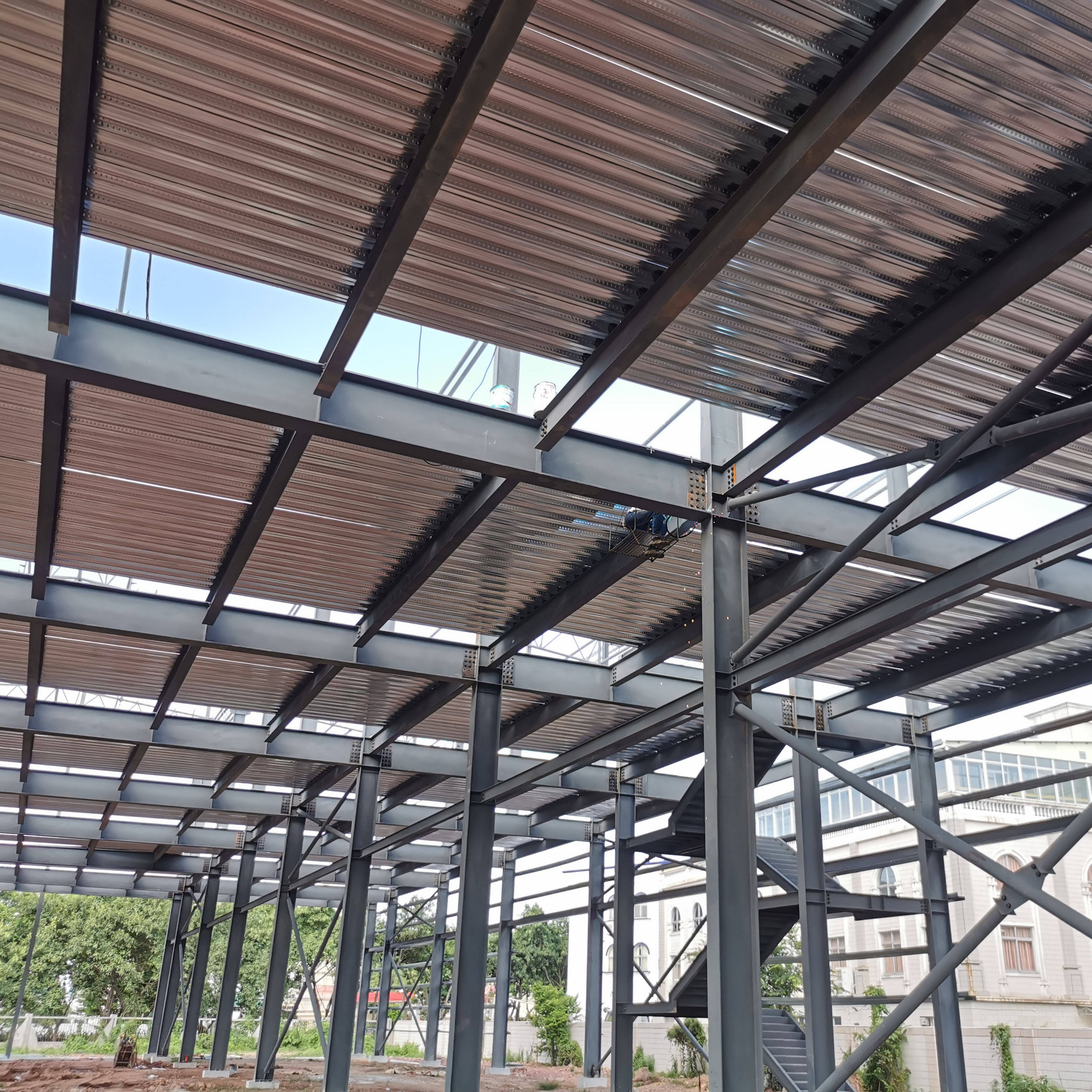

Steel Beams + Composite Deck
50-60% weight reduction vs RCC
Faster construction
RCC Basement + Steel Superstructure
Combines underground strength with speed above
B. Connection Details:
Embedded Plates: Cast into RCC for steel connections
Shear Studs: 19-25mm diameter @ 300-600mm spacing
Grout Pads: 50-75mm non-shrink grout layers
| Component | RCC Specs | Steel Specs | Interface Requirements |
|---|---|---|---|
| Columns | M30 concrete | H350x350 | Base plate with 4-M30 anchors |
| Floors | 150mm slab | 75mm composite deck | Headed studs @ 450mm c/c |
| Connections | - | End plate moment | 35mm thick embed plates |
| Structure Type | Cost/m² | Time Savings |
|---|---|---|
| Pure RCC | $280 | Baseline |
| Pure Steel | $380 | 35% faster |
| Hybrid | $320 | 25% faster |
Hybrid System: RCC core + steel perimeter
Results:
28% less construction time
15% material cost savings
LEED Gold certification
ETABS: For hybrid system analysis
Revit + Tekla: BIM coordination
SAFE: Composite floor design
Custom connection designs
Pre-fabricated steel components
On-site technical support
| No. | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
