Solar Towers have become a popular way to focus the sun’s rays and convert them into usable energy that powers our homes, offices, and cities. This Prefabricated Solar Tower Kit is designed to quickly and efficiently harness the sun’s energy in your solar power setup.
Our Prefabricated Solar Towers are built from high quality steel and designed to withstand winds up to 110 km/hr. Each individual weld is inspected to ensure that it is strong and safe, and all the steel is painted with an imported anti-corrosion paint to ensure a long life for your Solar Tower.
Due to our efficient building processes, completion time for our Prefabricated Solar Tower Kits is around 3 months once your order has been accepted.
● Our Prefabricated Solar Tower Kits are built with high quality steel that is painted with anti-corrosion paint to ensure a long life span.
● Each individual weld is put through inspections and tests to ensure a safe, strong weld.
● Solar Towers are designed to withstand 110 km/hr winds, and their seismic grading is 8.
● We offer excellent customer service both during and after completion of your order.
● Customize this tower to suit your needs!

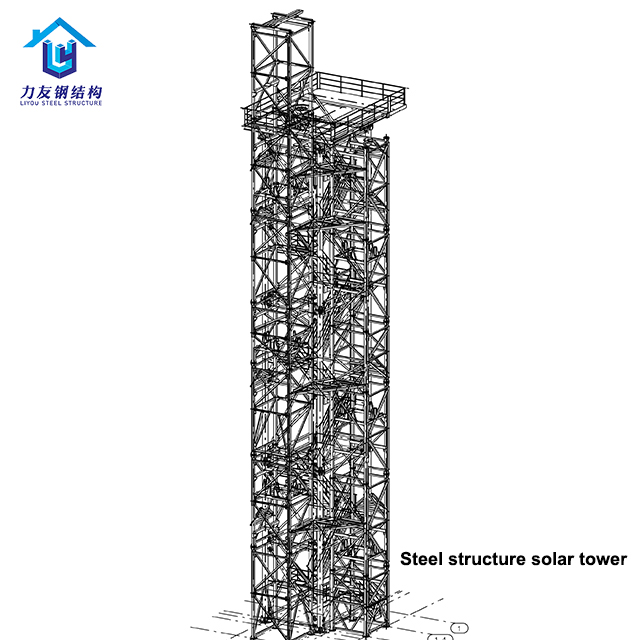

Prefabricated Steel Structure Tower Info
Project Location: USA
Weight: 20Tons

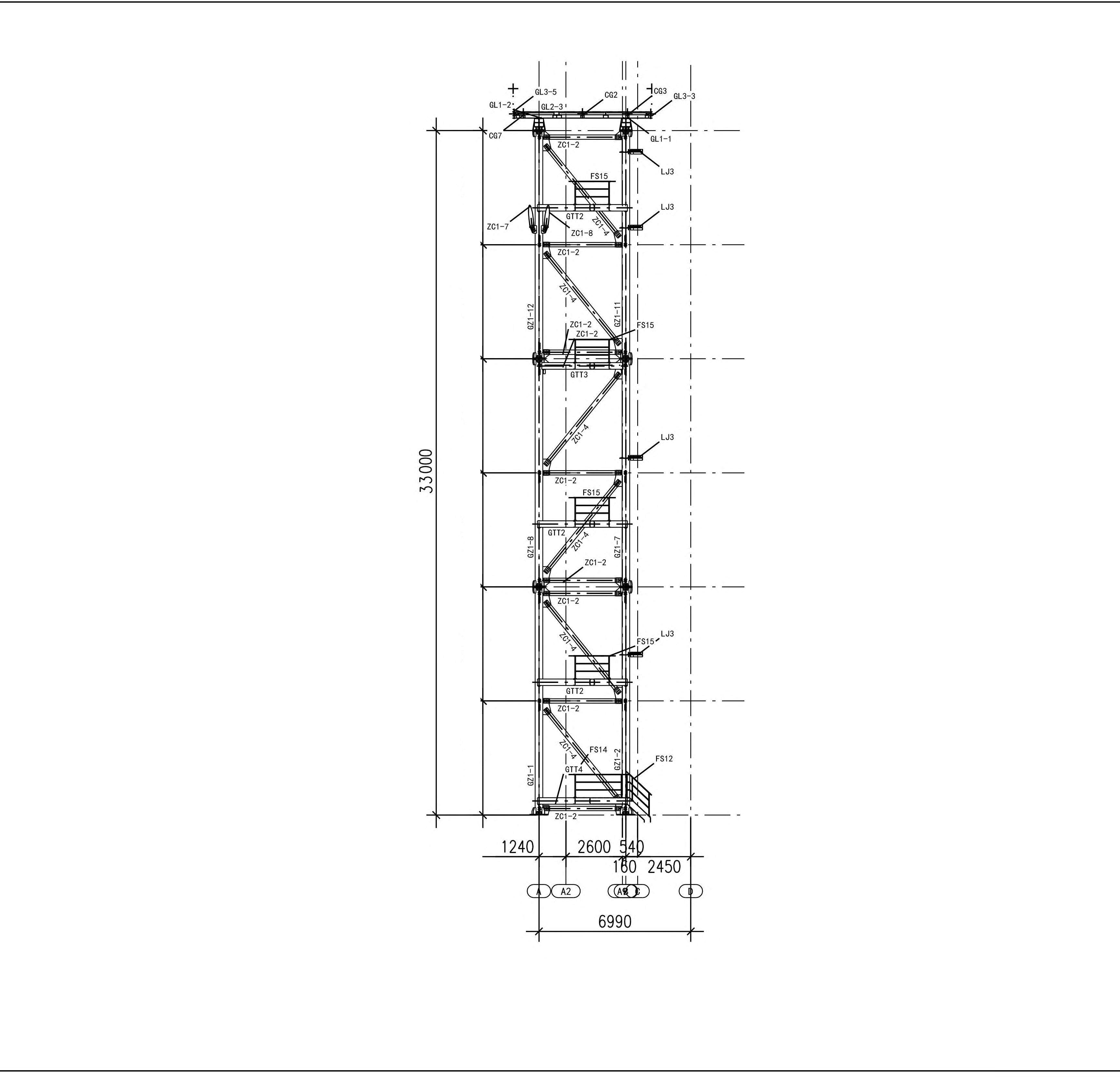

Heigh: 33m
Wind Resistance: 110km/h
Anti Seismic: 8 grade
Floor Dead Load: 550kg/㎡
Floor Live Load: 300kg/㎡
Project Requirements:
Prefabricated steel structure solar tower has very high requirements for processing technology of steel structure. All welds are subject to flaw detection. The anti-corrosion paint is imported Haihong Hempel brand paint with a coating thickness of more than 180um.
Solution:

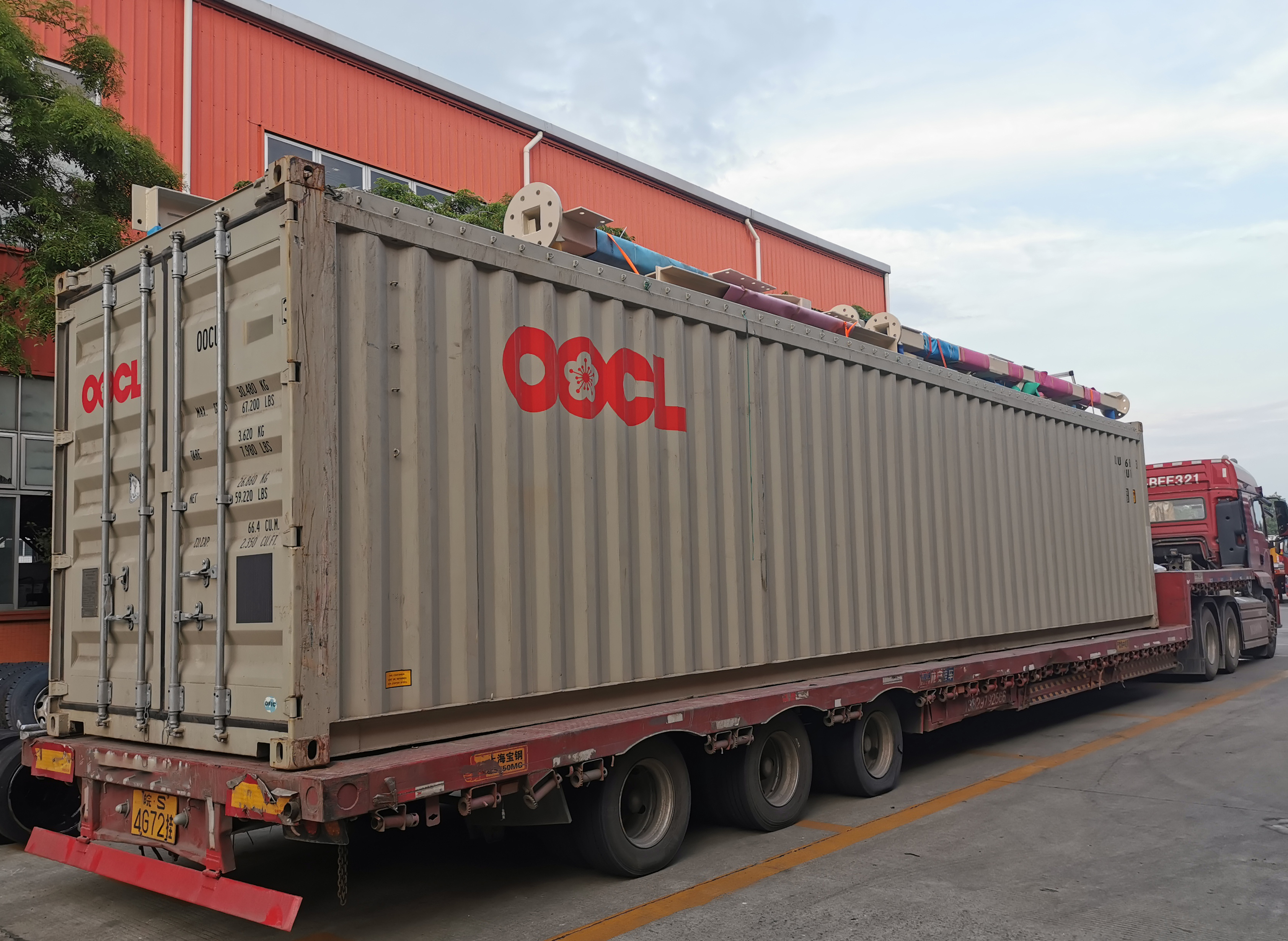

In full accordance with process requirements proposed by the owner, the paint cost is very high. The construction period is also in a hurry, we delivered 2-3 trucks steel frame every day. It took only 3 months to complete the whole project, checked and accepted in advance for delivery.
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Prefabricated Steel Structure Solar Tower |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel | |
Standard: | Type: |
GB | Light Steel Structure Frame |
Size: | Technology: |
Up to Customer's Requirement | Welded steel, Hot Rolled Steel |
Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | Prefabricated Power Station Steel Structure |
Components | Specification |
High Strength Bolt(10.9) | M 22x60 |
| High Strength Bolt(10.9) | M 27x65 |
| High Strength Bolt(10.9) | M 27x70 |
| High Strength Bolt(10.9) | M 27x80 |
| High Strength Bolt(10.9) | M 27x100 |
| High Strength Bolt(10.9) | M 27x105 |
Galvanized Bolt | M12×45 |
Galvanized Bolt | M12×50 |
Platform frame | CG1 *3100 |
| Platform frame | CG2*2665 |
| Platform frame | CG3*3100 |
| Platform frame | CG4 *2665 |
| Platform frame | CG5 *3100 |
| Top brace | SHS150*8 |
| Handrail | PD32*1.5*32pcs |
| Steel beam | HW400*408*21*21 |
| Steel beam | HW300*305*15*15 |
| Steel beam | HM194*150*6*9 |
| Stairs platform beam | C30A*9pcs |
| Steel Column | CHS351*14 |
| Steel frame column | SHS150*8 |
| Angle steel frame | L110*12 |
| Tie Rod | SHS150*8 |
| Angle brace | L100*10 |
| Plastform beam | SHS150*8 |
| Lifting platform | C22A |
| Bracing | CHS203*8 |
| Kick plate | PL100*6 |
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
The steel structure building is widely used in Steel Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall, etc.
Guangdong LiYou Steel Structure Engineering Co., Ltd. is headquartered in the National High-tech Development Zone, Shishan Town, Nanhai District, Foshan City, and the factory is located in Baini Town, Sanshui District, Foshan City. The head office was established on September 28, 2014. It is a service enterprise integrating steel structure consulting, design, production, construction, and maintenance. Mainly engaged in steel structure prefabricated buildings, including portal steel frames, pipe trusses, box columns/beams, steel lattice columns, H-shaped steel, and other steel structure products.
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q: What should you provide before quotation?
A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.
Q: What accessories do we provide for customized steel buildings?
A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.
Q: Can the steel building be installed by yourself?
A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.
Q: What should be prepared for the site before installation?
A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.
Q: Do we have a recommended foundation and associated drawing?
A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
