In most cases, steel frames are made up of vertical columns and horizontal beams that are fastened together in a straight line. Loads applied laterally to the axis of a steel beam are resisted by the horizontal nature of the member. Compressive loads are transmitted by the use of columns, which are vertical structural components. Use it to build a structure's framework. Using steel frames to build a commercial building comes with a lot of advantages.
*Resistance to the wind
Place of Origin: | Product Name: |
Foshan, China (Mainland) | Modern Steel Commercial Building |
Material: | |
Q345 Q235 H Section Steel, C/Z Section Steel | |
Standard: | Type: |
GB | Light Steel Frame |
Size: | Color: |
Up to Customer's Requirement | Customized |
Roof & Wall Material: | Door: |
Steel Sheet or Sandwich Panel | Rolling gate / Sliding Door |
Window: | Finished: |
Aluminum shutter | Paint or hot-dipped galvanized |

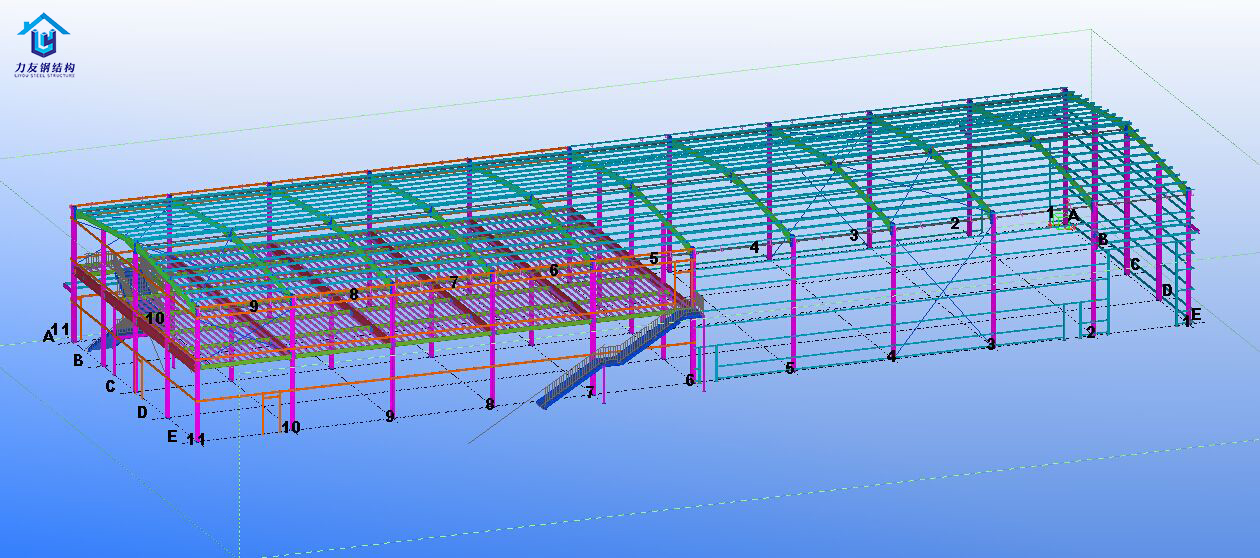

Drawing Design: | Keywords: |
AutoCAD, Tekla Structure, Vertex BD, SketchUp etc. | steel structure buildings for sale |
| Embedded parts | Specification |
| Embedded bolt | M27*900 |
| Anchor bolt | M16*160 |
| High strength bolt | M20，10.9S |
| Common bolt | M20 |
| Tie rod | Φ12 |
| Galvanized bolts | M12 |
Bracing | Φ32*2.5 |
| Main steel frame | |
| Steel Column（Q355B） | H300~600X220X6X10 |
| Wind column（Q355B） | H350X200X6X8 |
| Roof beam（Q355B） | H700~400X200X6X10、 H400~700X200X6X10 |
| Tie rod | Φ114*3.0 |
| Column brace | Φ22 steel bar |
| Horizontal brace | Φ22 steel bar |
| Angle brace | L50*4.0 |
| Roof purlin(Galvanized) | C220X70X20X2.2 |
| Wall purlin(Galvanized) | C200X70X20X2.2、 C200X70X20X2.0 |
| Connecting plate | 6-20MM steel plate |
| Steel structure processing section | |
| Structure steel fabrication | Acetylene, oxygen, electrode, |
| Structure steel+Sanding | Sa2.5 |
| Painting | White grey,yellow |
● Low maintenance costs
● Environmentally friendly and recycling.
● Offer flexibility for fixing doors, windows and interior partitions
● Steel structure construction is strong, durable, and stable.
● Steel components are resistant to termites and other destructive insects.
● The service life of steel structure building is more than 50 years.
● Fast construction, easy installation, and convenient to transport.
The steel structure building is widely used in Steel Garage, Plant, Warehouse, Workshop, Office Building, Hotel Building, Commercial Building , Residential House, Airplane Hangar, Outdoor Stadium Shed, Labour Camp, School, Exhibition Hall, Logistics Park, Refrigeration House, Resort, Dormitory Building, Shopping Mall, etc.
Foshan Teamwork Steel Structure Co.,Ltd was found in 2008. We are specialized in designing, manufacturing, marketing and construction of the Modern Steel Building, steel structure warehouse, steel structure workshop, prefabricated house and light steel villa.
Teamwork Steel Structure have two production workshops covering an area of 17000 square meters. One plant is in LiShui Town, Foshan, which mainly produces prefab house, fence, aluminum door, and window. The other one is located in Gaoming district, Foshan which mainly produces prefab steel structure building. With the modern advanced facility, we have the capability to manufacture 30000~50000 sqm per month.
01 Customized Design
Offer professional building planning & drawing, and suitable steel components according to your requirements.
02 Quality Assurance
● Strict quality control
● Safe packing
● Quality inspection before shipment
03 After-sales service
● Installation instruction on site
● Installation technical team backup
● Timely communication by Email & Phone
Q: What should you provide before quotation?
A: Please send your design drawings, or sketches to us and tell us the materials you want to use. If you do not have the drawings, just inform us more data about the steel building you need, like the building total area, detail dimension, floor amount, roof load, wind load, etc.from all of your requests. If you can make a hand draft, that would be great helpful for us to get your idea.
Q: What accessories do we provide for customized steel buildings?
A: Along with the wall and roof insulation systems, we also offer skylights, commercial-grade ventilation devices such as roof turbine vents and wall louver vents, rolling door, and double sliding doors.
Q: Can the steel building be installed by yourself?
A: Certainly you can. The construction is a simple bolt-together process, which is easy if you have the needed access equipment. Every steel building we make comes with bolts, screws, downspout, gutters, flashing and clear instructions as to show you where everything is to be installed. And we will provide the installation drawing to you for reference.
Q: What should be prepared for the site before installation?
A: You will need concrete piers for the columns to sit upon. Most people pour a full foundation, but if your steel building is on a farm or ranch and there will be dirt, gravel, or sawdust on floors, a pier system may be preferable. In these situations, the popular option is to combine piers with a concrete footing around the perimeter of the building.
Q: Do we have a recommended foundation and associated drawing?
A: Yes, we will provide the foundation drawing and the installation drawing for you after shipment. But the foundation drawing is just for reference because the land and the soil are different in different countries.
