Optimized Warehouse Structure Solutions for Maximum Efficiency

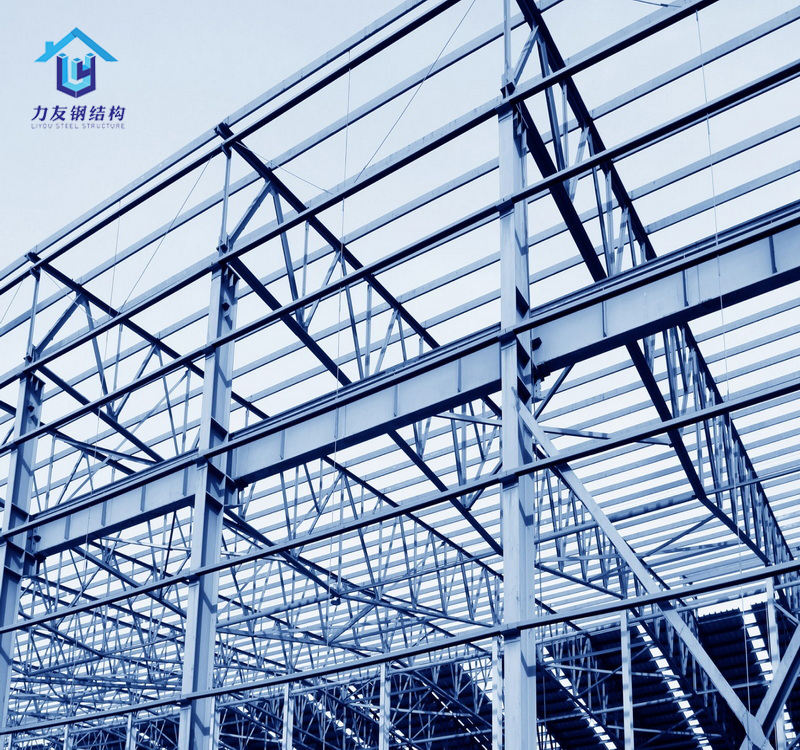

LiYou designs high-performance warehouse structures tailored to modern logistics needs. Our steel-framed warehouse buildings offer:
✔ Clear-span designs - Up to 60m column-free
✔ Heavy-duty framing - Supports mezzanines/cranes
✔ Fast construction - 30% quicker than traditional
✔ Customizable features - Dock doors, ventilation, lighting
✔ Global standards - CE/ISO/SGS certified
With 50,000+㎡ of warehouse structures delivered worldwide, we provide:
• Cold storage facilities
• Distribution centers
• Manufacturing plants
• E-commerce fulfillment hubs
Why Our Warehouses Stand Out:
✅ 20+ year design life
✅ Wind/snow load engineering
✅ Energy-saving options
✅ Expansion-ready designs
Upgrade your logistics with our advanced warehouse structure solutions!
| Quantity: | |
|---|---|
steel
Guangdong, China
Modern
Lifetime
Liyou
LYB-001
CE Certification
Industrial Commercial
C.Z Shape Steel Channel
Sliding Door
Customized Color
Sandwich Panel Optional
Aluminum Alloy Sliding Window
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Hot Dip Galvanized
25-60 days
| No. | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||

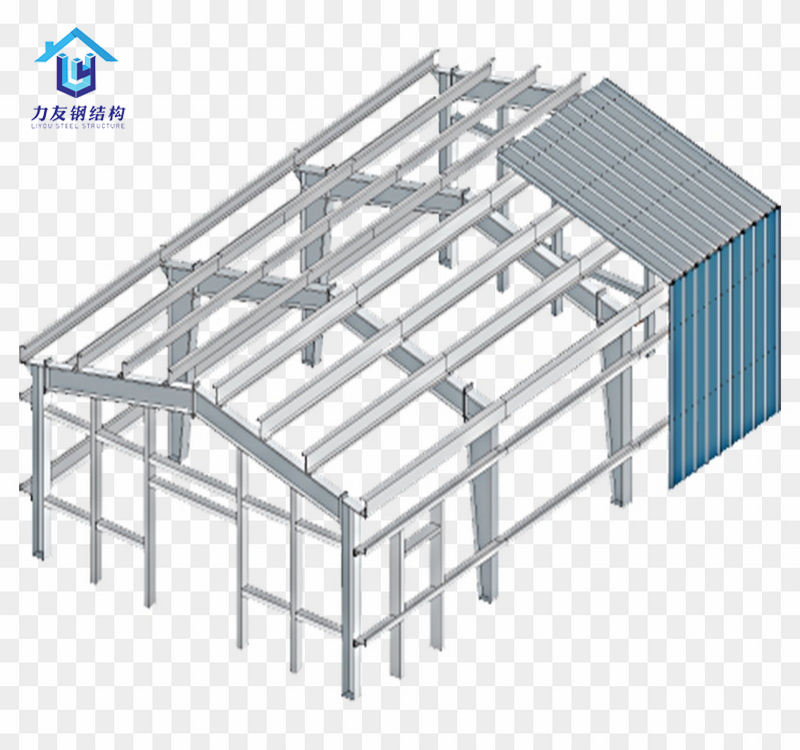

| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
| No. | Components | Specification | ||
| Embedded Parts | ||||
| 1 | Anchor Bolt | M24 | ||
| 2 | High Strength Bolt | M20,10.9S | ||
| 3 | Common Bolt | M16 | ||
| 4 | Galvanized Bolt | M12 | ||
| 5 | Shear Nail | M16 | ||
| 6 | Tir rod | ∅32*2.5 | ||
| Main Steel Structure Parts | ||||
| 1 | Steel Column (Q355B) | H550*300*10*16 | ||
| 2 | Wind Column (Q355B) | H400*220*6*10 | ||
| 3 | Roof Frame Beam (Q355B) | H900~500*220*10*12 H500~650*220*8*12 | ||
| 4 | Crane Beam (Q355B) | H650*320/240*10*16/14 | ||
| 5 | Tie Bar(Q235B) | ∅168*4.0 | ||
| 6 | Horizontal Brace (Q235B) | ∅168*4.0 | ||
| 7 | Column Brace (Q235B) | ∅25 | ||
| 8 | Angle Brace (Q235B) | L63*5.0 | ||
| 9 | Roof Purlin (Galvanized) | Z280*80*20*2.5 | ||
| 10 | Wall Purlin (Galvanized) | C250*75*20*2.5 | ||
| 11 | Connecting Plate | 6mm-30mm | ||
| Other Steel Structure Parts | ||||
| 1 | Roof Panel | 50mm Rock wool Sandwich panel | ||
| 2 | Wall Panel | 50mm Rock wool Sandwich panel | ||
| 3 | Gutter | 2mm Galvanized Steel Plate | ||
| 4 | Down Pipe | PVC160 (Including parts) | ||
| 5 | Trimming | Color steel 0.5mm Gavanized steel panel | ||
